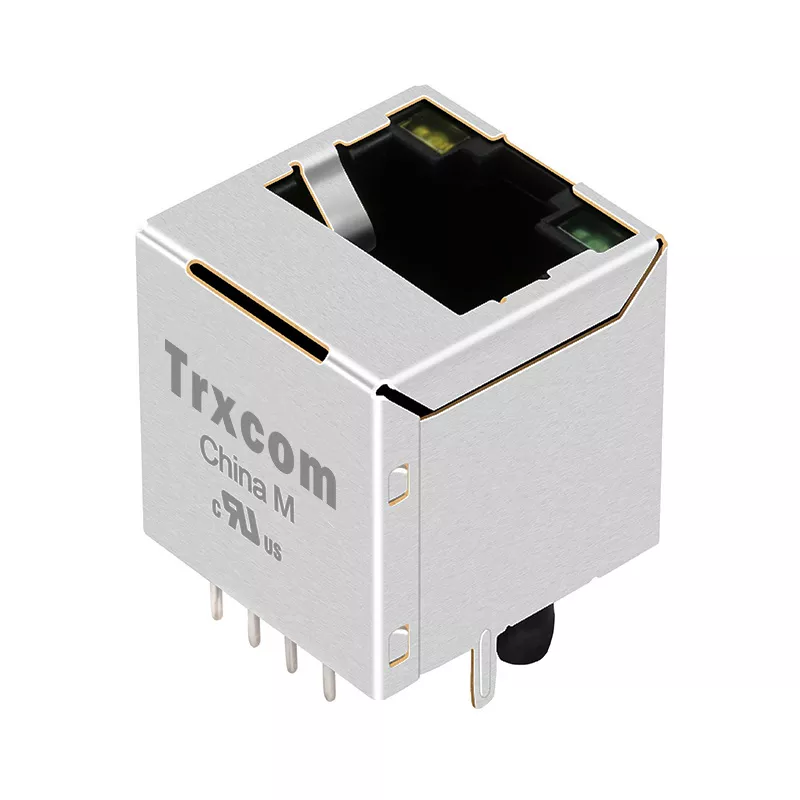

Vertical RJ45 Connector for Top-Entry Networking Solutions

Vertical RJ45 connectors, also known as top-entry connectors or socket RJ45 vertical types, are engineered for applications where Ethernet cables are inserted from the top rather than the front or side. Trxcom offers a range of vertical RJ45 connectors with integrated magnetics, shielding, and LED indicators to support 10/100/1000Base-T Ethernet and PoE standards.

These connectors are particularly suitable for compact switches, access points, industrial controllers, and embedded systems where board space is limited but vertical clearance is available. The top-entry socket RJ45 vertical design simplifies cable routing and reduces mechanical stress on connectors and cables.

All Trxcom vertical RJ45 connectors comply with IEEE 802.3 standards and are tested for signal integrity, EMI performance, and durability to ensure reliable operation in diverse networking environments.

Frequently Asked Questions about Vertical RJ45 Connector

Q: What is a vertical RJ45 connector?

A: A vertical RJ45 connector, sometimes referred to as a socket RJ45 vertical, is a top-entry modular jack designed for Ethernet cables inserted from above the PCB.

Q: Do vertical RJ45 connectors support PoE?

A: Yes, Trxcom vertical RJ45 connectors support Power over Ethernet according to IEEE 802.3af/at/bt.

Q: What applications are ideal for vertical RJ45 connectors?

A: They are ideal for compact switches, access points, industrial controls, and embedded systems with limited PCB area where socket RJ45 vertical solutions help optimize space.
