SMT RJ45 Connector for High-Density Ethernet PCBs

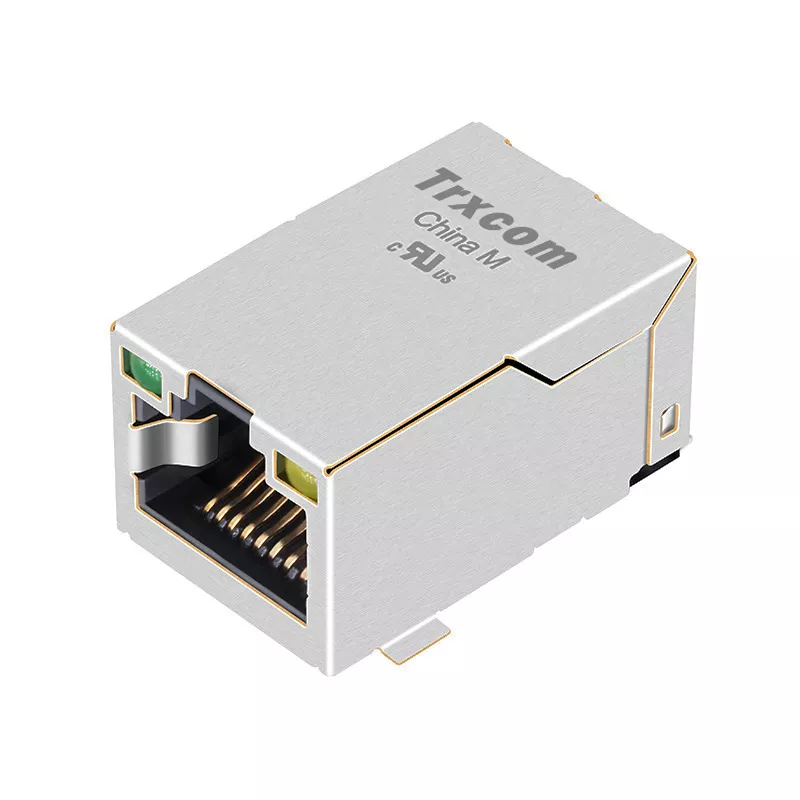

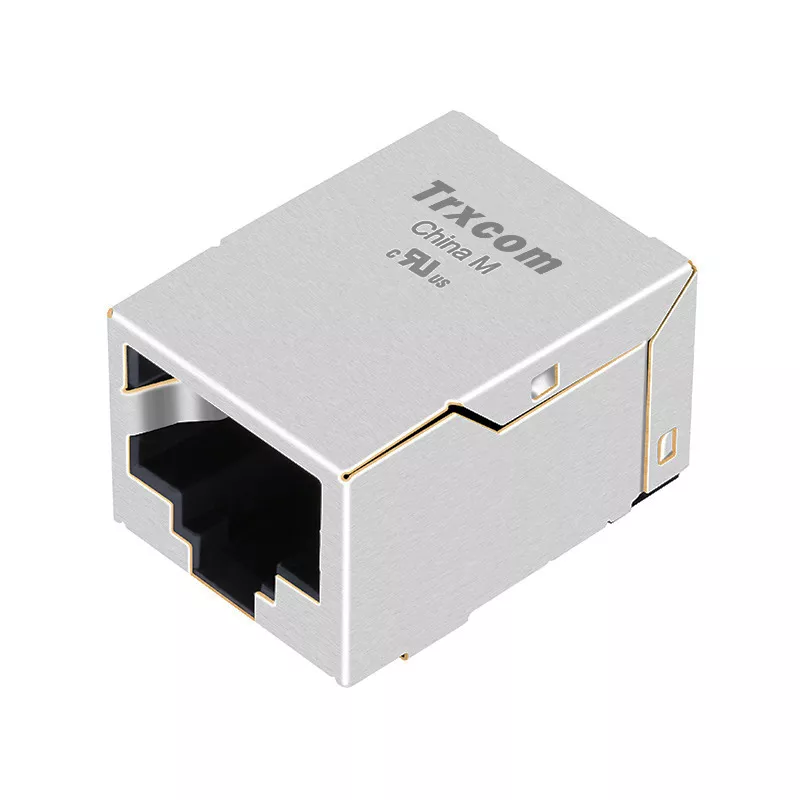

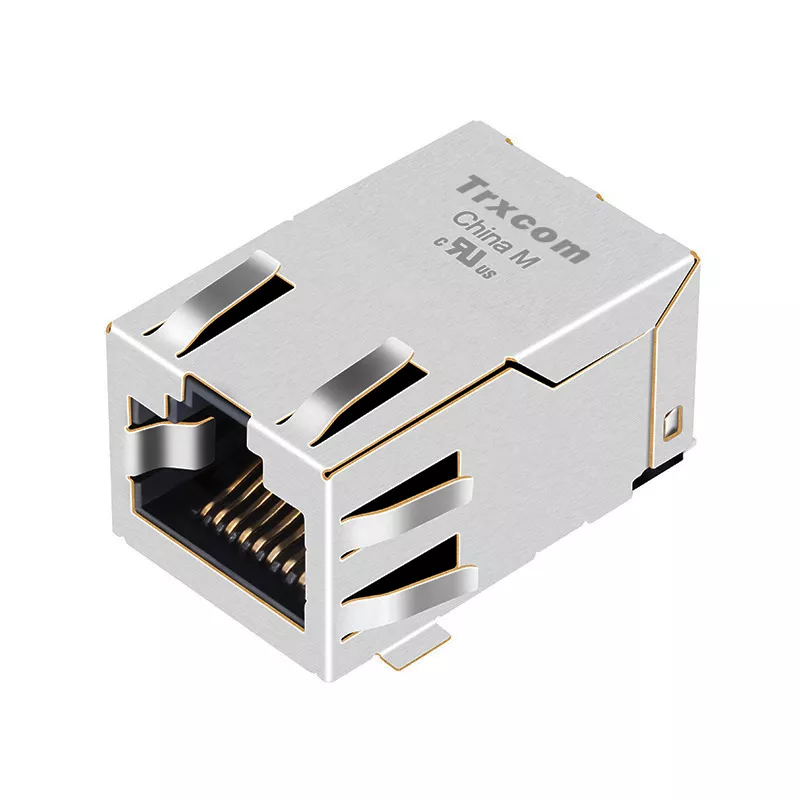

SMT (Surface-Mount Technology) RJ45 connectors are engineered for space-saving, automated PCB assembly in modern network equipment. Trxcom’s SMT RJ45 connectors integrate magnetics and shielding within a compact footprint, making them ideal for high-density Ethernet devices such as embedded routers, switches, and IoT gateways.

These connectors support 10/100/1000Base-T Ethernet speeds and PoE standards, ensuring reliable data transmission and power delivery. With options for LED indicators, various pin configurations, and both shielded and unshielded versions, LINK-PP SMT RJ45 connectors offer design flexibility without sacrificing signal integrity.

Compliant with IEEE 802.3 standards, these connectors undergo rigorous testing for EMI performance and mechanical durability, providing long-term stability in industrial and commercial networking environments.

Frequently Asked Questions about SMT RJ45 Connector

Q: What are SMT RJ45 connectors used for?

A: SMT RJ45 connectors are used in devices with high-density PCB layouts requiring surface-mount components and integrated magnetics for Ethernet.

Q: Do these connectors support Power over Ethernet?

A: Yes, Trxcom’s SMT RJ45 connectors support PoE applications compliant with IEEE 802.3af/at/bt standards.

Q: What are the advantages of SMT RJ45 connectors over through-hole versions?

A: SMT RJ45 connectors offer smaller size, easier automated assembly, and better suitability for compact PCB designs.
