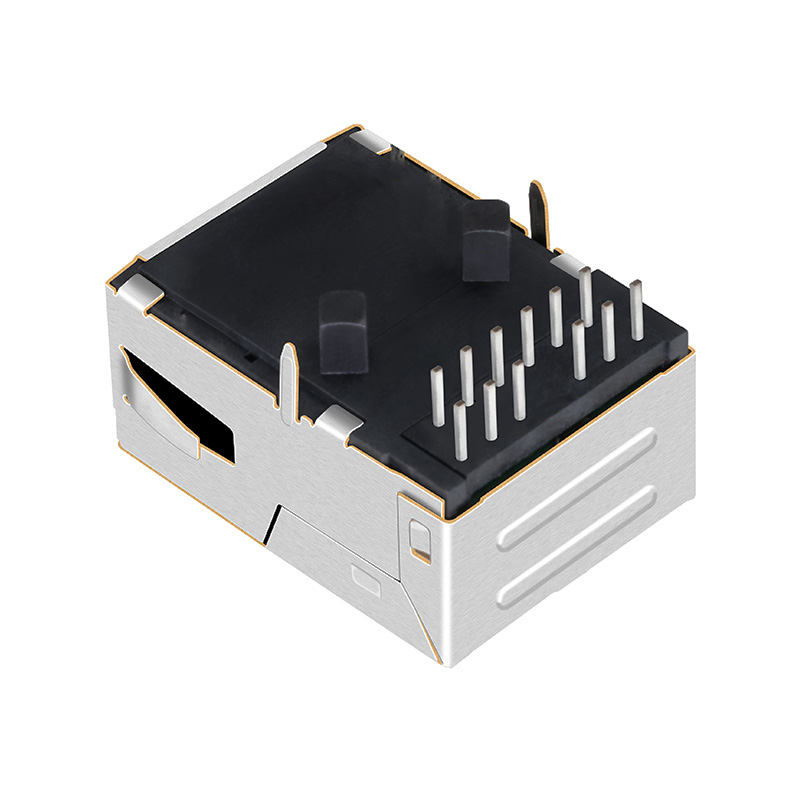

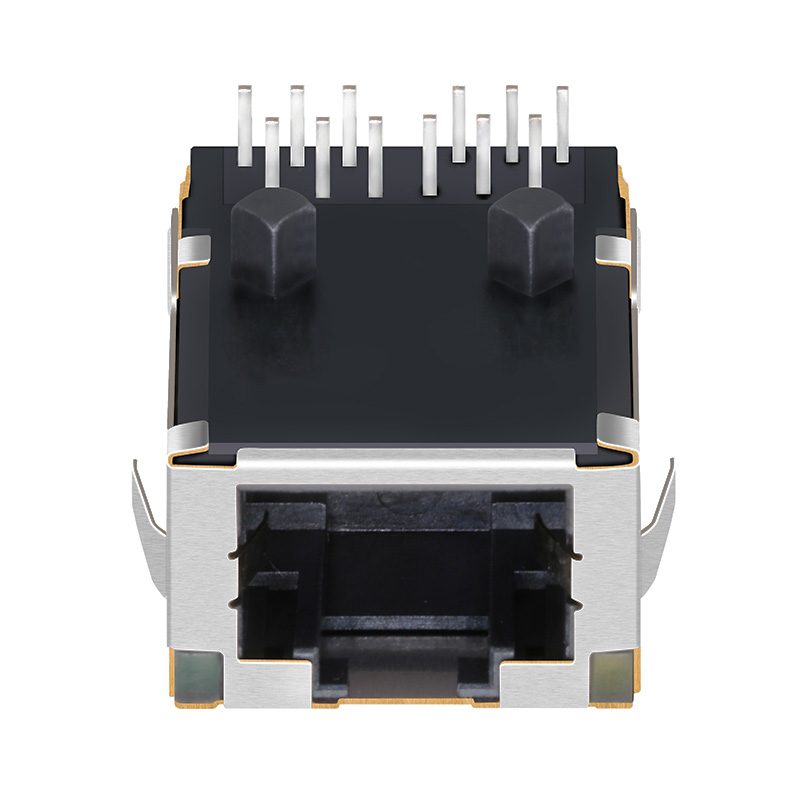

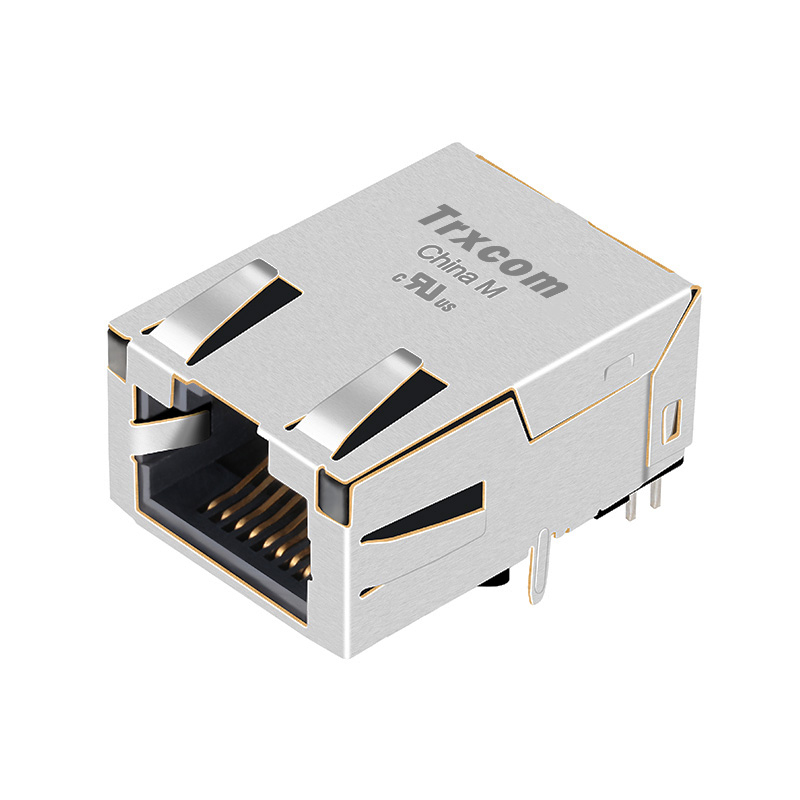

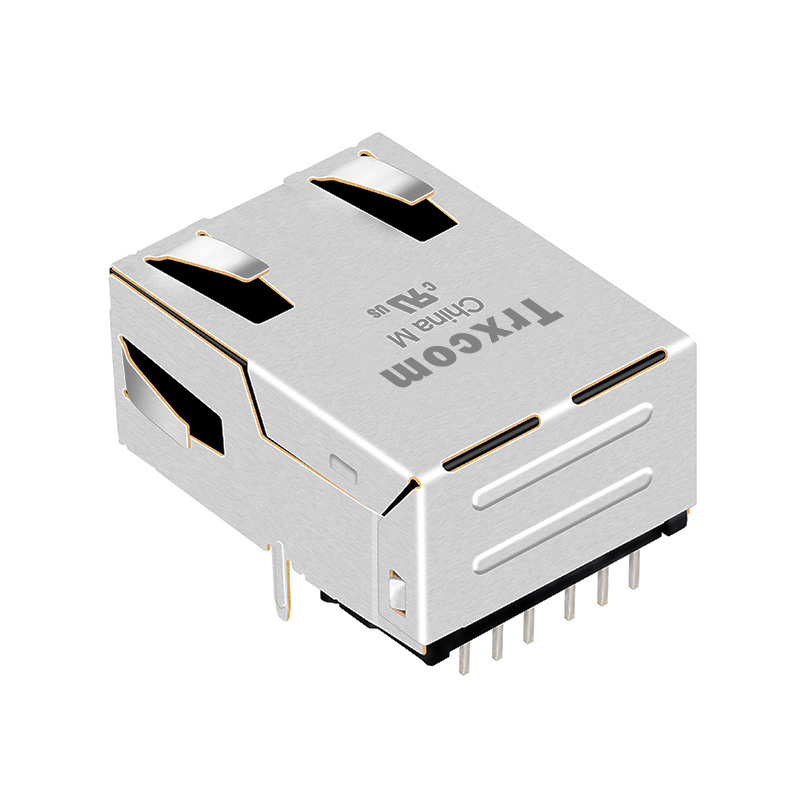

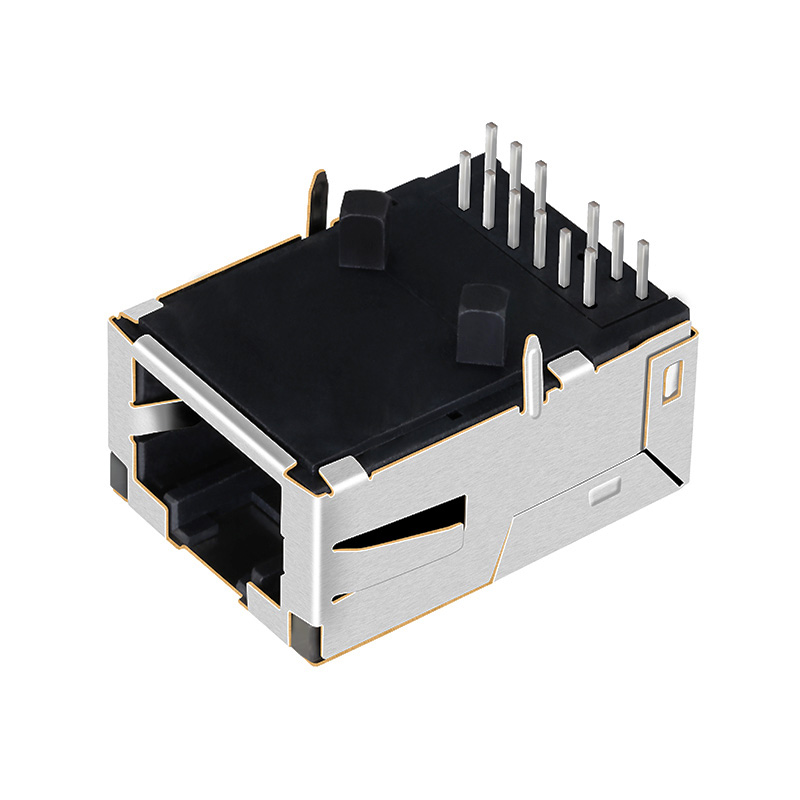

1000 Base-T Low Profile RJ45 MagJack Tab Up Without Led TRJK7036CNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJK7036CNL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJK7036CNL 1000 Base-T Low Profile RJ45 Mag Jack For Smart Camera ( Height 11.30mm,Without LED,Tab Up)

The Trxcom TRJK7036CNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .

Part NumberTRJK7036CNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts12p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100/1000 Base-T
LatchUpCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.445/11.30Package Length (Inches/mm)0.957/24.30
Package Width (Inches/mm)0.701/17.80Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
