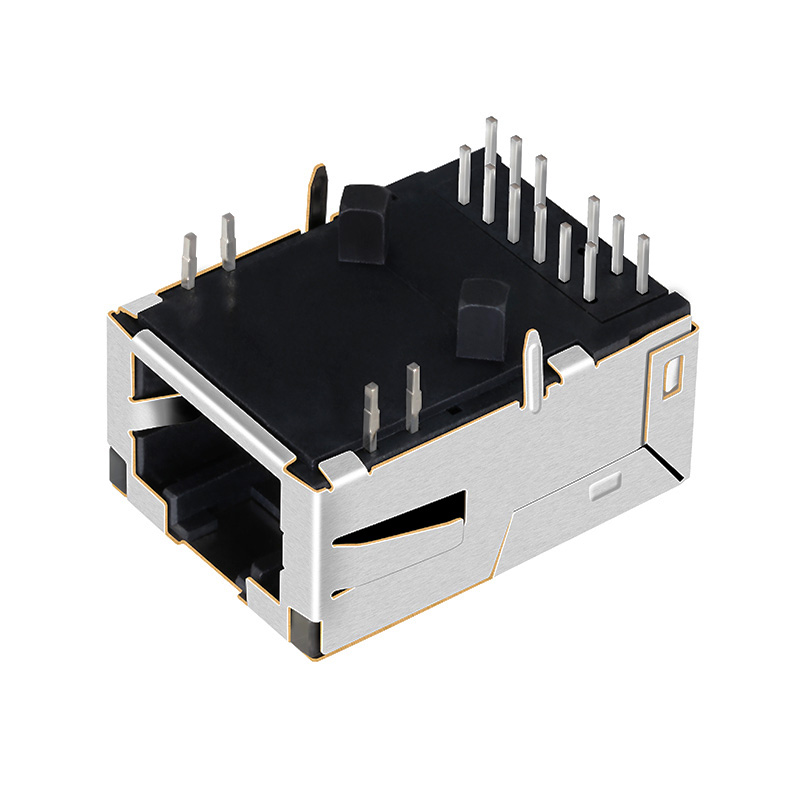

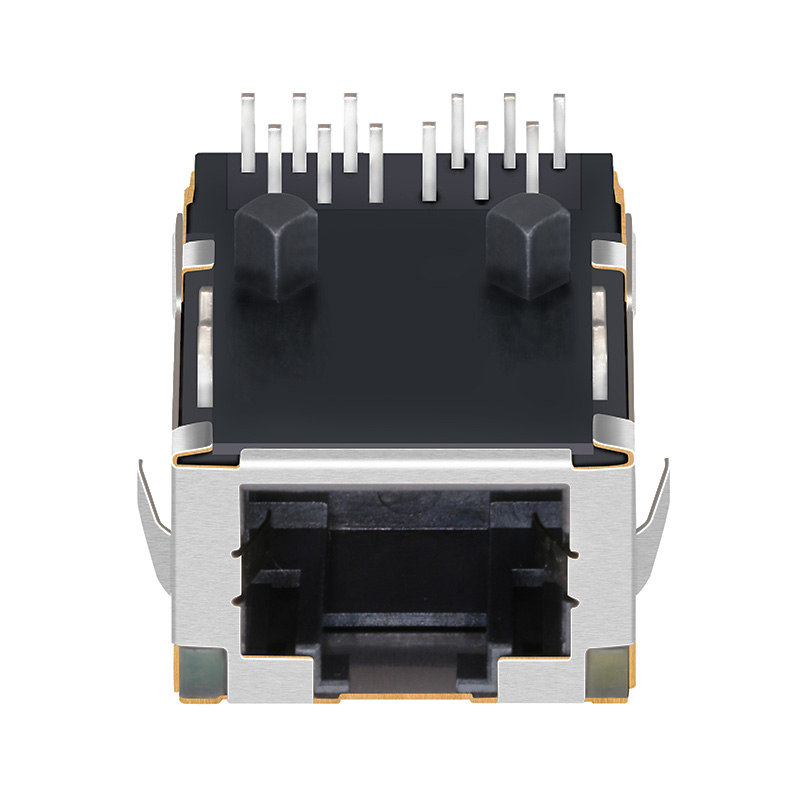

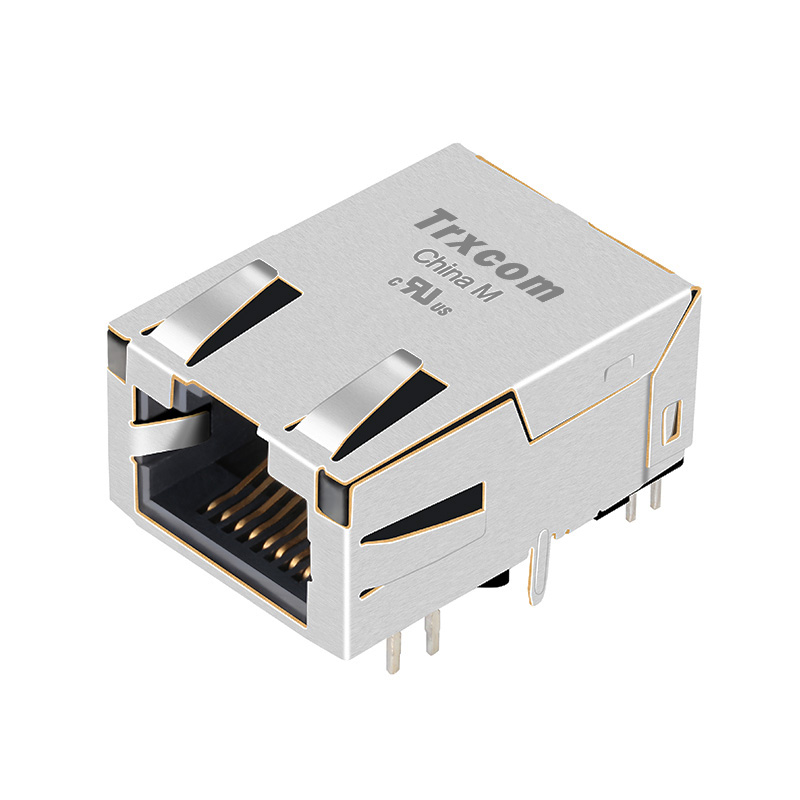

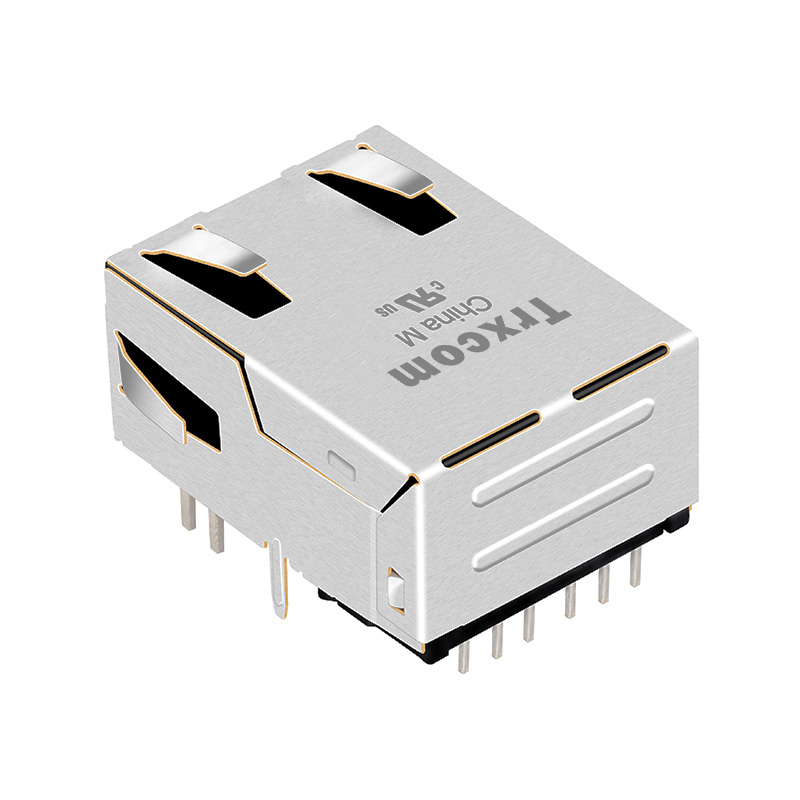

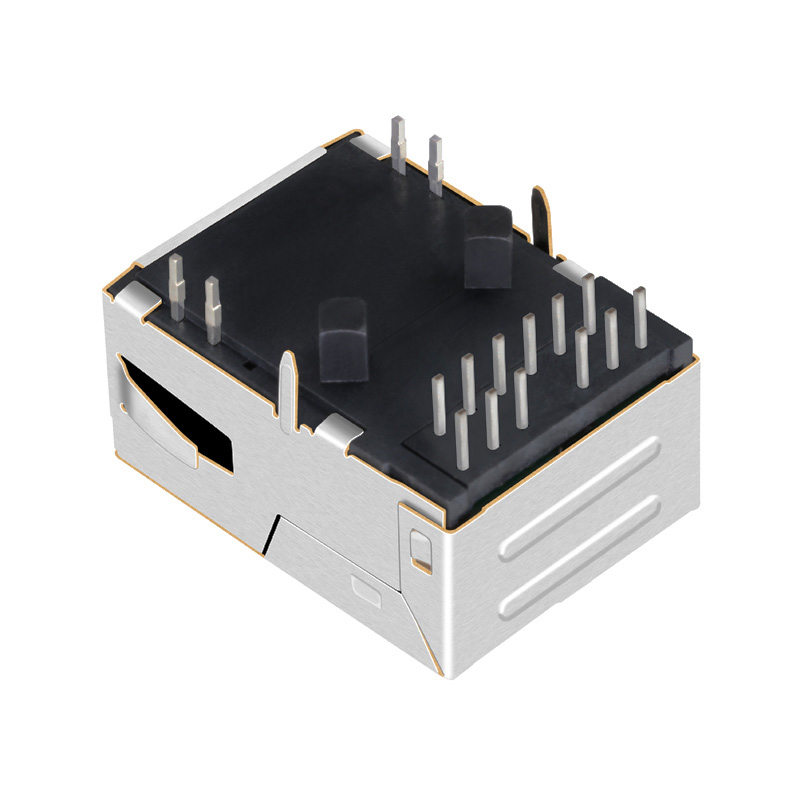

Trxcom 10/100 Base-T Low Profile RJ45 Magjack With Green&Orange/Yellow LED TRJK7008ALNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJK7008ALNL
Port: ： 1X1
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJK7008ALNL 100 Base-T Low Profile RJ45 Magjack For Smart Camera ( Height 11.30mm,Green&Orange/Yellow LED,Tab Up)

The Trxcom TRJK7008ALNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, Video Recorder, Smart Home .

Part NumberTRJK7008ALNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUpCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen&Orange/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.445/11.30Package Length (Inches/mm)0.950/24.14
Package Width (Inches/mm)0.700/17.78Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
