TR21BC01001 2x1 Port SFP+ Cage Connector External Springs
share
Parameter
Number ： TR21BC01001
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)

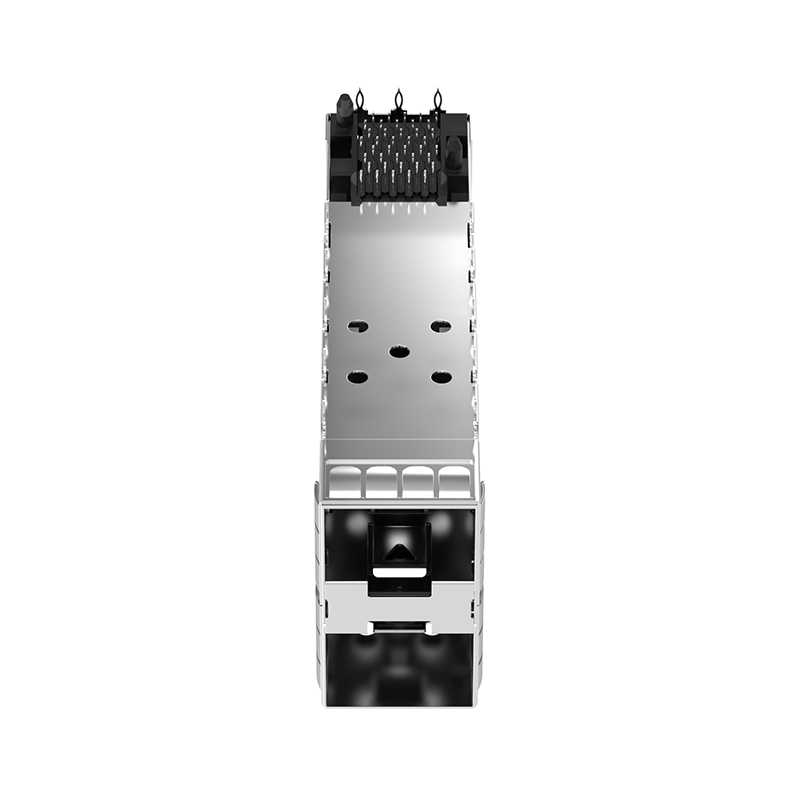

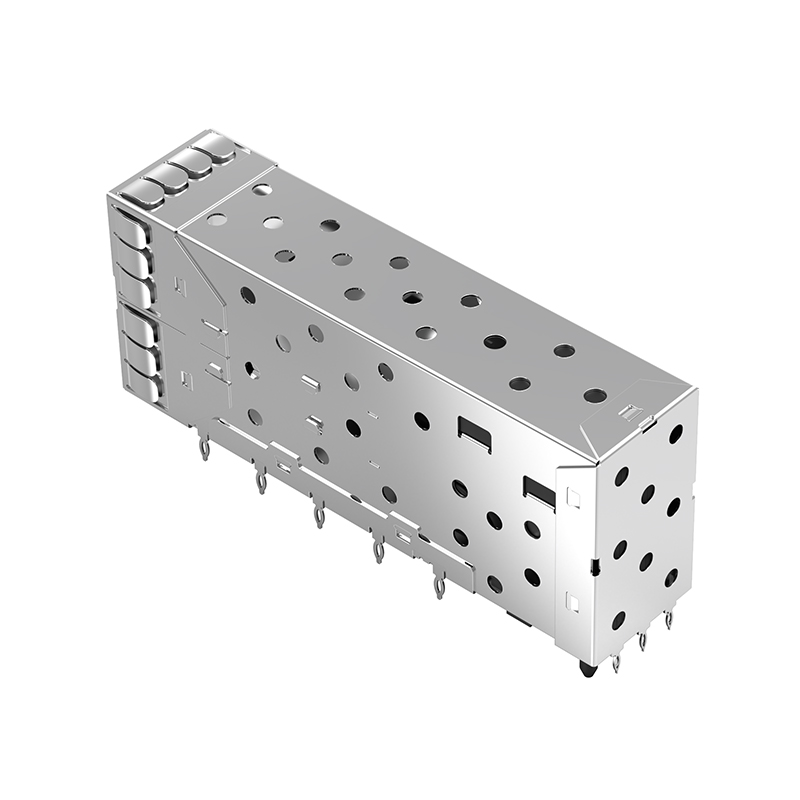

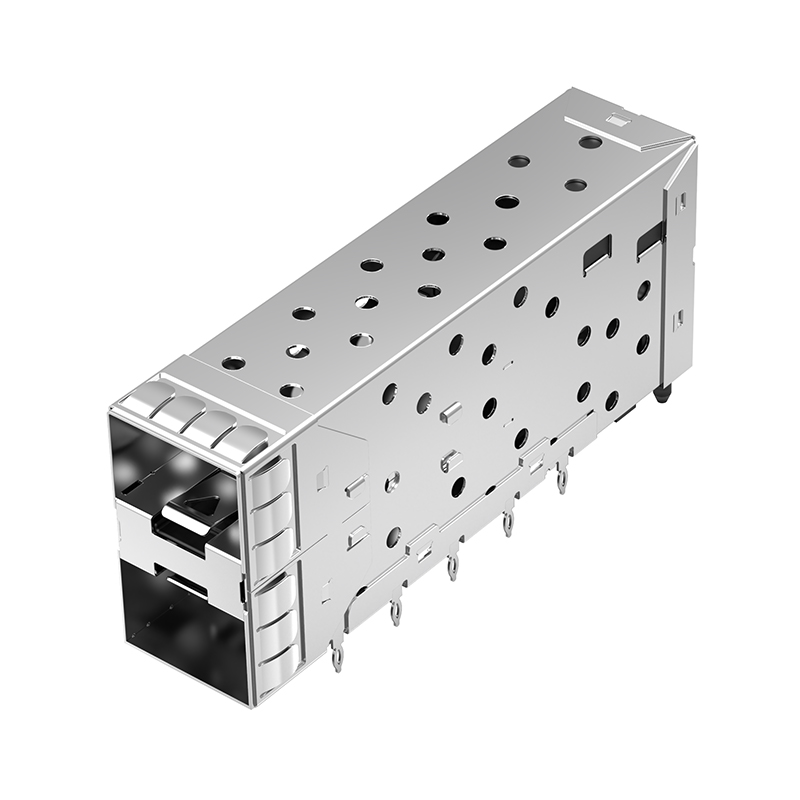

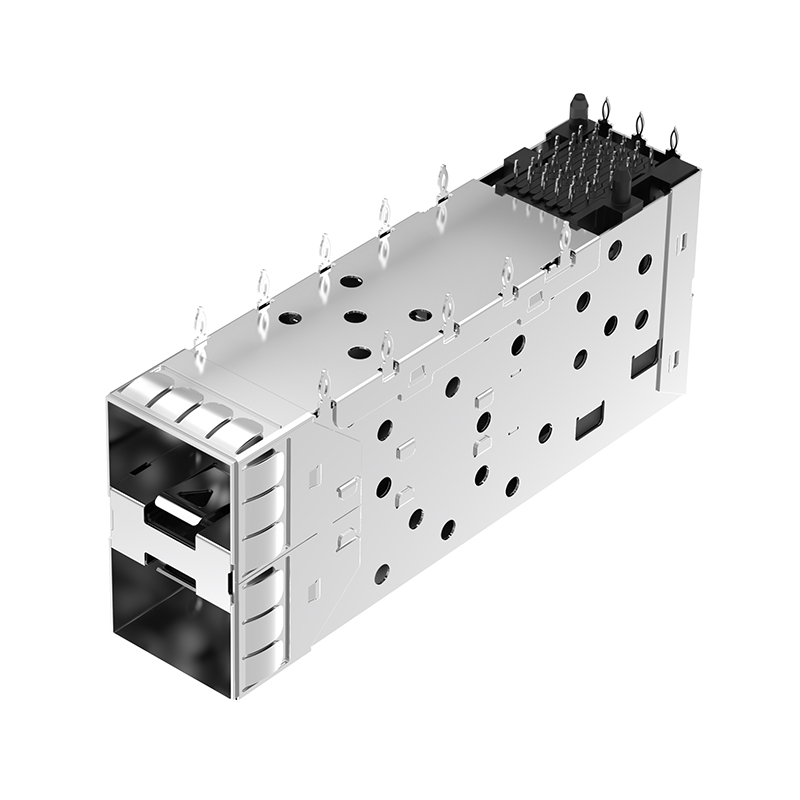

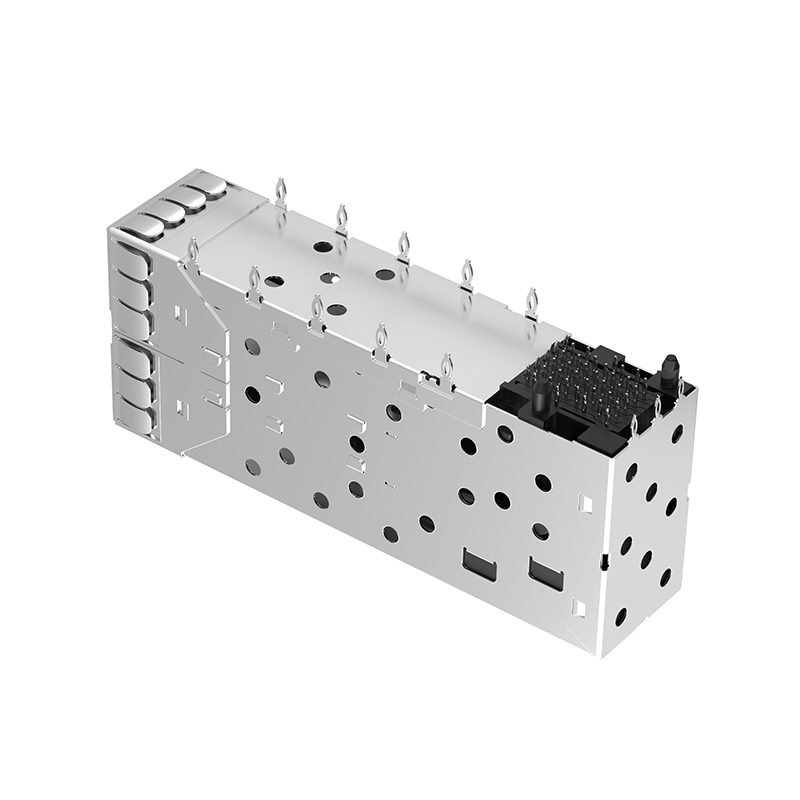

Trxcom TR21BC01001 2x1 Port SFP+ Cage Connector External Springs
The Trxcom TR21BC01001 is a high-performance 2×1 port SFP+ cage connector designed with external springs for enhanced EMI shielding and stable grounding. Its compact layout saves PCB space and supports 10G high-speed transmission, ideal for enterprise switches, servers and industrial networking devices.
| Part Number | TR21BC01001 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Operating Temperature Range | -40 – 85°C | Pluggable I/O Applications | SFP+ |
| Circuit Application | - | EMI Containment Feature Type | External Springs |
| Included Lightpipe | Without Lightpipe | Cage Material | COPPER ALLOY 30u” |
| Length (Inches/mm) | 63.25/2.490 | Width (Inches/mm) | 14.00/0.551 |
| Height (Inches/mm) | 25.53/1.005 | PCB Thickness (Recommended) | 2.36MM( .093 INCH) |
