TR21AC02301 SFP 2x1 Cage Connector Press-Fit With Outer LightPipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR21AC02301
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

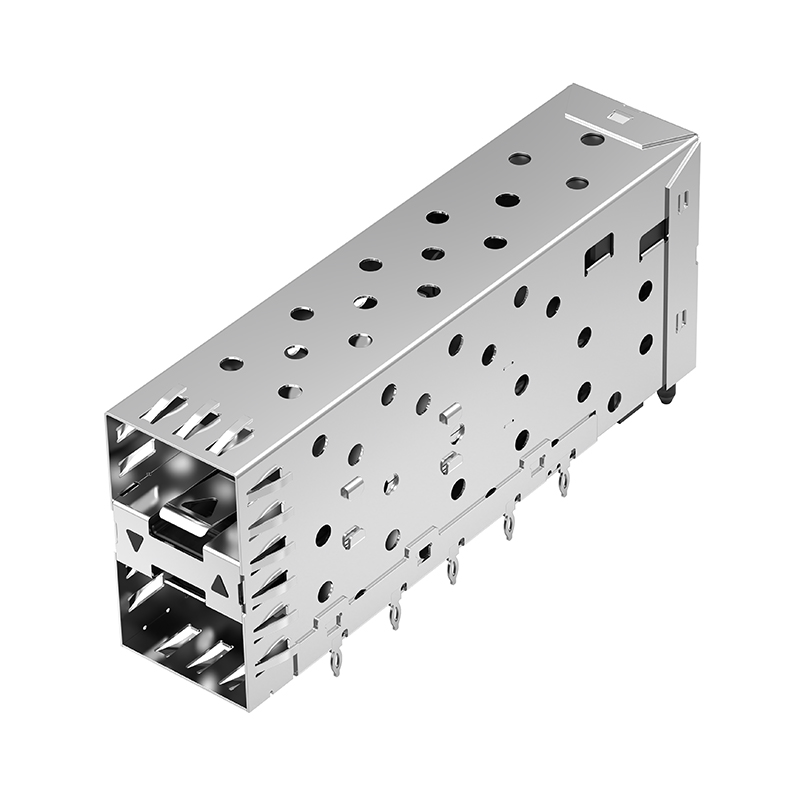

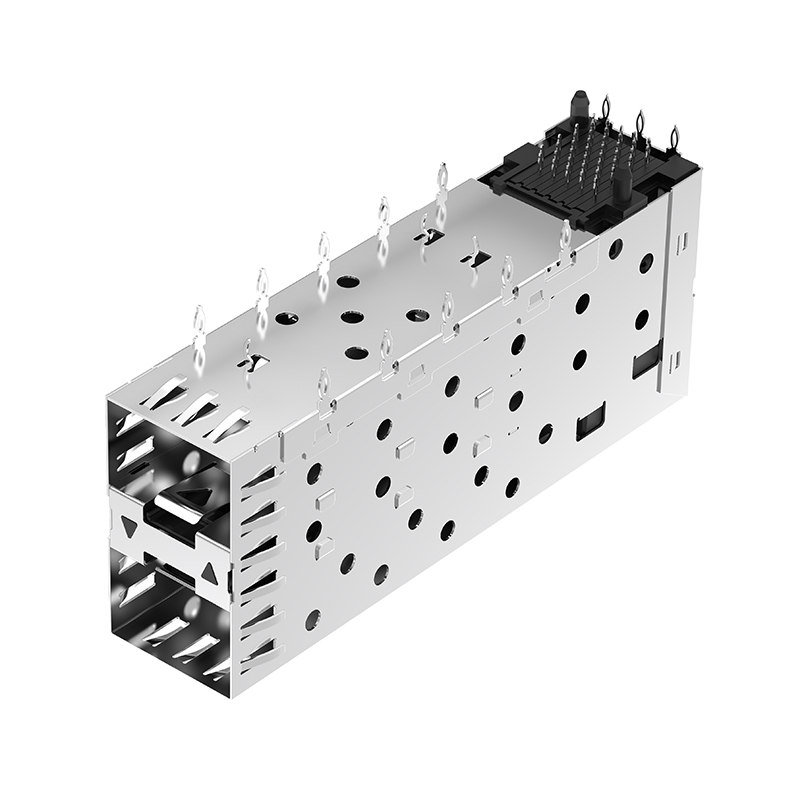

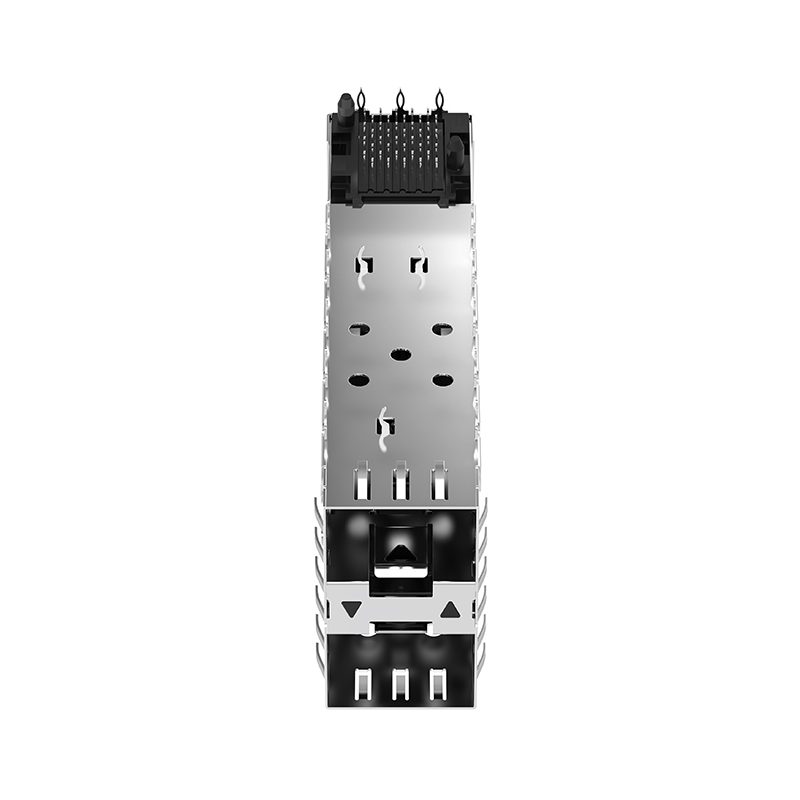

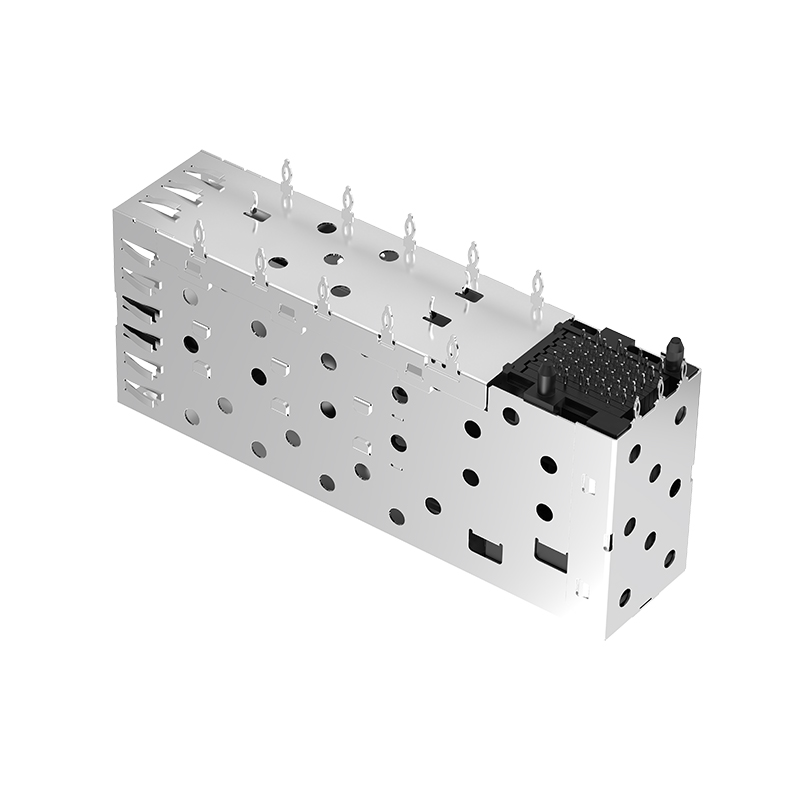

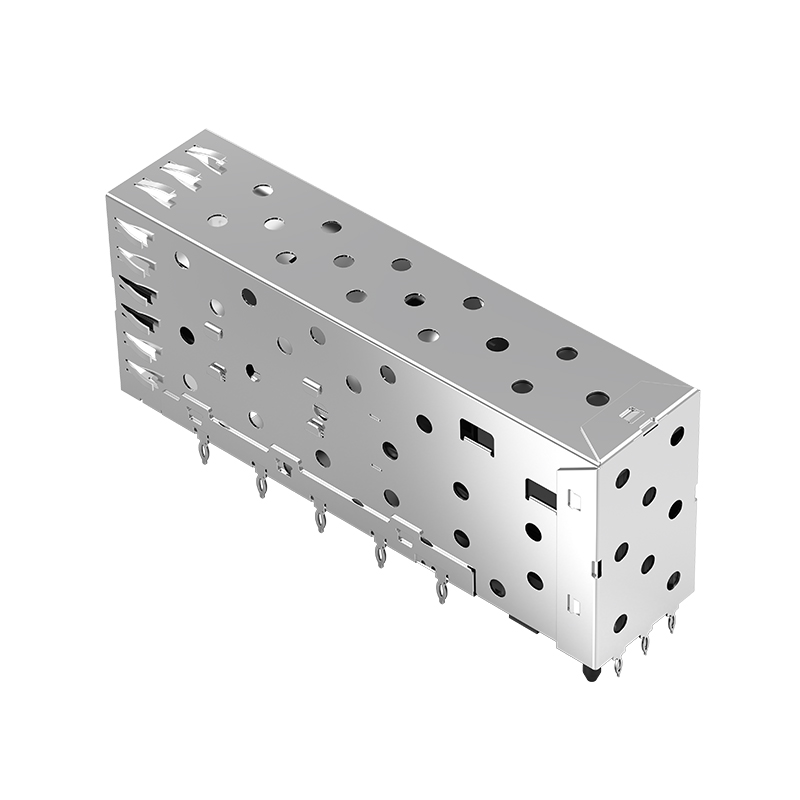

Trxcom TR21AC02301 SFP 2x1 Cage Connector Press-Fit With Outer LightPipe

Trxcom TR21AC02301 is a 2×1 port SFP cage connector with press-fit design and outer lightpipe. It features integrated EMI shielding and compact structure, supporting stable high-speed transmission and clear LED status indication, suitable for switches, servers and industrial network devices.

Part NumberTR21AC02301Part StatusActive
Connector StyleCageConnector TypeSFP
CageCOPPER ALLOY,Ni PL ATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration2x1 PortNumber of Ports2
Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle
Included LightpipeOuter LightPipeTerminationPress-Fit
Height (Inches/mm)25.20/0.992Length (Inches/mm)63.25/2.490
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
