TR11BC02200 SFP+ 1x1 Cage Press-Fit With Light Pipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11BC02200
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

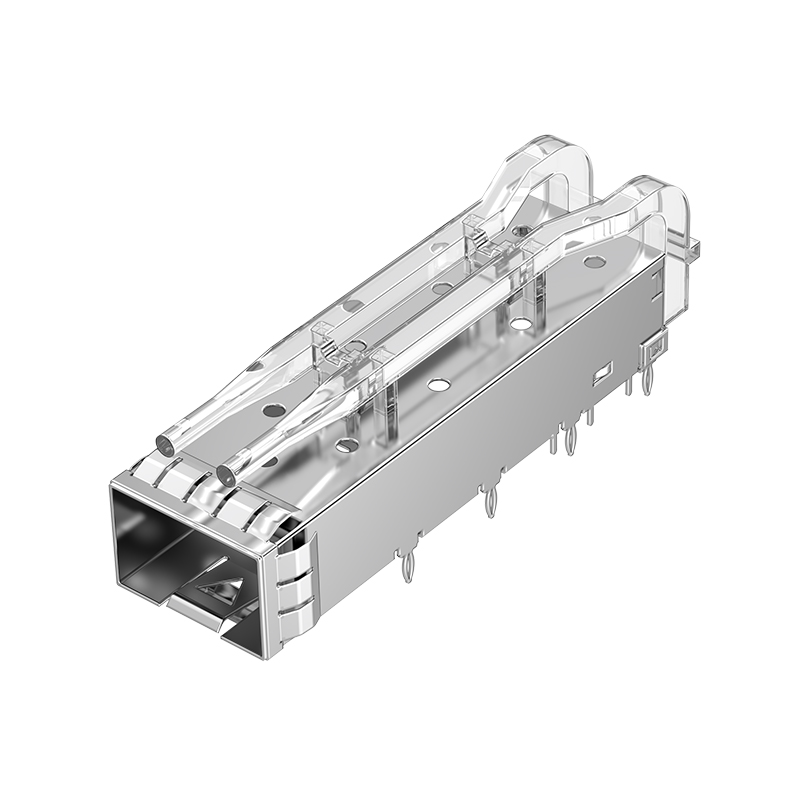

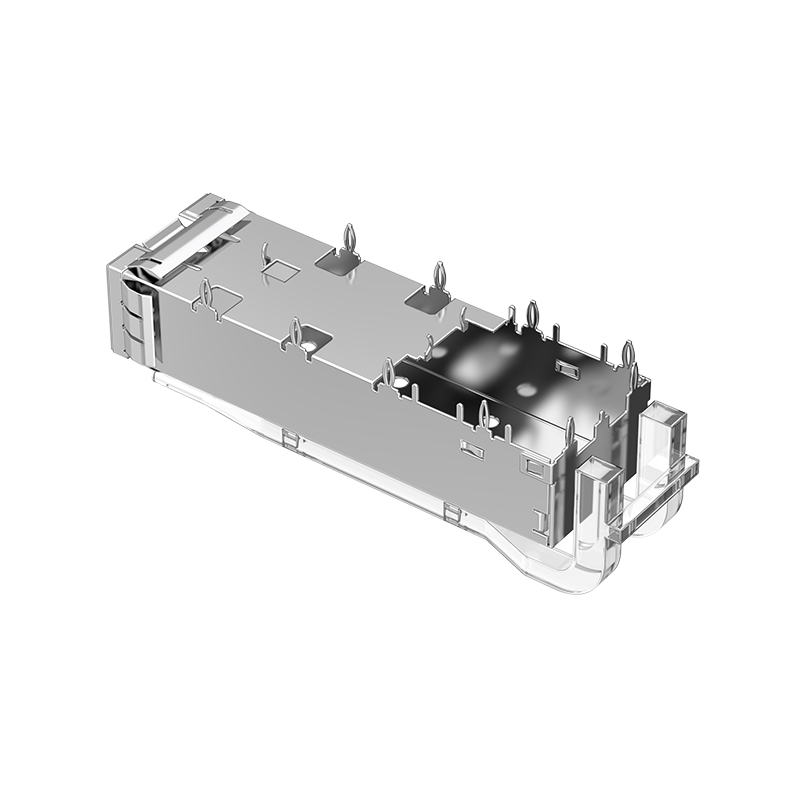

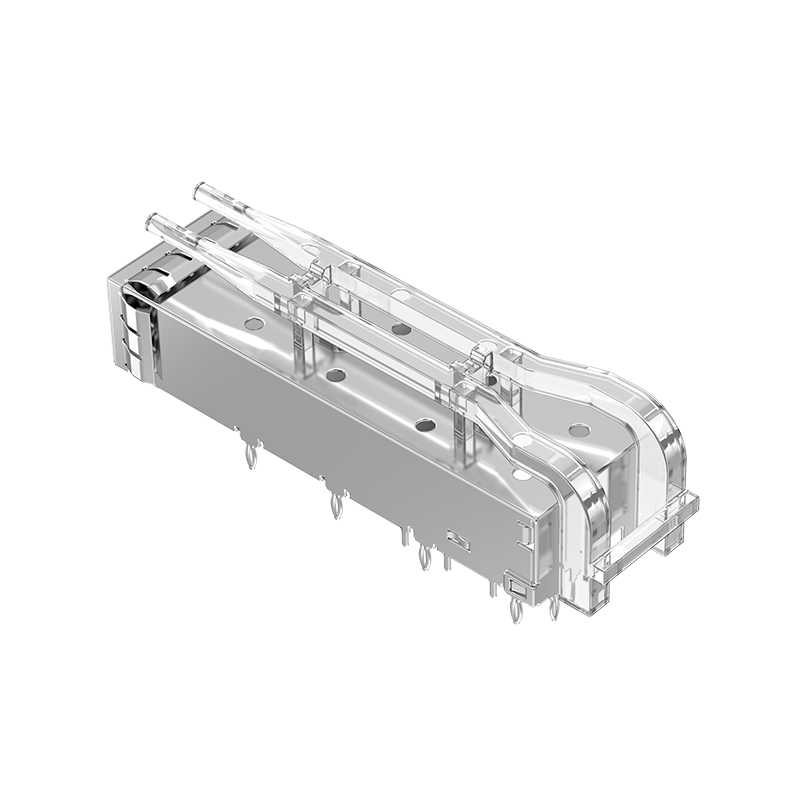

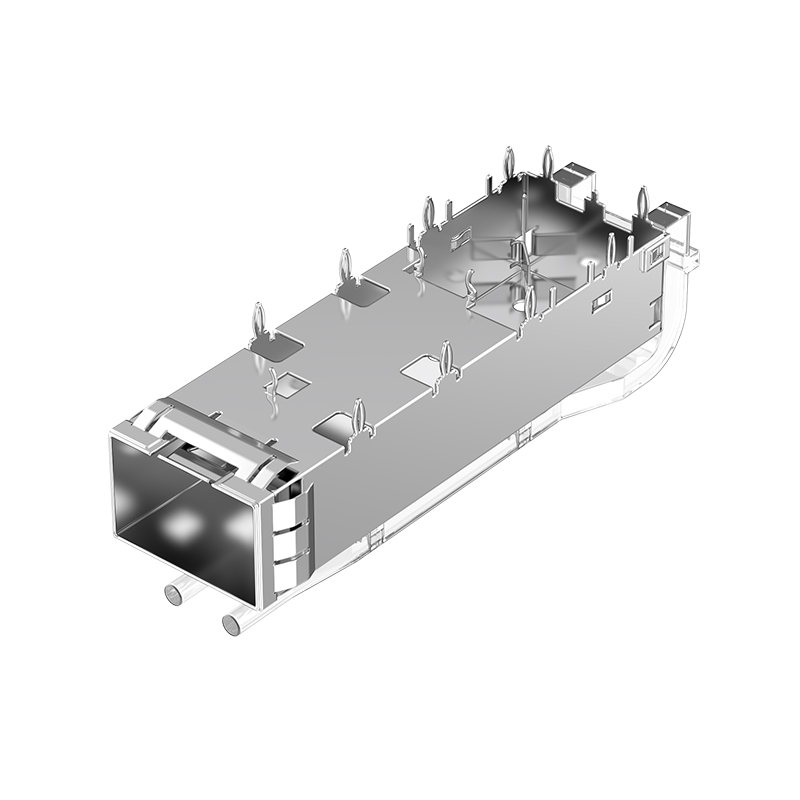

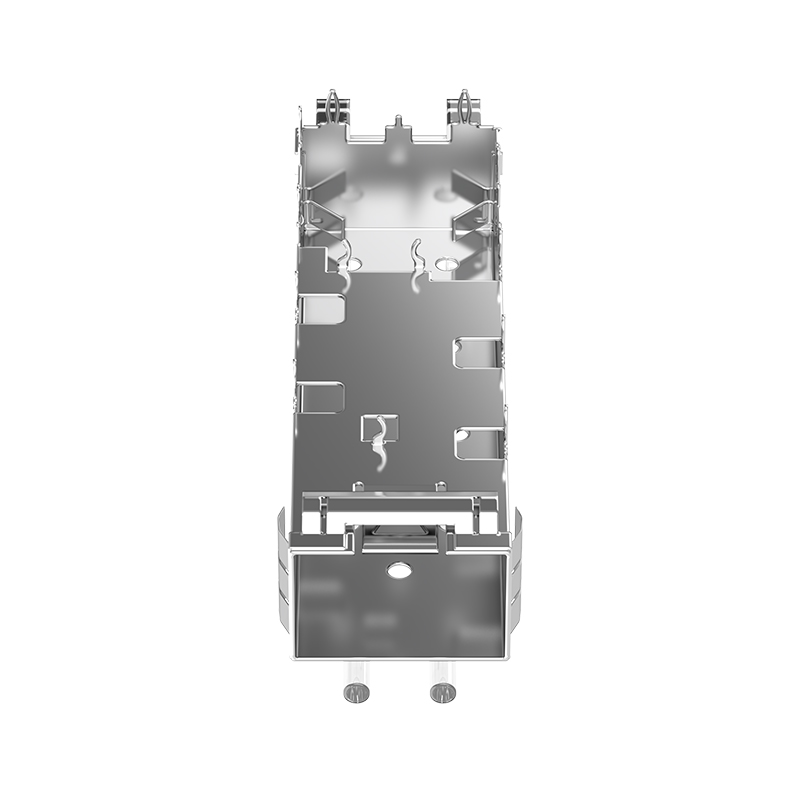

Trxcom TR11BC02200 SFP+ 1x1 Cage Press-Fit With Light Pipe

Trxcom TR11BC02200 is a 1x1 structured SFP+ shielded cage. It adopts a press-fit mounting design with a built-in light guide tube, delivering excellent EMI electromagnetic shielding performance. It supports 10G high-speed transmission and clearly displays the LED operating status, making it compatible with network communication devices such as switches and network interface cards.

Part NumberTR11BC02200Part StatusActive
Connector StyleCageConnector TypeSFP+
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeWithTerminationPress-Fit
Height (Inches/mm)9.70/0.382Length (Inches/mm)53.20/2.094
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
