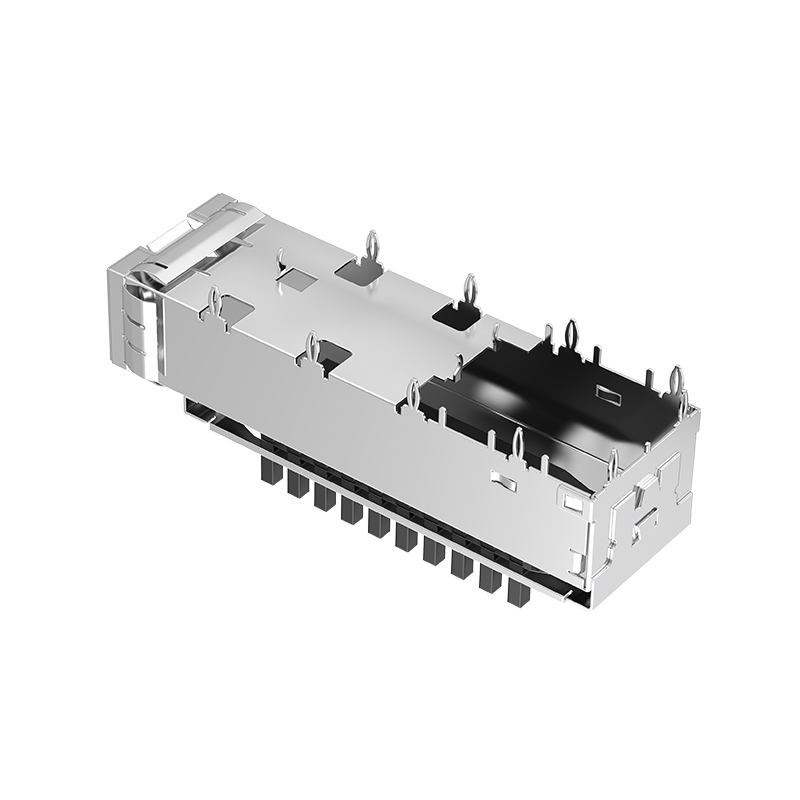

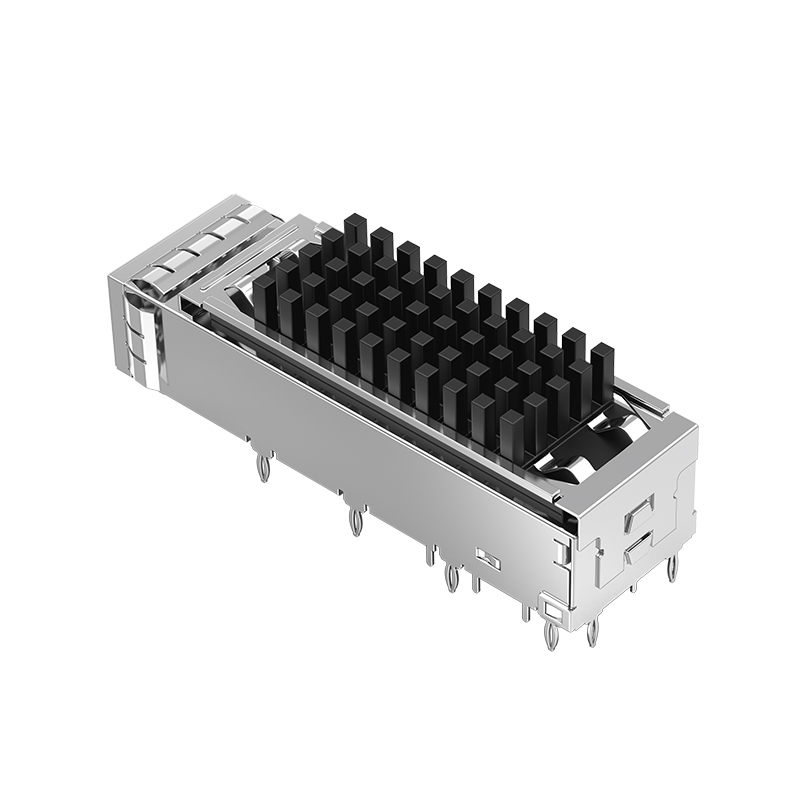

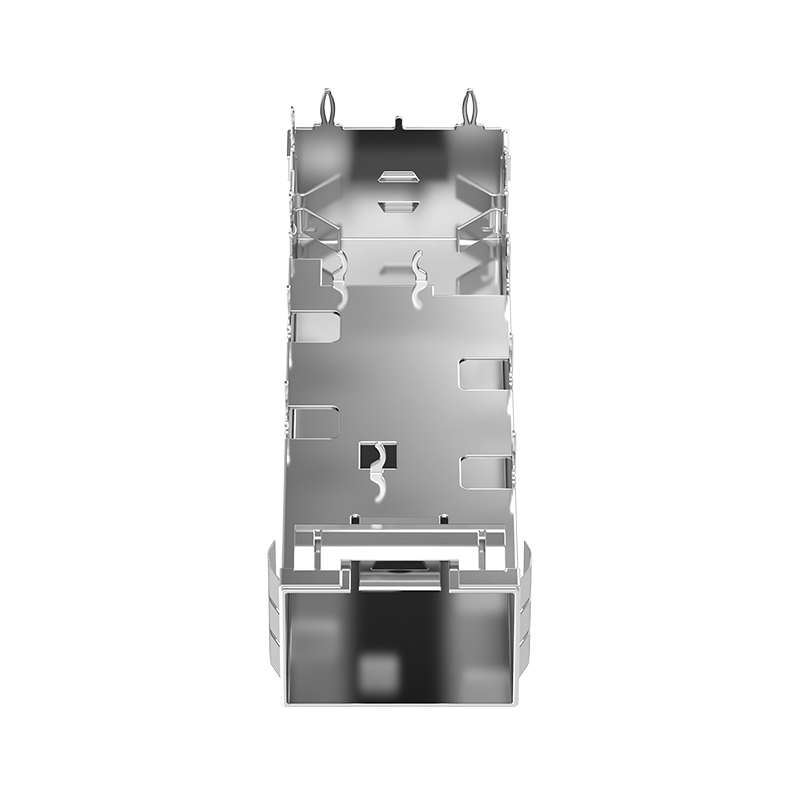

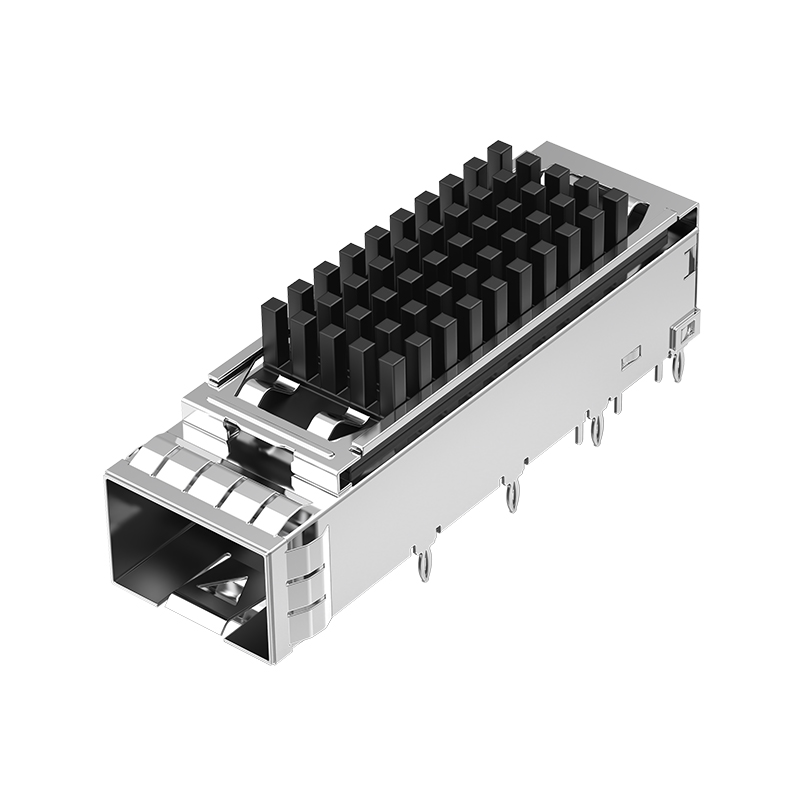

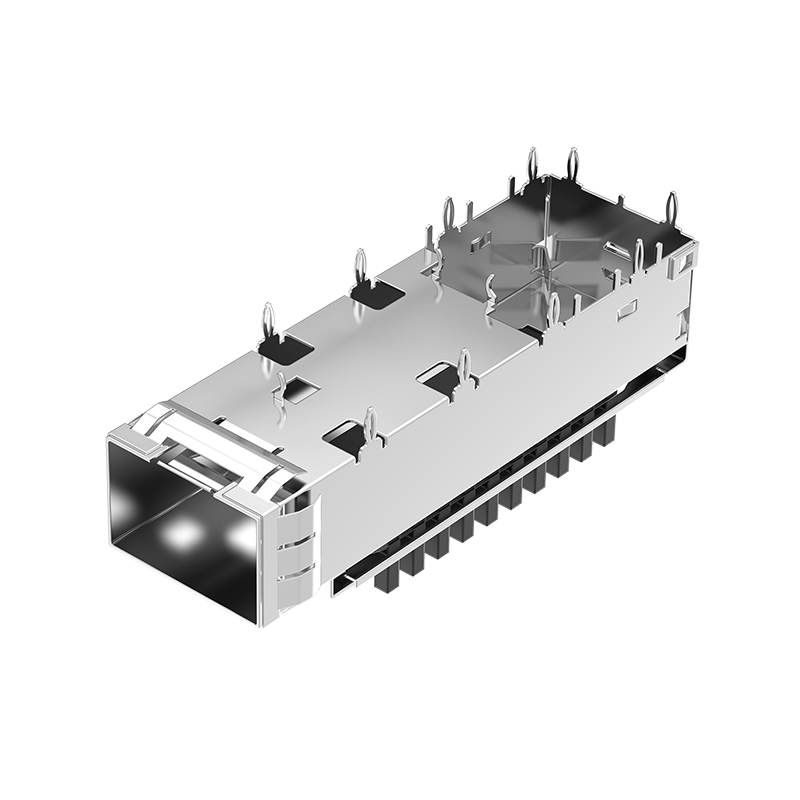

TR11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle
share
Parameter
Number ： TR11BC02050
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)
Trxcom TR11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle
Trxcom TR11BC02050 is a right-angle through-hole crimp-type SFP+ 1×1 cage with an integrated heat sink. It features excellent EMI shielding and heat dissipation performance, supports 10G high-speed transmission, and is compatible with network devices such as switches and servers.
| Part Number | TR11BC02050 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PLATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 ~ +85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Without | Termination | Press-Fit |
| Height (Inches/mm) | 14.75/0.581 | Length (Inches/mm) | 49.10/1.933 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
