TR11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11BC02030
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

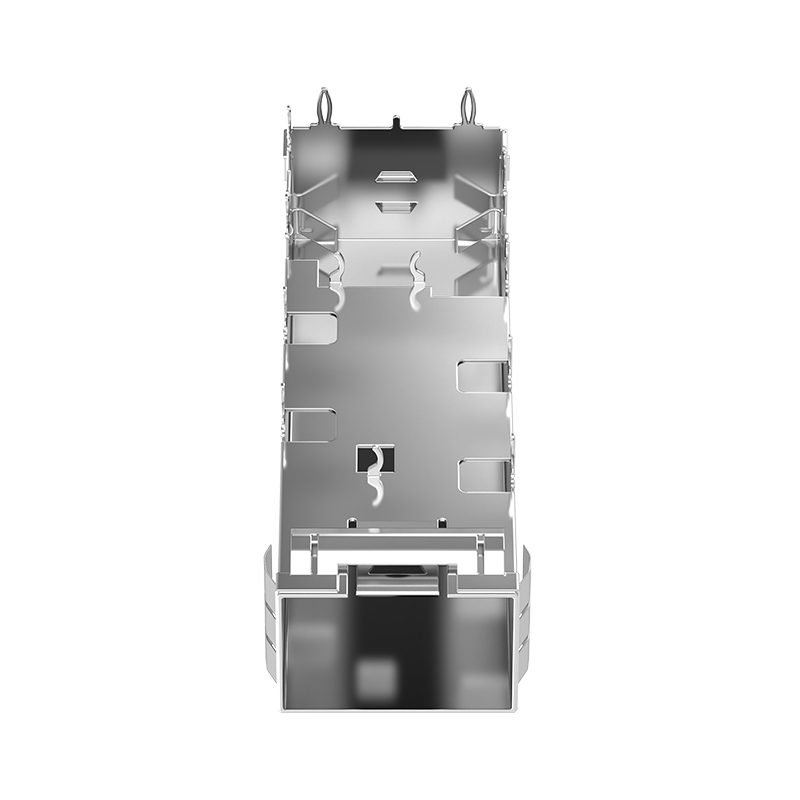

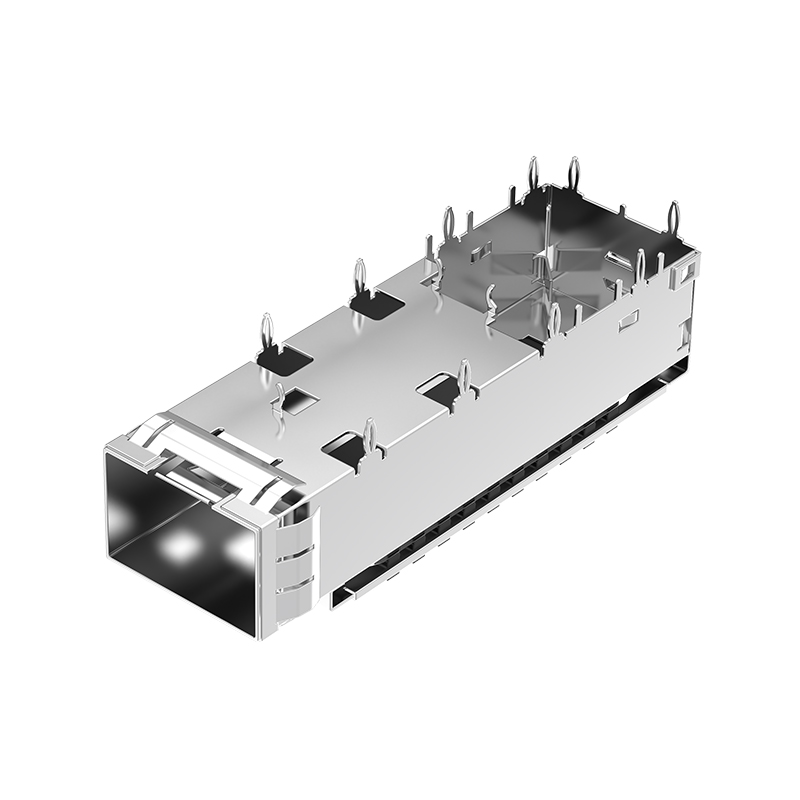

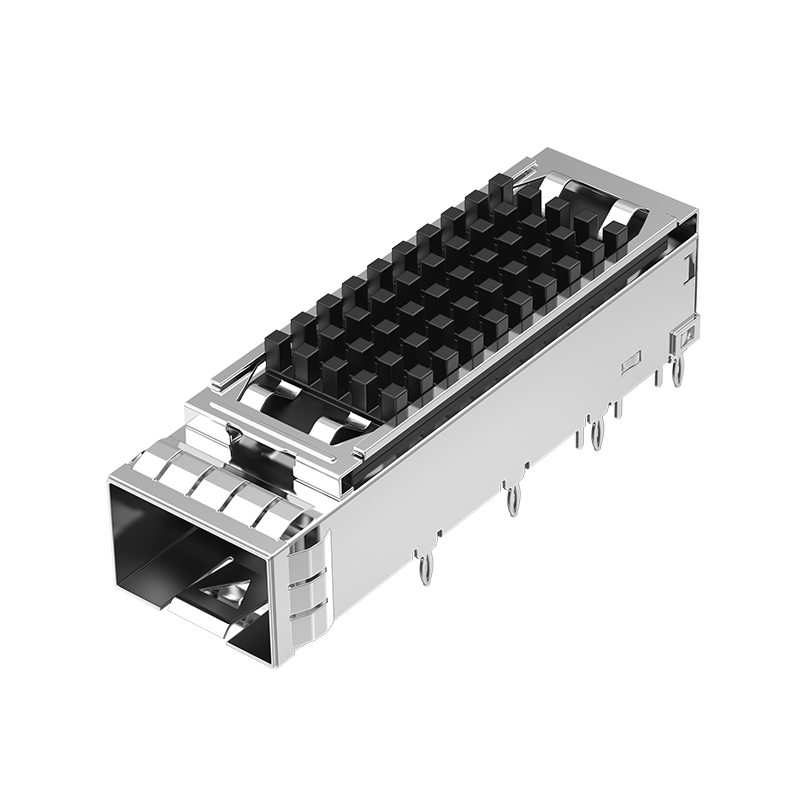

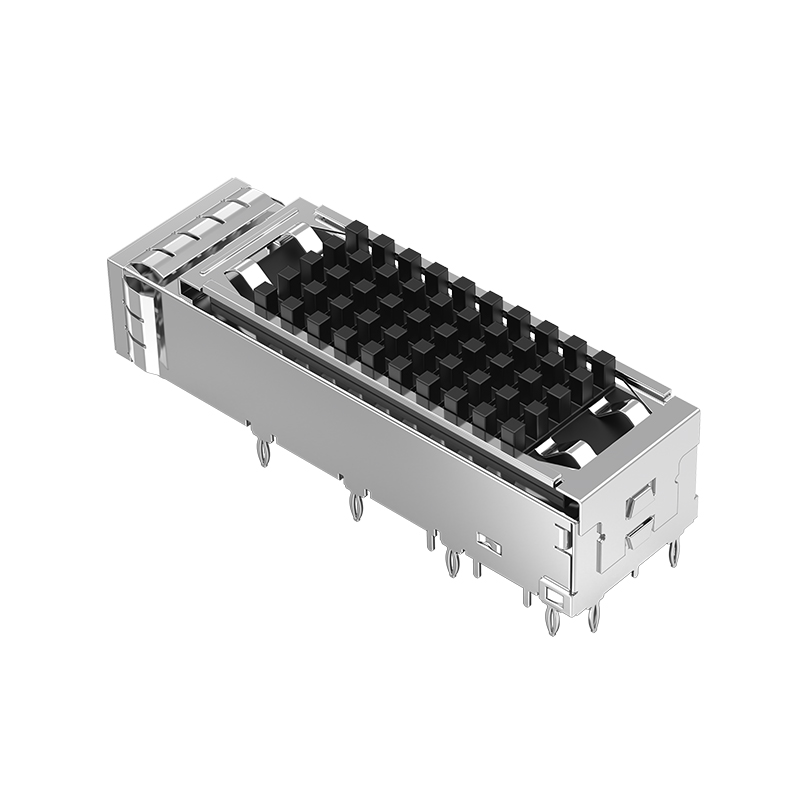

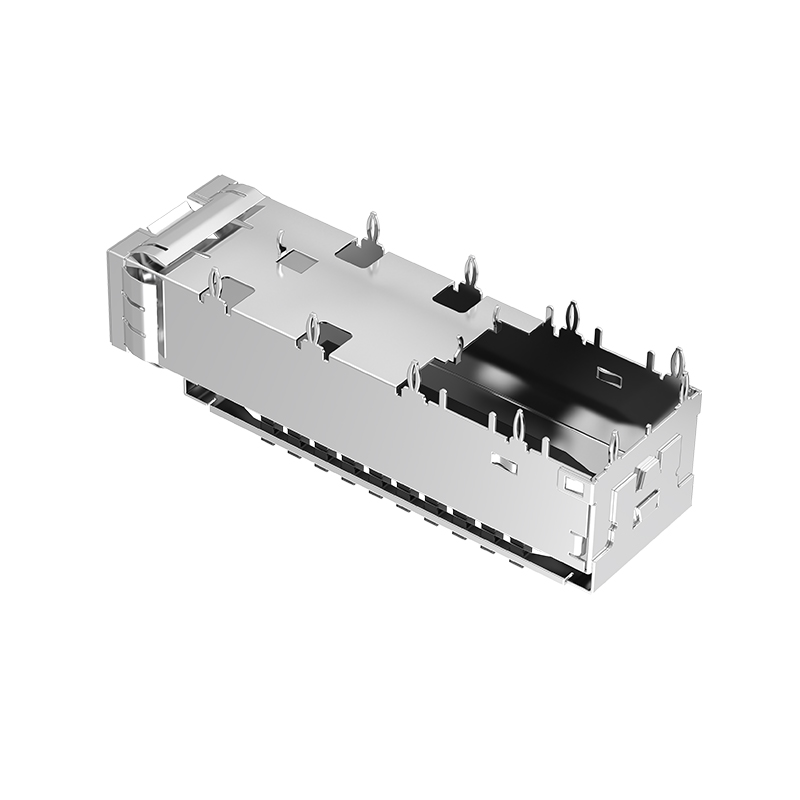

Trxcom TR11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

Trxcom TR11BC02030 is a right-angle through-hole crimp-type SFP+ cage, integrated with heat sinks and EMI shielding springs. It features excellent anti-interference and heat dissipation performance, supports 10G high-speed transmission, and is widely applied in network communication devices such as switches and servers.

Part NumberTR11BC02030Part StatusActive
Connector StyleCageConnector TypeSFP+
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeWithoutTerminationPress-Fit
Height (Inches/mm)14.75/0.581Length (Inches/mm)49.30/1.941
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
