TR11BC02000 SFP+ 1x1 Cage With Grounding Pin

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11BC02000
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

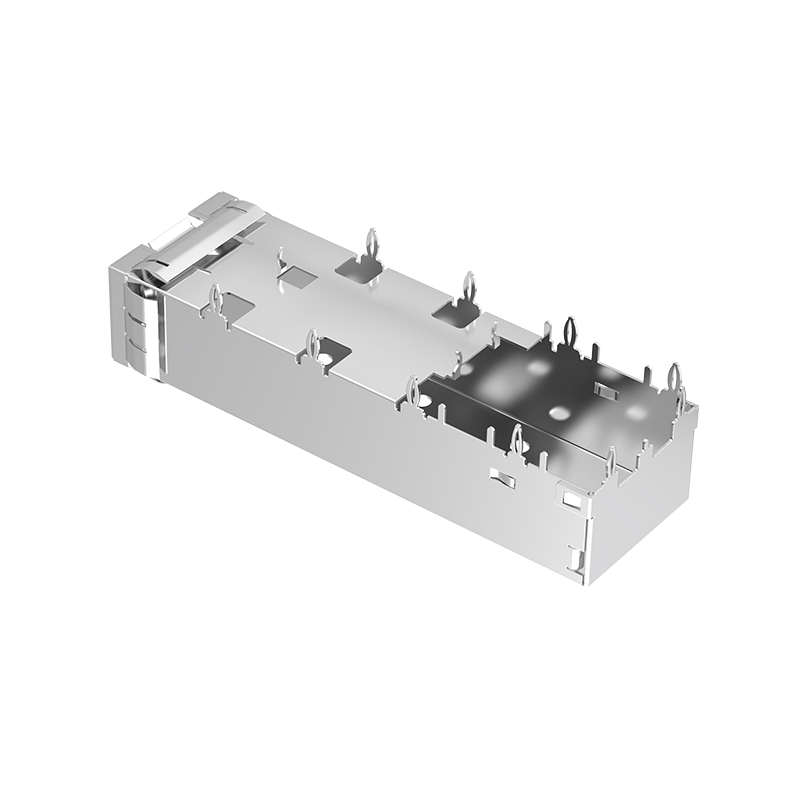

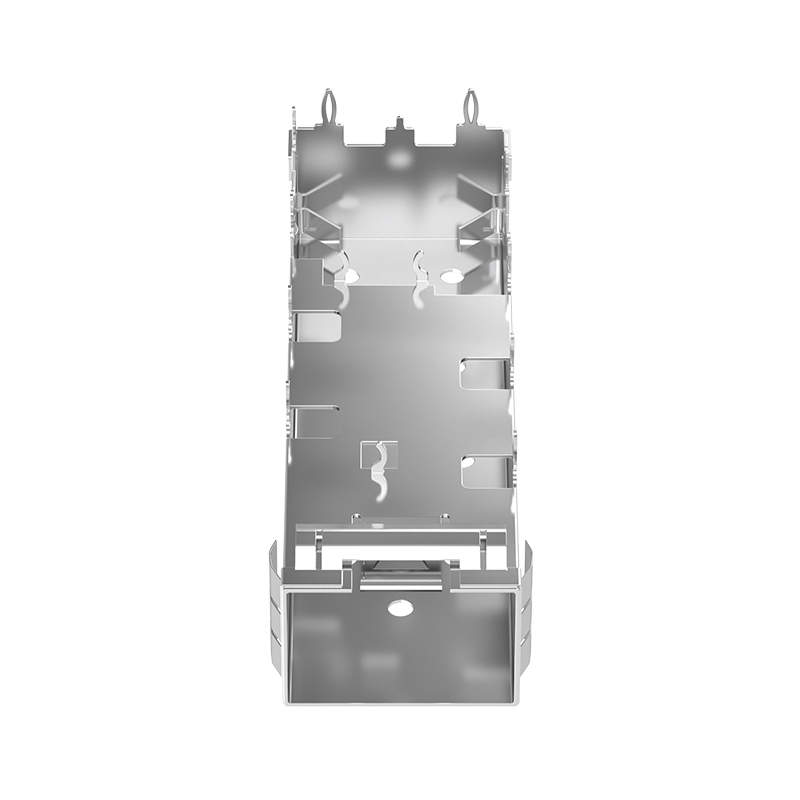

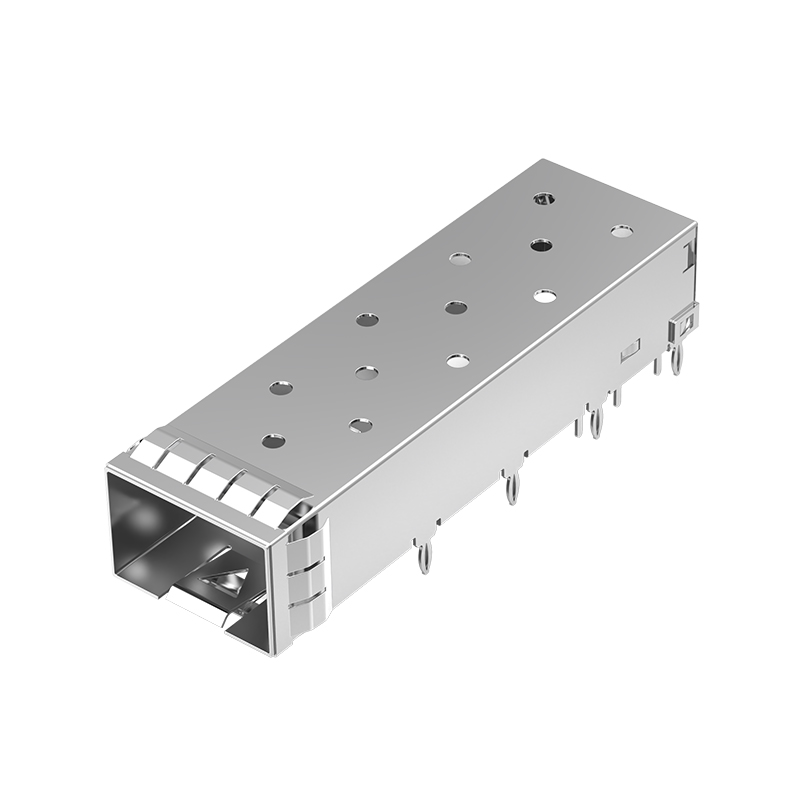

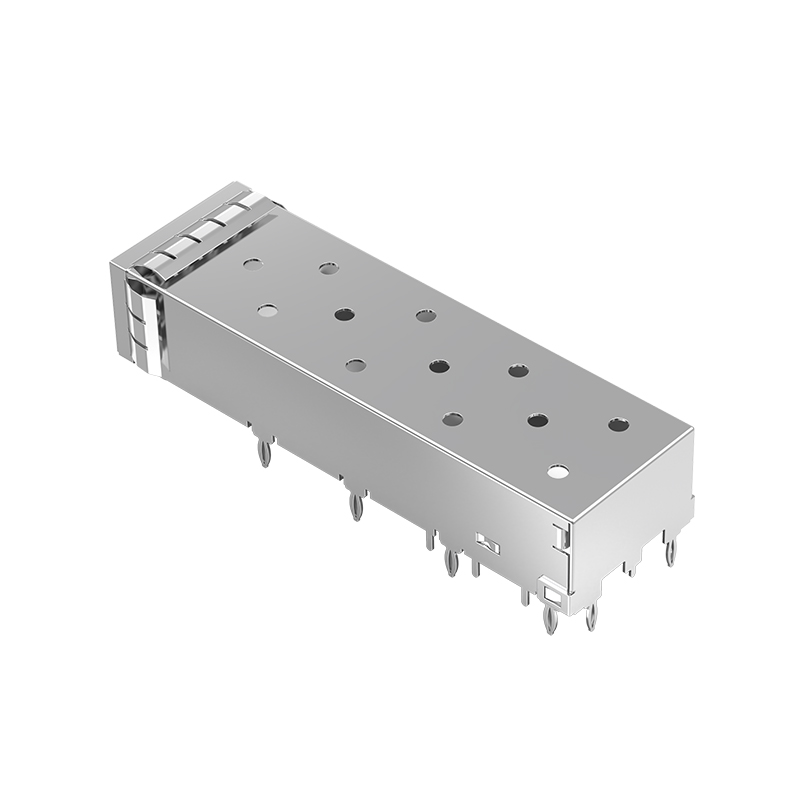

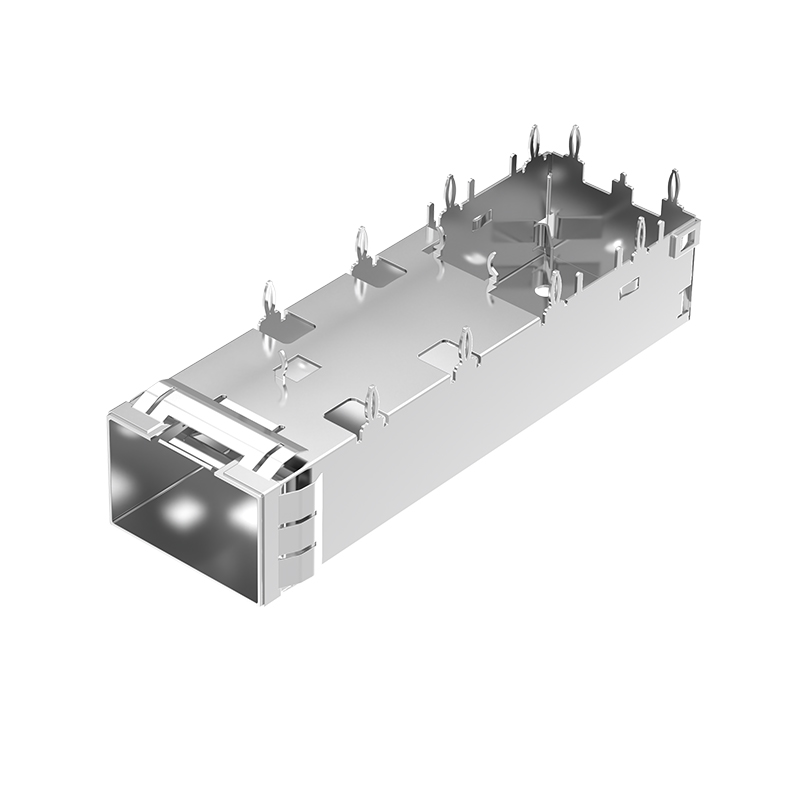

Trxcom TR11BC02000 SFP+ 1x1 Cage With Grounding Pin

Trxcom TR11BC02000 is a 1×1 SFP+ shielded cage with grounding pins, featuring a right-angle through-hole soldering design and built-in EMI springs. It delivers stable shielding and grounding performance, supports 10G high-speed transmission, and is compatible with network communication devices such as switches and servers.

Part NumberTR11BC02000Part StatusActive
Connector StyleCageConnector TypeSFP+
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeYesPCB Mounting StyleThrough Hole - Press-Fit
Height (Inches/mm)9.75/0.384Length (Inches/mm)48.70/1.917
Width (Inches/mm)14.25/0.561EMI Containment Feature TypeEMI Springs
