2x4 Port 1000 Base-T Magnetics RJ45 Jacks Green&Yellow/Green&Yellow Leds TRJG47038A47NL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG47038A47NL
Port: ： 2X4
Rate: ： 2.5GBase-T
PoE: ： PoE+
Latch: ： Up/Down
LED: ： Green&Yellow / Yellow&Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

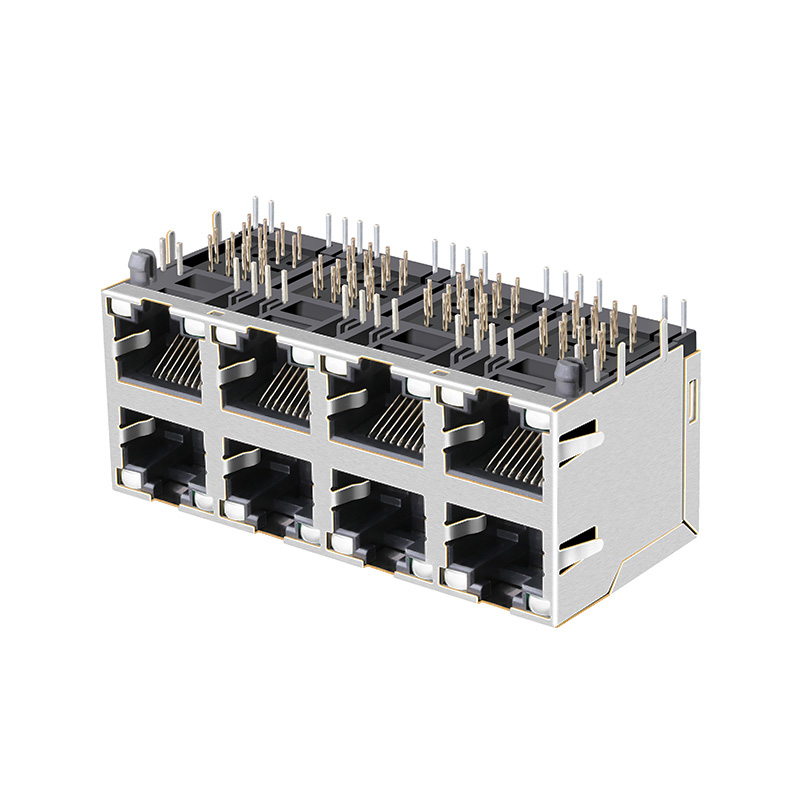

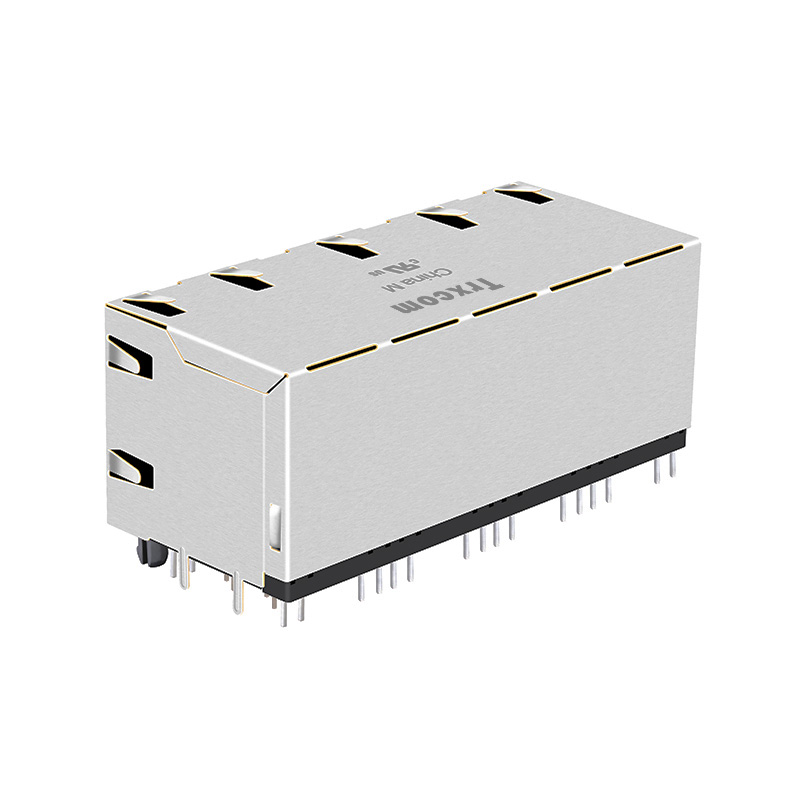

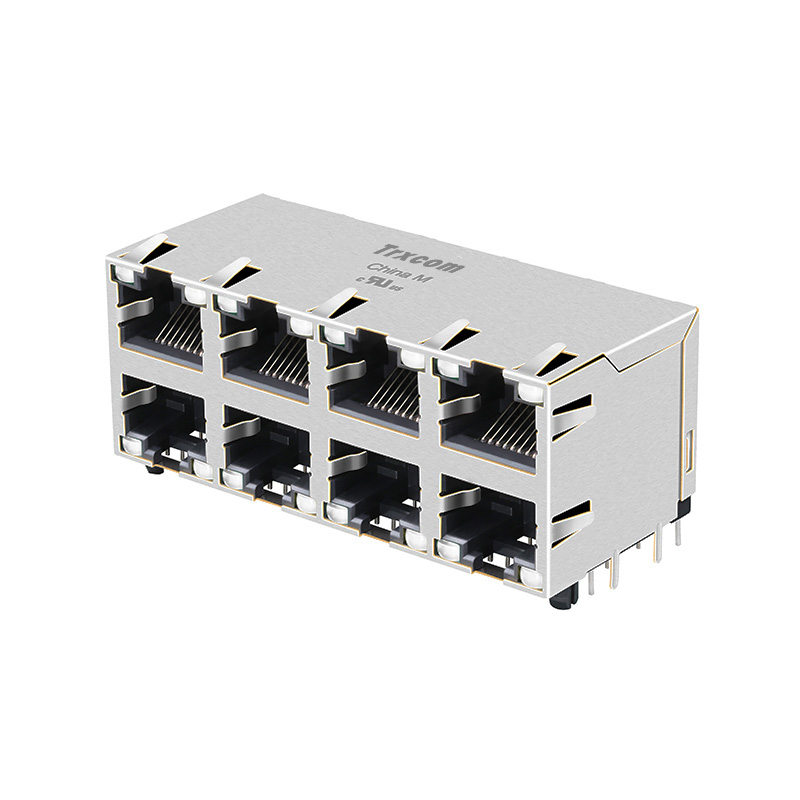

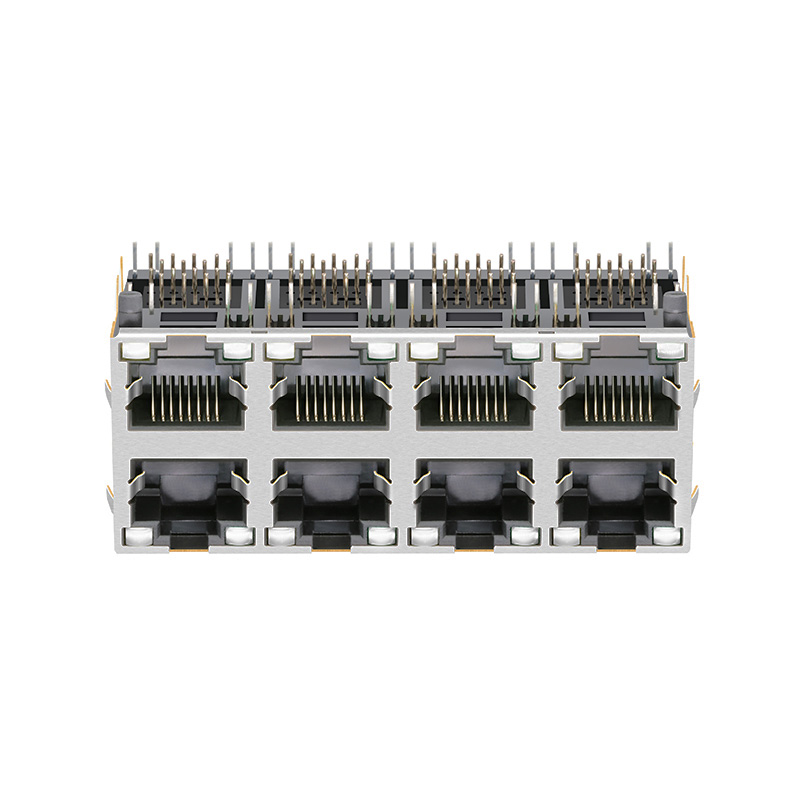

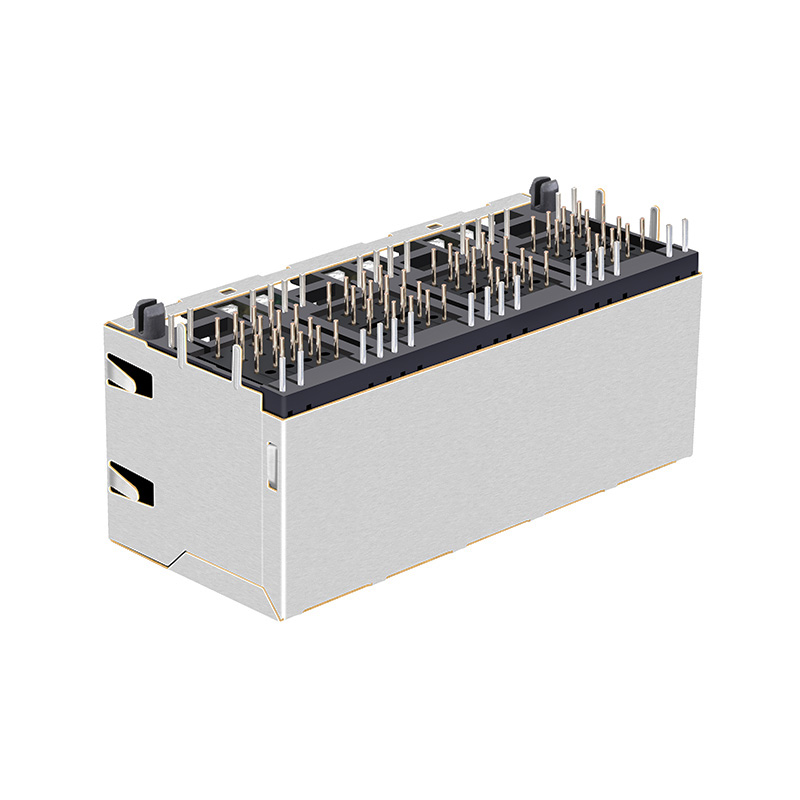

Trxcom TRJG47038A47NL   100/1000 Base-T Integrated Magnetics RJ45 Jack for Ethernet Control and Monitoring System (2x4 Port,Green&Yellow/Green&Yellow Led)

The TRXCOM TRJG47038A47NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Server.

Part NumberTRJG47038A47NLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x4 PortSpeed10/100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen&Yellow/Green&Yellow Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.118/28.40
Package Width (Inches/mm)2.326/59.07Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
