Trxcom TR11BC01000 SFP+ 1x1 Cage Press-Fit With EMI Spring Finger
share
Parameter
Number ： TR11BC01000
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)
Trxcom TR11BC01000 SFP+ 1x1 Cage Press-Fit With EMI Spring Finger

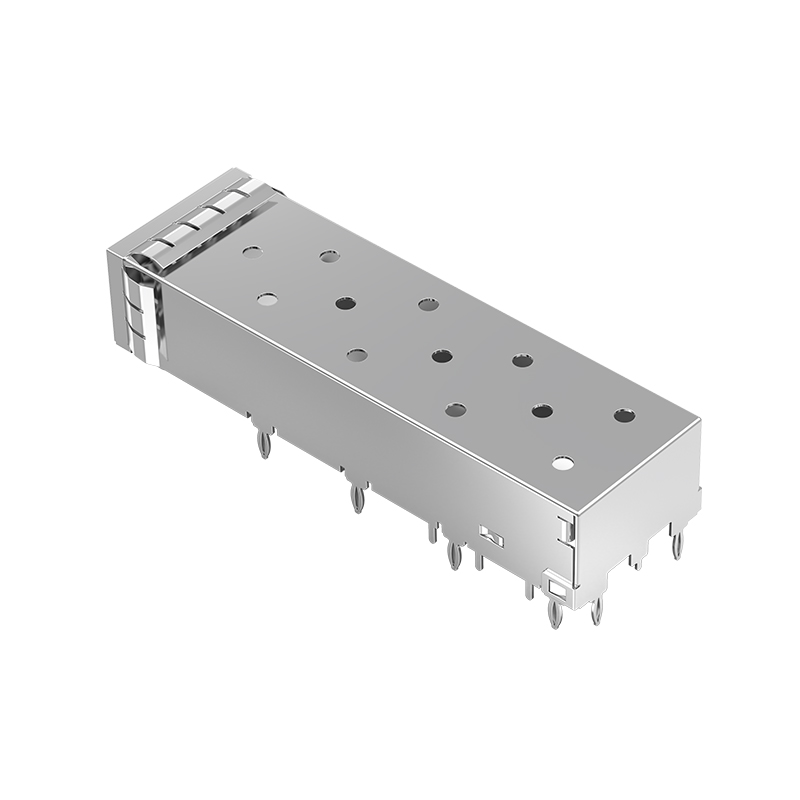

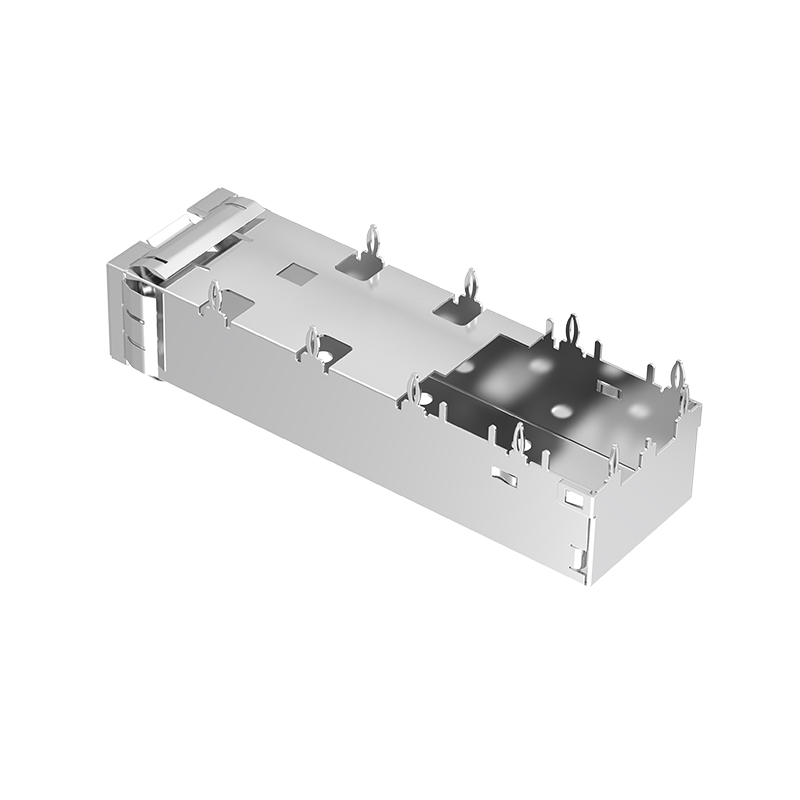

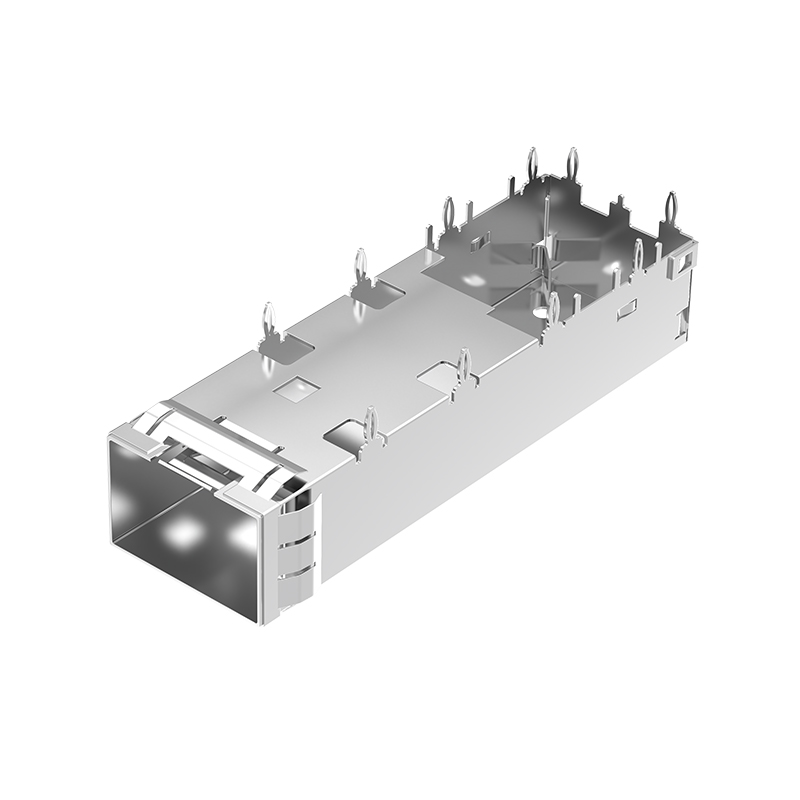

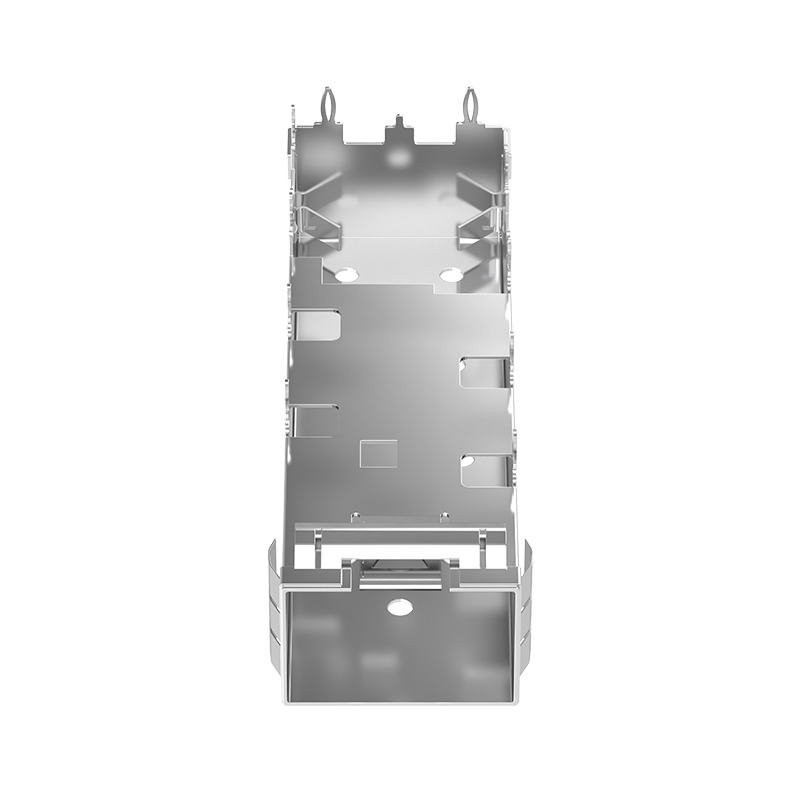

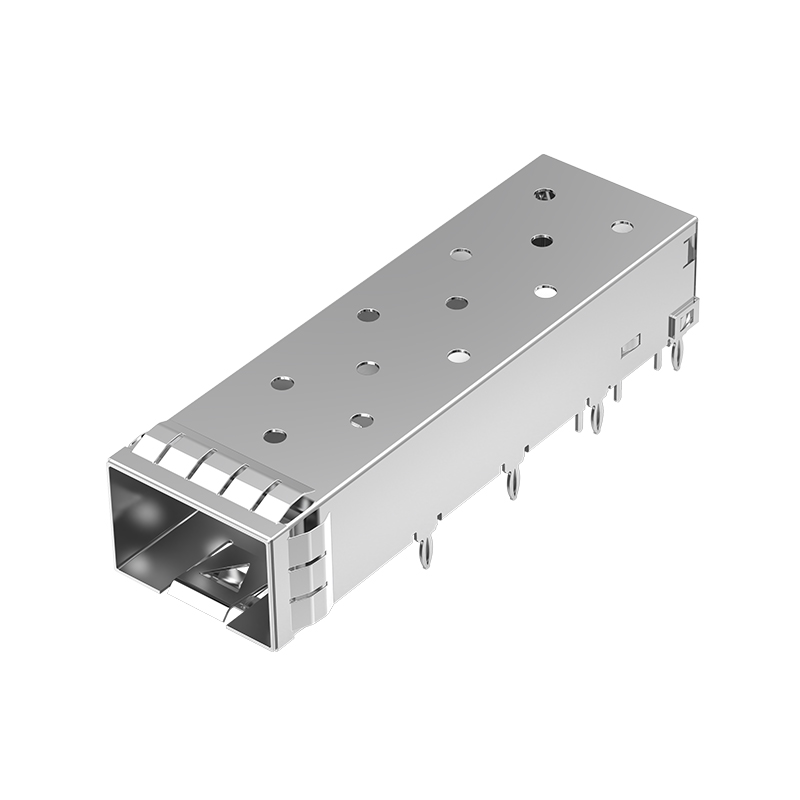

Trxcom TR11BC01000 is a 1×1 form-factor SFP+ shielded cage with a press-fit mounting design. It is built with integrated EMI springs, delivering excellent electromagnetic shielding performance and stable structure, and is suitable for high-speed port applications of various network communication devices.
| Part Number | TR11BC01000 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PLATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 ~ +85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Without | Termination | Press-Fit |
| Height (Inches/mm) | 9.70/0.382 | Length (Inches/mm) | 48.70/1.917 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
Consumer Electronics
Security System
Military Industry
