Trxcom TR11ACS1000 1x1 Port SFP Cage Solder With EMI Spring Finger
share
Parameter
Number ： TR11ACS1000
Brand ： Trxcom
Types ： SFP
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)
Trxcom TR11ACS1000 1x1 Port SFP Cage Solder With EMI Spring Finger

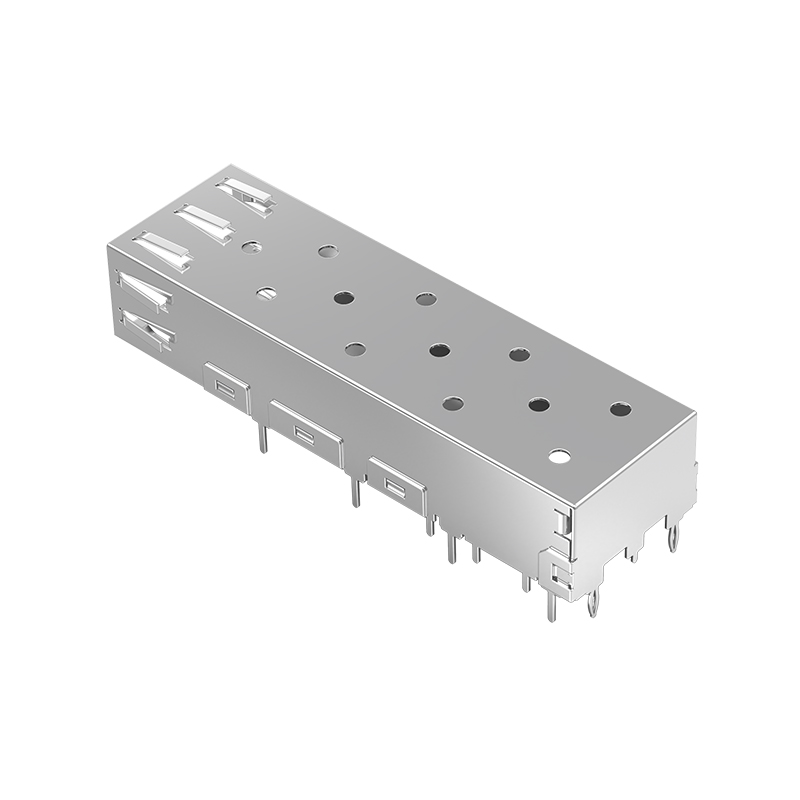

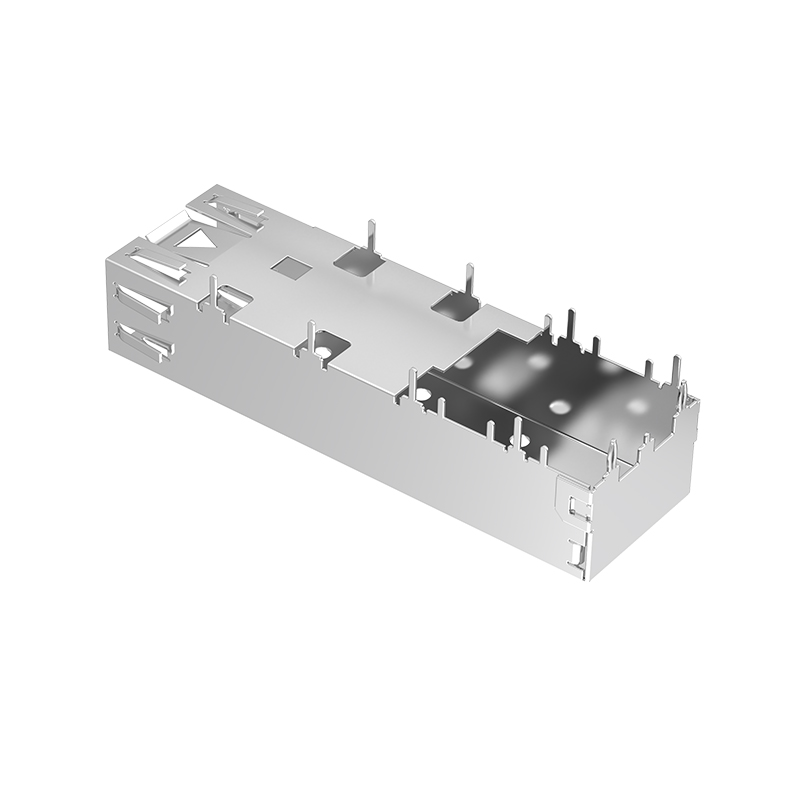

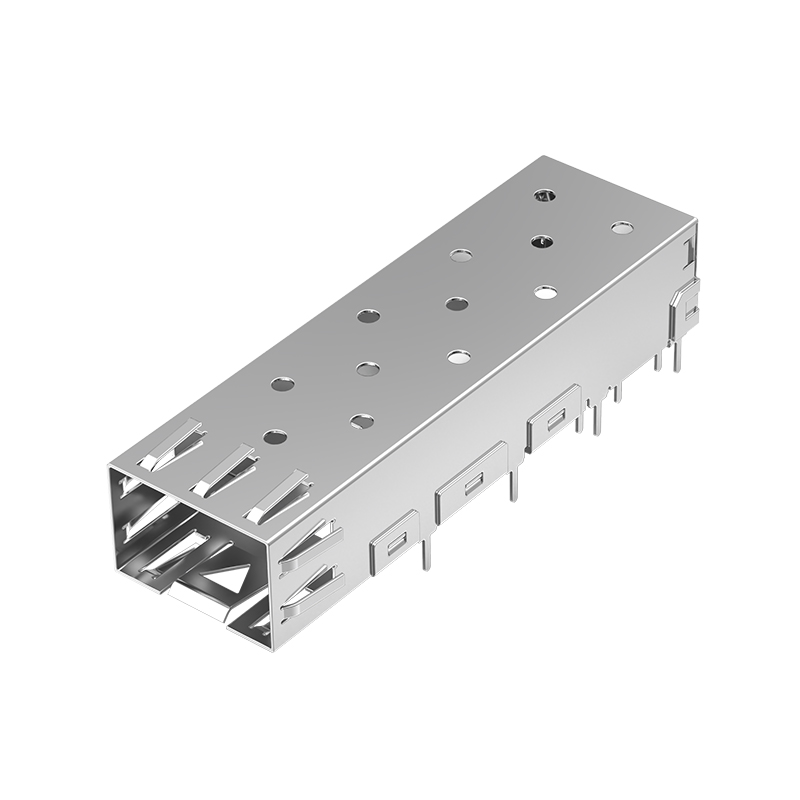

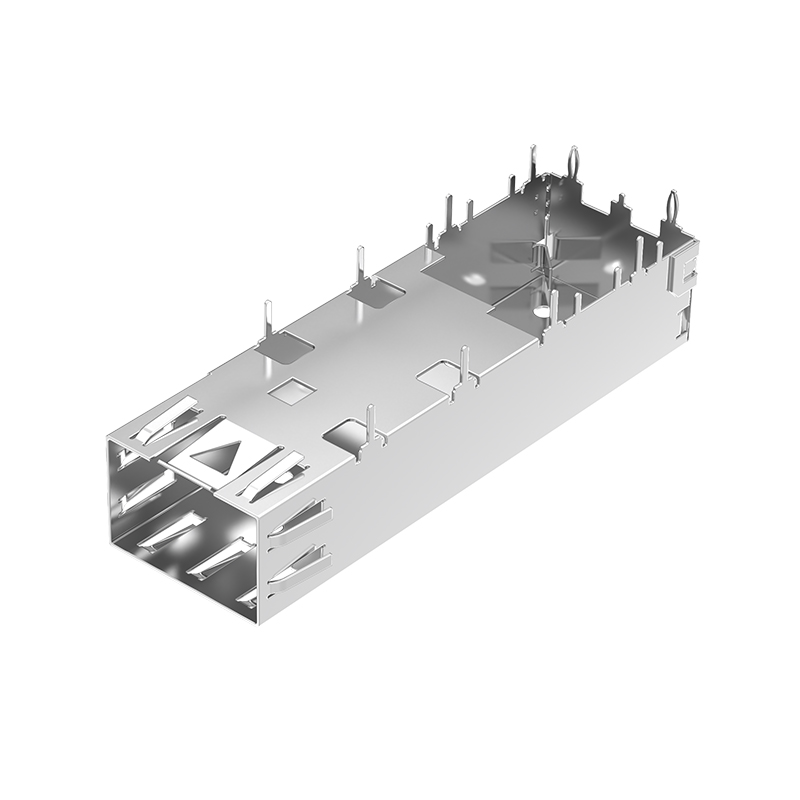

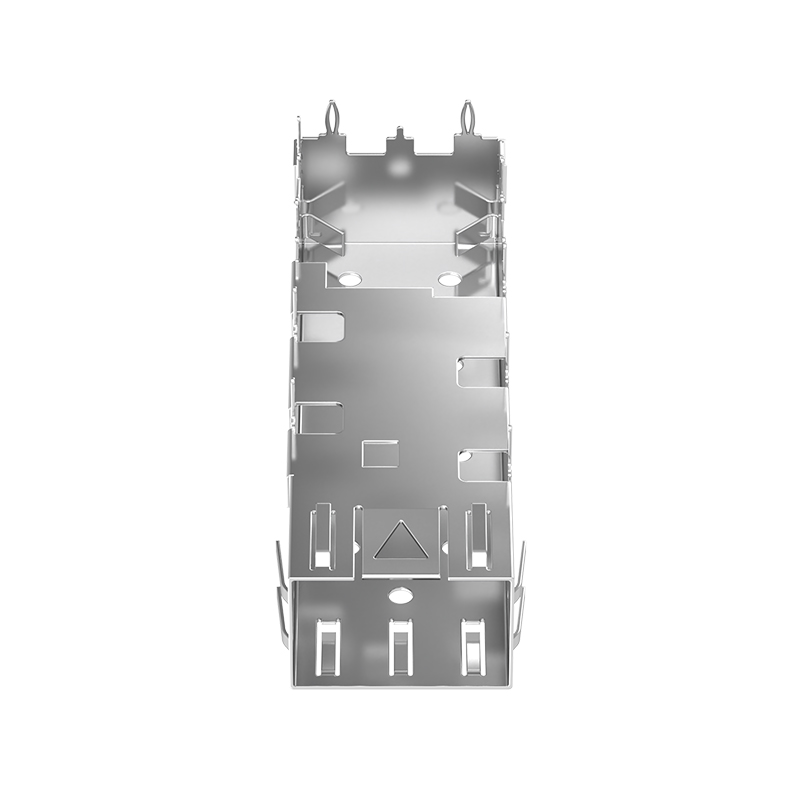

Trxcom TR11ACS1000 is a 1×1 port SFP soldered cage equipped with EMI grounding springs. It delivers excellent electromagnetic shielding performance, features a stable structure compliant with standard specifications, and is compatible with various network communication devices such as switches and network interface cards.
| Part Number | TR11ACS1000 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP |
| Cage | COPPER ALLOY,Ni PLATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 ~ +85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Without | Termination | Solder |
| Height (Inches/mm) | 9.75/0.384 | Length (Inches/mm) | 48.75/1.919 |
| Width (Inches/mm) | 15.10/0.591 | EMI Containment Feature Type | EMI Springs |
