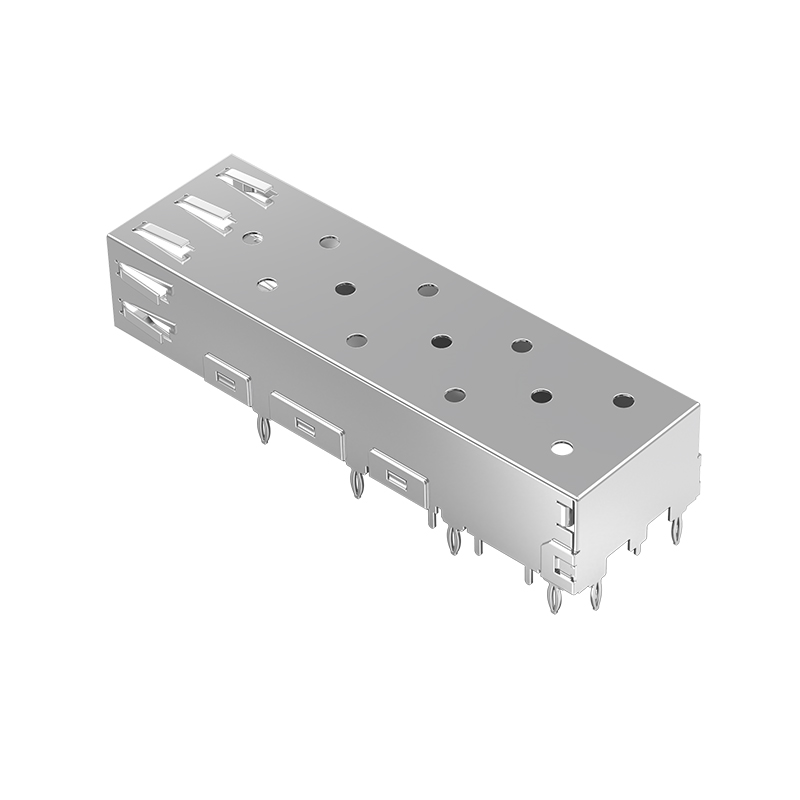

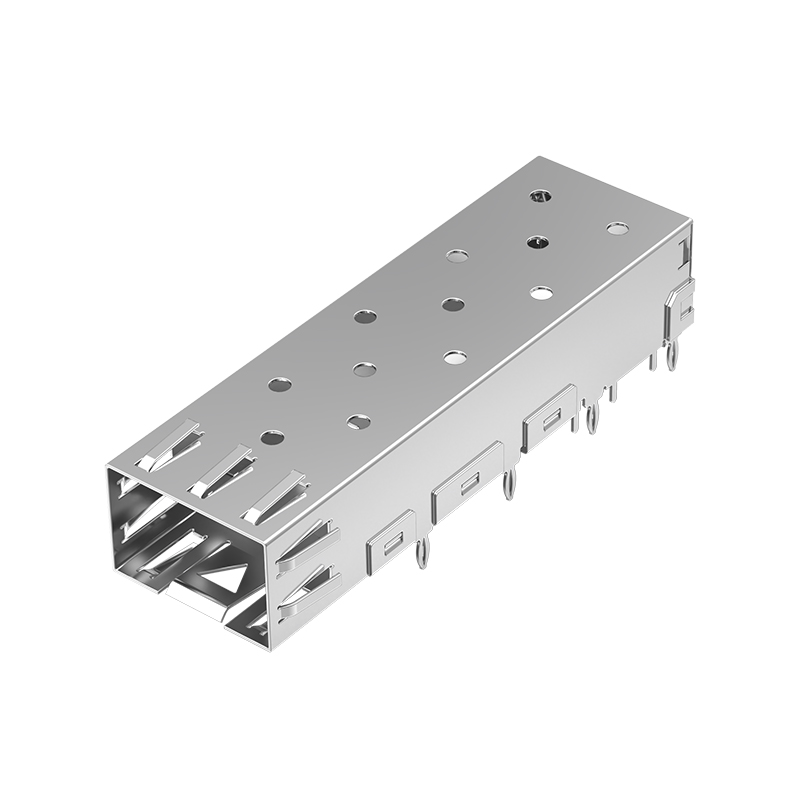

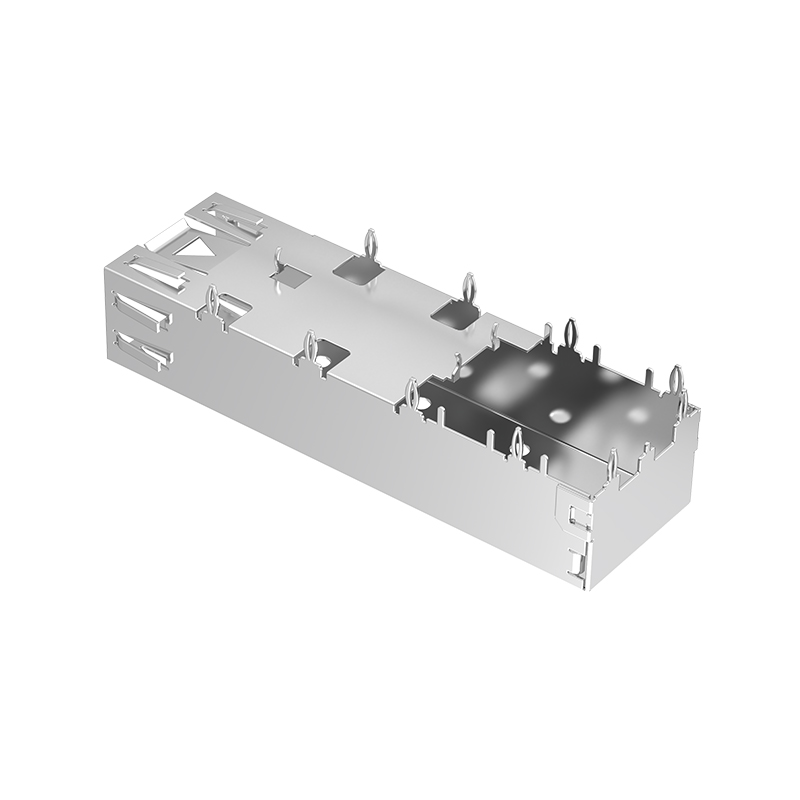

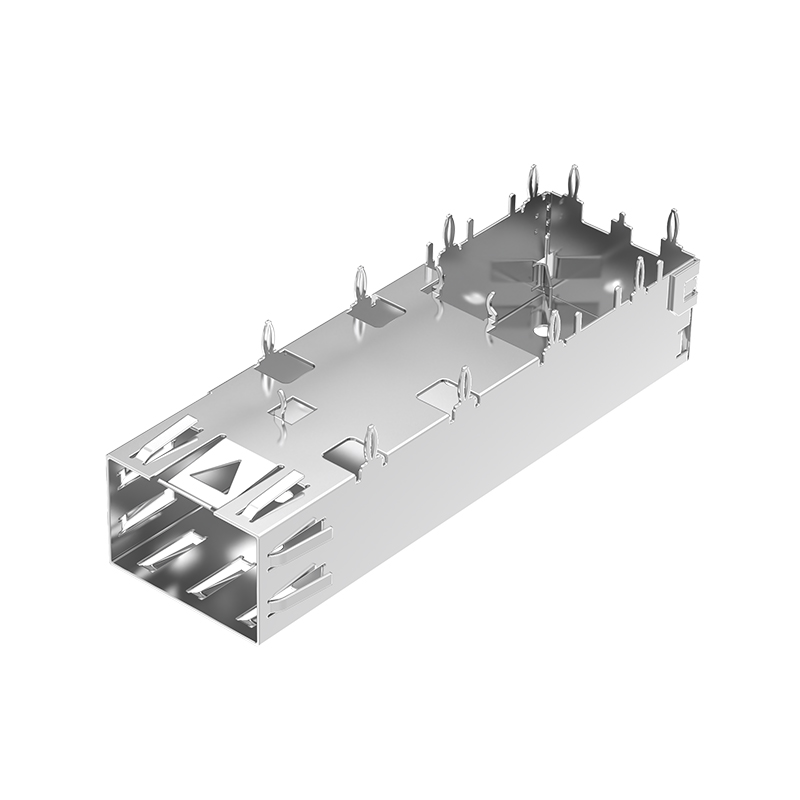

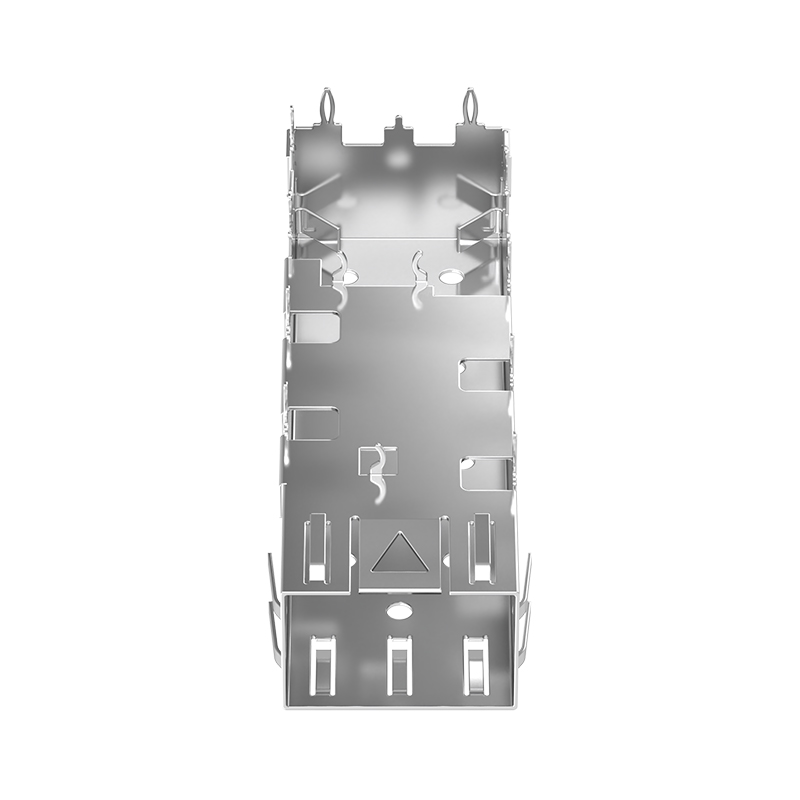

TR11AC02000 1x1 Port SFP Cage Press-Fit Through Hole With EMI Spring Finger

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11AC02000
Brand ： Trxcom
Types ： SFP
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

TR11AC02000 1x1 Port SFP Cage Press-Fit Through Hole With EMI Spring Finger

TR11AC02000 is a 1×1 port SFP crimp-through cage with built-in EMI grounding springs. It features excellent shielding and anti-interference performance, convenient solder-free crimp installation, stable structure, and is suitable for SFP interface applications of various network communication devices.

Part NumberTR11AC02000Part StatusActive
Connector StyleCageConnector TypeSFP
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeWithoutTerminationPress-Fit
Height (Inches/mm)9.75/0.384Length (Inches/mm)48.75/1.919
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
