TR11AC01000 SFP 1x1 Cage With EMI Spring Finger
share
Parameter
Number ： TR11AC01000
Brand ： Trxcom
Types ： SFP
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)

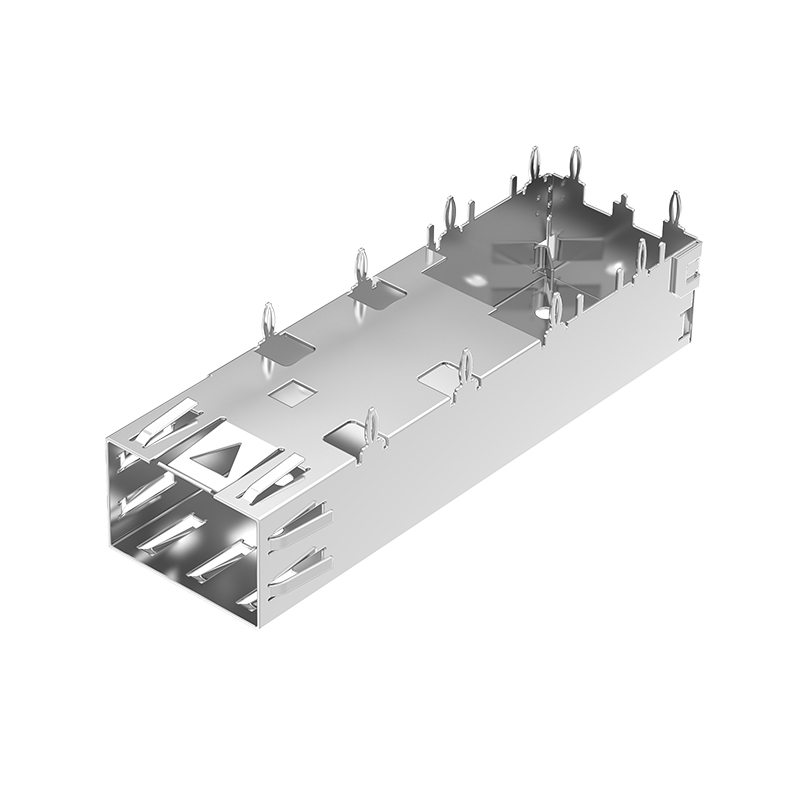

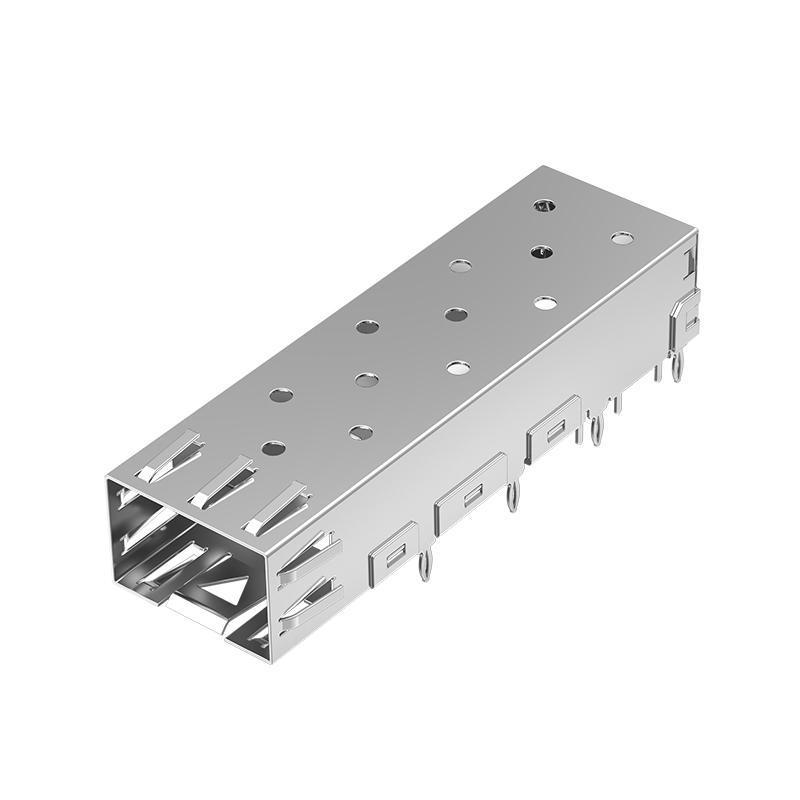

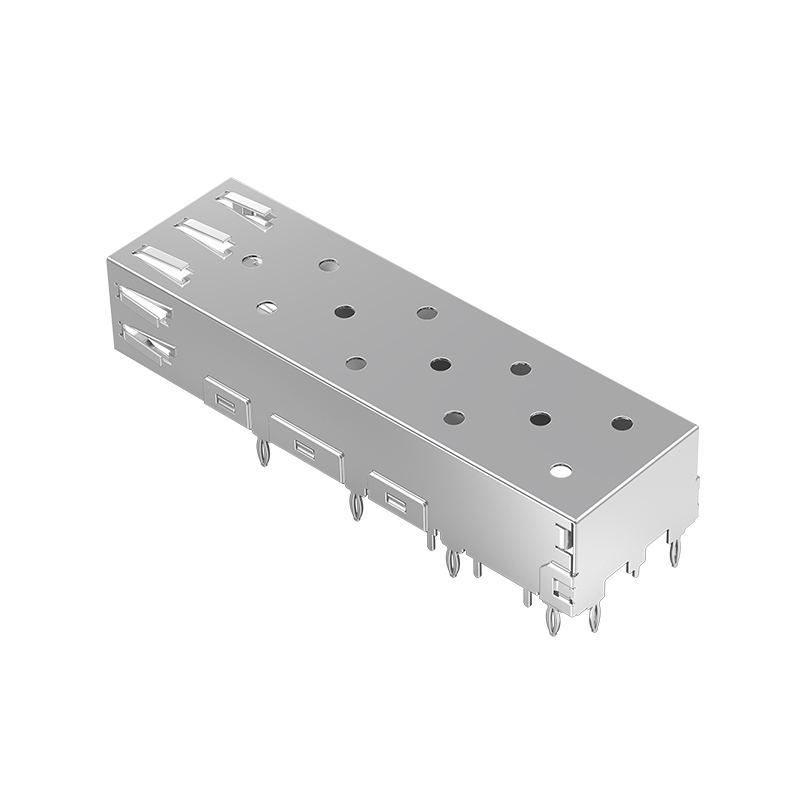

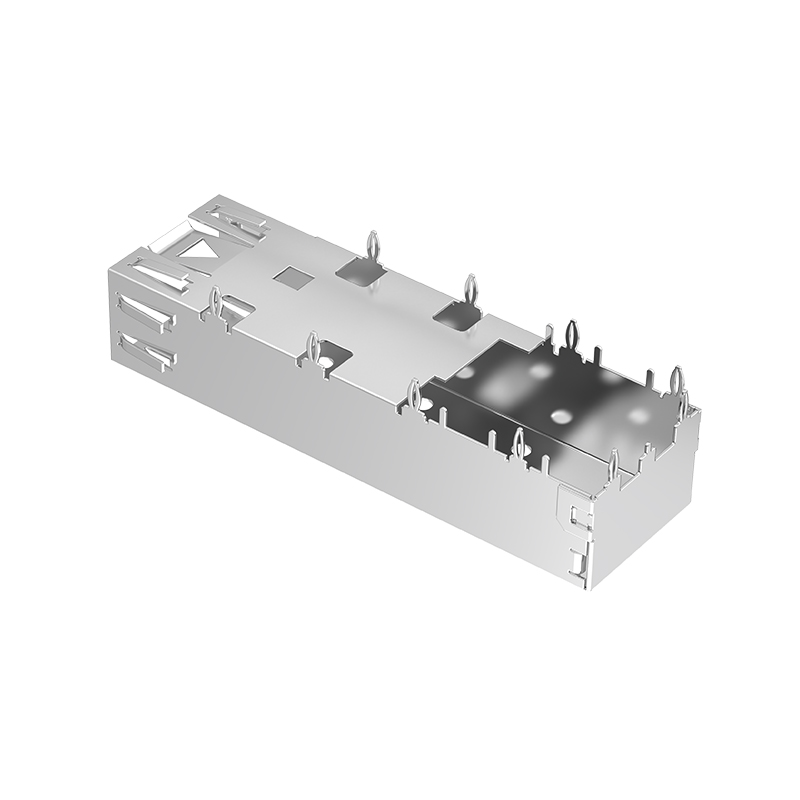

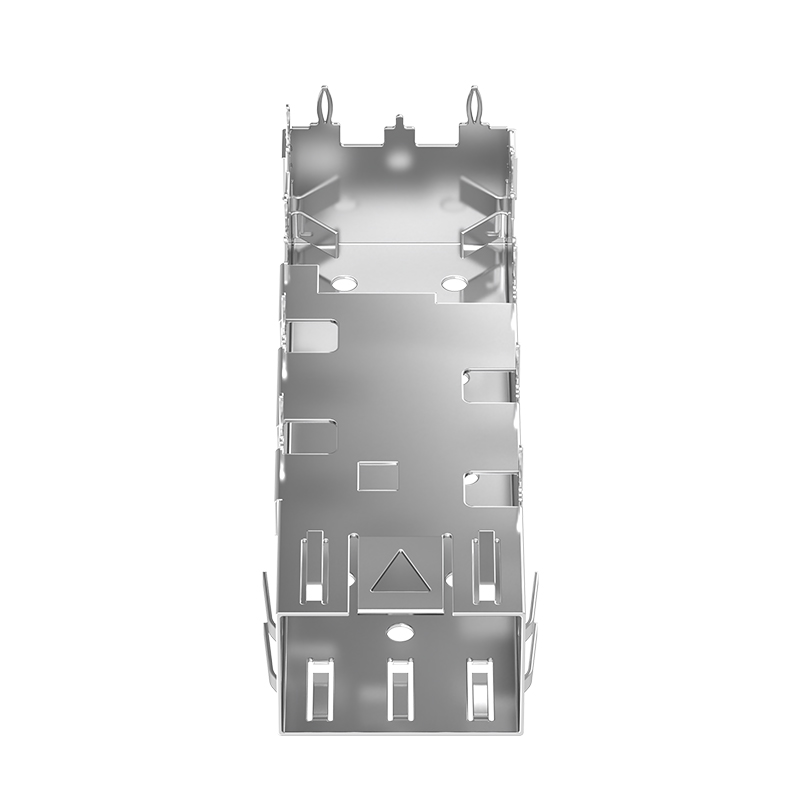

Trxcom TR11AC01000 SFP 1x1 Cage With EMI Spring Finger
Trxcom TR11AC01000 is an SFP 1×1 shielded cage with built-in EMI grounding springs. It delivers excellent electromagnetic shielding performance and features a standard structure compatible with SFP modules. It is suitable for various network communication devices such as switches and network interface cards.
| Part Number | TR11AC01000 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP |
| Cage | COPPER ALLOY,Ni PLATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 ~ +85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Without | PCB Mounting Style | Through Hole - Press-Fit |
| Height (Inches/mm) | 9.75/0.384 | Length (Inches/mm) | 48.75/1.919 |
| Width (Inches/mm) | 15.10/0.591 | EMI Containment Feature Type | EMI Springs |
