TS-SM3125-30C SFP28 25GBASE-ER 1310nm 30km DOM Duplex LC/UPC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-SM3125-30C
Form Factor ： SFP28
Type ： Single Mode
Data Rate ： 25G
Model ： ER
Connector ： Duplex LC
Distance ： ≤30km
Wavelength ： 1310nm
DetailReview(0)

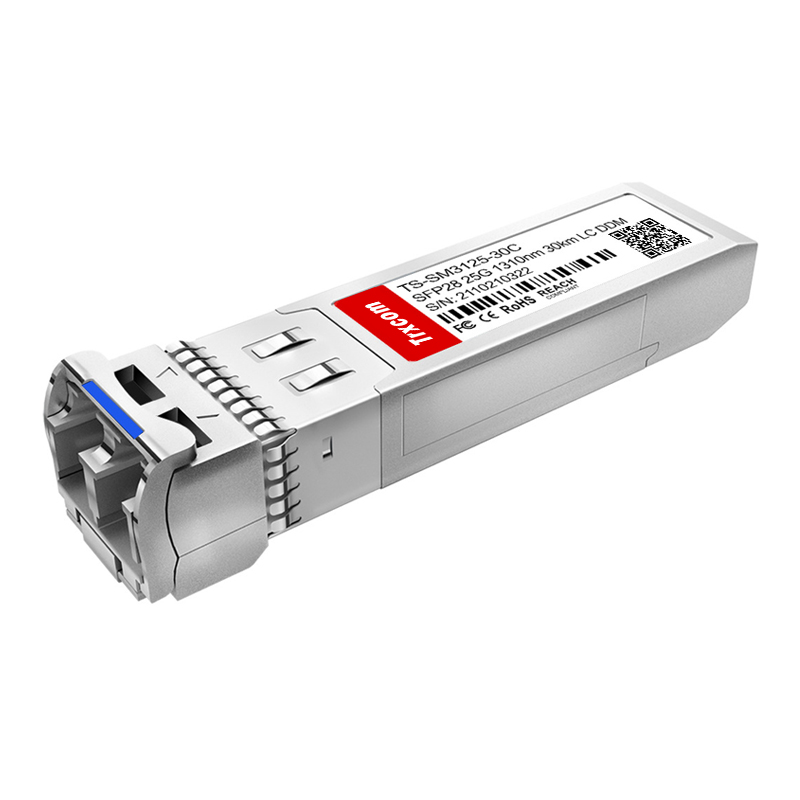

Trxcom TS-SM3125-30C SFP28 25GBASE-ER Duplex LC/UPC Optical Transceiver Module (SMF, 1310nm, 30km, LC, DOM)
Trxcom's TS-SM3125-30C SFP28 optical Transceiver Module adopts a 1310nm wavelength via an LC duplex connector, delivering 25GBASE-ER throughput over single-mode fiber with a maximum transmission distance of 30km. It provides connection solutions for 25G Ethernet, data centers and telecommunications equipment rooms. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standards.
| Part Number | TS-SM3125-30C | Vendor Name | Trxcom |
| Form Factor | SFP28 | Max Data Rate | 25.8Gbps |
| Wavelength | 1310nm | Max Cable Distance | 30km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DML 1310nm | Receiver Type | APD |
| TX Power | 0~6dBm | Receiver Sensitivity | <-19dbm<> |
| Power Budget | 19dB | Receiver Overload | -4dBm |
| Power Consumption | ≤2.2W | Extinction Ratio | 4dB |
| CDR | TX and RX | FEC Function | Not Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant, CPRI, eCPRI |
| DDM/DOM | Supported | Packaging Technology | BOX Packaging |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
