2x2 Through Hole RJ45 Connectors With 1000 Base-T Magnetic TRJG27664B92NL
TRJG27664B92NL 1000 Base-T Magnetic RJ45 Connectors for Game Controller and Automation (2x2 Port, Green/Green&Yellow LED)

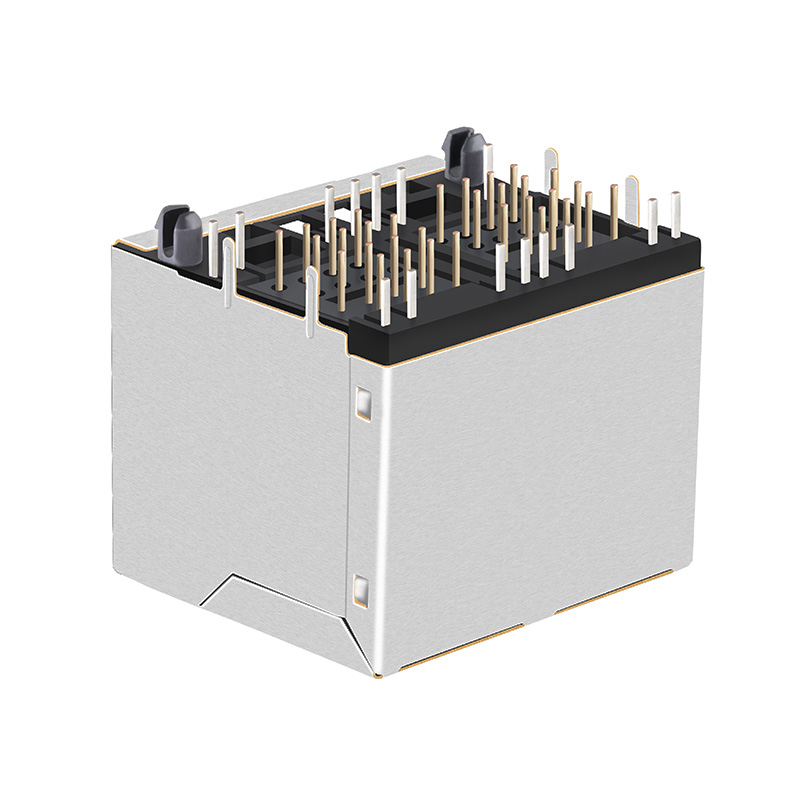

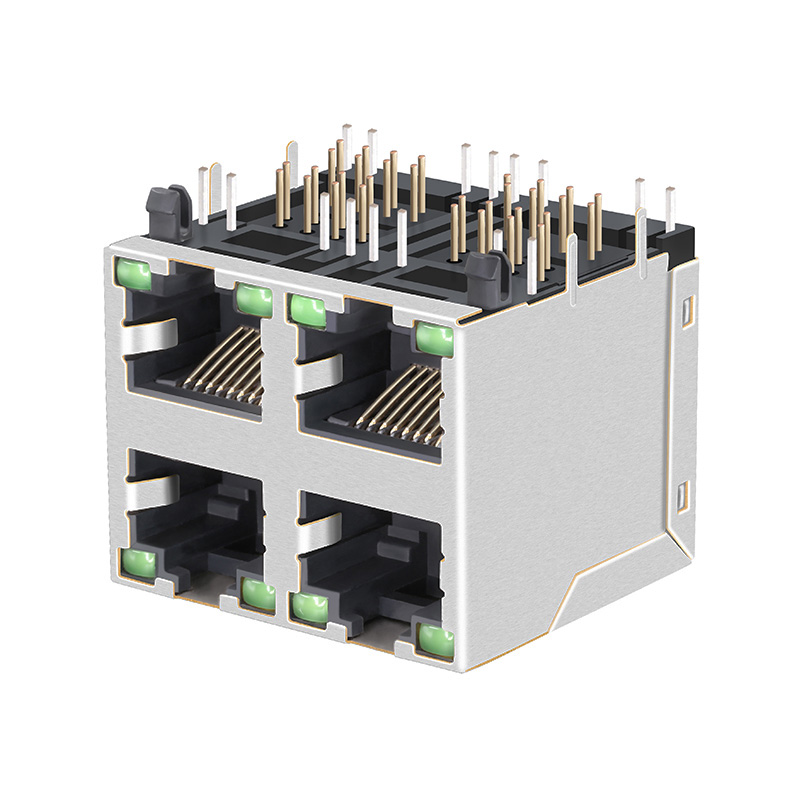

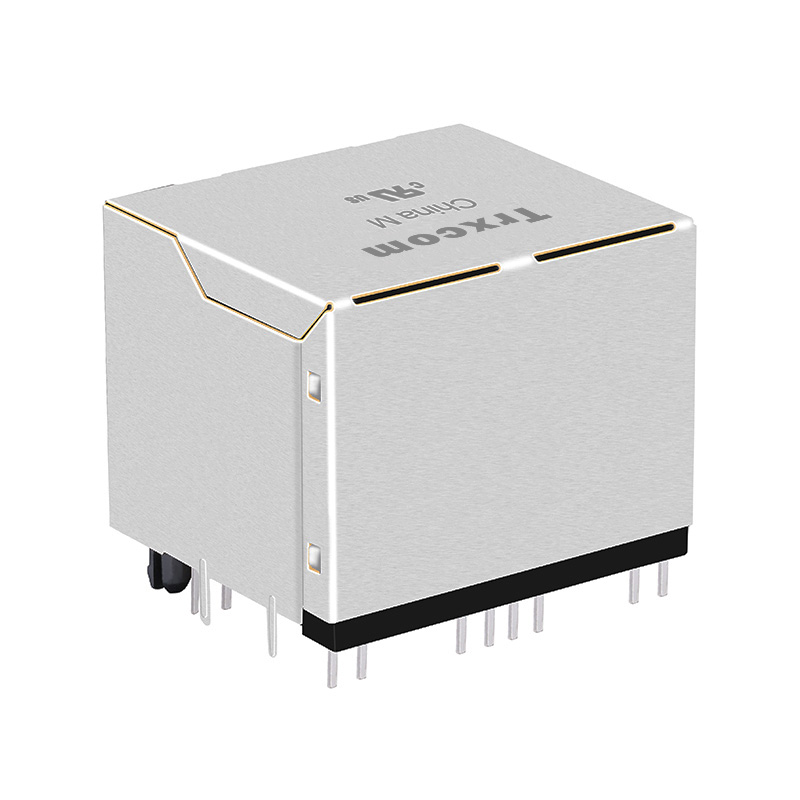

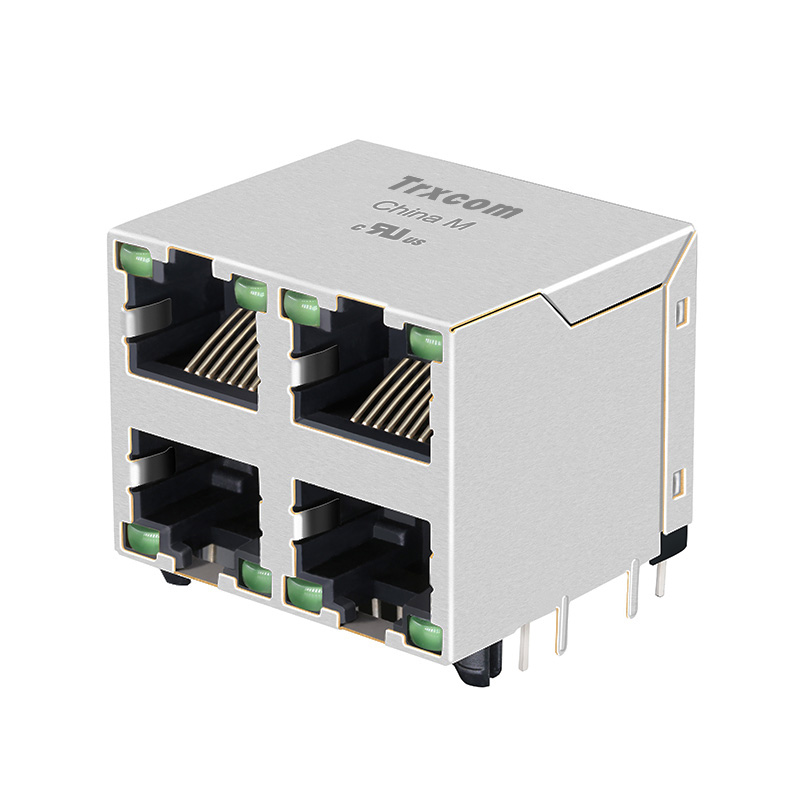

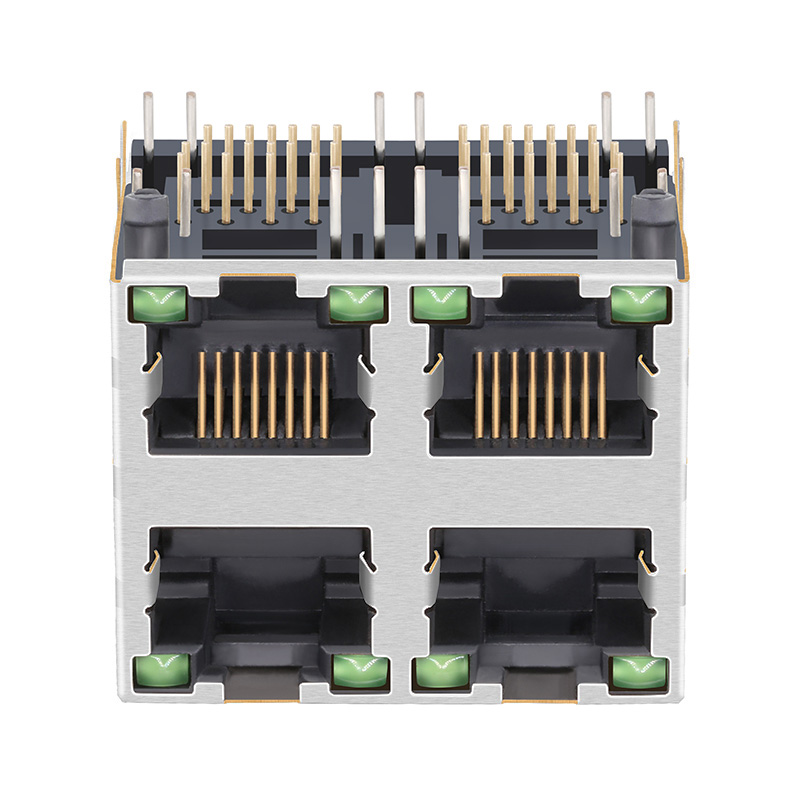

The Trxcom TRJG27664B92NL is a 2x2 port magnetic RJ45 connector designed for 1000 Base-T Ethernet applications. It features integrated magnetics and Green/Green & Yellow LEDs for status indication. Compliant with IEEE 802.3, UL, RoHS, and ISO standards, this connector is used in network cards, optical terminals, game controllers, and automation systems. Its THT mounting design ensures a secure connection, and its robust construction provides reliable performance without PoE support.
| Part Number | TRJG27664B92NL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x2 Port | Speed | 10/100/1000 Base-T |
| Latch | Up/Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Green/Green&Yellow LED Led |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 1.015/25.79 | Package Length (Inches/mm) | 1.122/28.50 |
| Package Width (Inches/mm) | 1.230/31.24 | Temperature | -40℃ TO +85℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
