SFP28 25GBASE-LR 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module TS-SM3125-10C
share
Parameter
P/N ： TS-SM3125-10C
Form Factor ： SFP28
Type ： Single Mode
Data Rate ： 25G
Model ： LR
Connector ： Duplex LC
Distance ： ≤10km
Wavelength ： 1310nm
DetailReview(0)

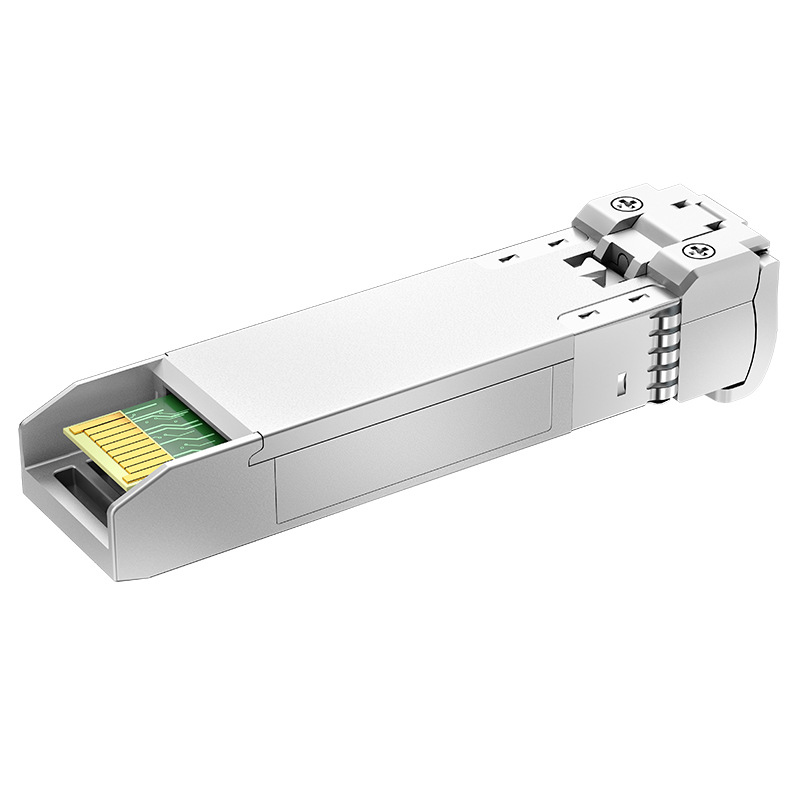

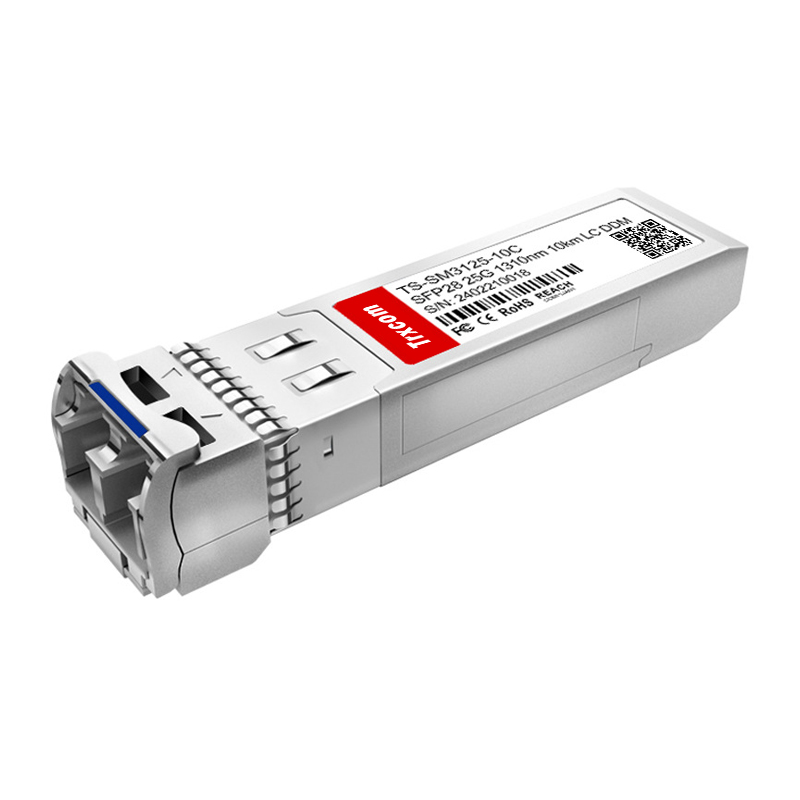

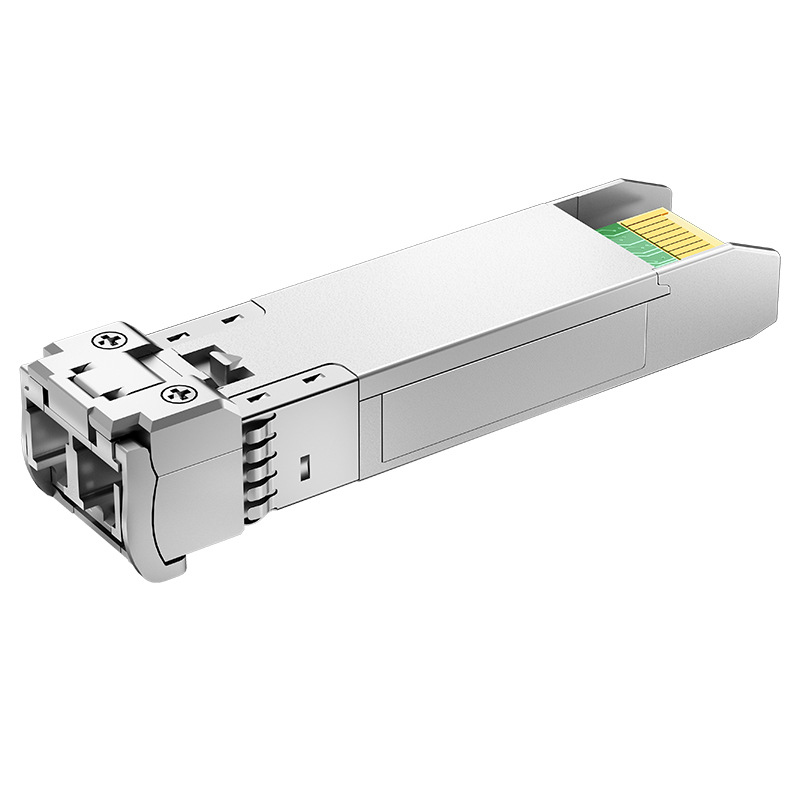

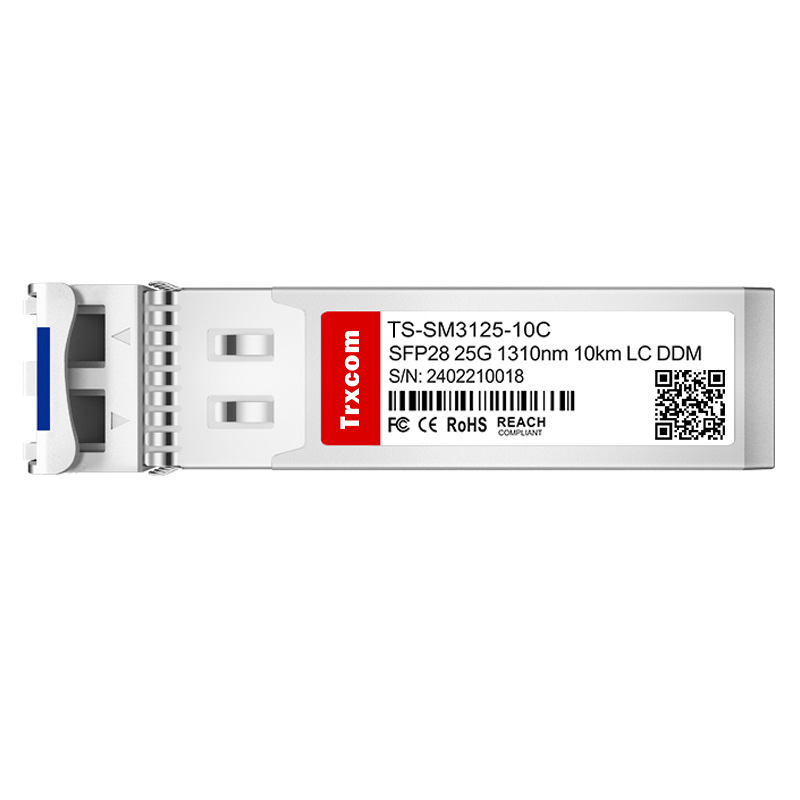

Trxcom TS-SM3125-10C SFP28 25GBASE-LR Duplex Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The Trxcom TS-SM3125-10C SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
| Trxcom Part Number | TS-SM3125-10C | Vendor Name | Trxcom |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Transmitter Type | DFB 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -8 to +3dBm | RX Power | -14 to +3dBm |
| Receiver Sensitivity | -13dBm | Receiver Overload | -2dBm |
| Operating case temperature | 0 to 70°C | Protocols | MSA Compliant, CPRI, eCPRI |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
