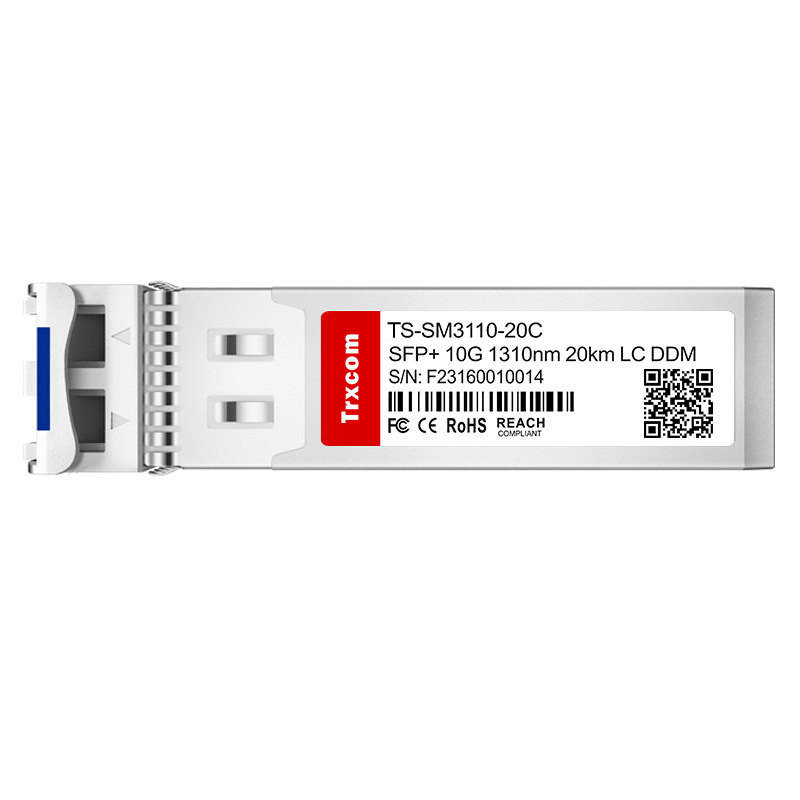

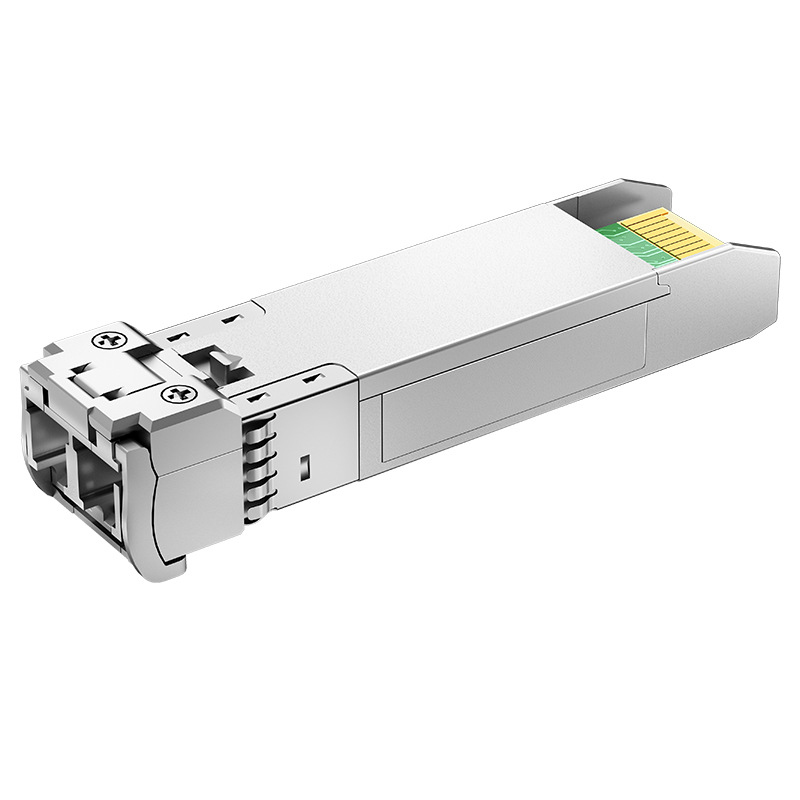

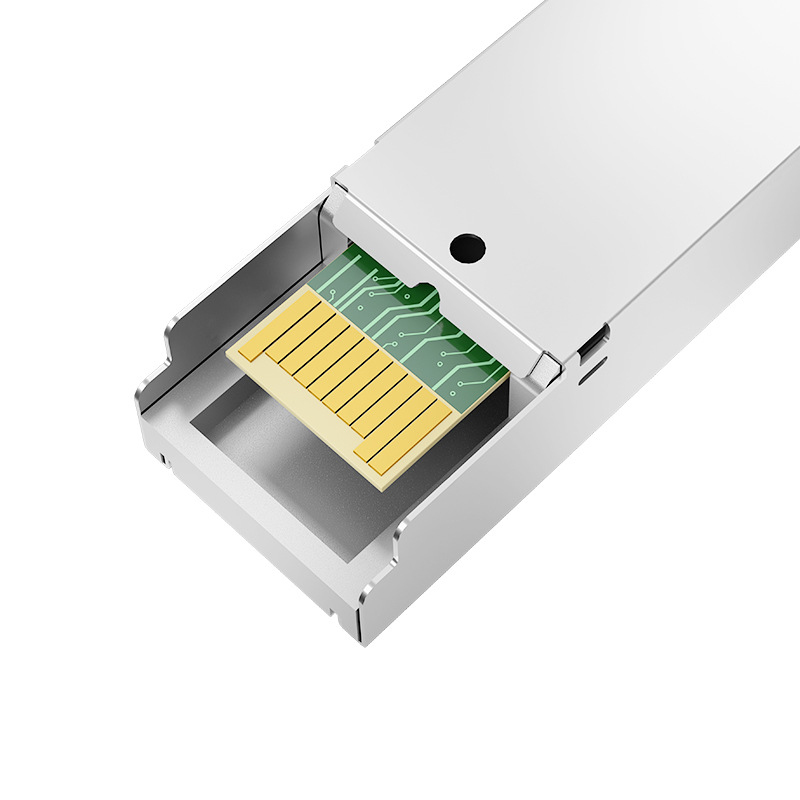

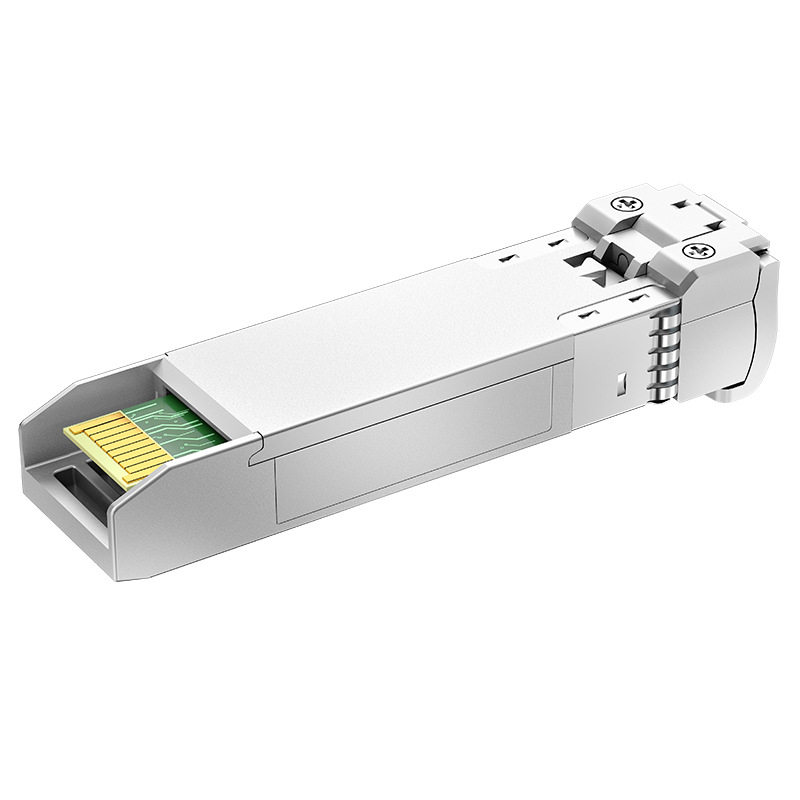

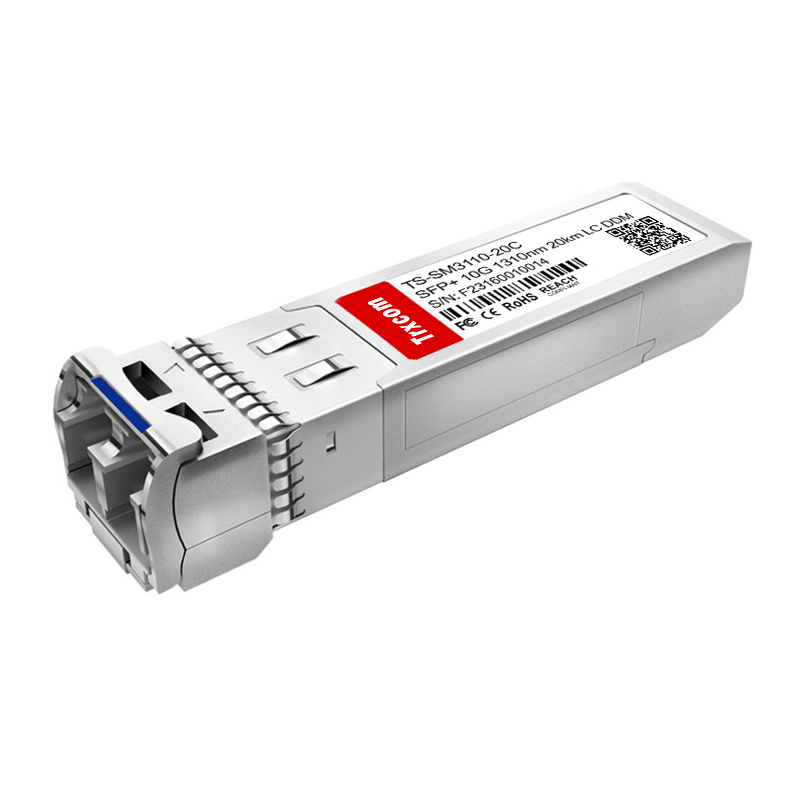

TS-SM3110-20C SFP+ 10GBASE-LR 1310nm 20km SMF Optical Transceiver Module DOM Duplex LC/UPC
share
Parameter
P/N ： TS-SM3110-20C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ER
Connector ： Duplex LC
Distance ： ≤20km
Wavelength ： 1310nm
DetailReview(0)
Trxcom TS-SM3110-20C SFP+ 10GBASE-LR Optical Transceiver Module Duplex LC/UPC (SMF,1310nm,20km,DOM)
The Trxcom TS-SM3110-20C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-SM3110-20C | Vendor Name | Trxcom |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1310nm | Max Cable Distance | 20km |
| Connector | Duplex LC | Optical Components | DFB |
| Media | SMF | DOM Support | Yes |
| TX Power | 0 to +5dBm | RX Power | -26 to -1dBm |
| Receiver Sensitivity | <-14.4dbm<> | - | - |
| Operating case temperature | 0 to 70°C | Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
