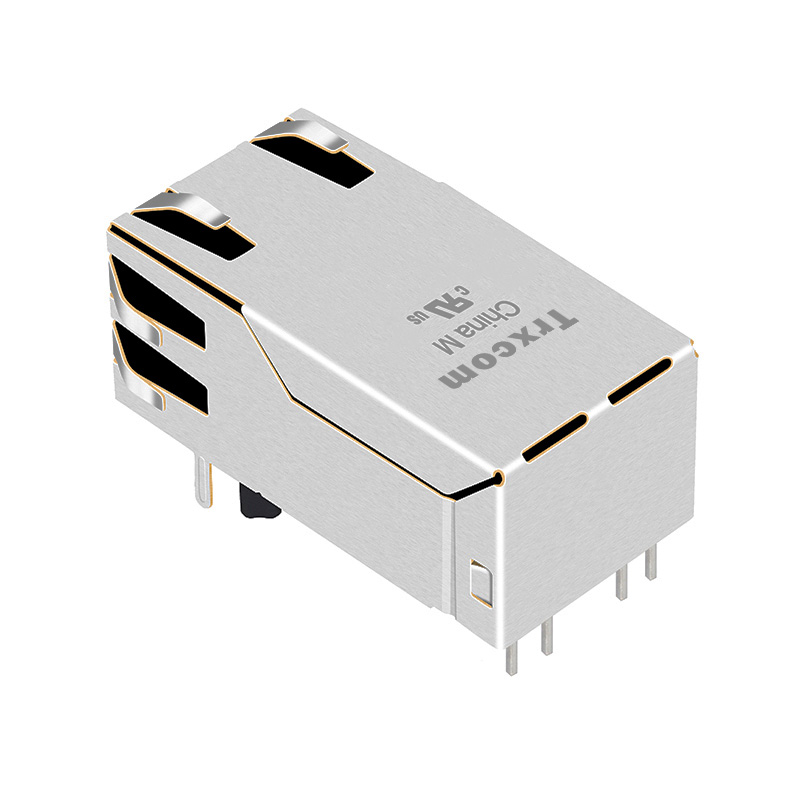

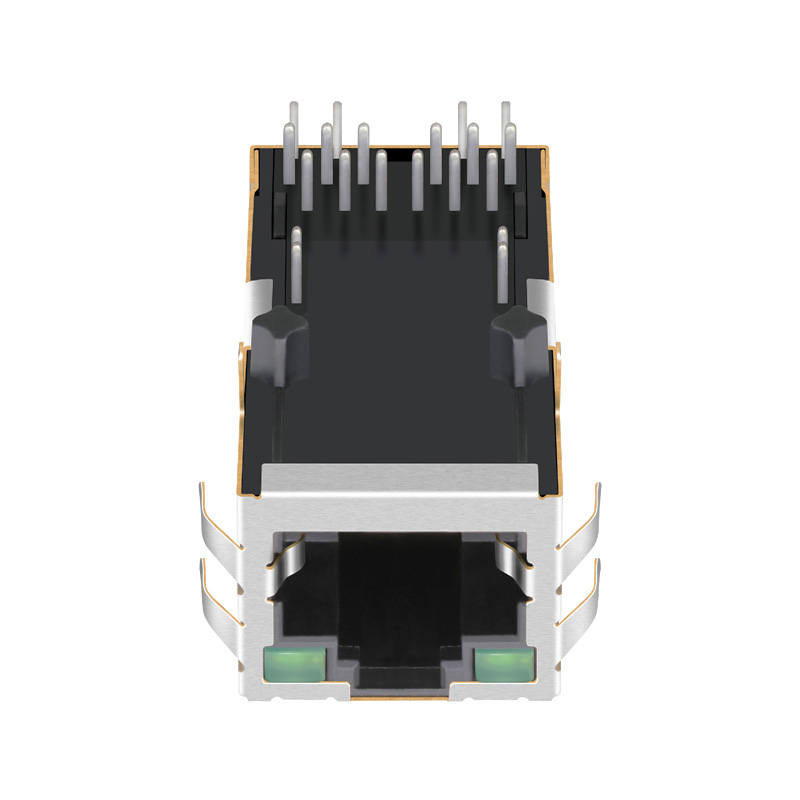

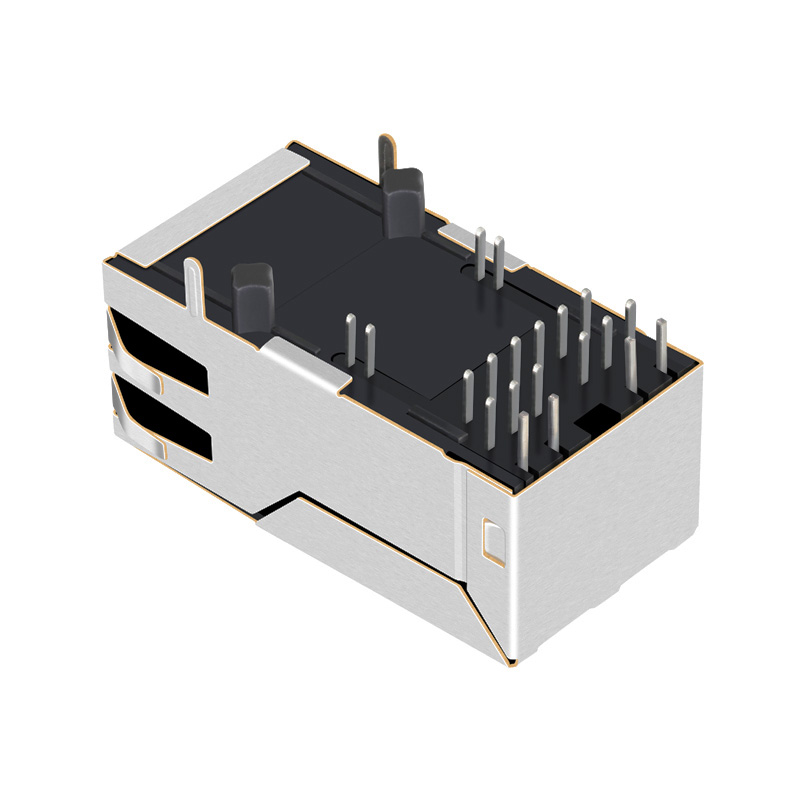

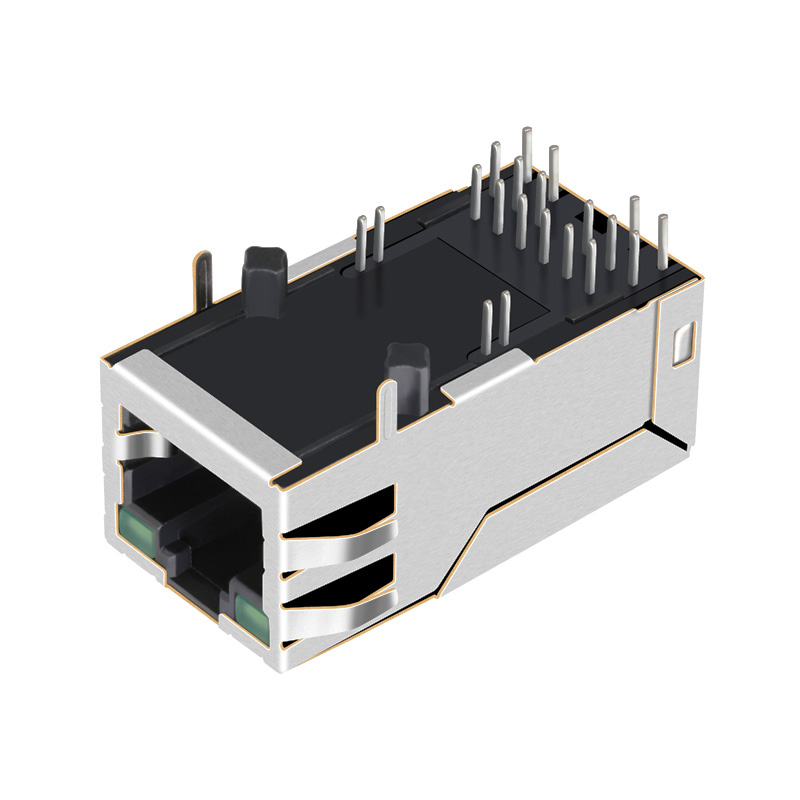

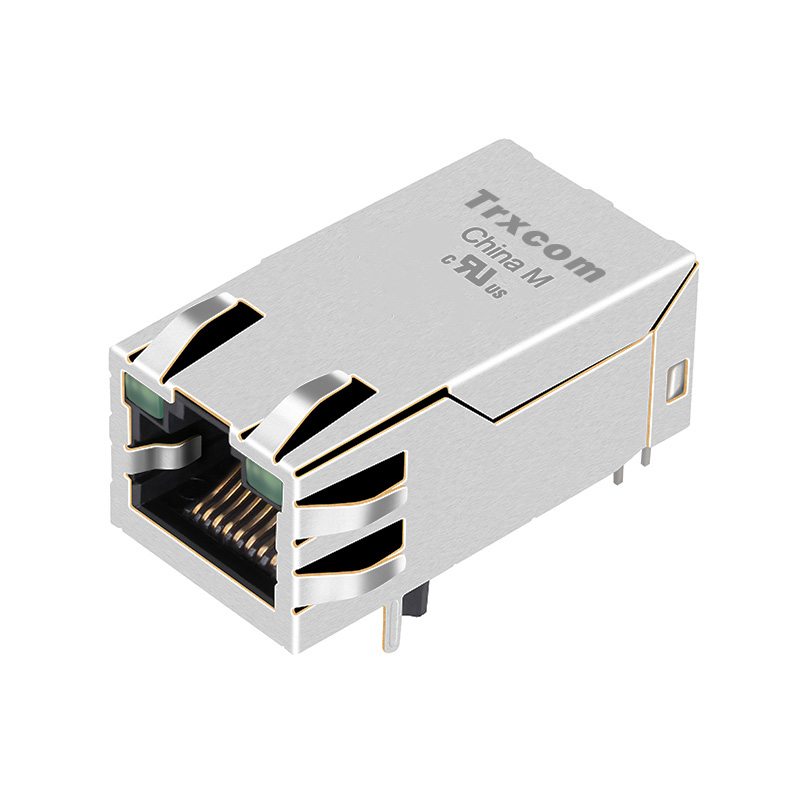

WE 7499411122 Compatible Trxcom TRJK2002AGNL 10/100 Base-T 1x1 Port PoE+ RJ45 Jack Tab Up Yellwo/Green Led

Name: WE 7499411122 Compatible Trxcom TRJK2002AGNL 10/100 Base-T 1x1 Port PoE+ RJ45 Jack Tab Up Yellwo/Green Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJK2002AGNL

Compatible Brand ： WE

Compatible P/N ： 7499411122

Port ： 1X1

Rate ： 10/100Base-T

PoE ： PoE+

Latch ： Up

LED ： Yellow/Green

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

Trxcom

Wurth

Compatible P/N:

TRJK2002AGNL

7499411122

Get a Quote

Download

Consult Product

DetailReview(0)

WE 7499411122 Compatible Trxcom TRJK2002AGNL 100/1000 Base-T POE+ Industrial RJ45 Ethernet Connector for Patient Care and (POE+, 1x1 Port, Tab Up, Yellow/Green Led)

The TRJK2002AGNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Webcams, Solar Inverter and VoIP Gateways.

Part Number	TRJK2002AGNL	WE Compatible	7499411122
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	16p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NONE PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ to 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
