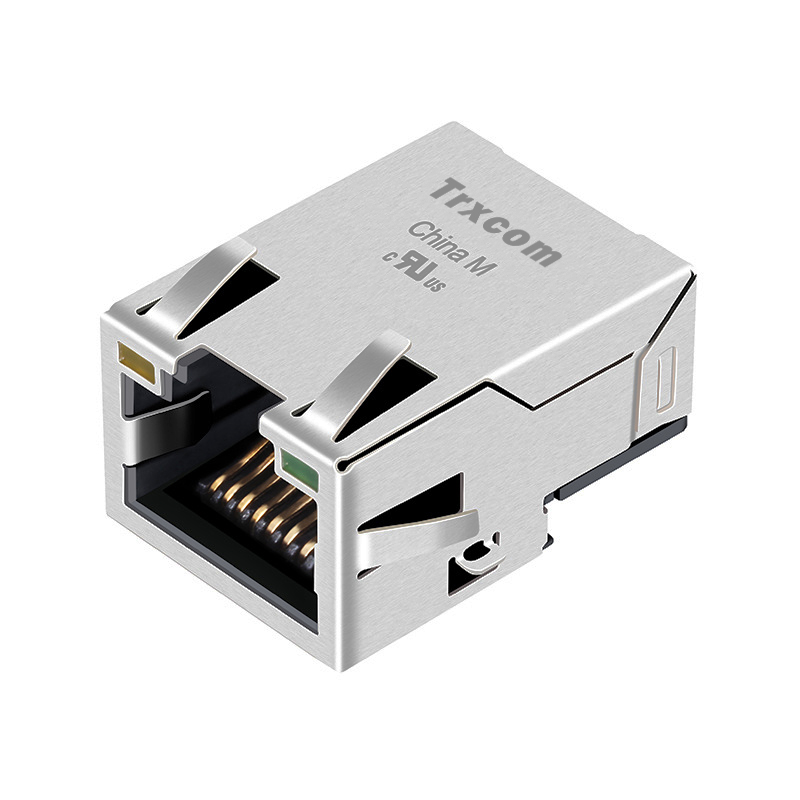

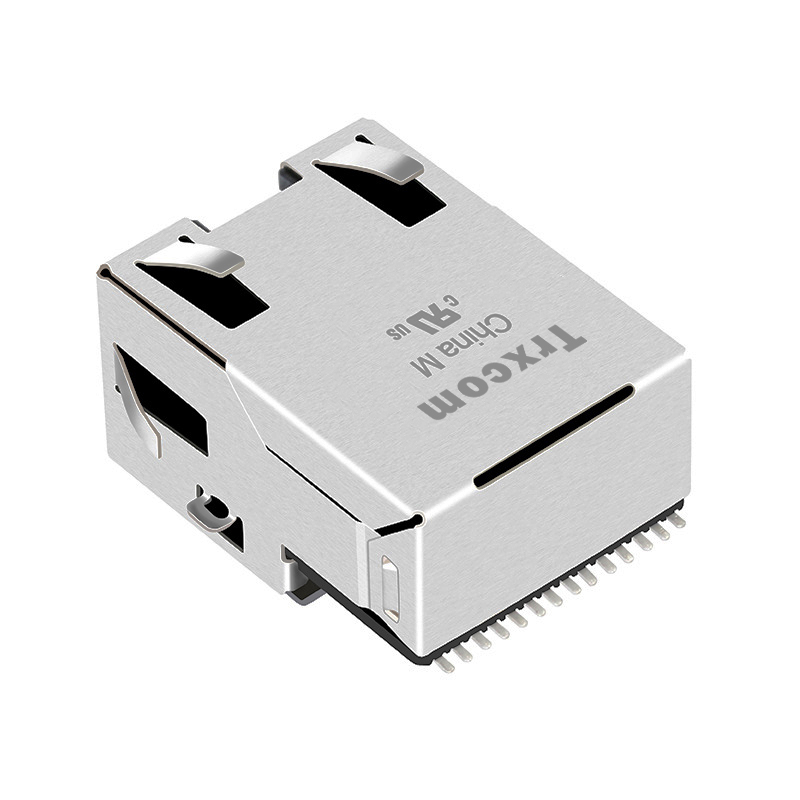

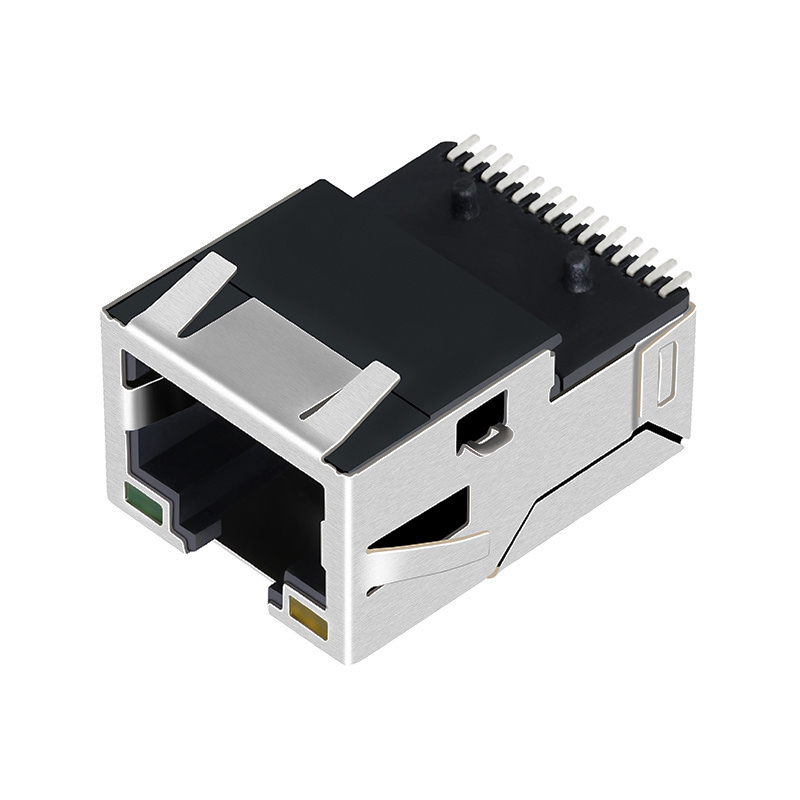

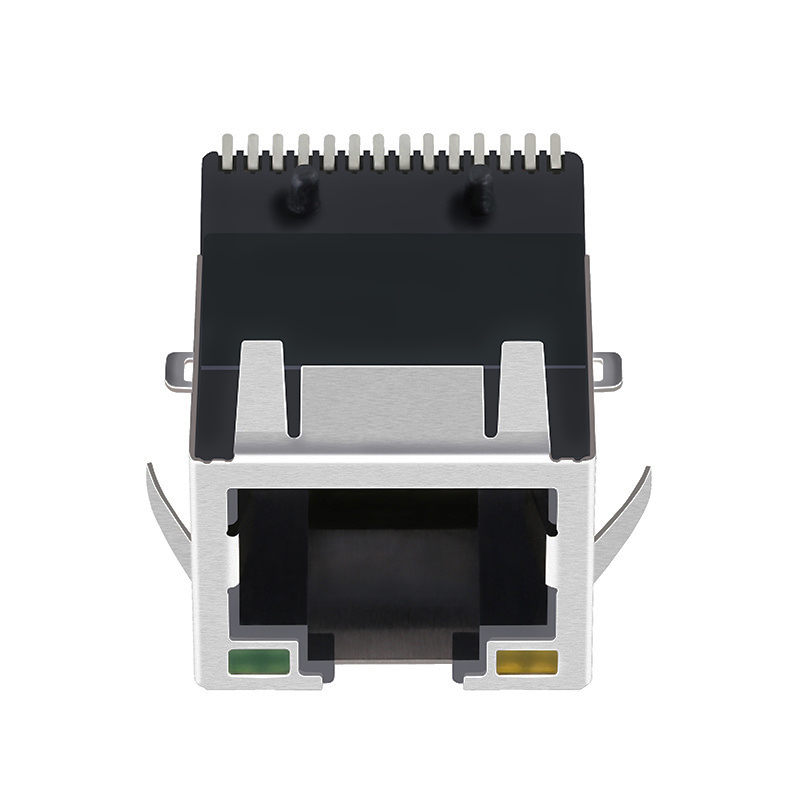

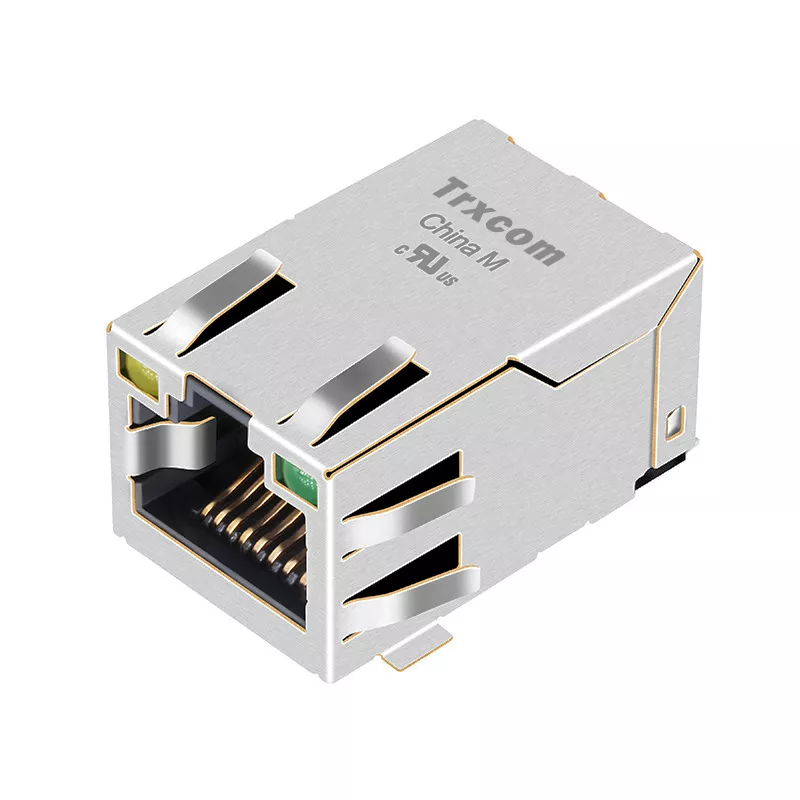

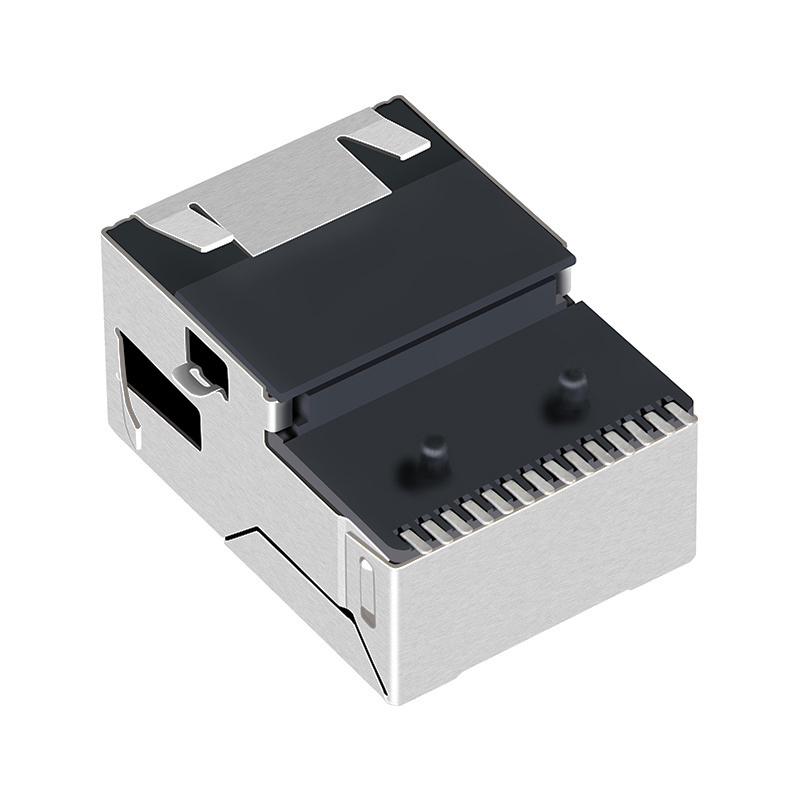

TRJ19911ADNL 10/100 Base-T SMT/SMD MagJack RJ45 Connector Surface Mount Tab Up Yellow/Green Led
share
Parameter
Brand ： Trxcom
P/N ： TRJ19911ADNL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 10/100Base-T
PoE ： NONE-PoE
Latch ： Up
LED ： Yellow/Green
Mount ： -40℃ to +85°C
Shield Tabs ： No
DetailReview(0)
Trxcom TRJ19911ADNL 10/100 Base-T SMT/SMD RJ45 Jack Surface Mount for Digital Camera and Router (Tab Up, Yellow/Green Led)
The TRJ19911ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Entrance Guard System and Server.
| Part Number | TRJ19911ADNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Surface Mount |
| Number of Positions/Contacts | 7p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | Surface Mount |
| Shield EMI Tabs | With | LED Option | Yellow/Green |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.447/11.35 | Package Length (Inches/mm) | 0.846/21.5 |
| Package Width (Inches/mm) | 0.610/15.50 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
