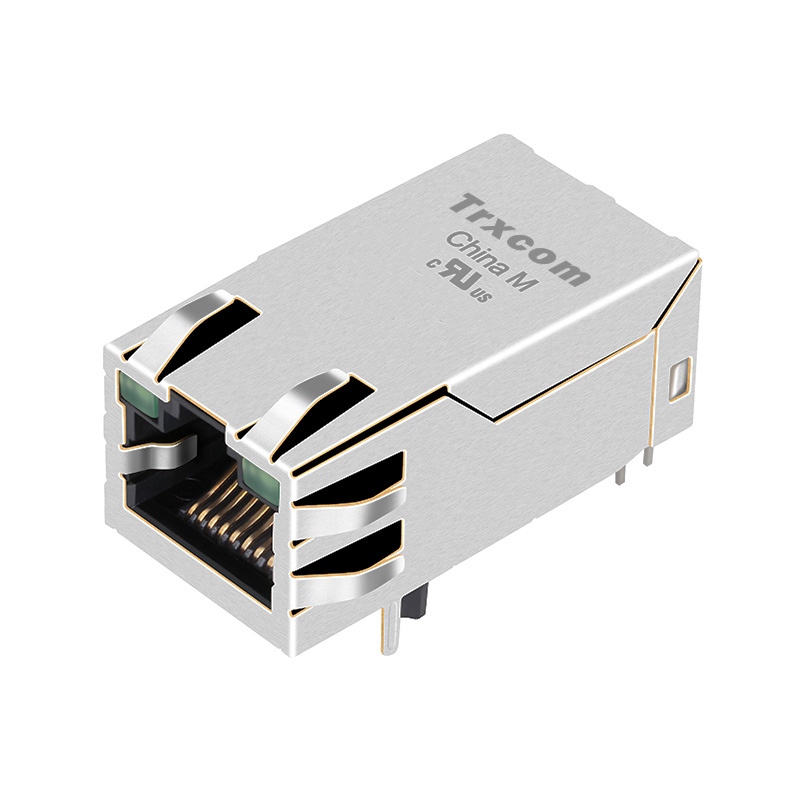

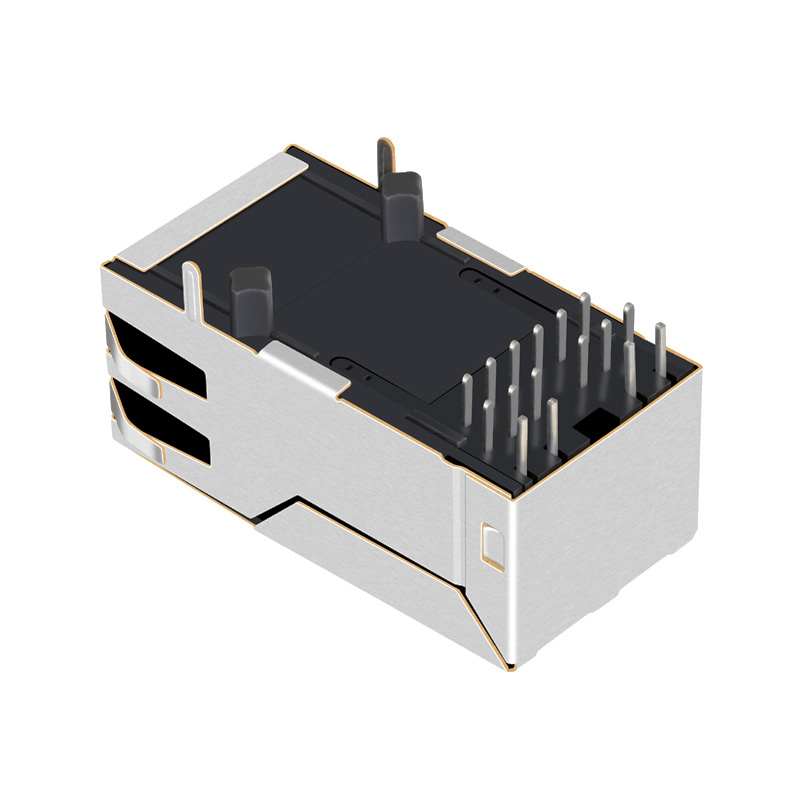

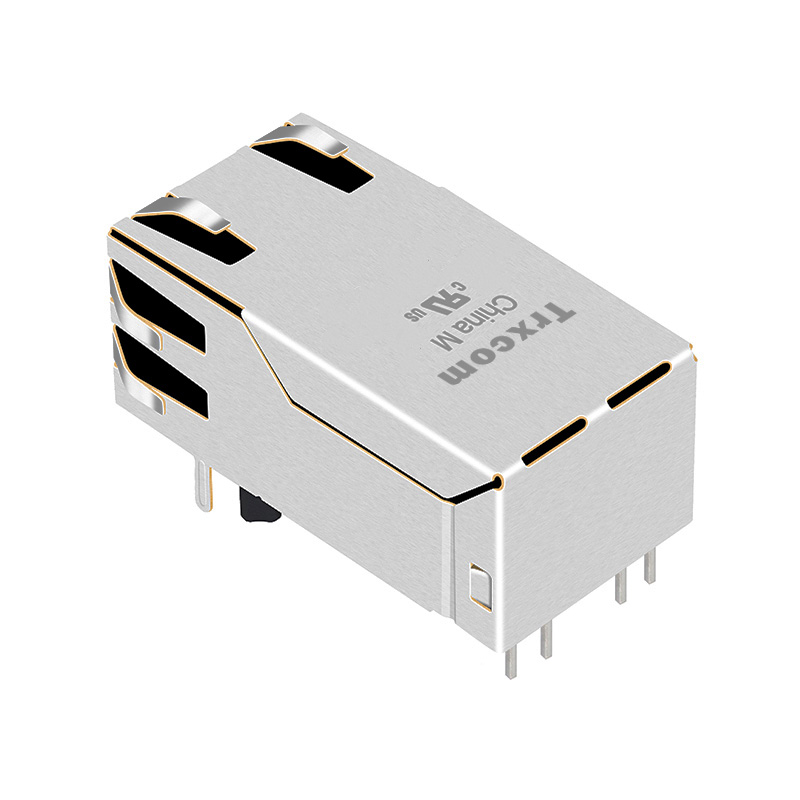

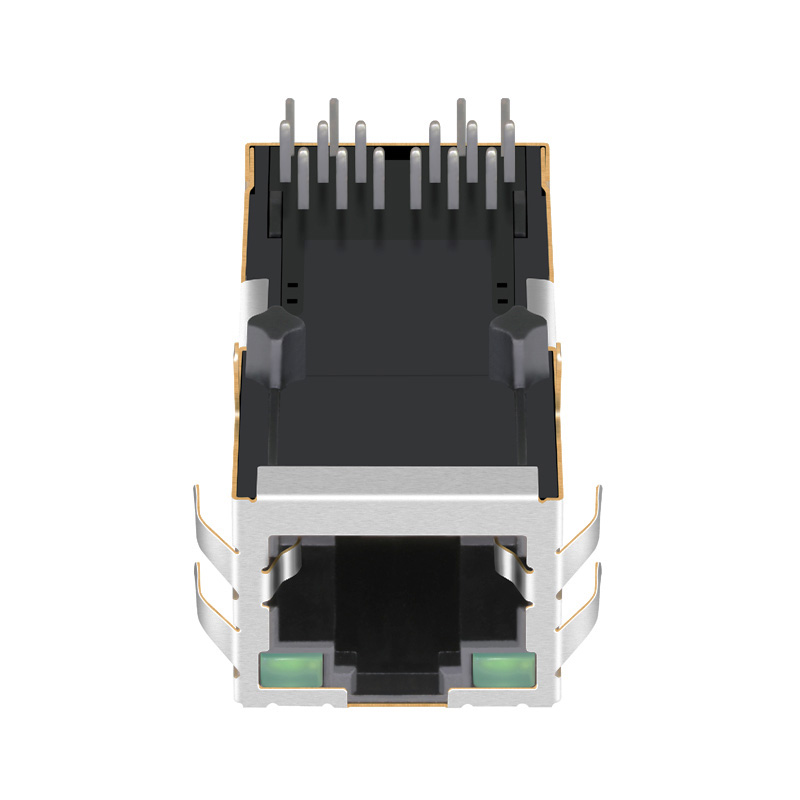

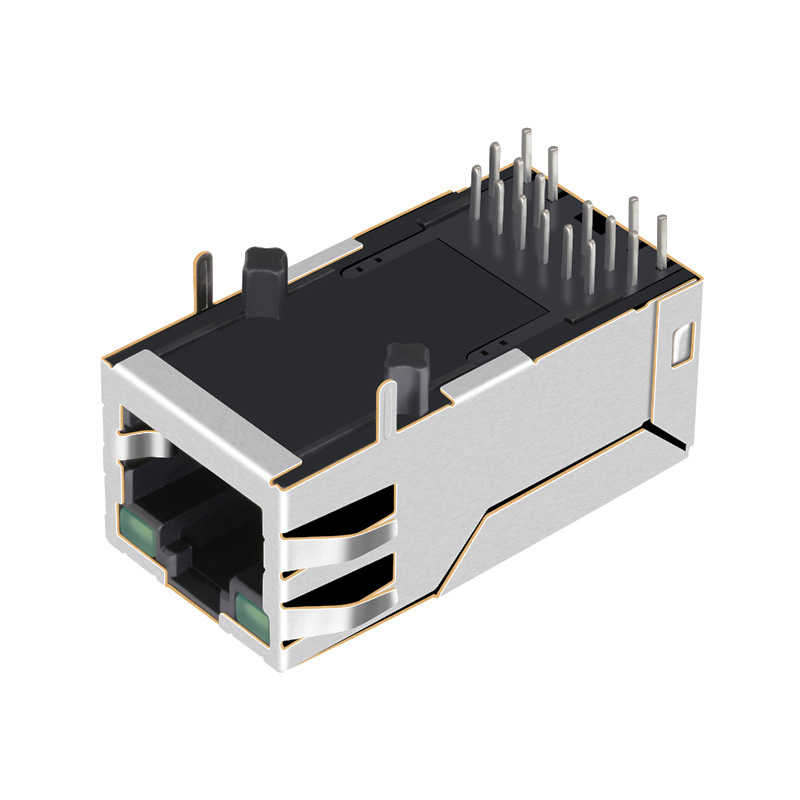

Pulse JK0654219 Compatible TRJK0071AWNL 100/1000 Base-T 1x1 Port RJ45 MagJack Tab Up Green/Green Led

Name: Pulse JK0654219 Compatible TRJK0071AWNL 100/1000 Base-T 1x1 Port RJ45 MagJack Tab Up Green/Green Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJK0071AWNL

Compatible Brand ： Pulse

Compatible P/N ： JK0654219

Port ： 1X1

Rate ： 1000Base-T

PoE ： NONE-PoE

Latch ： Up

LED ： Green/Green

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

Trxcom

Pulse

Compatible P/N:

TRJK0071AWNL

JK0654219NL

JK0-0187NL

JK0654219

Get a Quote

Download

Consult Product

DetailReview(0)

Pulse JK0654219 Compatible Trxcom TRJK0071AWNL 100/1000 Base-T RJ45 Magnetic Jack for Media Player and Game Controller (1x1 Port, Tab Up, Green/Green Led)

The Pulse JK0-0187NL Compatible TRJK0071AWNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

Trxcom Part Number	TRJK0071AWNL	Pulse Compatible	JK0654219
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	12p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NONE PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ to 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
