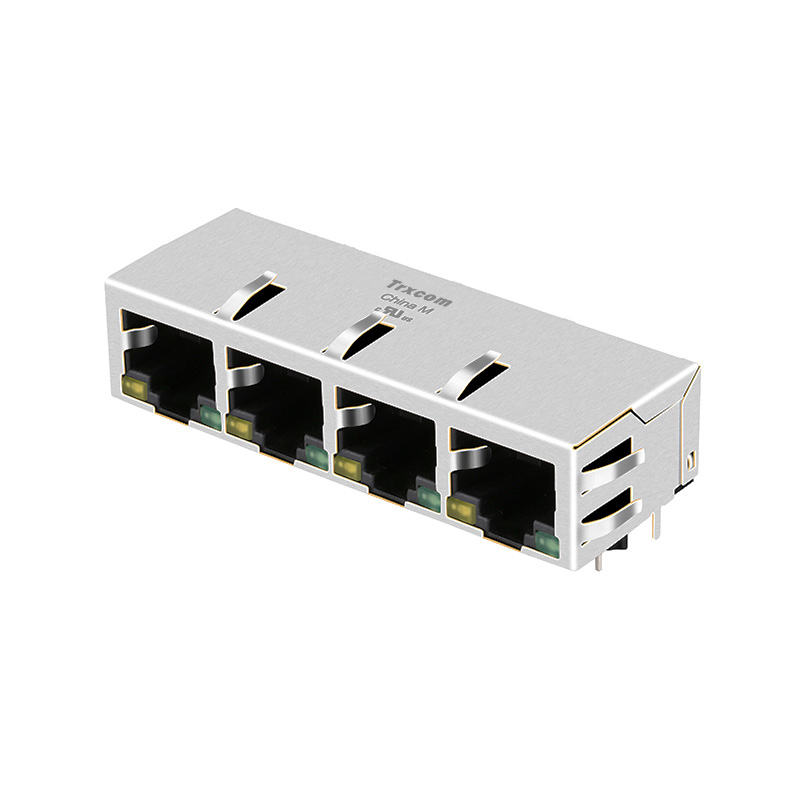

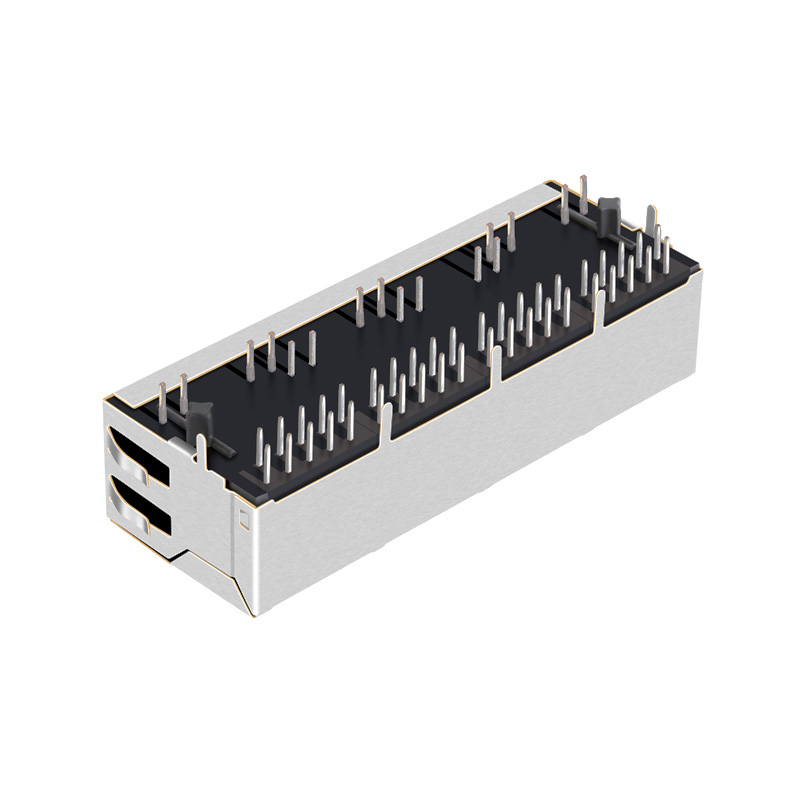

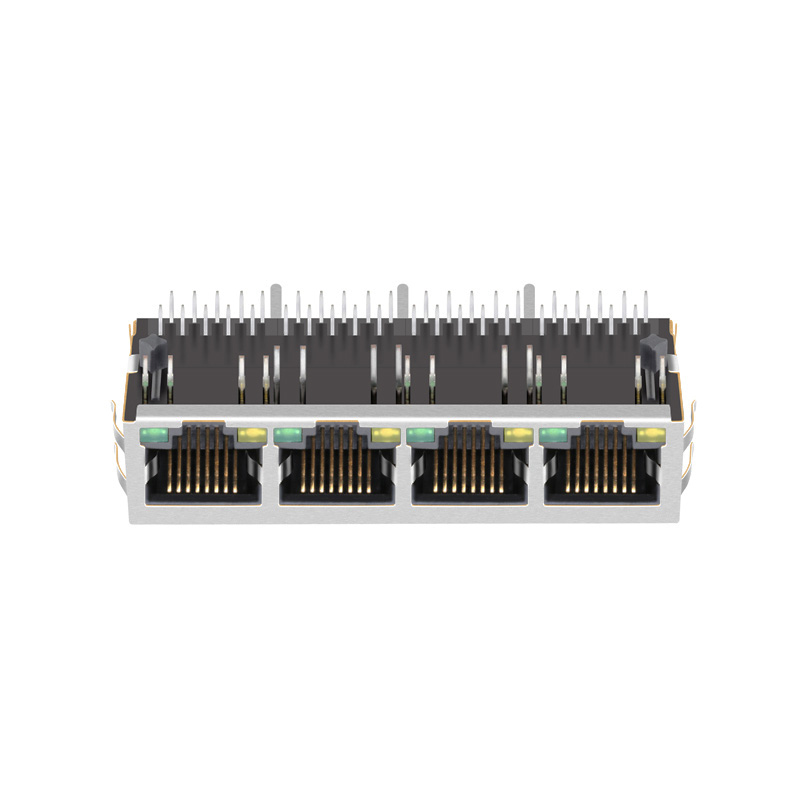

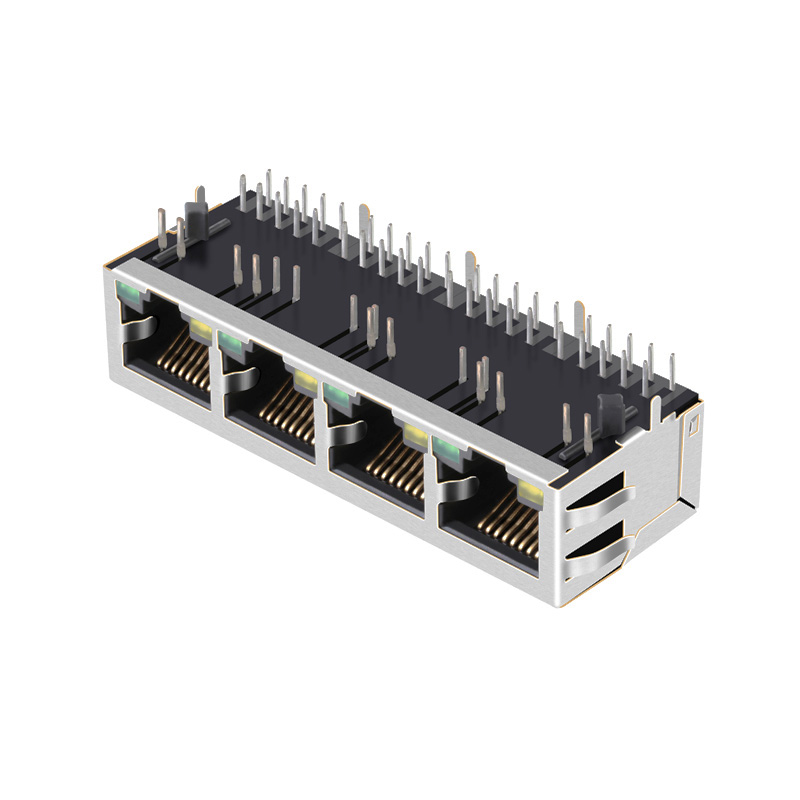

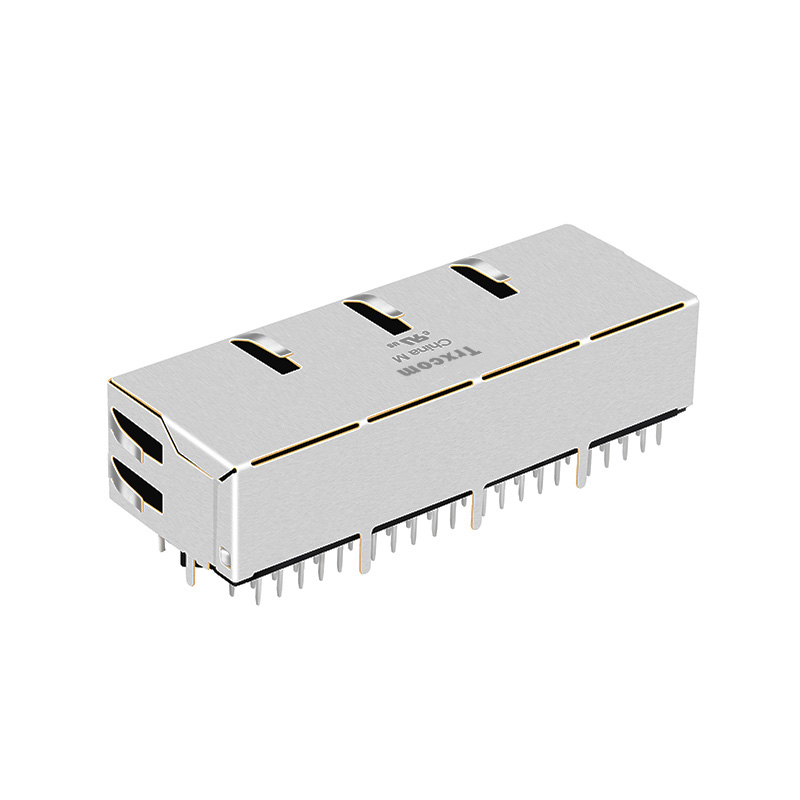

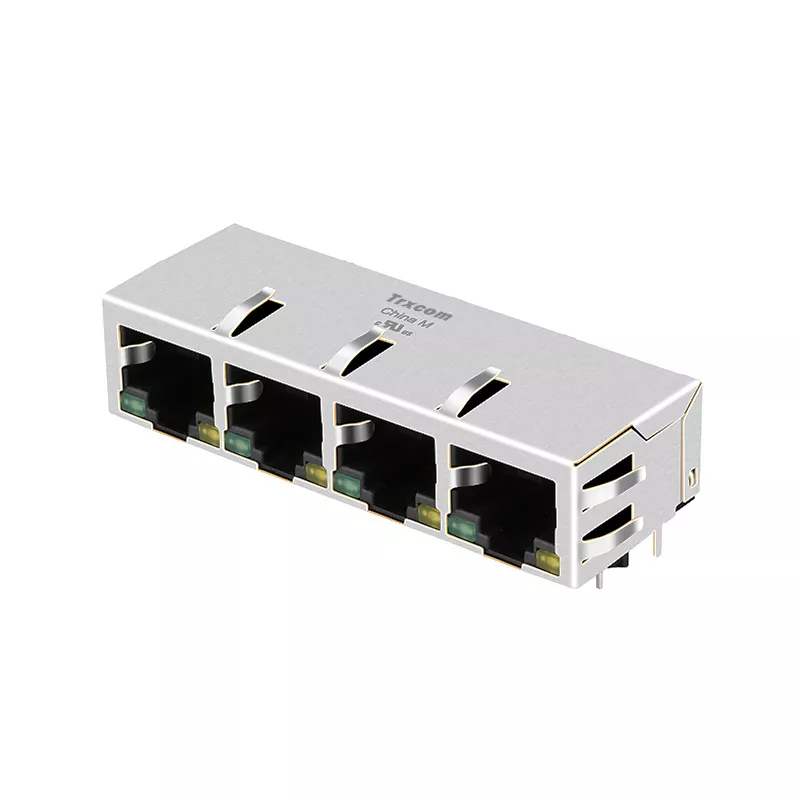

Pulse JXD0-4015NL Compatible TRJG46945AENL 1x4 Port 1000 Base-T RJ45 Jacks with Integrated Magnetics Tab Down Green/Yellow LED

Name: Pulse JXD0-4015NL Compatible TRJG46945AENL 1x4 Port 1000 Base-T RJ45 Jacks with Integrated Magnetics Tab Down Green/Yellow LED
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJG48831AENL

Compatible Brand ： Pulse

Compatible P/N ： JXD0-4015NL

Port ： 1X4

Rate ： 1000Base-T

PoE ： NONE-PoE

Latch ： Down

LED ： Green/Yellow

Mount ： -40℃ to +85°C

Shield Tabs ： Yes

Get a Quote

Download

Consult Product

DetailReview(0)

Pulse JXD0-4015NL Compatible TRXCOM TRJG46945AENL 10/100/1000 Base-T RJ45 Jacks With Magnetics for Hard Disk Players and Internet Of things Gateways (1x4 Port,Tab Down,Green/Yellow LED)

The Pulse JXD0-4015NL Compatible TRJG46945AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways,DVD and Webcams.

Part Number	TRJG46945AENL	Brand	Trxcom
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x4 Port	Speed	10/100/1000 Base-T
Latch	Down	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.527/13.39	Package Length (Inches/mm)	0.831/21.10
Package Width (Inches/mm)	2.325/59.06	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
