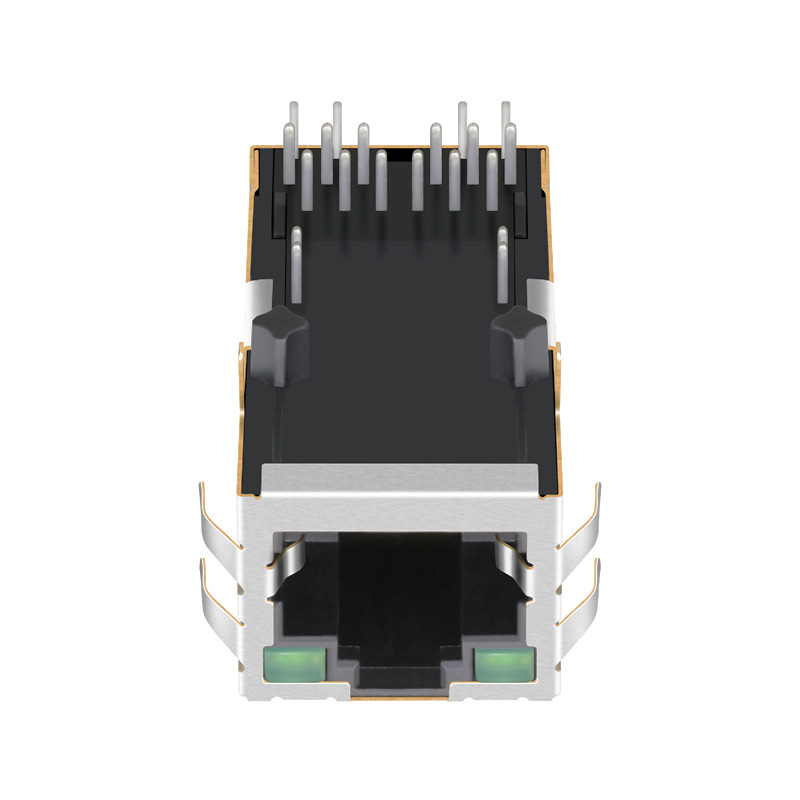

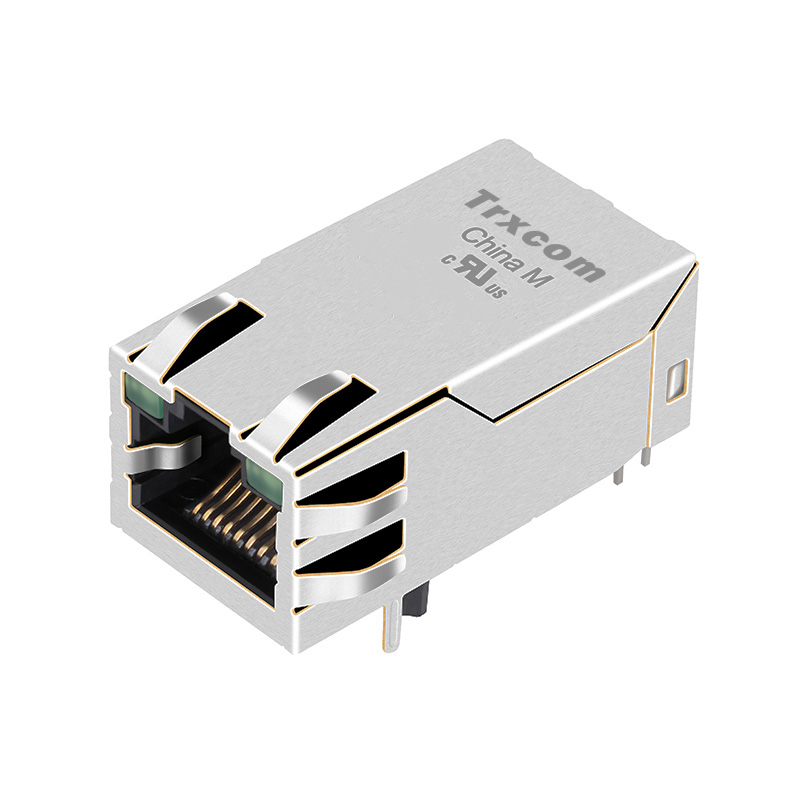

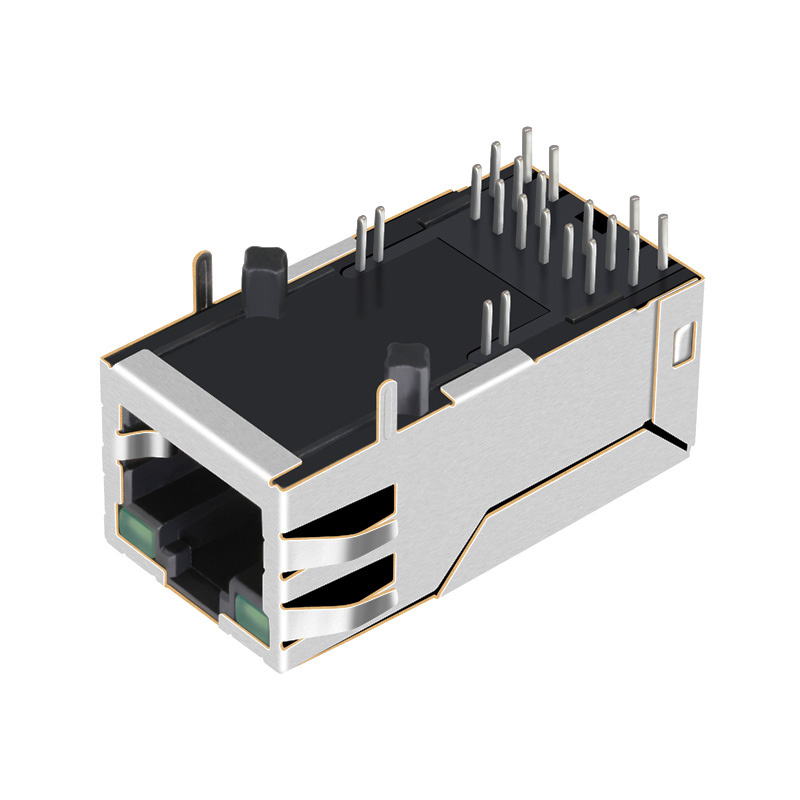

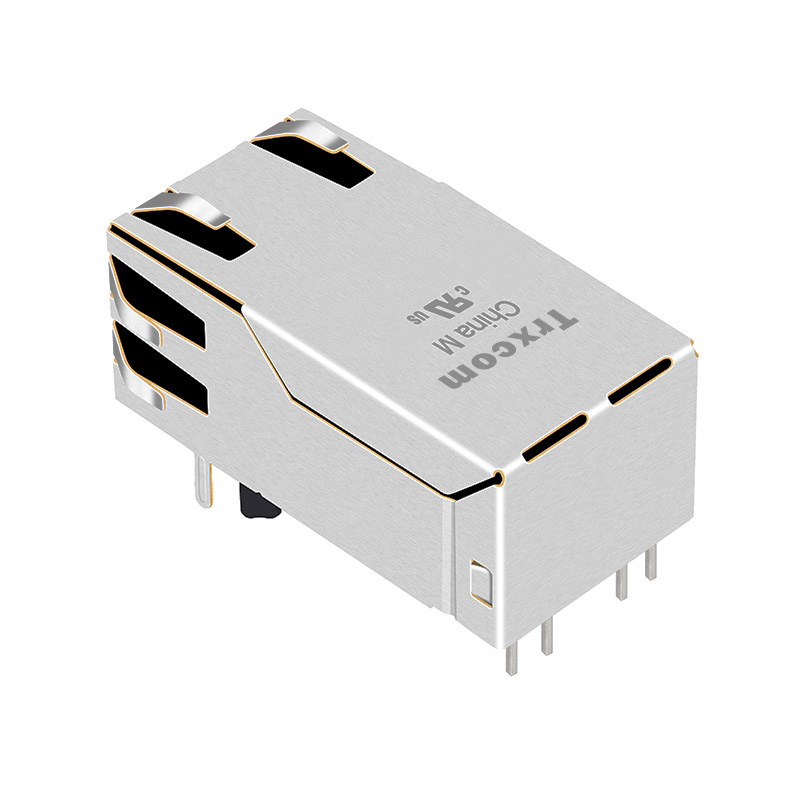

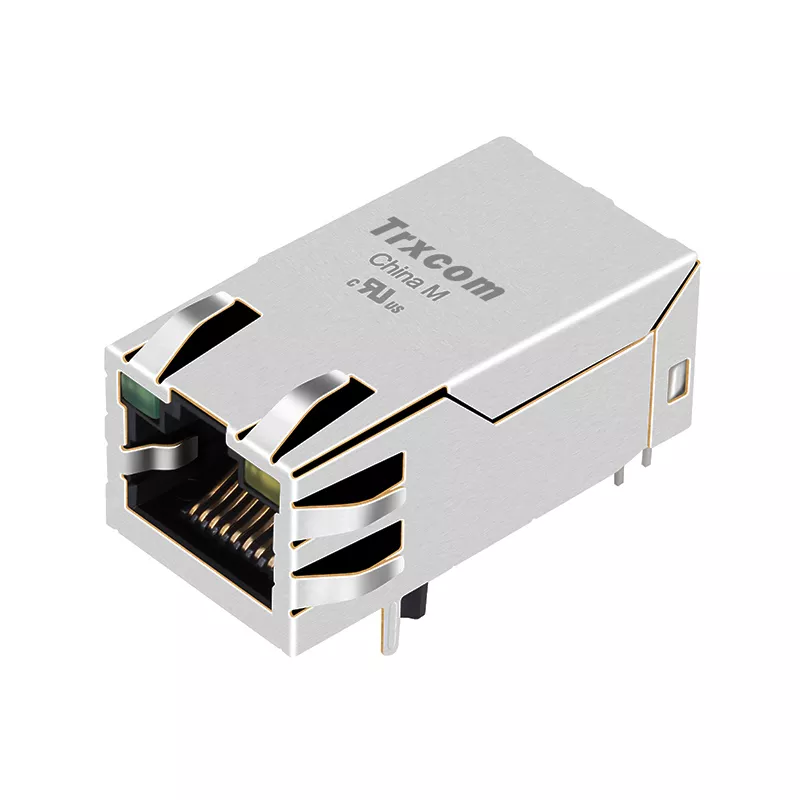

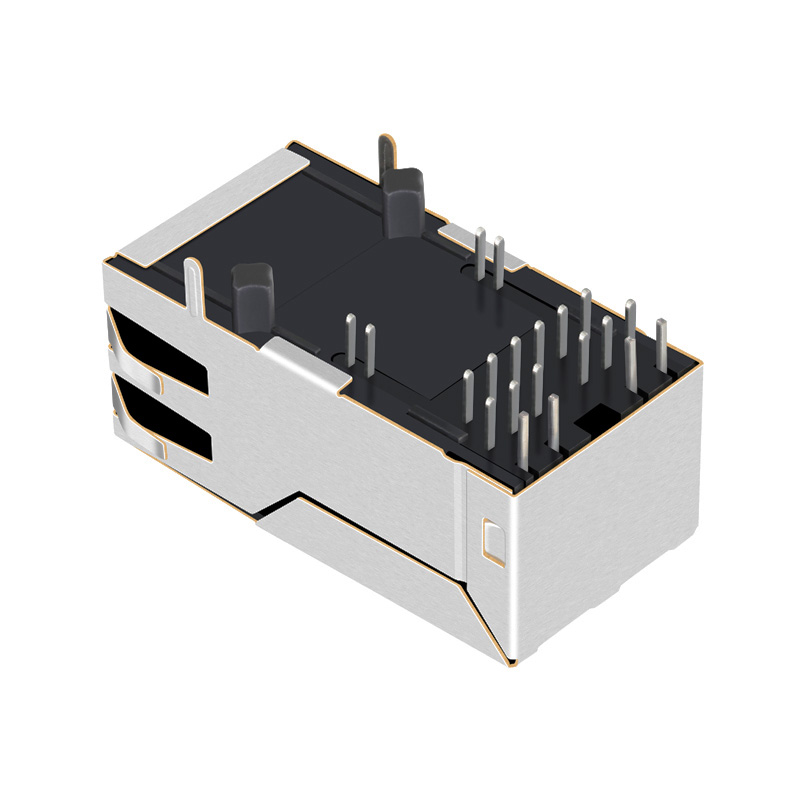

Pulse JT7-1104NL Compatible TRJM9008A93NL Single Port POE+ RJ45 Jack with 10G Base-T Integrated Magnetics Tab Up With Green&Yellow/Green Led

Name: Pulse JT7-1104NL Compatible TRJM9008A93NL Single Port POE+ RJ45 Jack with 10G Base-T Integrated Magnetics Tab Up With Green&Yellow/Green Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJM9008A93NL

Compatible Brand ： Pulse

Compatible P/N ： JT7-1104NL

Port ： 1X1

Rate ： 10GBase-T

PoE ： PoE+

Latch ： Up

LED ： Yellow&Green/Green

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Get a Quote

Download

Consult Product

DetailReview(0)

Pulse JT7-1104NL Compatible Trxcom TRJM9008A93NL 10G Base-T RJ45 Jack with Integrated Magnetics for Video Recorder and Smart Meters ( POE+, Single Port, Tab Up, Green&Yellow/Green Led)

The Pulse JT7-1104NL Compatible Trxcom TRJM9008A93NL supports speed 10G Base-T, It is compliant with IEEE 802.3 bt, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support applications, such as Monitoring System, Embedded Main Board, Video Recorder and Smart Meters.

Part Number	TRJM9008A93NL	Pulse Compatible	JT7-1104NL
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	14p8c(RJ45, Ethernet)	Application-Lan	Ethernet(PoE+)
Number of Ports	1x1 Port	Speed	10G Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green&Yellow/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ TO 70℃
Bst Circuit	No	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
