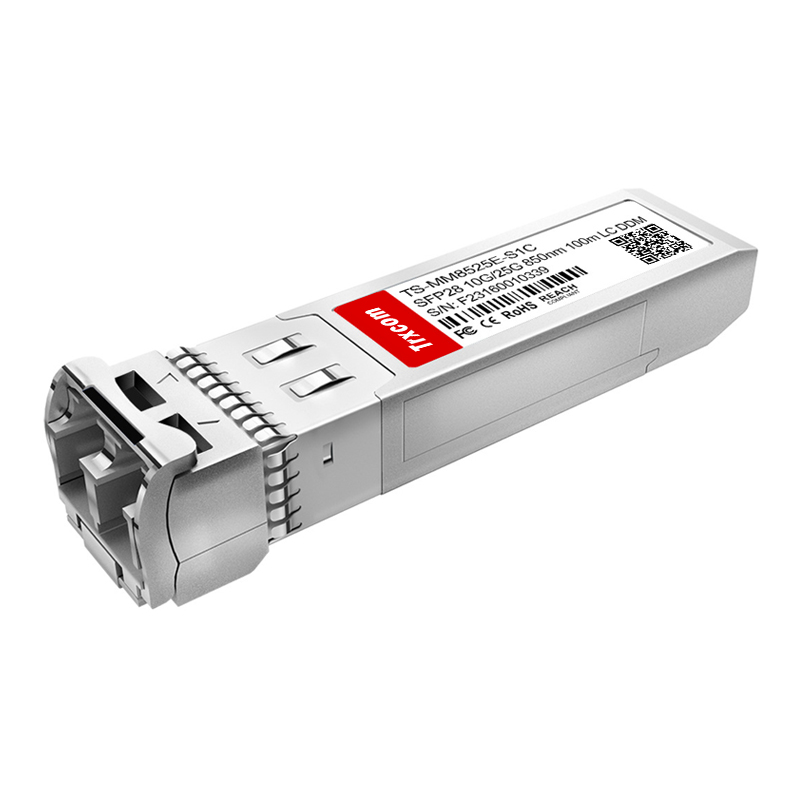

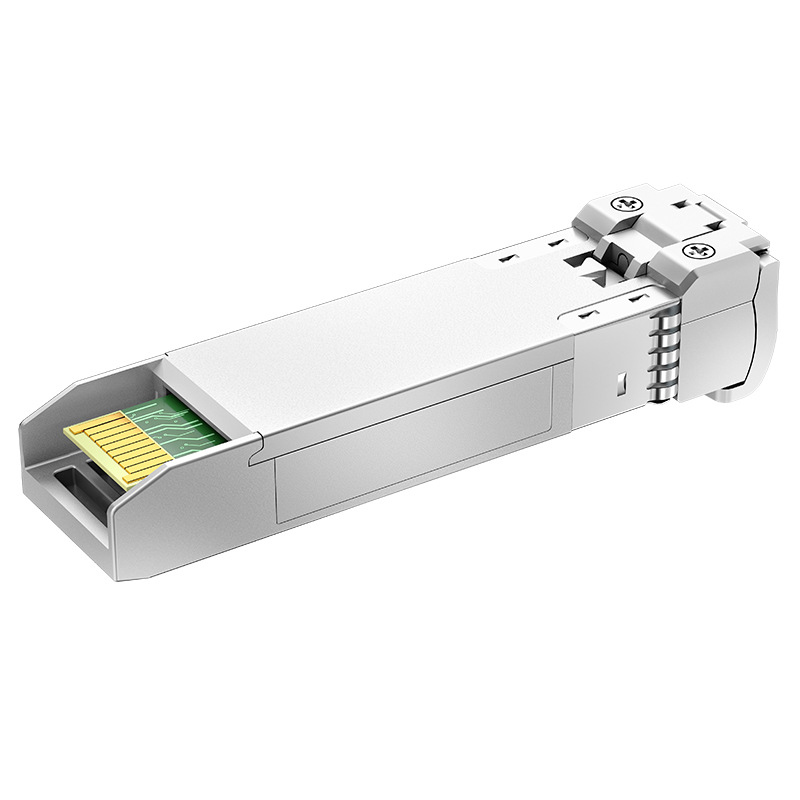

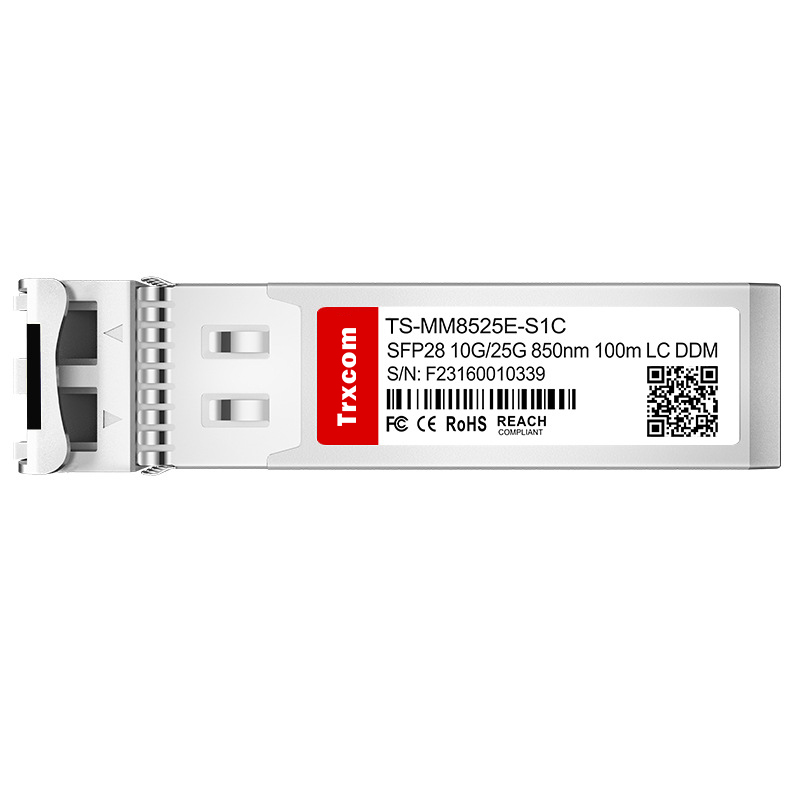

TS-MM8525E-S1C SFP28 10/25Gbps 100m 850nm MMF DOM Duplex LC Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-MM8525E-S1C
Form Factor ： SFP28
Type ： Multi Mode
Data Rate ： 25G
Model ： SR
Connector ： Duplex LC
Distance ： ≤100m
Wavelength ： 850nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-MM8525E-S1C 10/25Gbps SFP28 Optical Transceiver Module (MMF, 850nm, 100m,Duplex LC,DOM)

The Trxcom TS-MM8525E-S1C SFP28 optical module adopts an LC duplex connector, supporting 10/25GBASE-SR transmission at an 850nm wavelength over multimode fiber (MMF) with a reach of up to 100 meters. It offers 10G backward compatibility and simplifies network upgrades. The module provides connectivity options for 25G Ethernet, 10G Ethernet and data center applications. It fully complies with the SFP28 MSA, SFF-8431, SFF-8472 and IEEE 802.3by standards.

Part NumberTS-MM8525E-S1CVendor NameTrxcom
Form FactorSFP28Max Data Rate10/25Gbps
Wavelength850nmMax Cable Distance100m@OM4/70m@OM3
ConnectorDuplex LCMediaMMF
Transmitter TypeVCSELReceiver TypePIN
Power Consumption≤3.3WExtinction Ratio>2dB
DDM/DOMSupportedCase Temperature range0°C to +70°C
TX Power-8.4~2.4dBmMinimum Receiver Power＜-10.3dBm
Powerbudget1.9dBReceiver Overload2.4dBm
DDM/DOMSupportedFEC FunctionSupport RS-FEC, FC FEC
ProtocolsSFF-8472, SFF-8024, SFF-8431, SFF-8432Warranty5 Years
