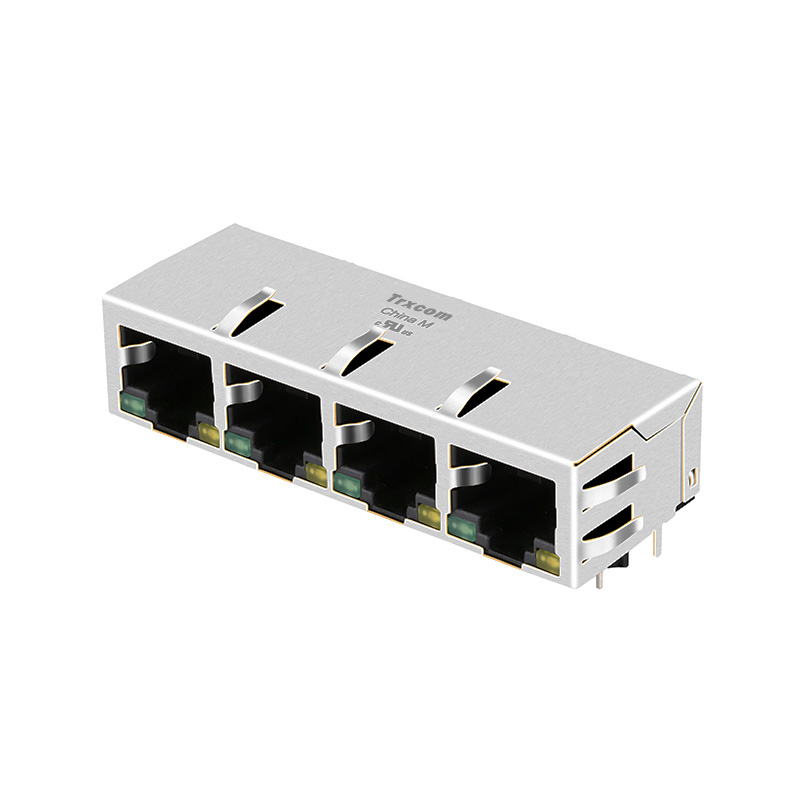

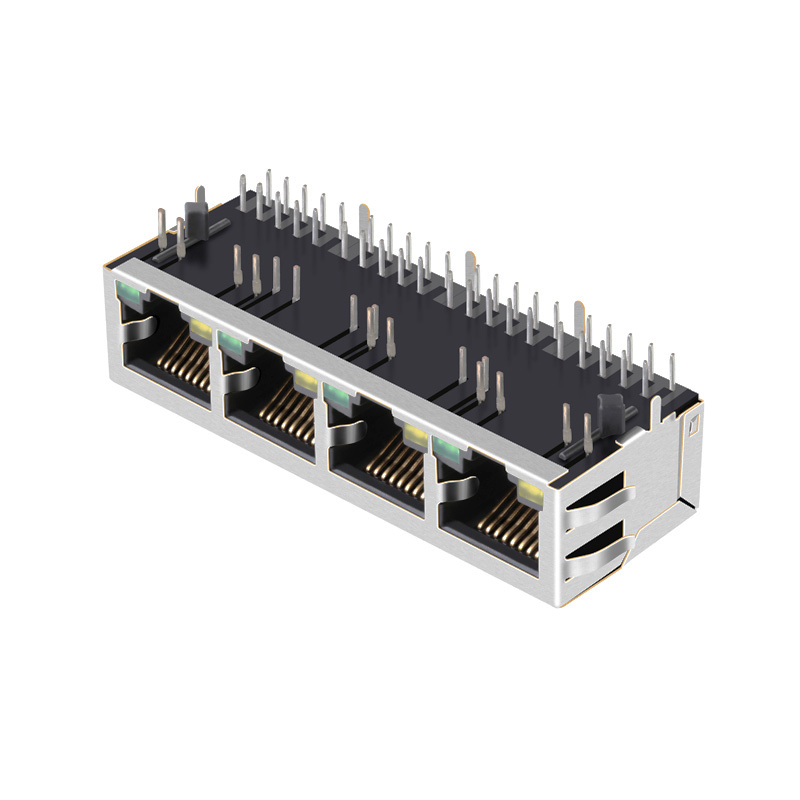

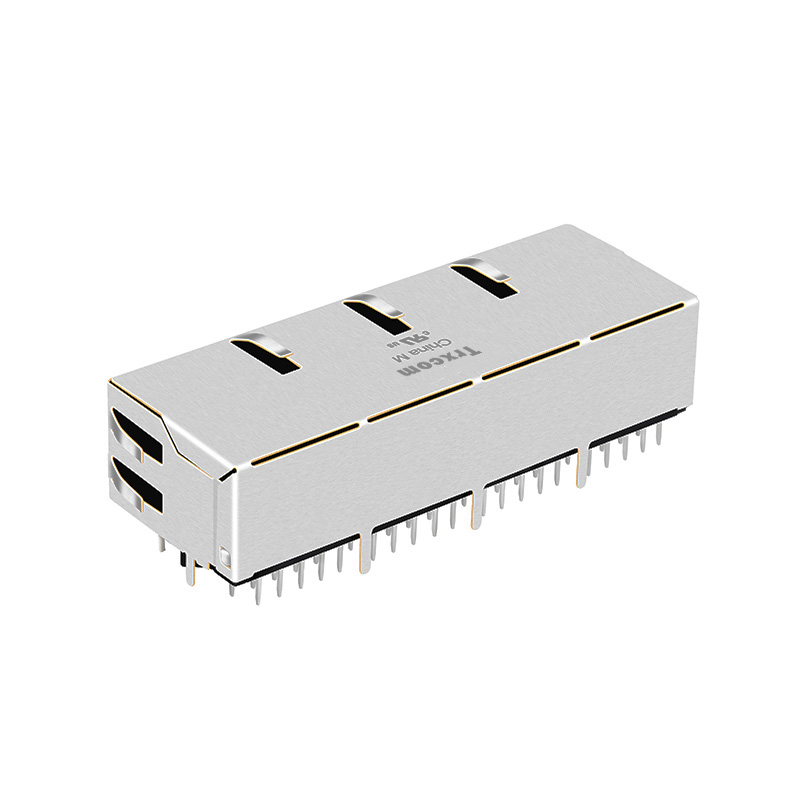

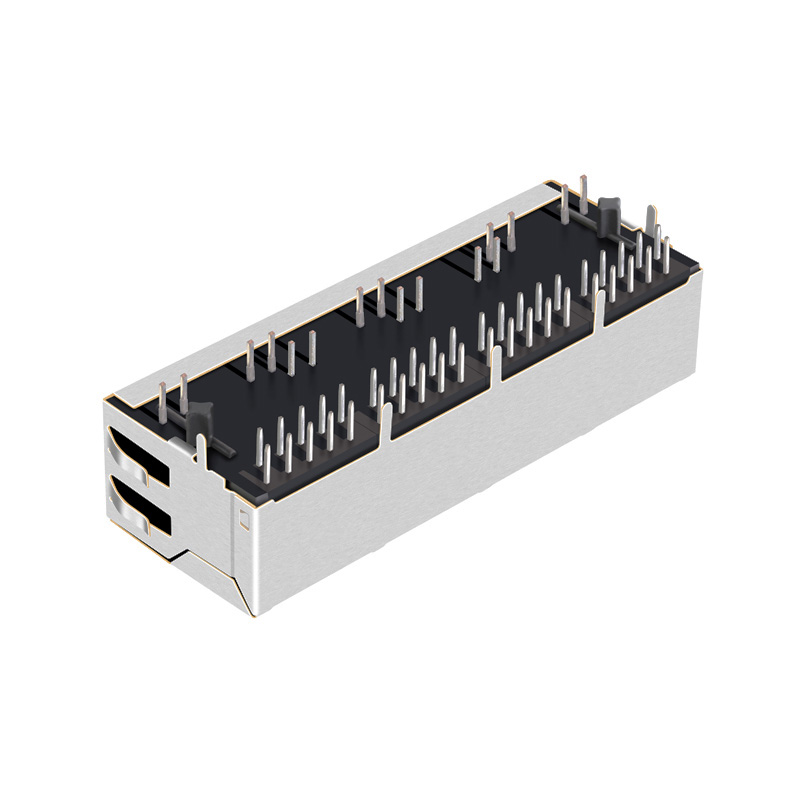

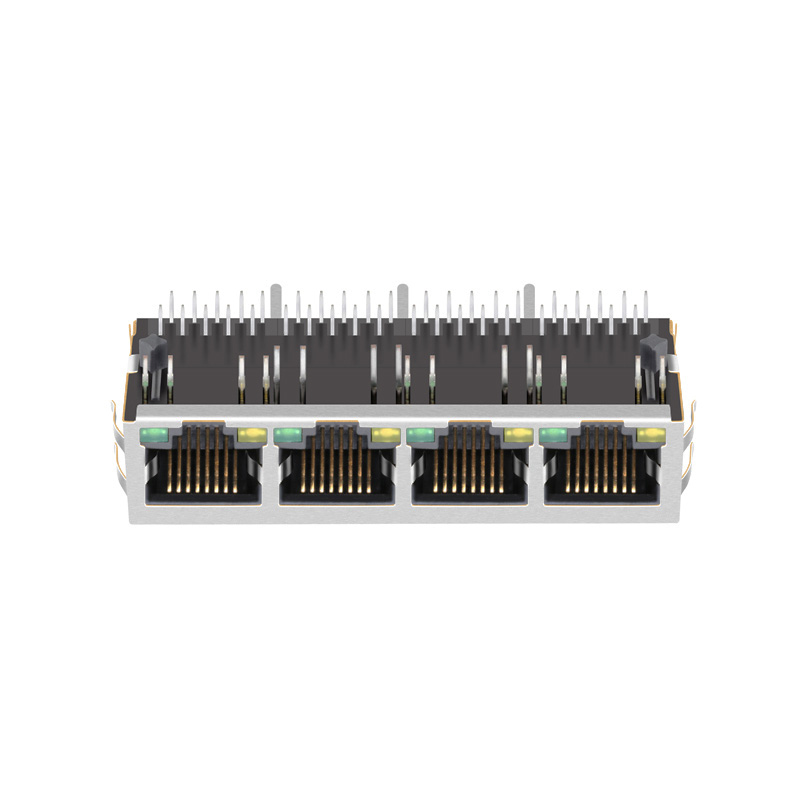

UDE RB4-Q13LT8KQ Compatible TRJ46204AENL 1x4 Port RJ45 Connector With 10/100 Base-T Integrated Magnetic Tab Down Green/Yellow LED

Name: UDE RB4-Q13LT8KQ Compatible TRJ46204AENL 1x4 Port RJ45 Connector With 10/100 Base-T Integrated Magnetic Tab Down Green/Yellow LED
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJ46204AENL

Compatible Brand ： UDE

Compatible P/N ： RB4-Q13LT8KQ

Port ： 1X4

Rate ： 10/100Base-T

PoE ： NONE-PoE

Latch ： Down

LED ： Green/Yellow

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Get a Quote

Download

Consult Product

DetailReview(0)

UDE RB4-Q13LT8KQ Compatible Trxcom TRJ46204AENL 10/100 Base-T Integrated Magnetic RJ45 Jacks for Network Firewall and SMPS (1x4 Port , Tab Down ,Green/Yellow LED)

The UDE RB4-Q13LT8KQ Compatible TRJ46204AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, SMPS,Server and Switches.

Part Number	TRJ46204AENL	UDE Compatible P/N	RB4-Q13LT8KQ
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x4 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.533/13.55	Package Length (Inches/mm)	0.839/21.30
Package Width (Inches/mm)	2.328/59.12	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
