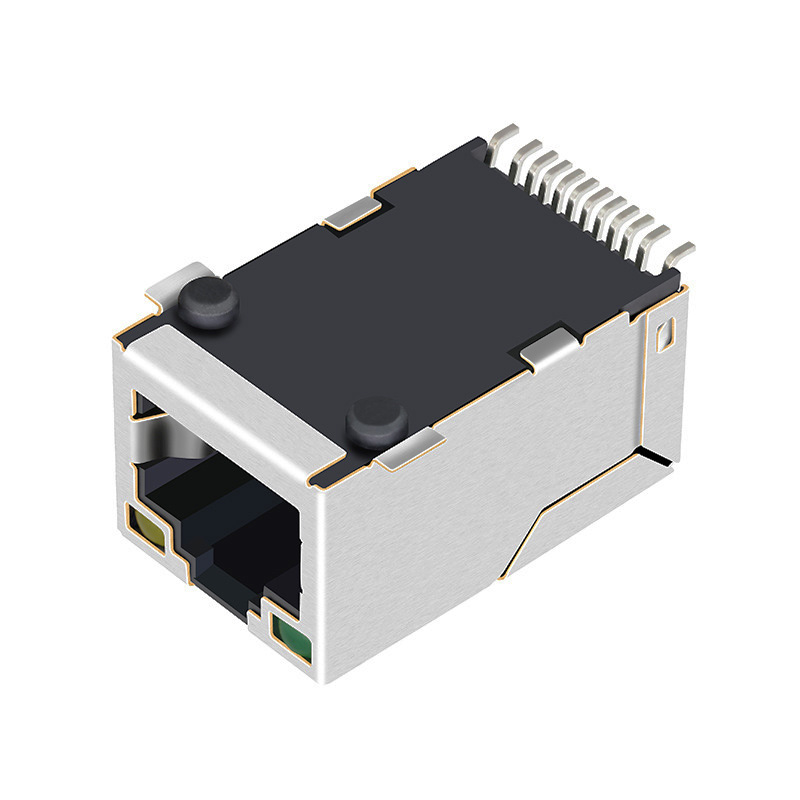

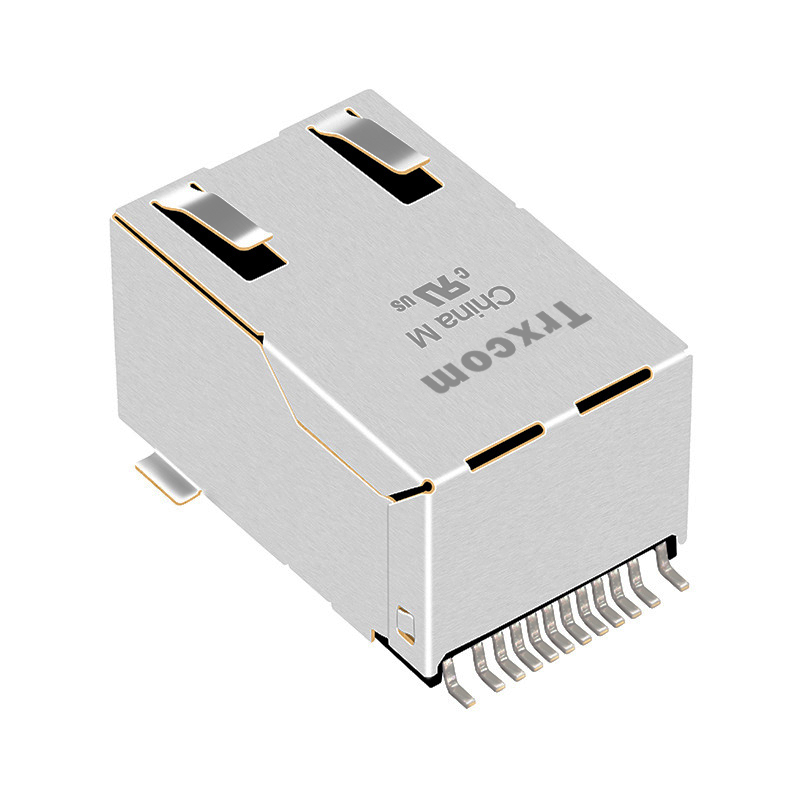

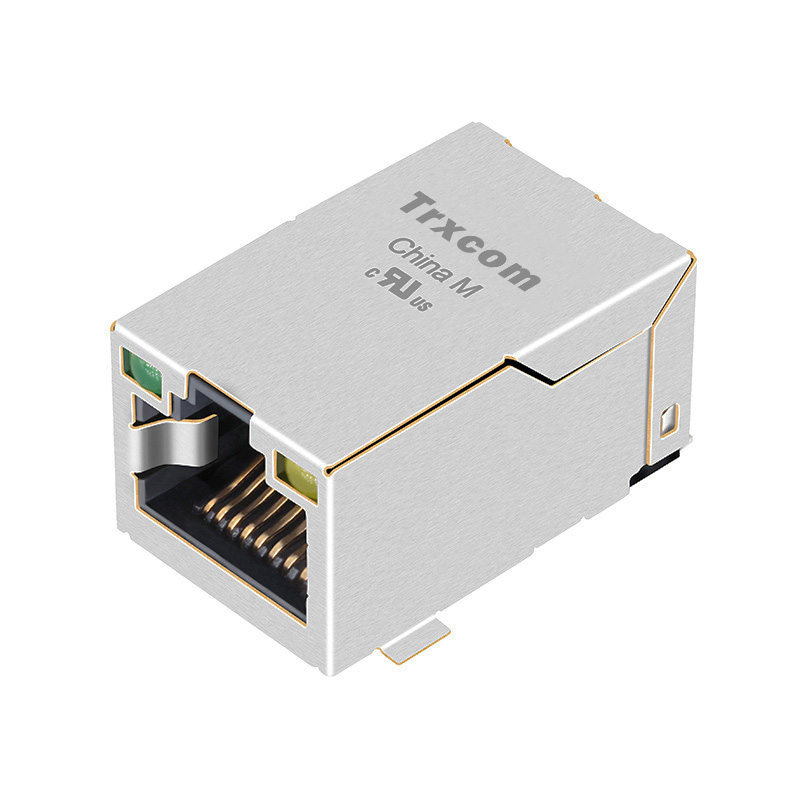

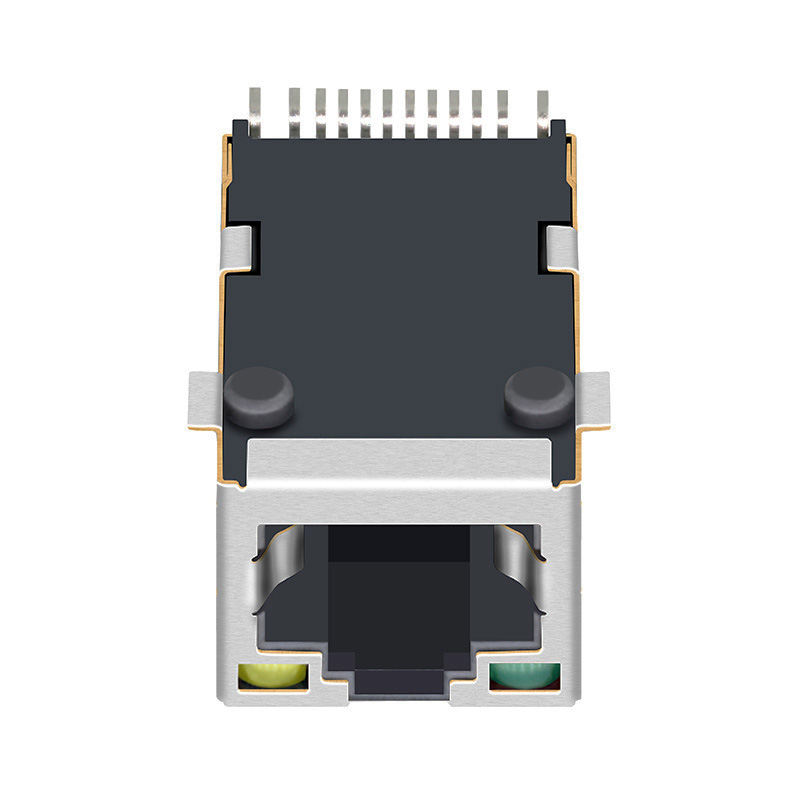

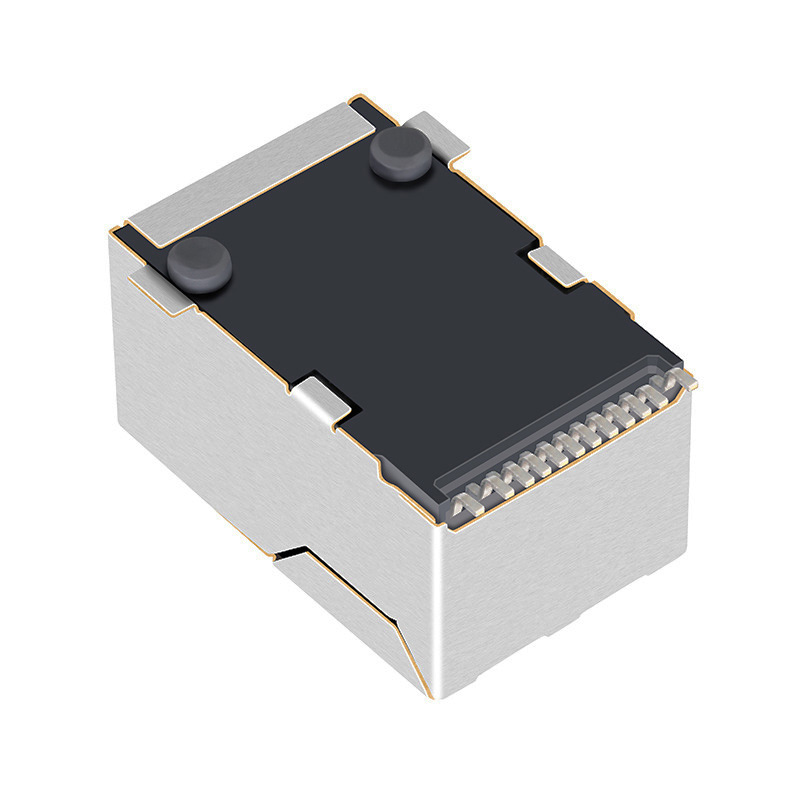

Pulse J3026G01DNL Compatible TRJ19326BBNL 10/100 Base-T SMT RJ45 MagJack Tab Up Green/Yellow LED
Pulse J3026G01DNL Compatible Trxcom TRJ19326BBNL 10/100Base-T SMT RJ45 Connector(1x1 Prot, Tab Up, Green/Yellow Leds)
Engineered to streamline automated manufacturing and deliver uncompromised signal integrity in high-performance electronics, the Trxcom TRJ19326BBNL is a premium, single-port 10/100Base-T (Fast Ethernet) RJ45 MagJack leveraging advanced Surface Mount Technology (SMT). By integrating the physical networking interface and highly specialized 5-core magnetic isolation circuitry into a single shielded, surface-mountable housing, hardware architects can drastically optimize printed circuit board (PCB) real estate and completely eliminate the need for secondary wave soldering processes. Operating flawlessly within a commercial temperature envelope of 0°C to +70°C, this non-PoE connector provides an exceptionally stable physical layer interface for enterprise servers, network firewalls, and compact set-top boxes.
Manufactured under stringent ISO9001 and ISO14001 quality management protocols, the TRJ19326BBNL guarantees full adherence to IEEE 802.3, UL, REACH, and RoHS regulatory standards. This ensures that hardware engineers are integrating a globally compliant, safe, and environmentally conscious component capable of sustaining dependable Fast Ethernet data delivery in demanding networking environments.
| Part Number | TRJ19326BBNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Surface Mount |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | Surface Mount |
| Shield EMI Tabs | Without | LED Option | Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.536/13.61 | Package Length (Inches/mm) | 1.00/25.40 |
| Package Width (Inches/mm) | 0.634/16.10 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
