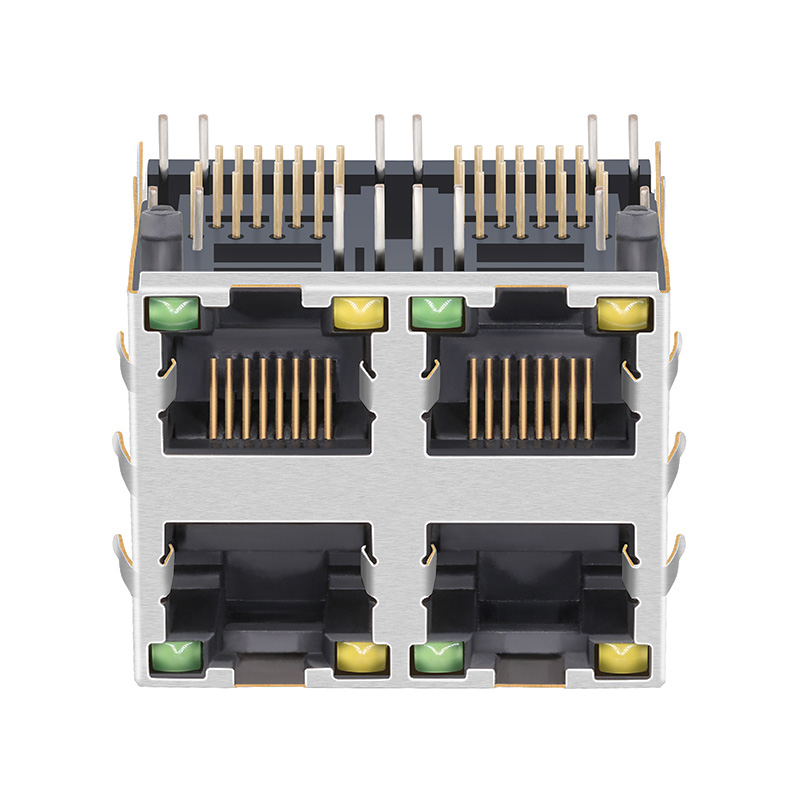

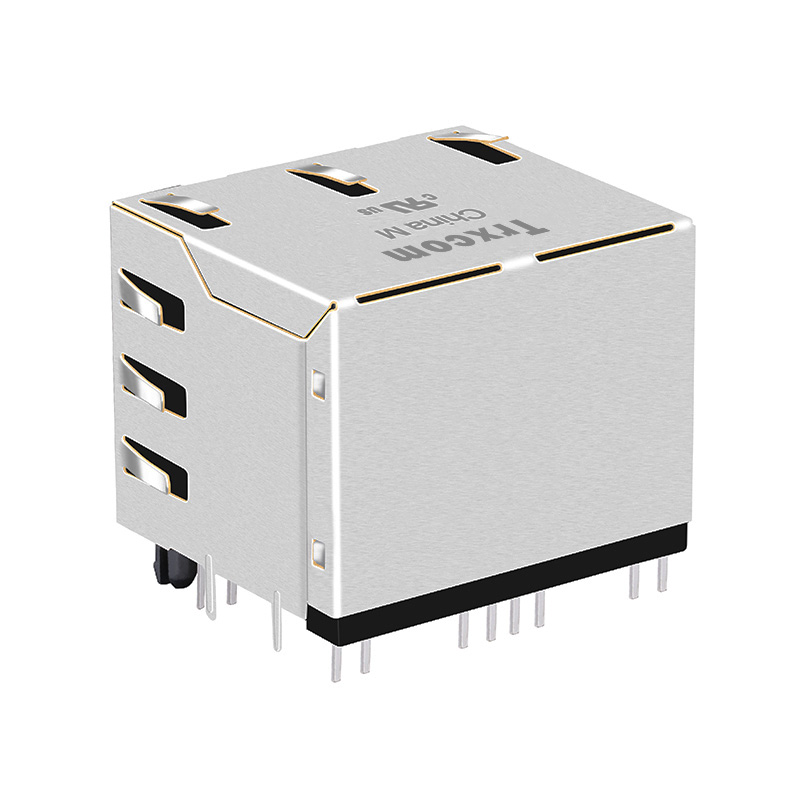

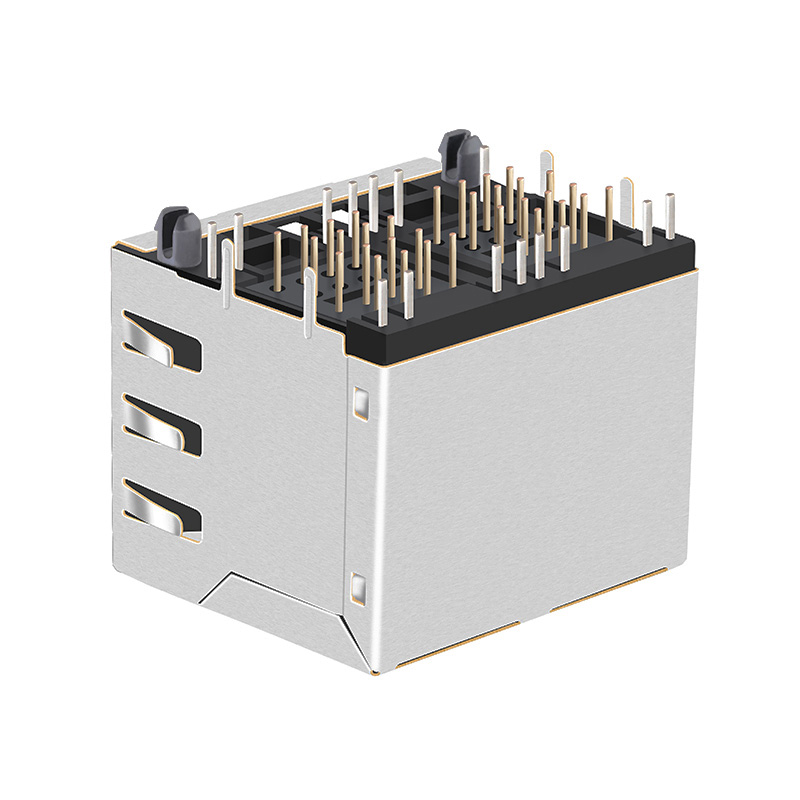

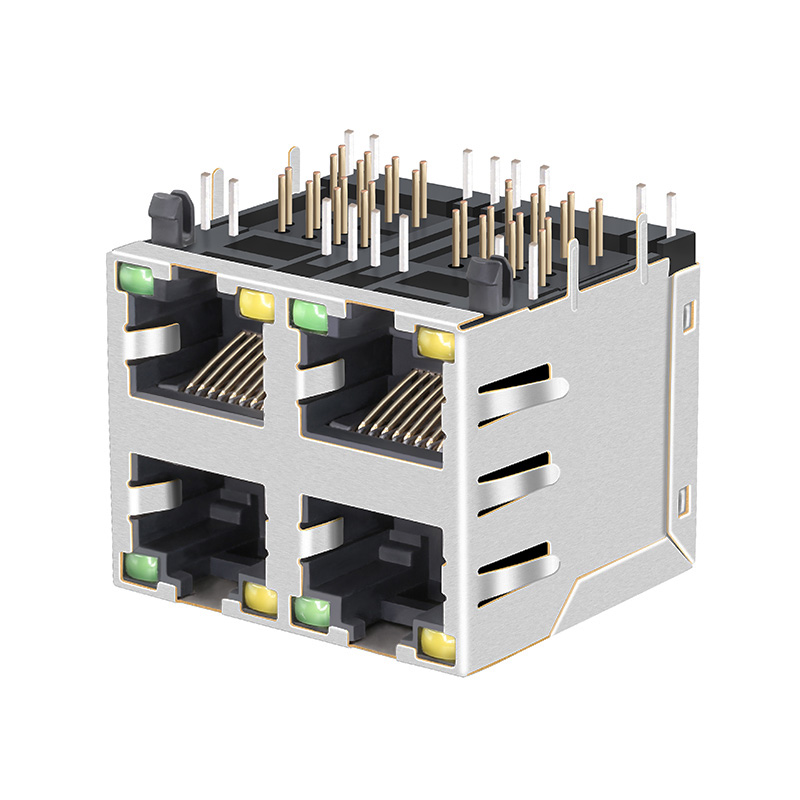

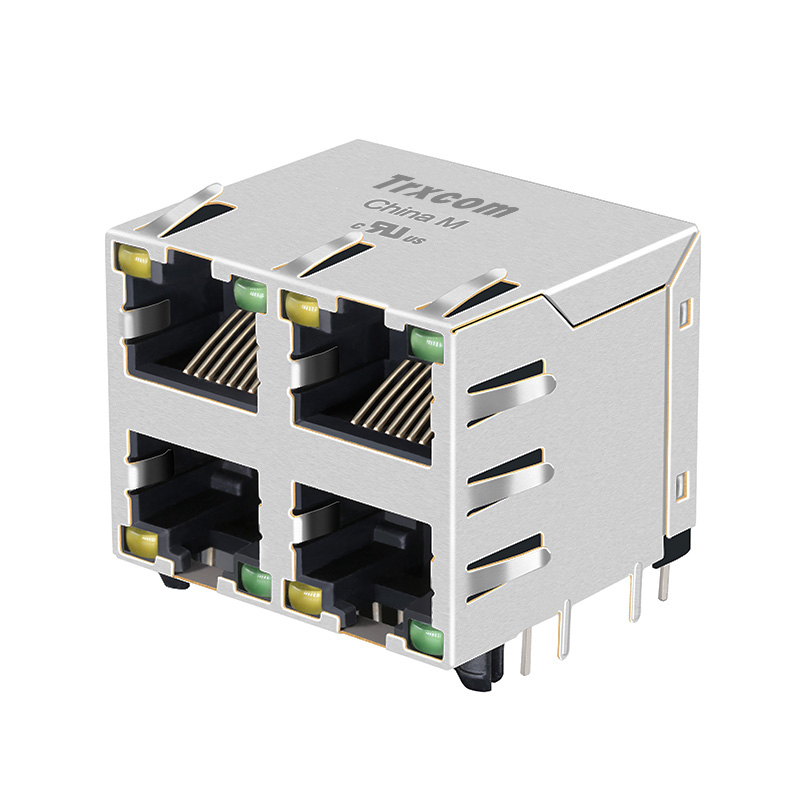

10/100 Base-T Tab Up Yellow/Green LED 2X2 Port PoE RJ45 Female Connector TRJ27401ADNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ27401ADNL
Port: ： 2X2
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRJ27401ADNL 8P8C 2x2 Port PoE RJ45 Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab Up,RoHS

TRJ27401ADNL supports 100 Base-T Ethernet speed and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001 and ISO14001 standards. It is applicable to devices such as receipt printers, 100 Mbps unmanaged switches, desktop cash registers and TCP/IP access control main controllers.

Part NumberTRJ27401ADNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x2 PortSpeed10/100 Base-T
LatchUp/DownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionYellow/Green Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.118/28.40
Package Width (Inches/mm)1.230/31.24Temperature-40℃ TO +85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
