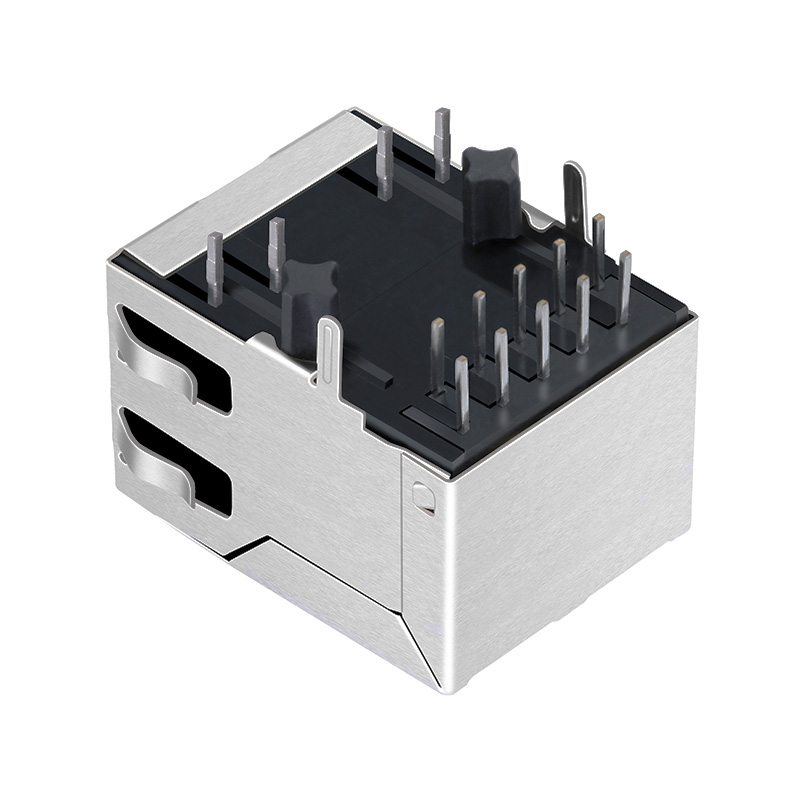

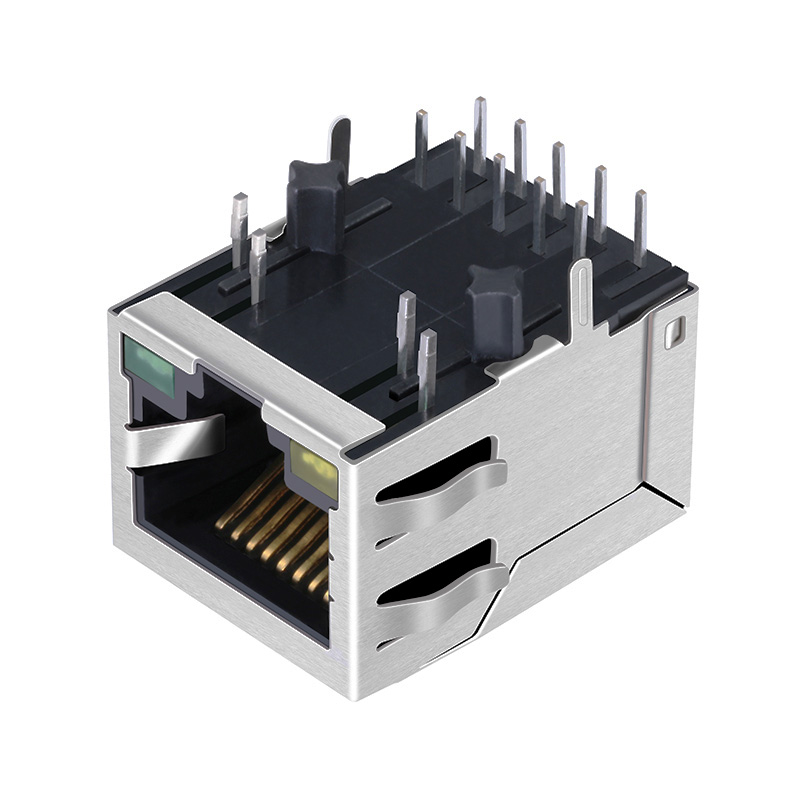

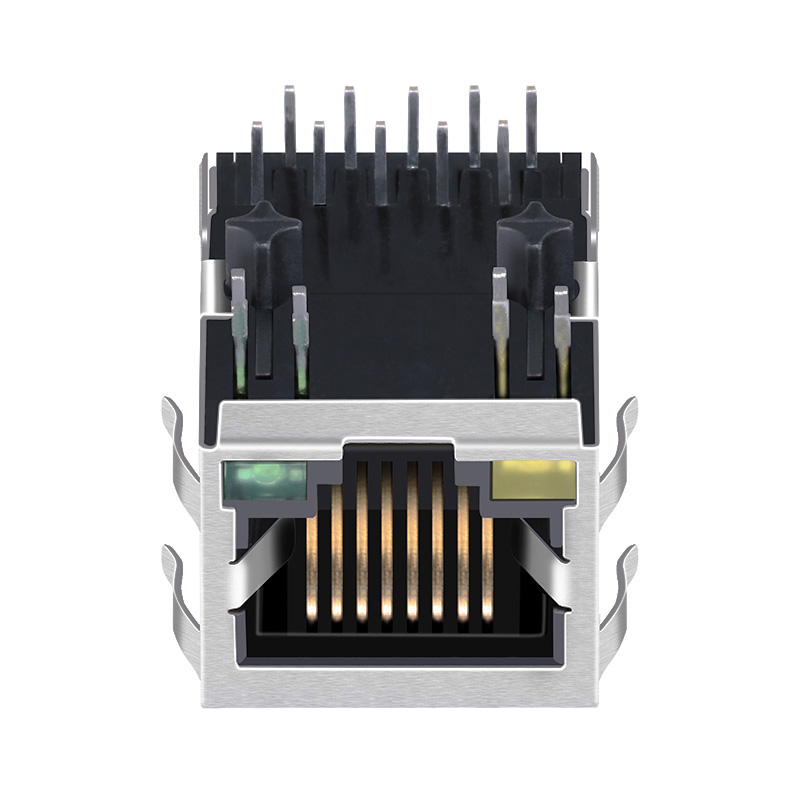

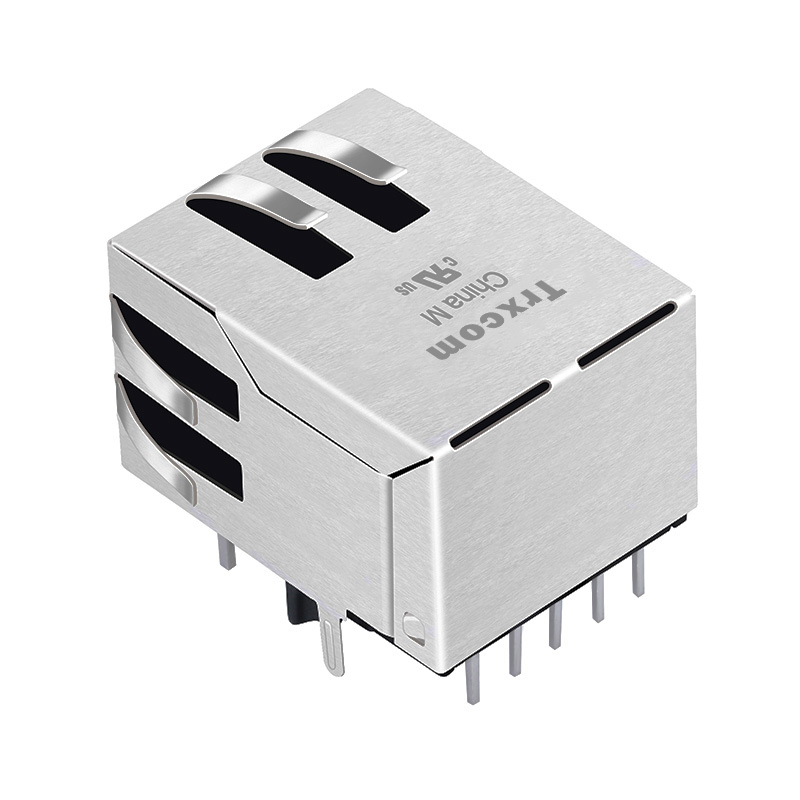

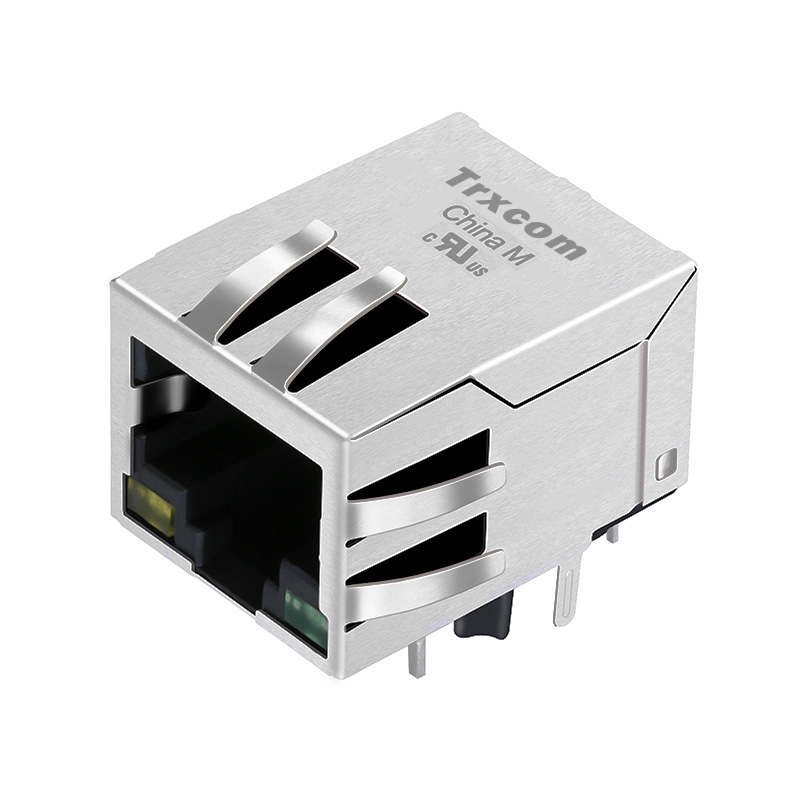

Wurth MIC24011-0104T-LF3 Compatible Trxcom TRJ0011GDNL Single Port 10/100 Base-T Magnetic RJ45 Jack Tab Down Yellow/Green Led

Name: Wurth MIC24011-0104T-LF3 Compatible Trxcom TRJ0011GDNL Single Port 10/100 Base-T Magnetic RJ45 Jack Tab Down Yellow/Green Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJ0011GDNL

Compatible Brand ： Wurth

Compatible P/N ： MIC24011-0104T-LF3

Port ： 1X1

Rate ： 10/100Base-T

PoE ： NONE-PoE

Latch ： Down

LED ： Yellow/Green

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

Wurth

Compatible P/N:

MIC24011-0104T-LF3

Get a Quote

Download

Consult products

DetailReview(0)

Wurth MIC24011-0104T-LF3 Compatible Trxcom TRJ0011GDNL 10/100 Base-T Ethernet RJ45 8 Pin Connector for Hub and Switches( Single Port, Tab Down, Yellow/Green Led)

The Wurth MIC24011-0104T-LF3 Compatible TRJ0011GDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.

Trxcom Part Number	TRJ0011GDNL	Wurth Part Number	MIC24011-0104T-LF3
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	With	LED Option	Yellow/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
