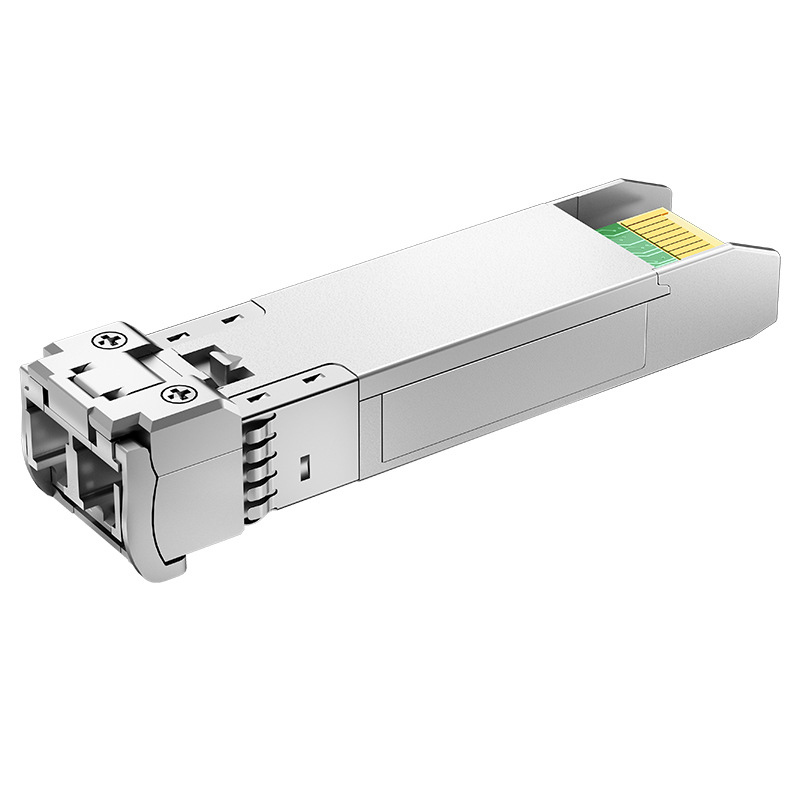

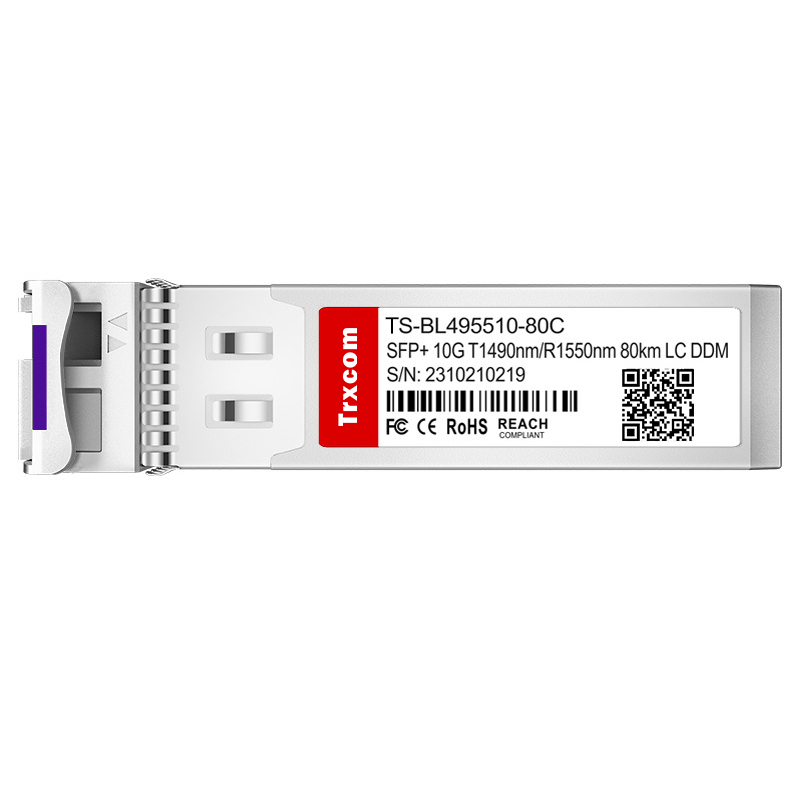

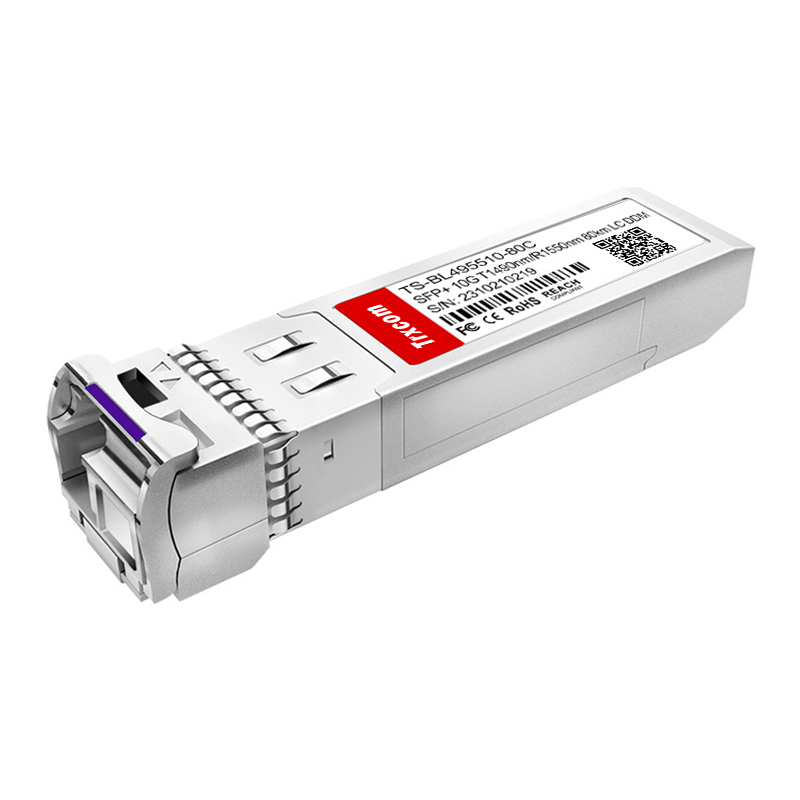

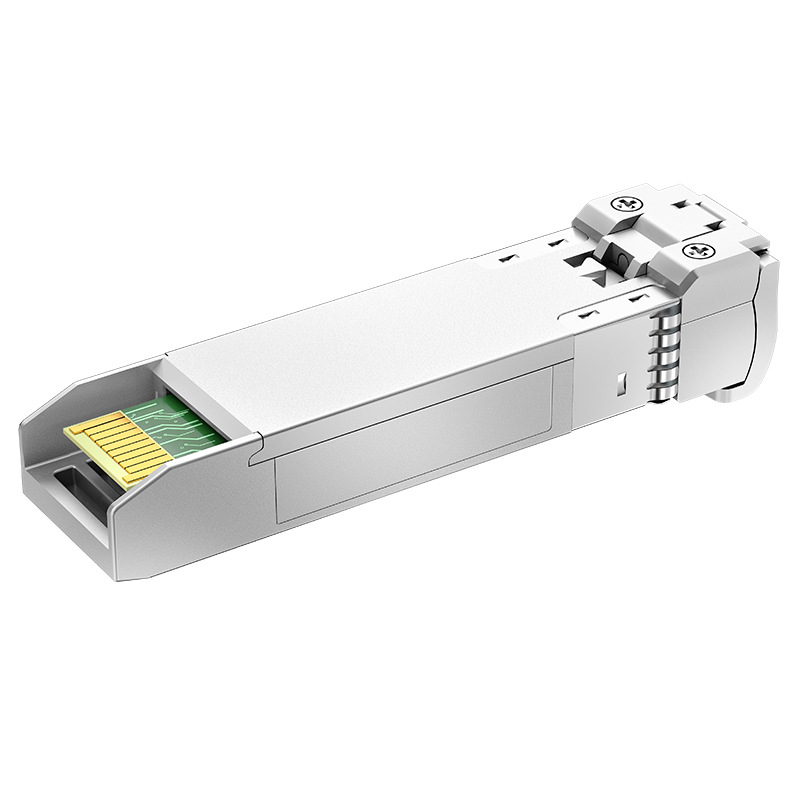

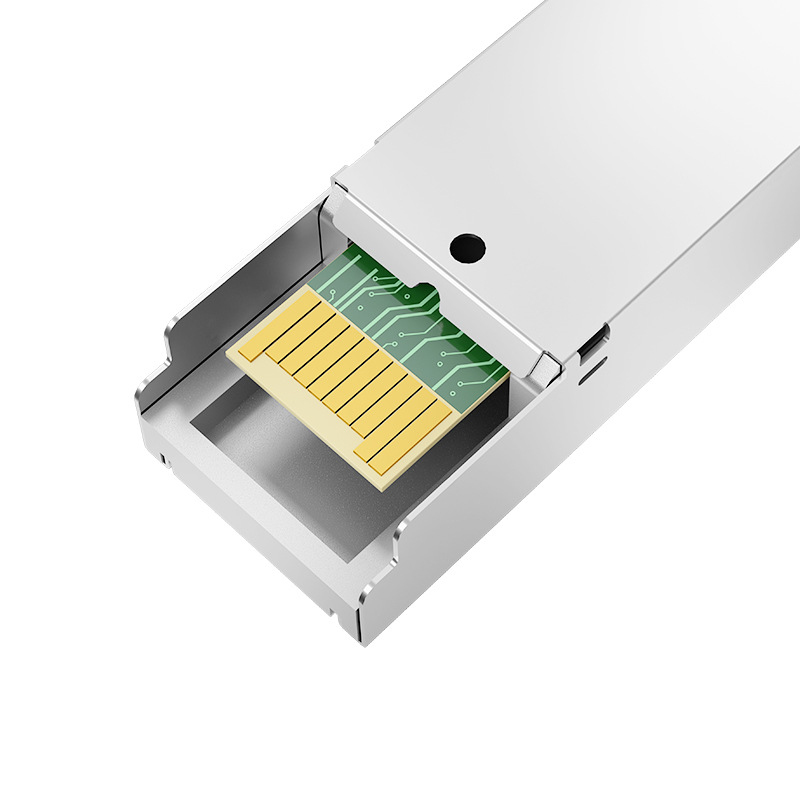

TS-BL495510-80C SFP+ 10GBASE-BX80-U BiDi 1490nm-TX/1550nm-RX 80km DOM Simplex LC/UPC SMF Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-BL495510-80C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ZR
Connector ： Simplex LC
Distance ： ≤80km
Wavelength ： 1490nm-TX/1550nm-RX
Get a Quote
Consult products
DetailReview(0)

TRXCOM TS-BL495510-80C 10G BASE-BX80-U BiDi Simplex SFP+ Optical Transceiver Module(SMF, 1490nm-TX/1550nm-RX 80km, LC, DOM)

The TS-BL495510-80C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-BL495510-80CVendor NameTrxcom
Form FactorSFP+Max Data Rate10.7Gbps
Wavelength1490nm-TX/1550nm-RXMax Cable Distance80km
ConnectorSimplex LCOptical ComponentsEML BiDi
MediaSMFDOM SupportYes
TX Power-1 to +5dBmRX Power-23 to -6dBm
Receiver Sensitivity-22dBmReceiver Overload-6dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI

Matched Pairs: It must be used in pairs with SFP+ 1550nm-TX/1490nm-RX.
