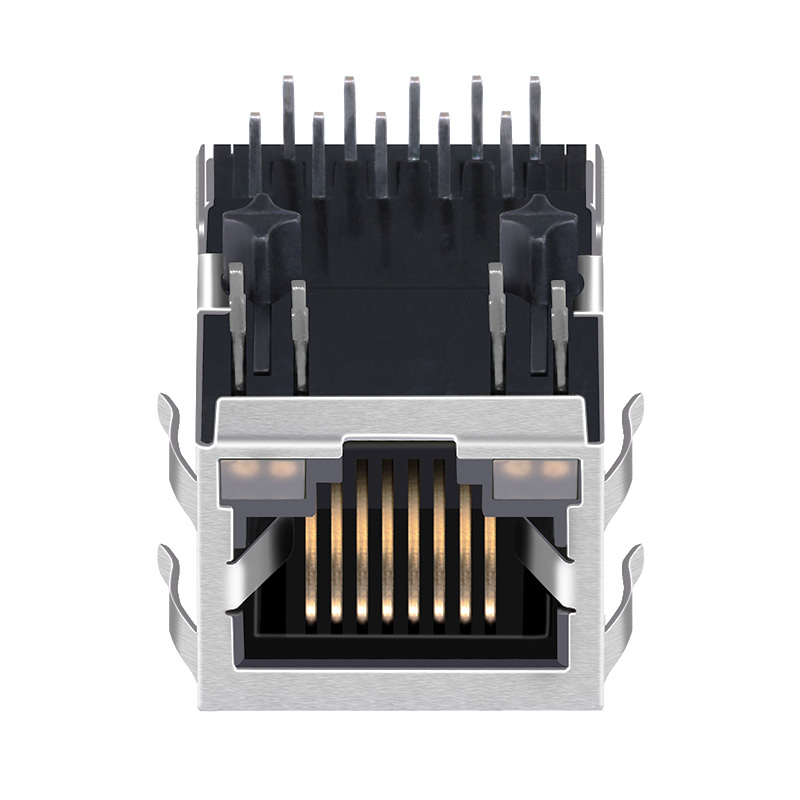

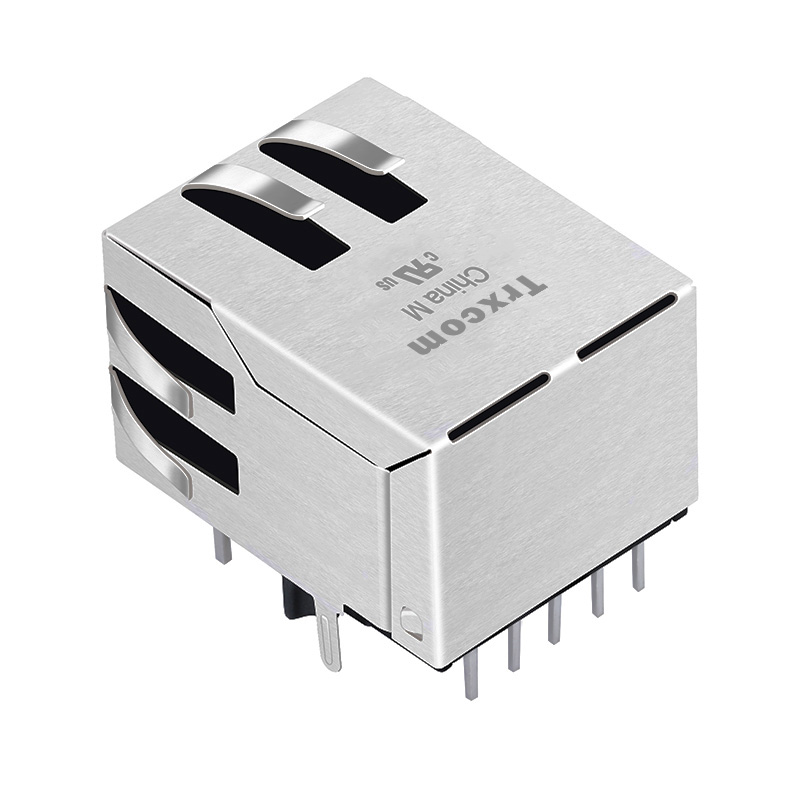

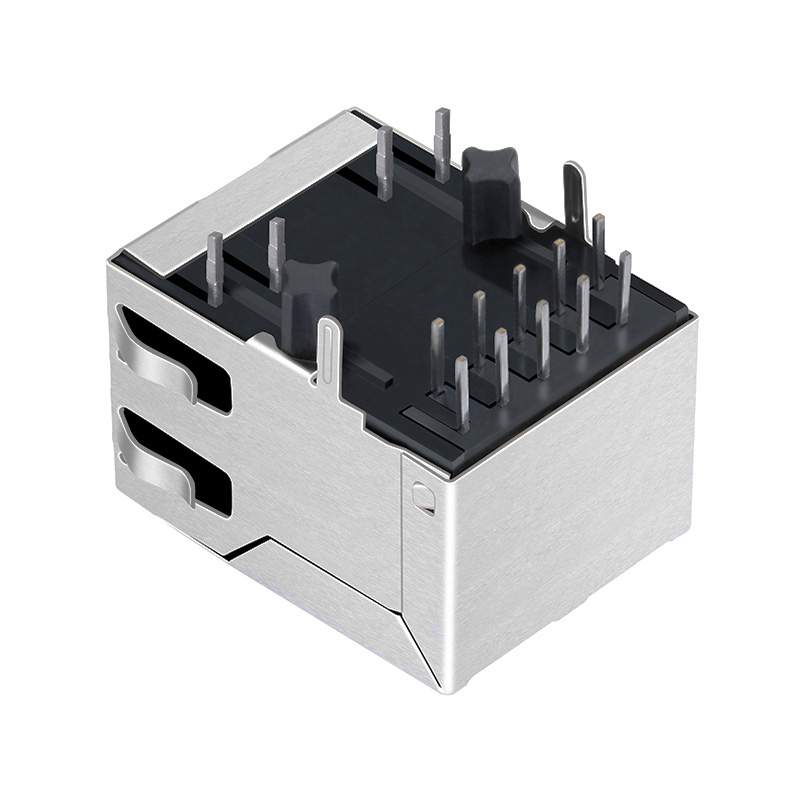

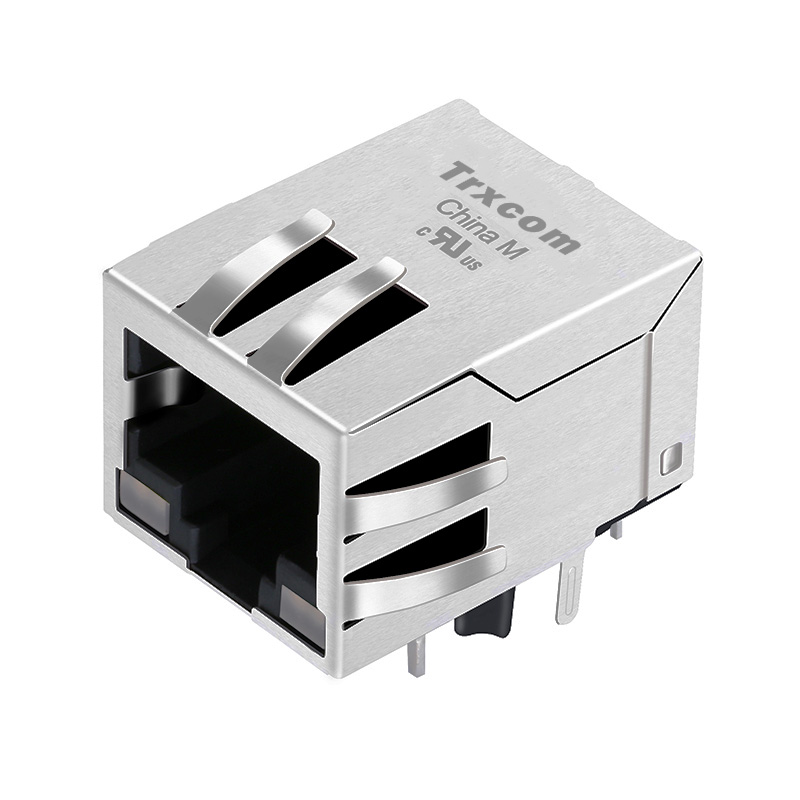

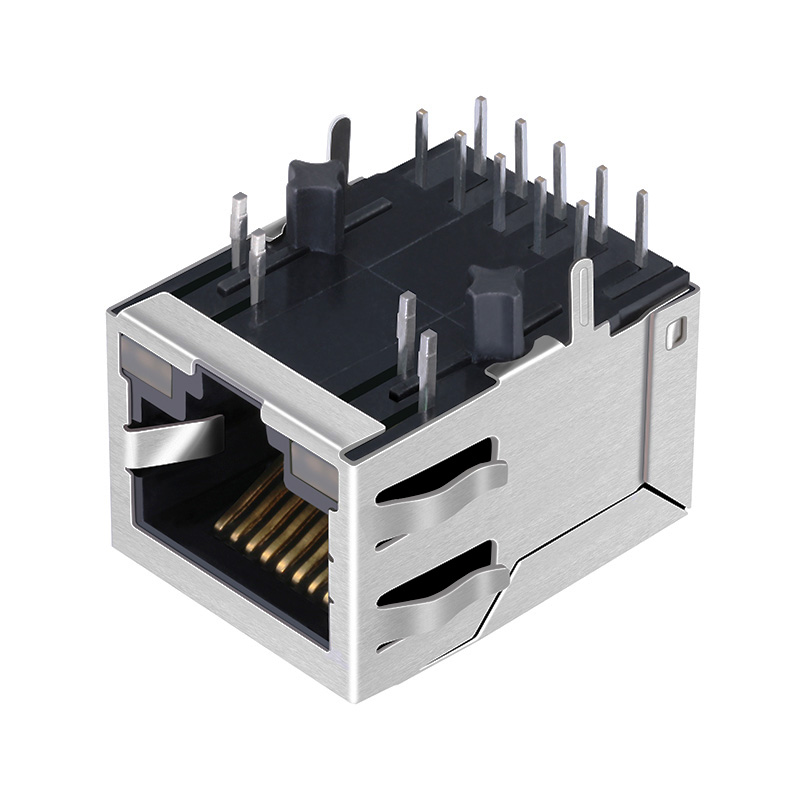

HALO HFJ11-2450E-L55RL Compatible Trxcom TRJ0011G4NL 10/100 Base-T RJ45 Connector Tab Down Green Yellow/Green Yellow Led

Name: HALO HFJ11-2450E-L55RL Compatible Trxcom TRJ0011G4NL 10/100 Base-T RJ45 Connector Tab Down Green Yellow/Green Yellow Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJ0011G4NL

Compatible Brand ： HALO

Compatible P/N ： HFJ11-2450E-L55RL

Port ： 1X1

Rate ： 10/100Base-T

PoE ： NONE-PoE

Latch ： Down

LED ： Green&Yellow/Green&Yellow

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

HALO

Compatible P/N:

HFJ11-2450E-L55RL

HFJ11-2450ERL

Get a Quote

Download

Consult products

DetailReview(0)

HALO HFJ11-2450E-L55RL Compatible Trxcom TRJ0011G4NL 10/100 Base-T RJ45 Connector for Hub and Switches( Single Port, Tab Down, Green&Yellow/Green&Yellow Led)

The HALO HFJ11-2450E-L55RL Compatible Trxcom TRJ0011G4NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.

Part Number	TRJ0011G4NL	HALO Part Number	HFJ11-2450E-L55RL
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Green&Yellow/Green&Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
