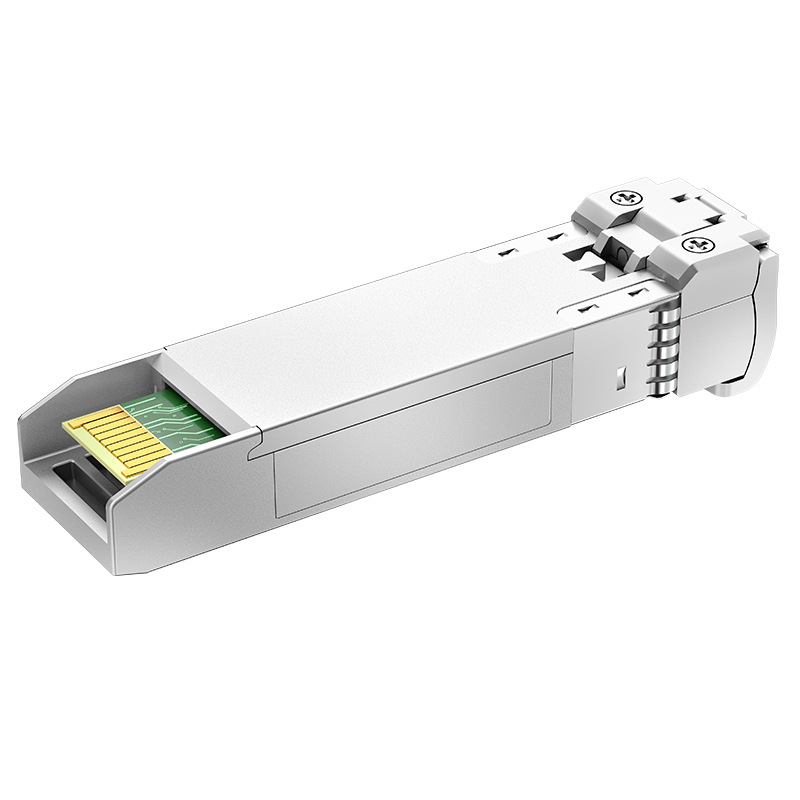

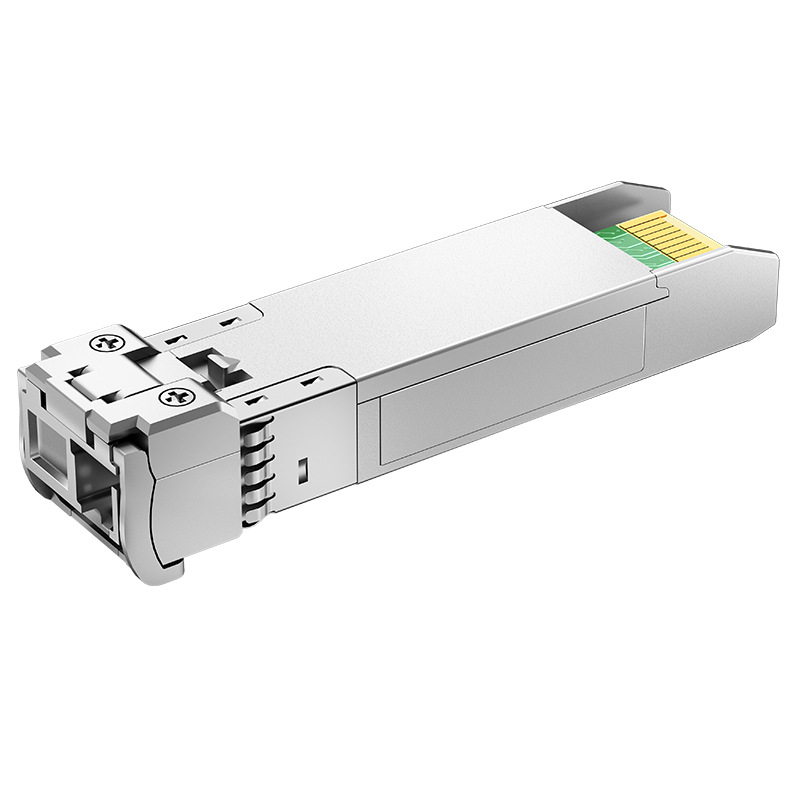

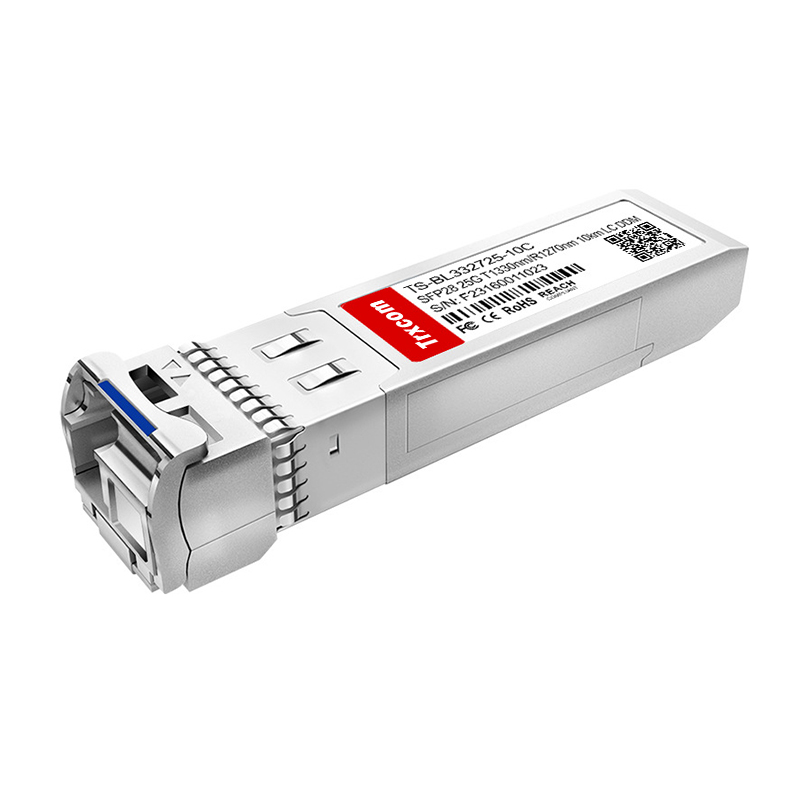

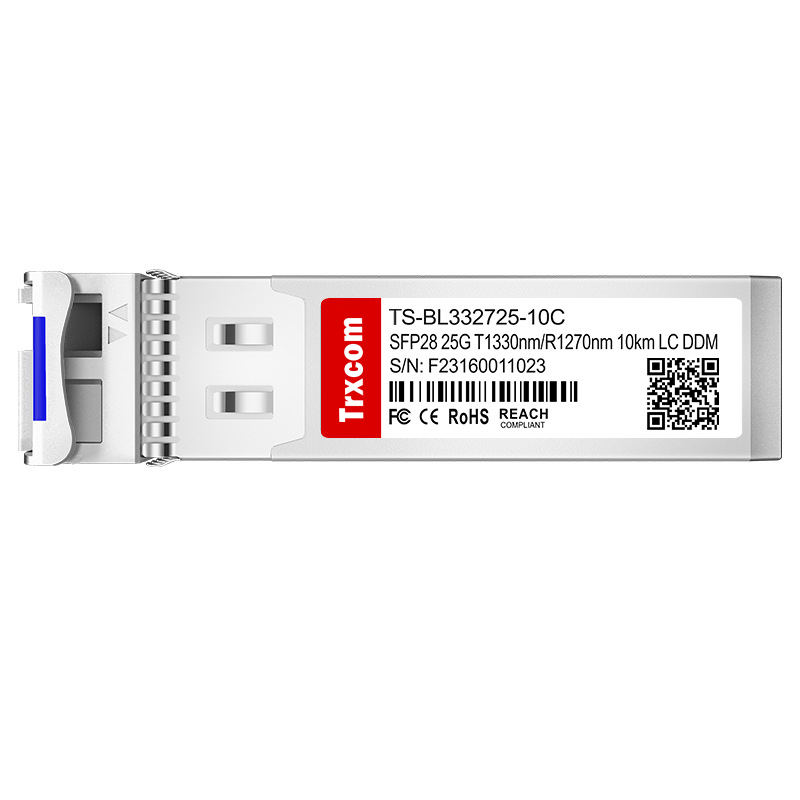

TS-BL332725-10C SFP28 25G BASE-D 1330nm-TX/1270nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-BL332725-10C
Form Factor ： SFP28
Type ： Single Mode
Data Rate ： 25G
Model ： LR
Connector ： Simplex LC
Distance ： ≤10km
Wavelength ： 1330nm-TX/1270nm-RX
DetailReview(0)
TRXCOM TS-BL332725-10C SFP28 25G BASE-D Simplex LC/UPC SMF Optical Transceiver Module(SMF, 1330nm-TX/1270nm-RX, 10km, DOM)

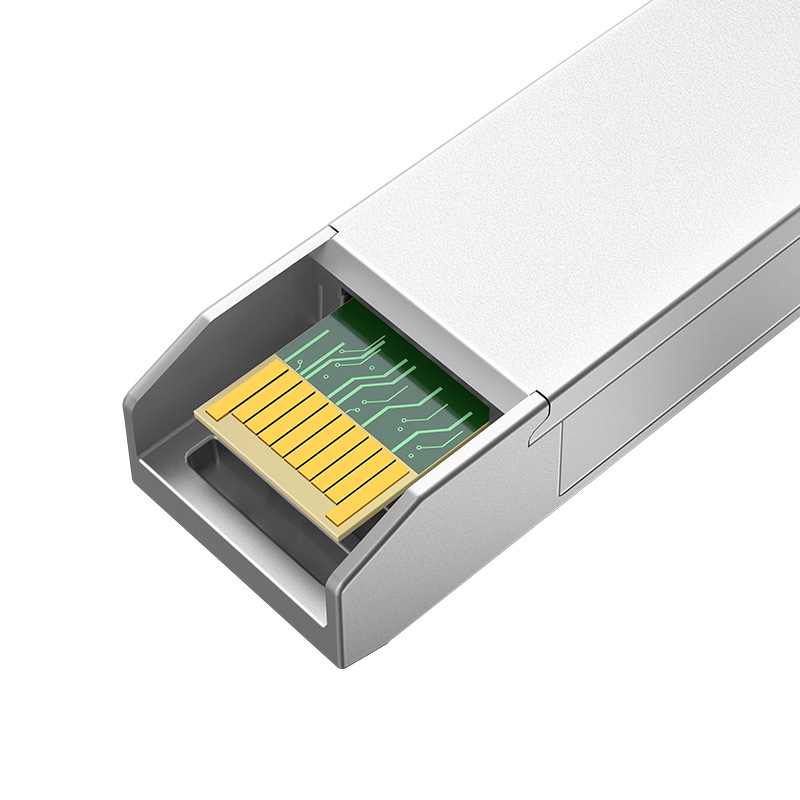

The TS-BL332725-10C SFP28 BIDI optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, one of serial data streams are recovered, retimed, and passed to laser driver. In the receive side, the optical data streams is recovered by a PIN and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the SFP28 and compliant to IEEE 802.3cc.
| Trxcom Part Number | TS-BL332725-10C | Vendor Name | Trxcom |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Optical Components | DFB BiDi |
| Media | SMF | Receiver Type | PIN |
| TX Power | -3 to +5dBm | RX Power | -14 to +3dBm |
| Receiver Sensitivity | -13dBm | Receiver Overload | 2dBm |
| Operating case temperature | 0 to 70°C | Protocols | MSA Compliant, CPRI, eCPRI |
Matched Pairs: It must be used in pairs with SFP28 1270nm-TX/1330nm-RX.
