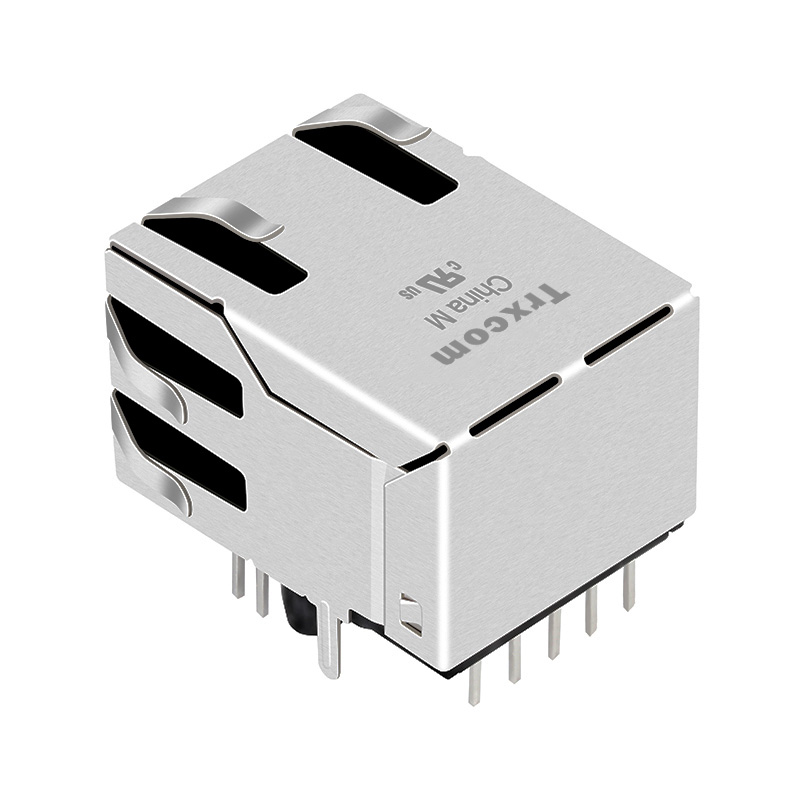

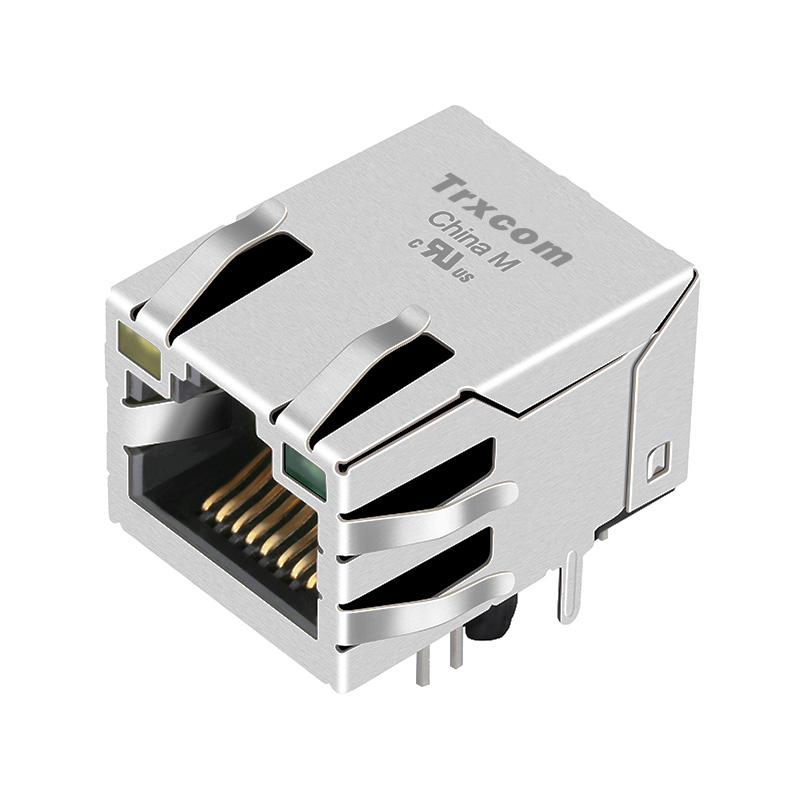

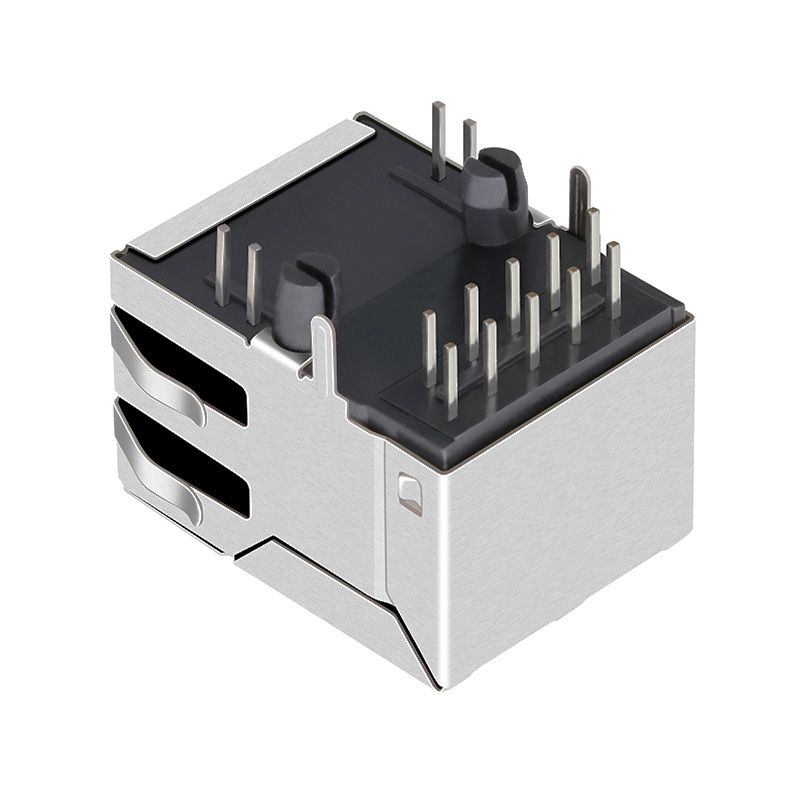

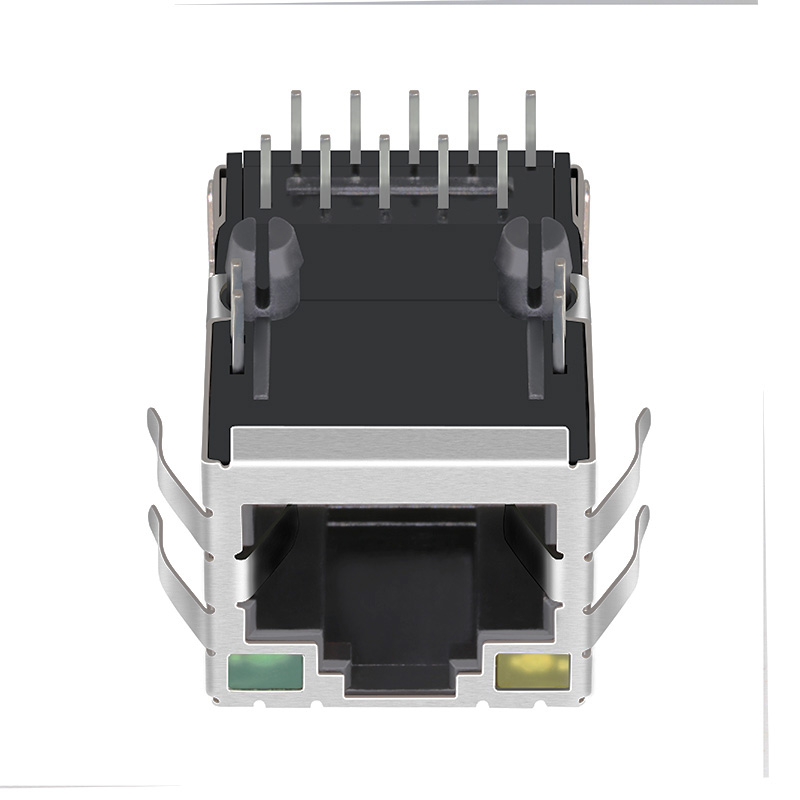

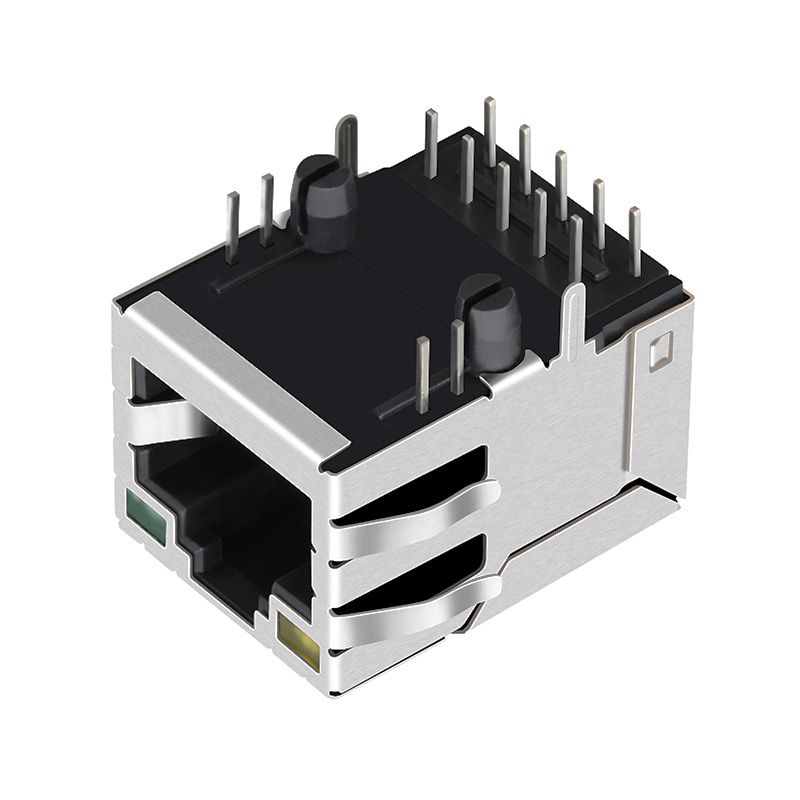

TRJ16211ADNL 10/100 Base-T 8P8C RJ45 Magnetics Female Connector Tab Up Yellow /Green Leds

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
P/N ： TRJ16211ADNL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 10/100Base-T
PoE ： NONE-PoE
Latch ： Up
LED ： Yellow/Green
Mount ： 0℃ to 70℃
Shield Tabs ： Yes
Get a Quote
Download
Consult products
DetailReview(0)

Trxcom TRJ16211ADNL Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED, Tab Up, RoHS

The TRJ16211ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Set-top Box and Intercom.

Part NumberTRJ16211ADNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithLED OptionYellow/Green Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.530/13.45Package Length (Inches/mm)0.837/21.25
Package Width (Inches/mm)0.628/15.95Temperature0℃ to 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
