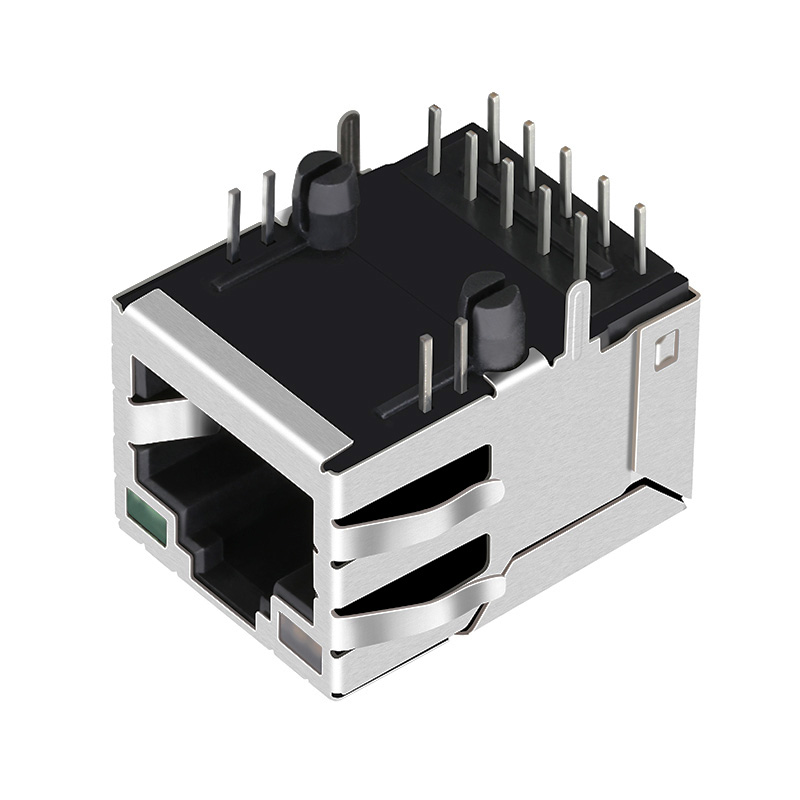

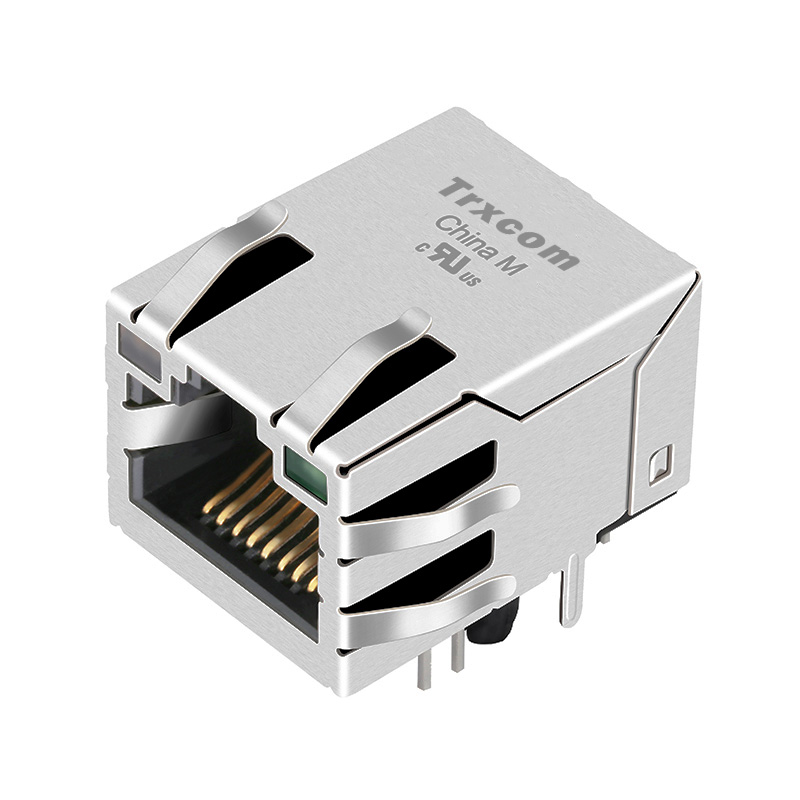

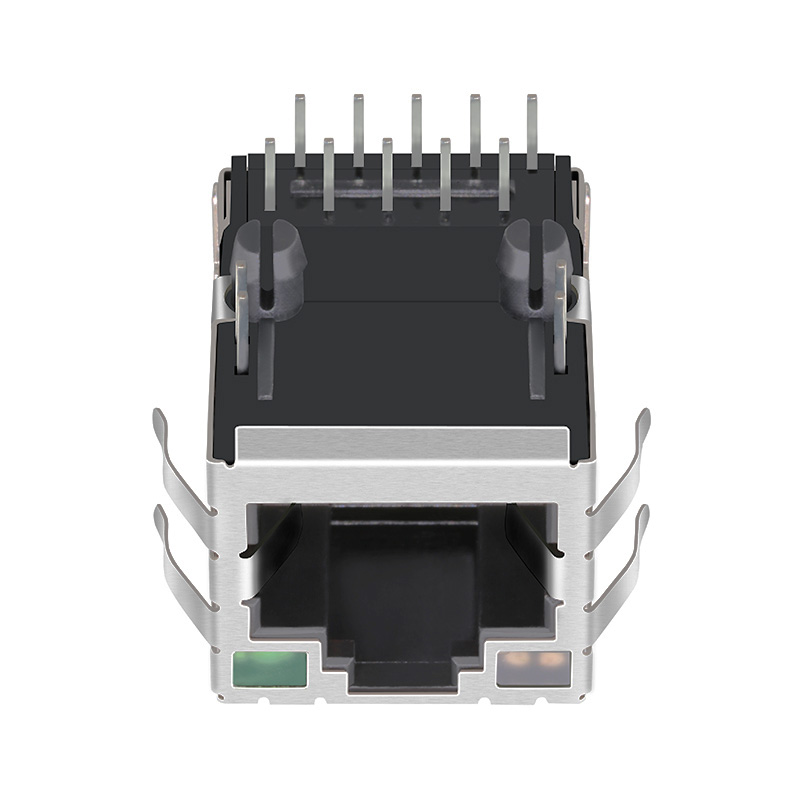

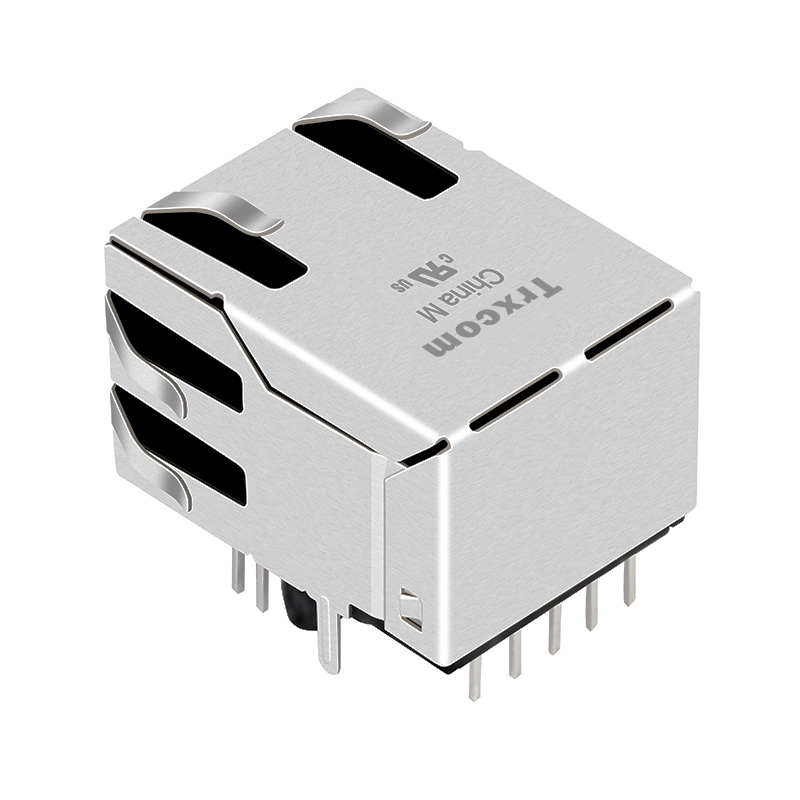

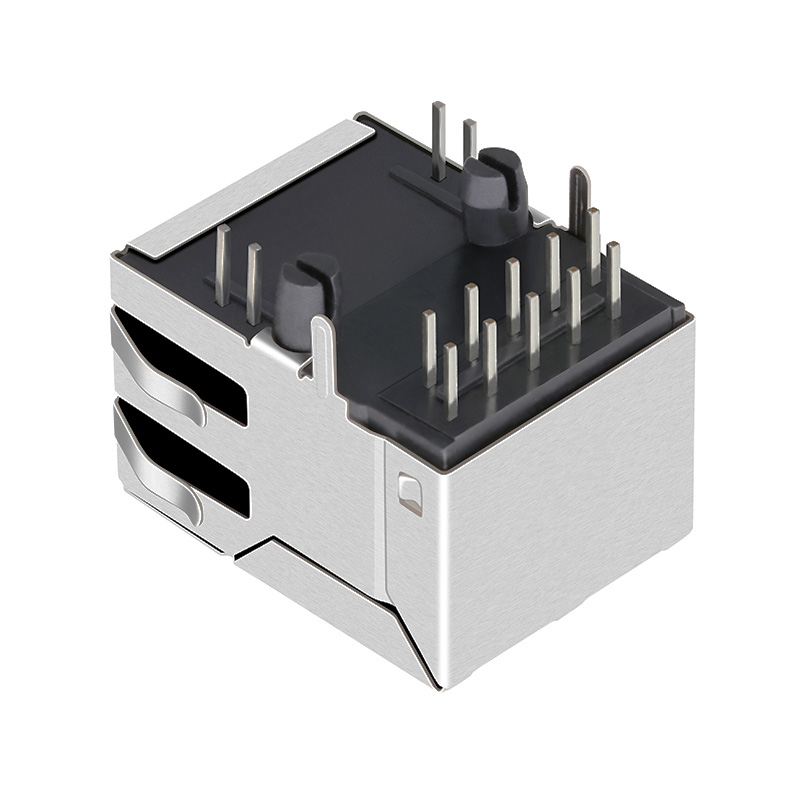

TRJM16402A37NL 2.5G Base-T Single Port RJ45 PoE+ MagJack Tab Up With Orange&Green/Yellow Led
share
Parameter
Brand ： Trxcom
P/N ： TRJM16402A37NL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 2.5GBase-T
PoE ： PoE+
Latch ： Up
LED ： Orange Green/Yellow
Mount ： -40℃ to +85°C
Shield Tabs ： Yes
DetailReview(0)
Trxcom TRJM16402A37NL 2.5G Base-T RJ45 Female Connector for Smart Meters and Satellite ( Single Port, Tab Up, Orange&Green/Yellow Led)
The TRJM16402A37NLsupports speed 2.5G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support applications, such as Smart Meters, Solar Inverter, Automation and Video Recorder.
| Part Number | TRJM16402A37NL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(PoE+) |
| Number of Ports | 1x1 Port | Speed | 2.5G Base-T |
| Latch | Up | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Orange&Green/Yellow&Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.628/15.95 | Temperature | -40℃ to 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Consumer Electronics
Security System
Military Industry
