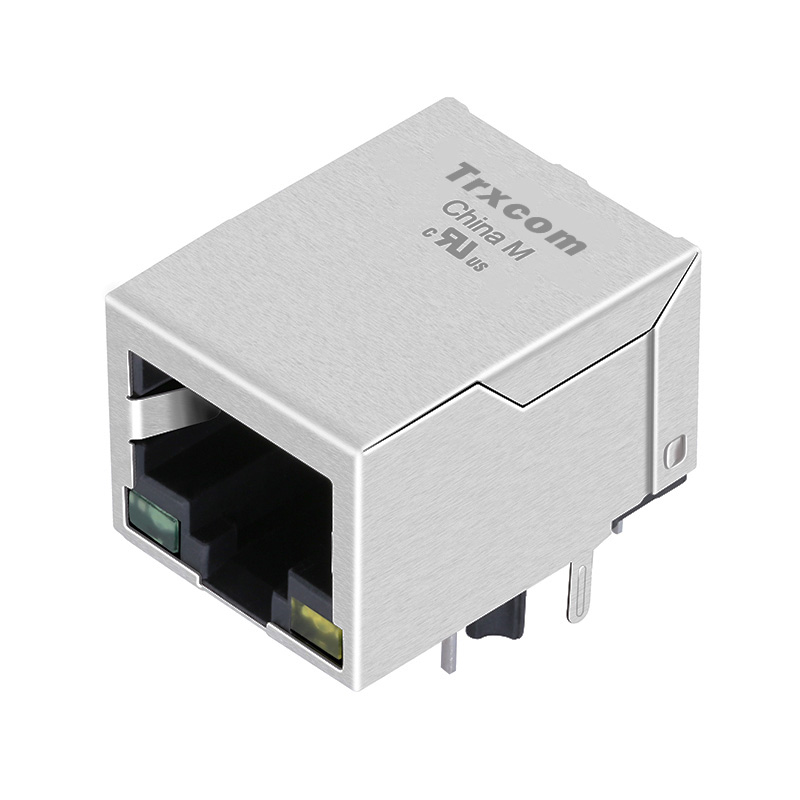

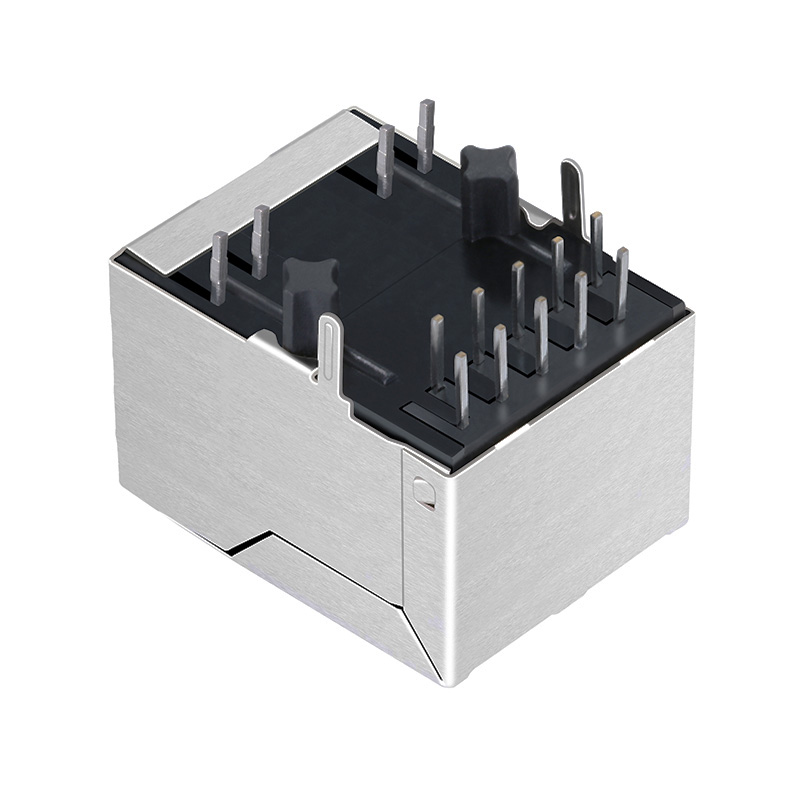

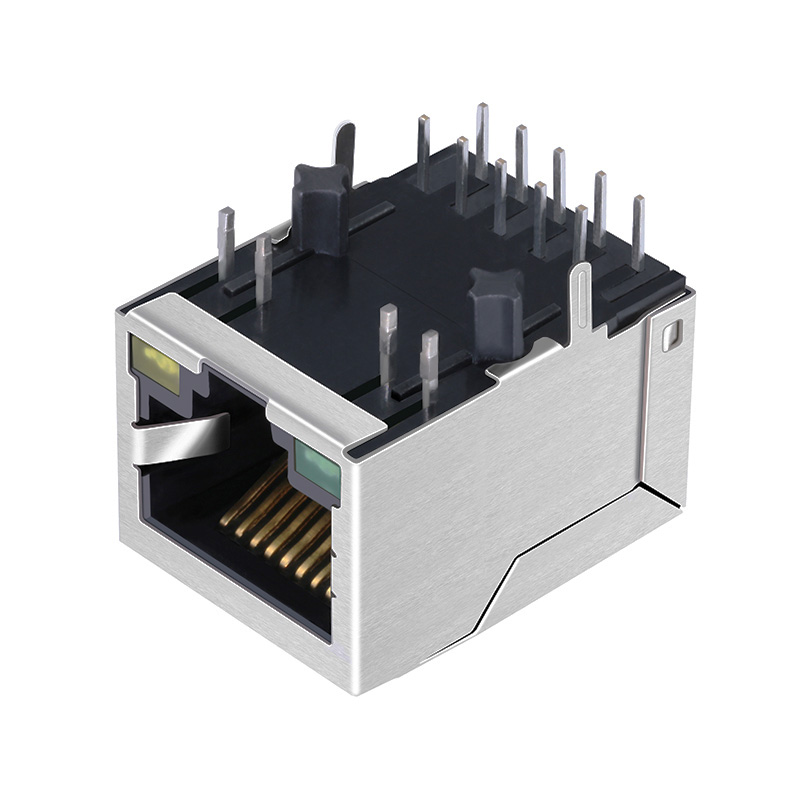

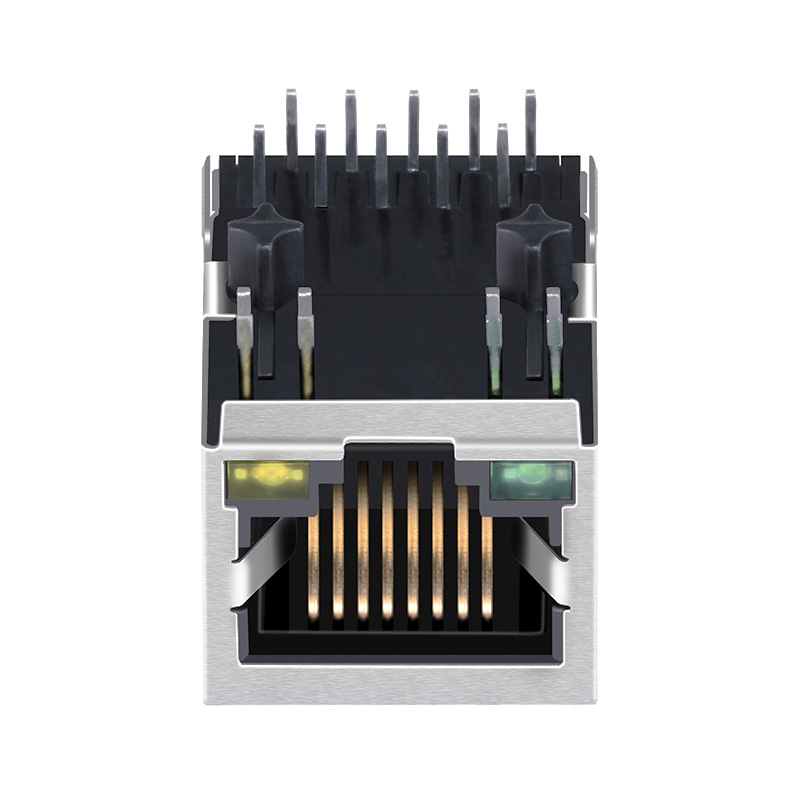

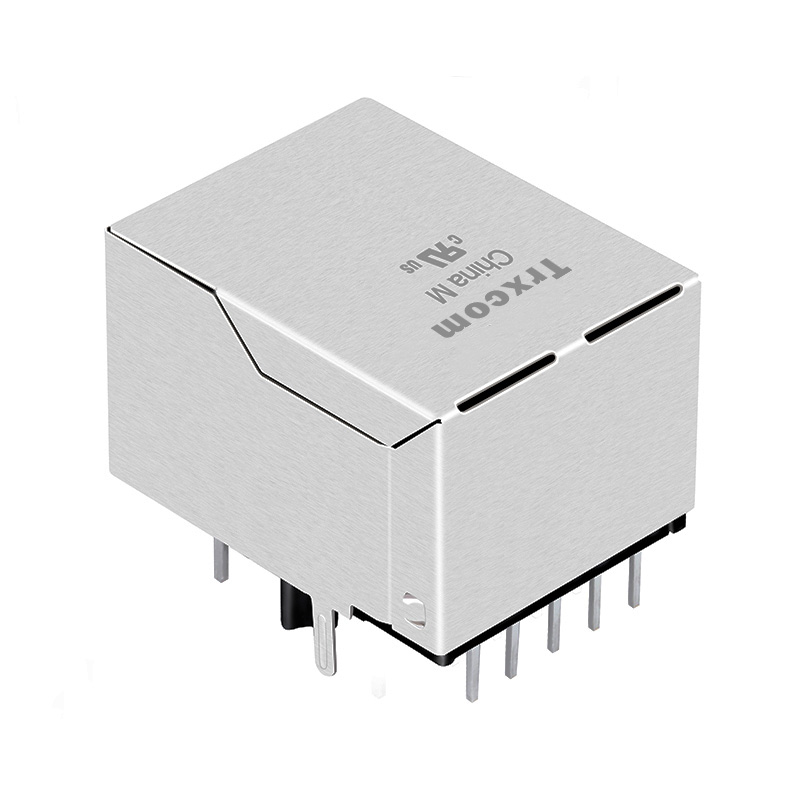

TRJM4938HENL 2.5G Base-T Magnetic RJ45 Jack Connector Single Port Tab Down Green/Yellow Led
share
Parameter
Brand ： Trxcom
P/N ： TRJM4938HENL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 2.5GBase-T
PoE ： NONE-PoE
Latch ： Down
LED ： Green/Yellow
Mount ： 0℃ to 70℃
Shield Tabs ： No
DetailReview(0)
Trxcom TRJM4938HENL 2.5G Base-T RJ45 MagJack forVideo Recorderand Satellite ( Single Port, Tab Down, Green/Yellow Led)
The TRJM4938HENL supports speed 2.5G Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.
| Part Number | TRJM4938HENL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 2.5G Base-T |
| Latch | Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Green /Yellow&Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.524/13.30 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.627/15.93 | Temperature | 0℃ to 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Consumer Electronics
Security System
Military Industry
