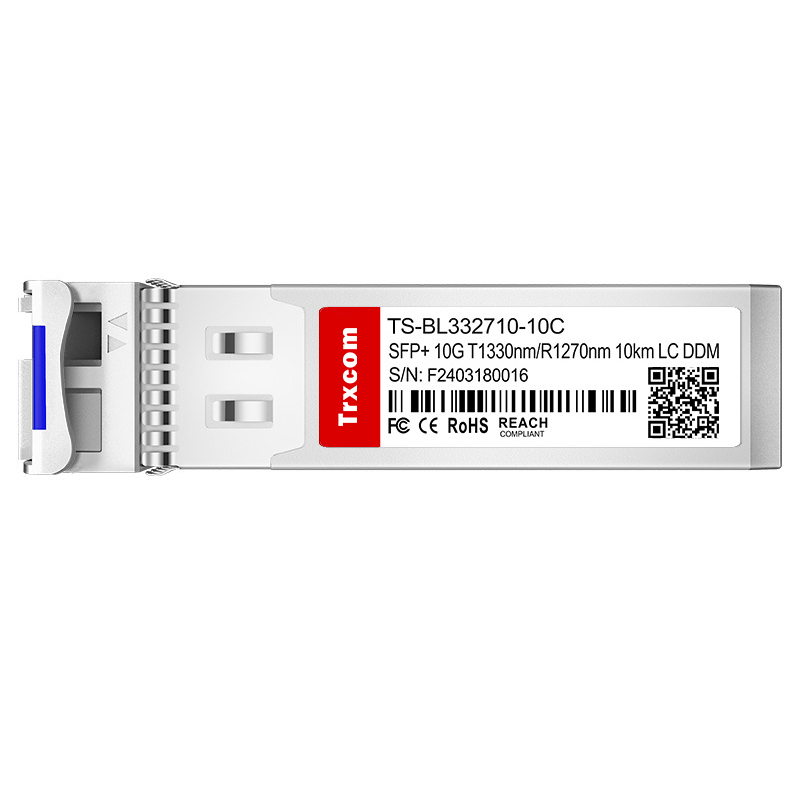

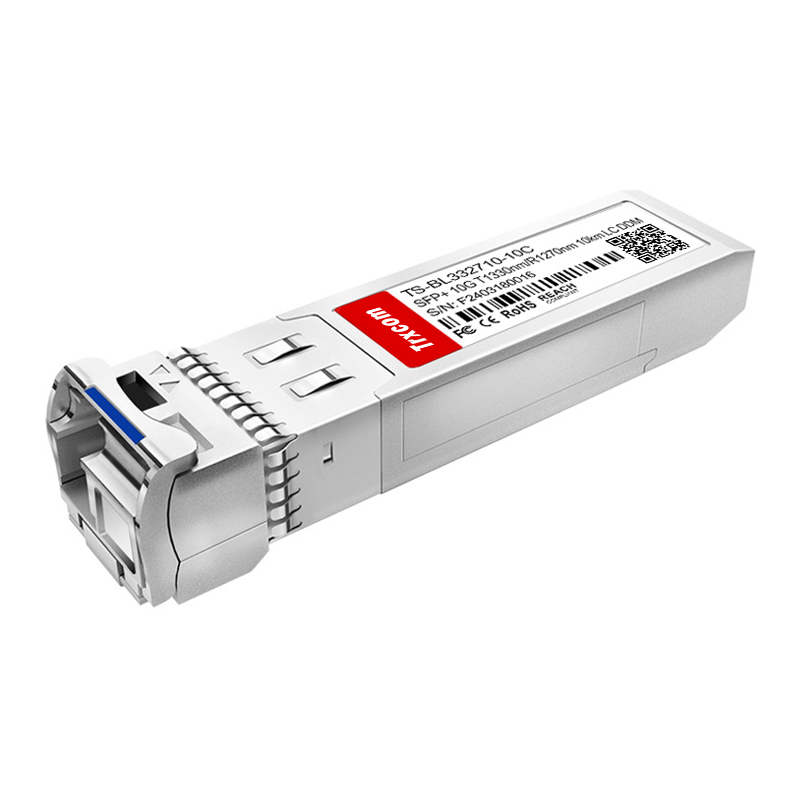

TS-BL332710-10C SFP+ 10GBASE-BX BiDi 1330nm-TX/1270nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-BL332710-10C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： LR
Connector ： Simplex LC
Distance ： ≤10km
Wavelength ： 1330nm-TX/1270nm-RX
Get a Quote
Consult products
DetailReview(0)

TRXCOM TS-BL332710-10C SFP+ 10G BASE-BX BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM)

The TS-BL332710-10C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-BL332710-10CVendor NameTrxcom
Form FactorSFP+Max Data Rate10.7Gbps
Wavelength1330nm-TX/1270nm-RXMax Cable Distance10km
ConnectorSimplex LCOptical ComponentsDFB
MediaSMFReceiver TypePIN
TX Power-6.5 to +2dBmRX Power-17 to +1dBm
Receiver Sensitivity-14.4dBmReceiver Overload0.5dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI

Matched Pairs: It must be used in pairs with SFP+ 1270nm-TX/1330nm-RX.
