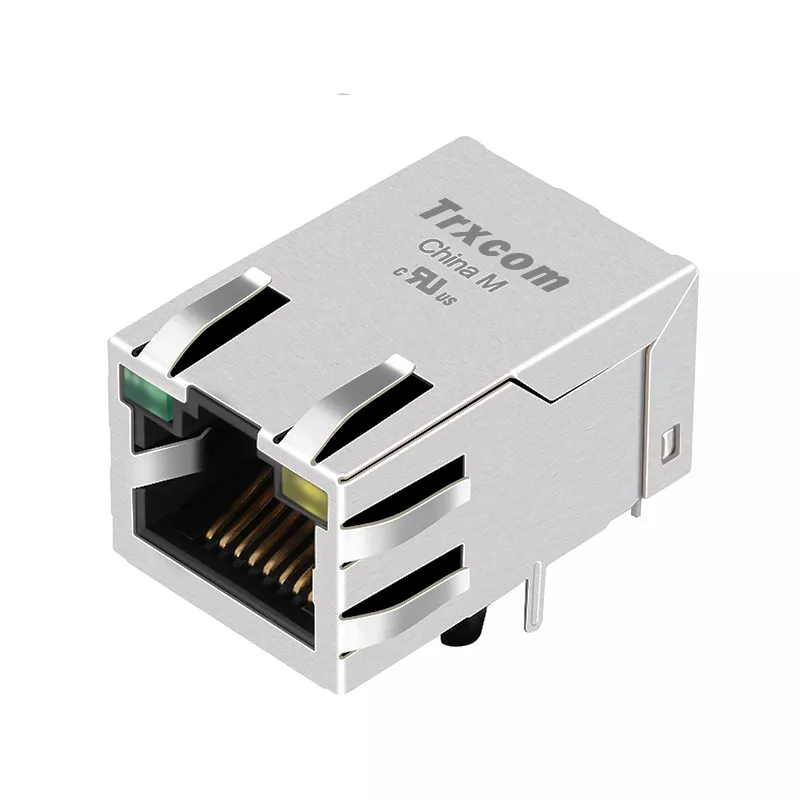

TRJ0017ABNL 10/100 Base-T Single Port Modular RJ45 Female Connector Tab Down Green/Yellow Led
share
Parameter
Brand ： Trxcom
P/N ： TRJ0017ABNL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 10/100Base-T
PoE ： NONE-PoE
Latch ： Down
LED ： Green/Yellow
Mount ： 0℃ to 70℃
Shield Tabs ： Yes
DetailReview(0)
TRXCOM TRJ0017ABNL 10/100 Base-T Modular RJ45 Female Connector for Monitoring System and Smart Meters (Single Port, Tab Down, Green/Yellow Led)
The TRJ0017ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.
| Part Number | TRJ0017ABNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.524/13.30 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.627/15.93 | Temperature | 0℃ to 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
