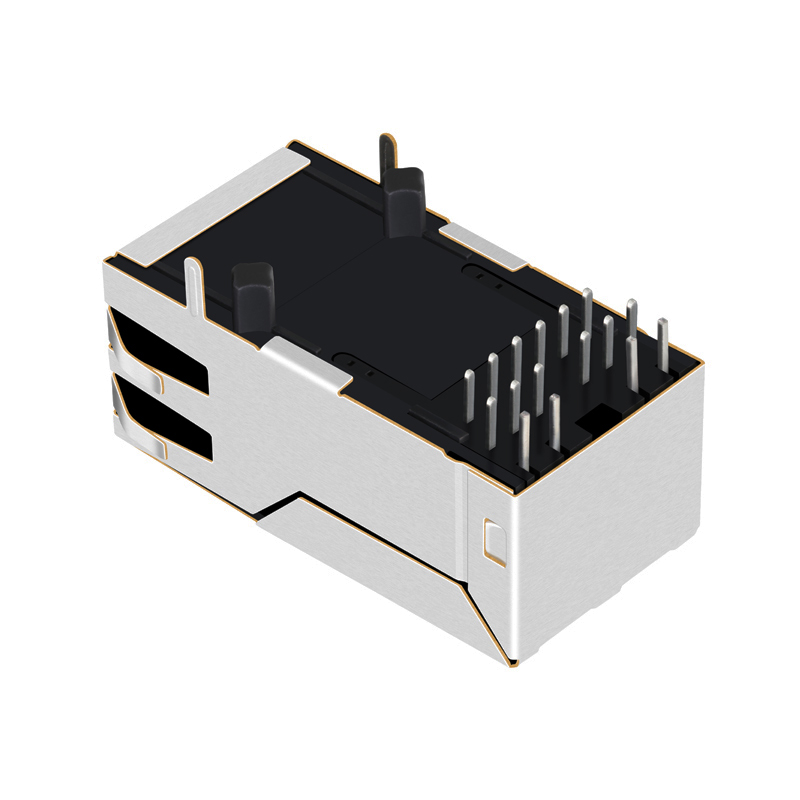

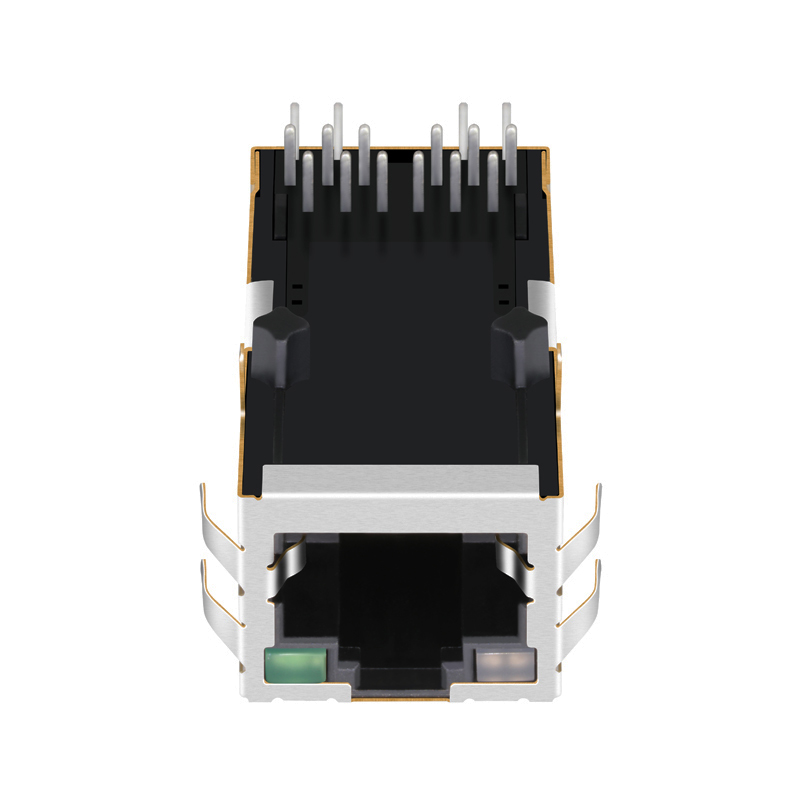

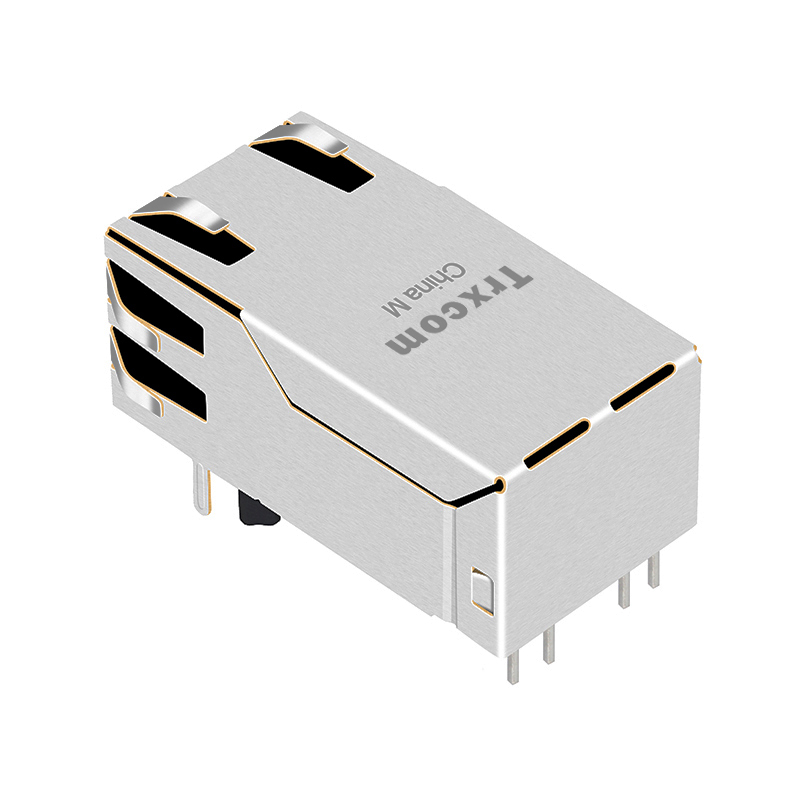

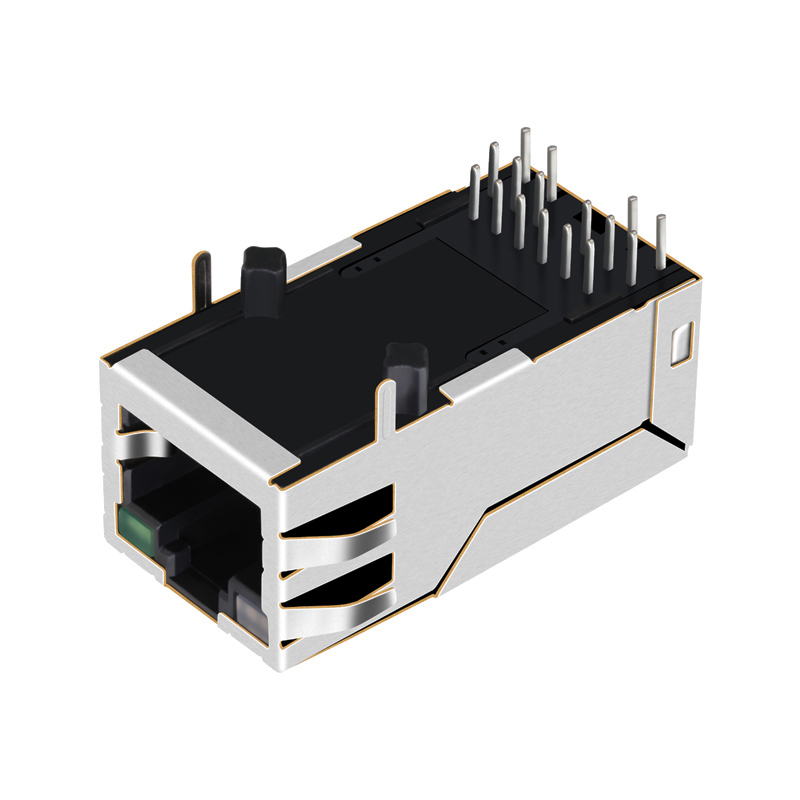

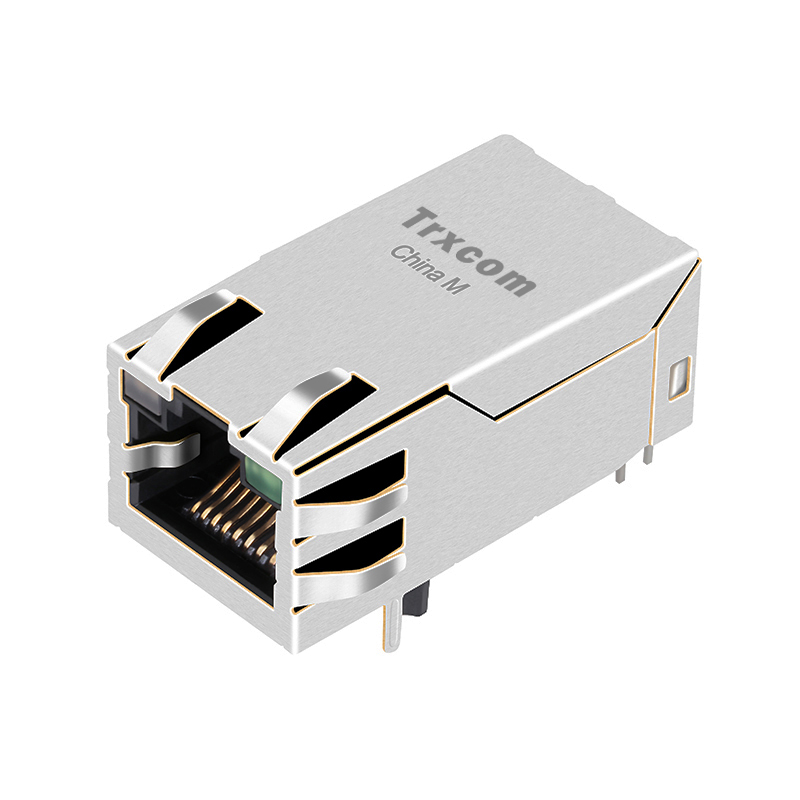

WE MIC3811B-0158W-LF3 Compatible 100/1000 Base-T RJ45 MagJack 1x1 Port Yellow&Green/Green Led Tab Up

Name: WE MIC3811B-0158W-LF3 Compatible 100/1000 Base-T RJ45 MagJack 1x1 Port Yellow&Green/Green Led Tab Up
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJK0014AINL

Compatible Brand ： Wurth

Compatible P/N ： MIC3811B-0158W-LF3

Port ： 1X1

Rate ： 1000Base-T

PoE ： NONE-PoE

Latch ： Up

LED ： Yellow&Green/Green

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

Compatible P/N:

MIC3811B-0158W-LF3

Get a Quote

Download

Consult products

DetailReview(0)

WE MIC3811B-0158W-LF3 Compatible Trxcom TRJK0014AINL 100/1000 Base-T Shielded Network RJ45 PCB Socket for Industrial PC and The Handheld Device (1x1 Port, Tab Up, Yellow&Green/Green Led)

The TRJK0014AINL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Network Card, The Handheld Device and Game Controller.

Part Number	TRJK0014AINL	WE Part Number	MIC3811B-0158W-LF3
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	12p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow&Green/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ to 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
