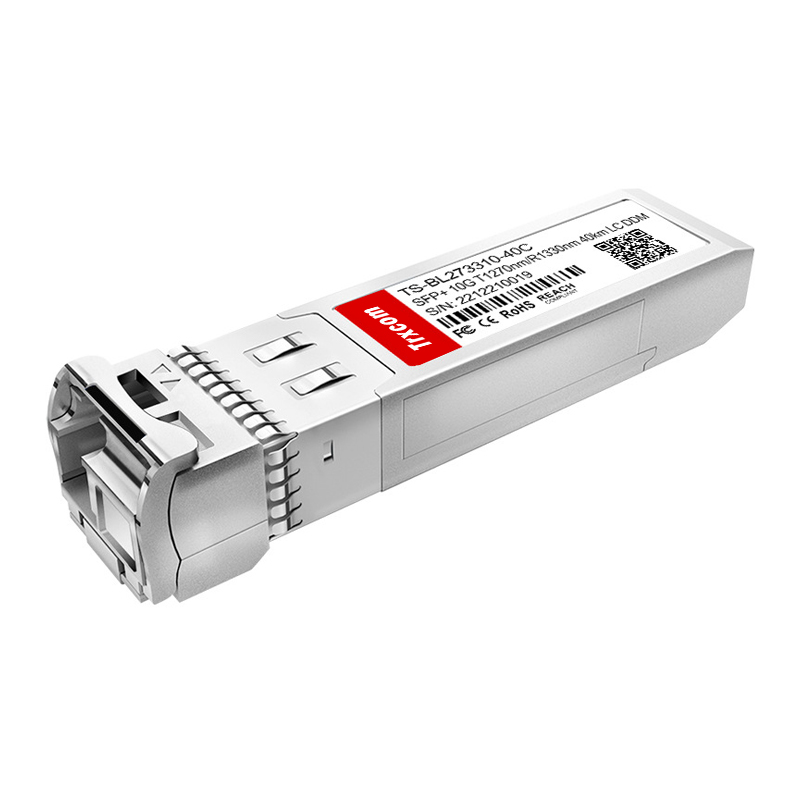

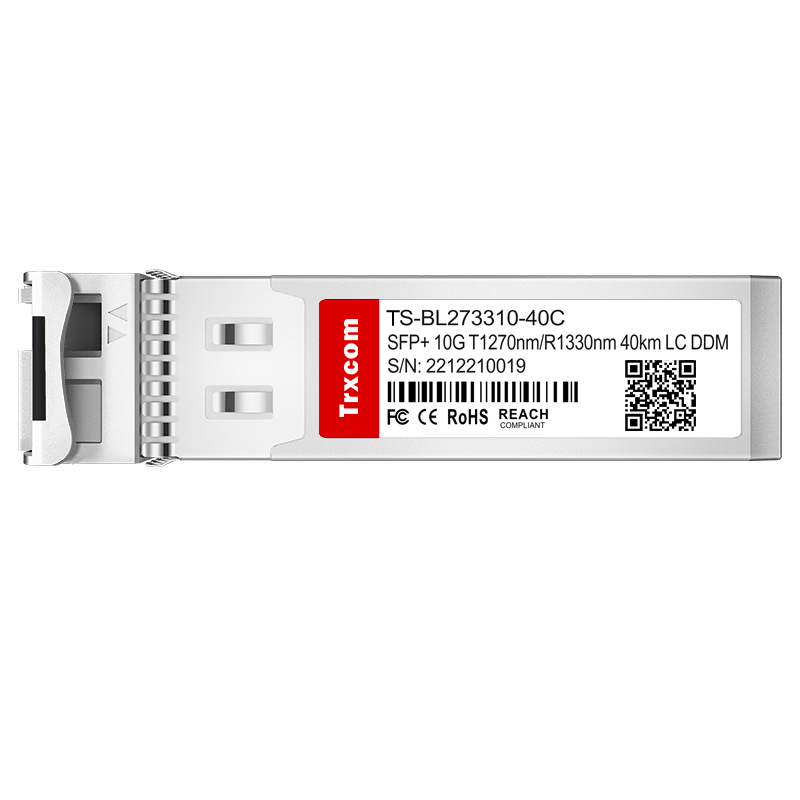

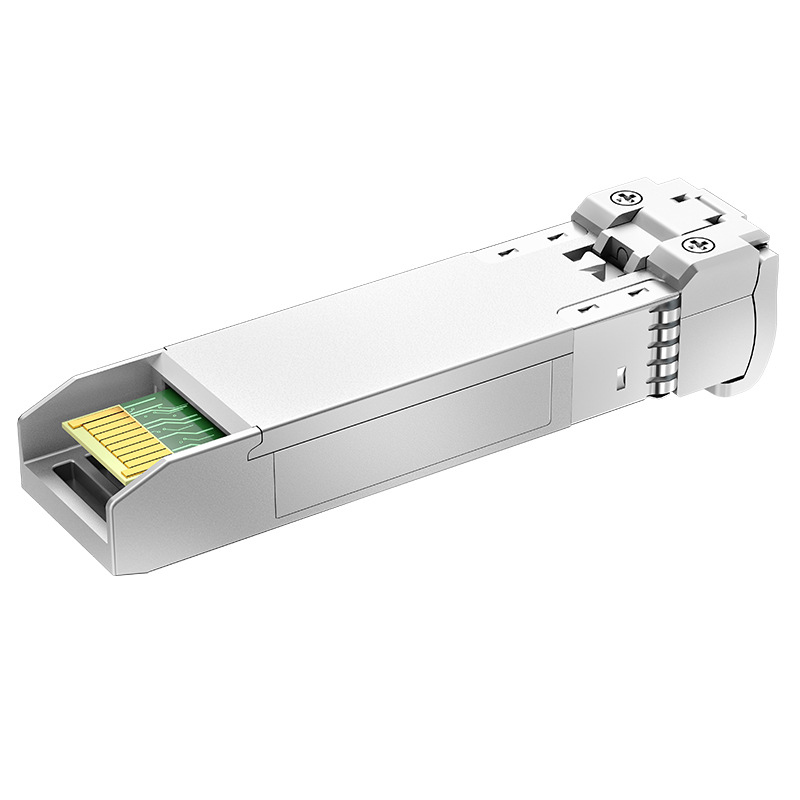

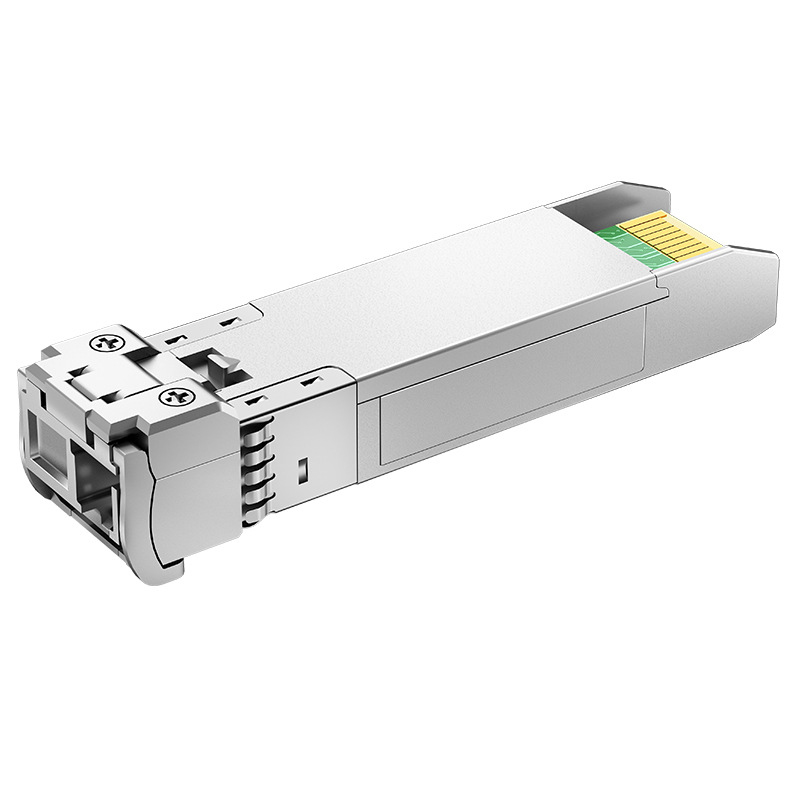

TS-BL273310-40C SFP+ 10GBASE-BX40-U BiDi 1270nm-TX/1330nm-RX 40km DOM Simplex LC/UPC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-BL273310-40C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ER
Connector ： Simplex LC
Distance ： ≤40km
Wavelength ： 1270nm-TX/1330nm-RX
DetailReview(0)
TRXCOM TS-BL273310-40C SFP+ 10G BASE-BX40-U BiDi Simplex LC/UPC SMF Optical Transceiver Module(SMF, 1270nm-TX/1330nm-RX, 40km,DOM)
The TS-BL273310-40C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-BL273310-40C | Vendor Name | Trxcom |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 40km |
| Connector | Simplex LC | Optical Components | DFB BiDi |
| Media | SMF | Receiver Type | PIN |
| TX Power | -1 to +5dBm | RX Power | -17 to +1dBm |
| Receiver Sensitivity | -15dBm | Receiver Overload | 0.5dBm |
| Operating case temperature | 0 to 70°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX.
