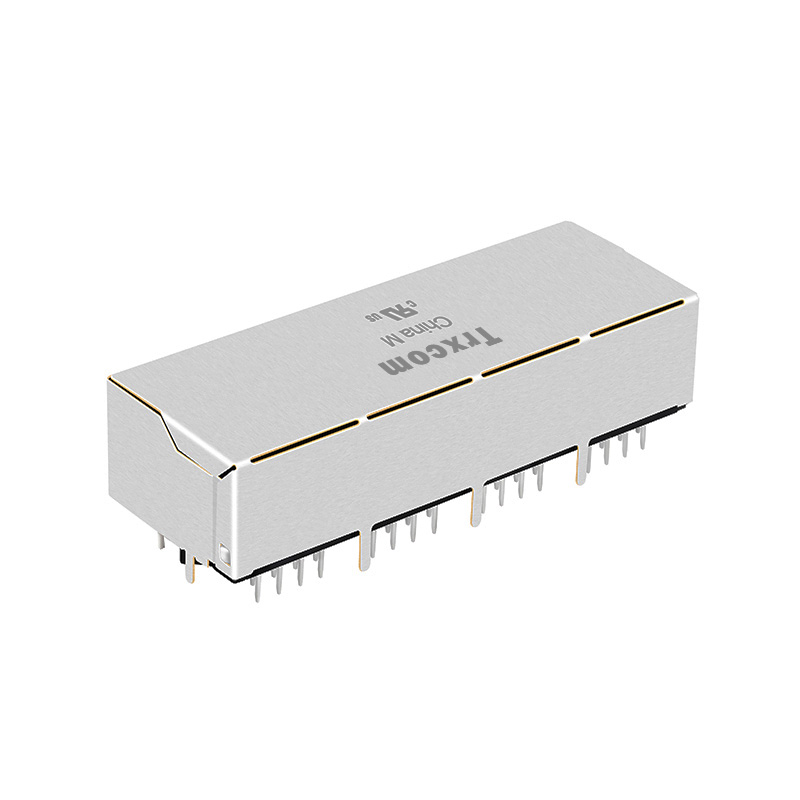

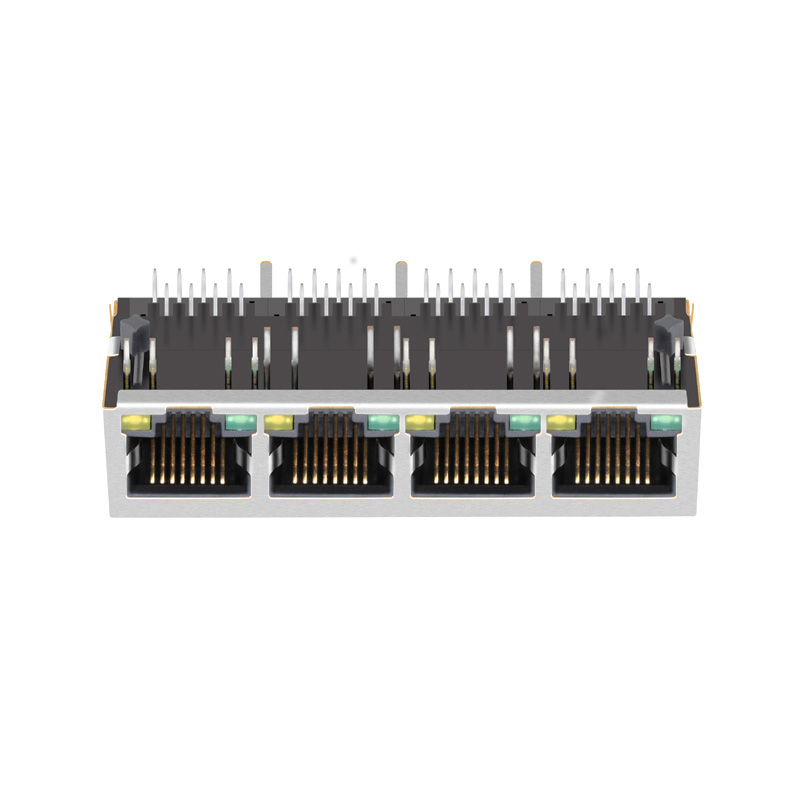

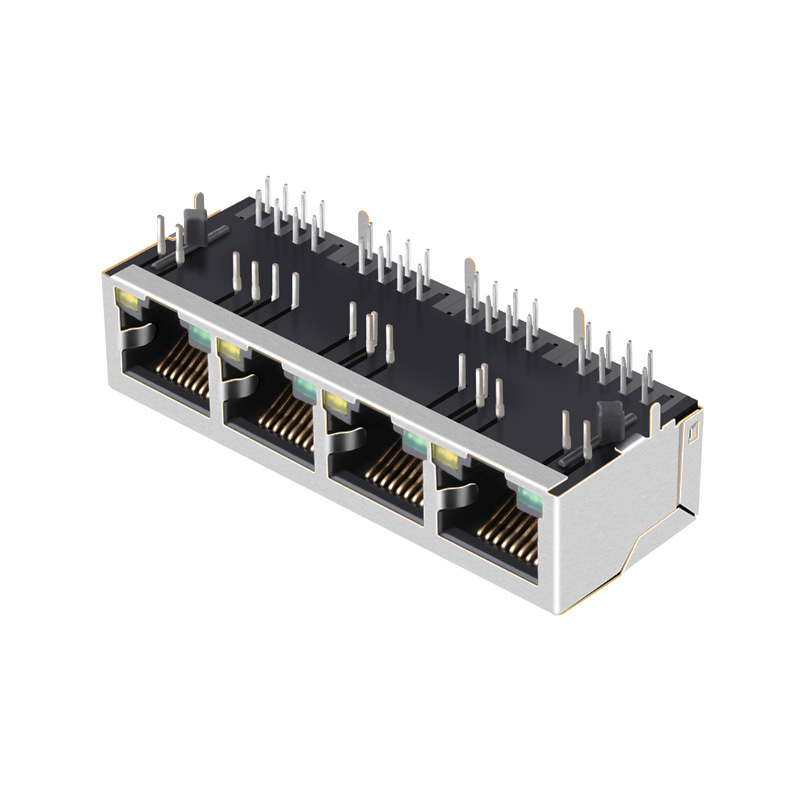

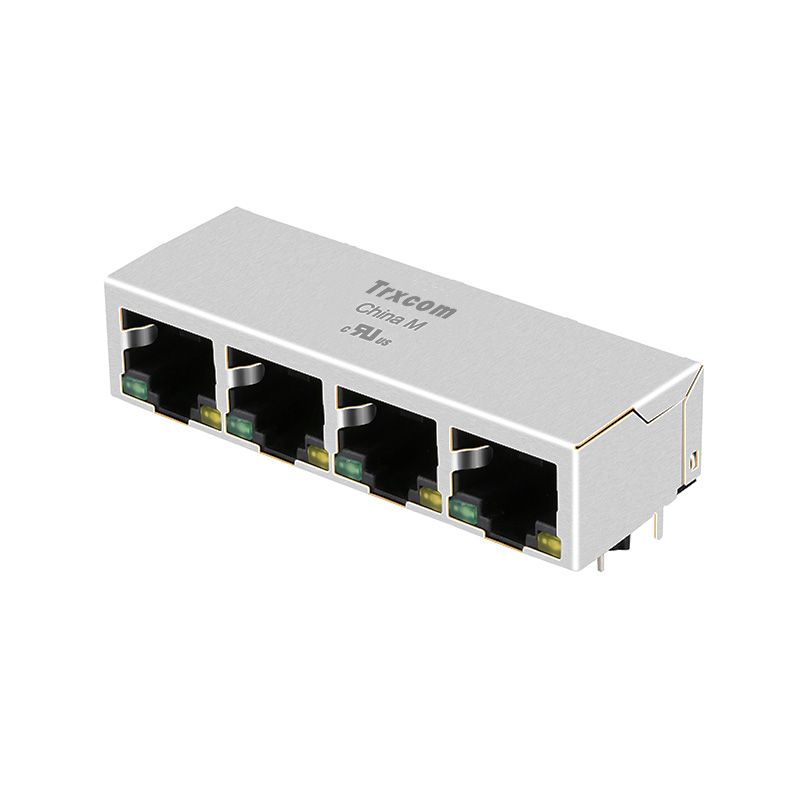

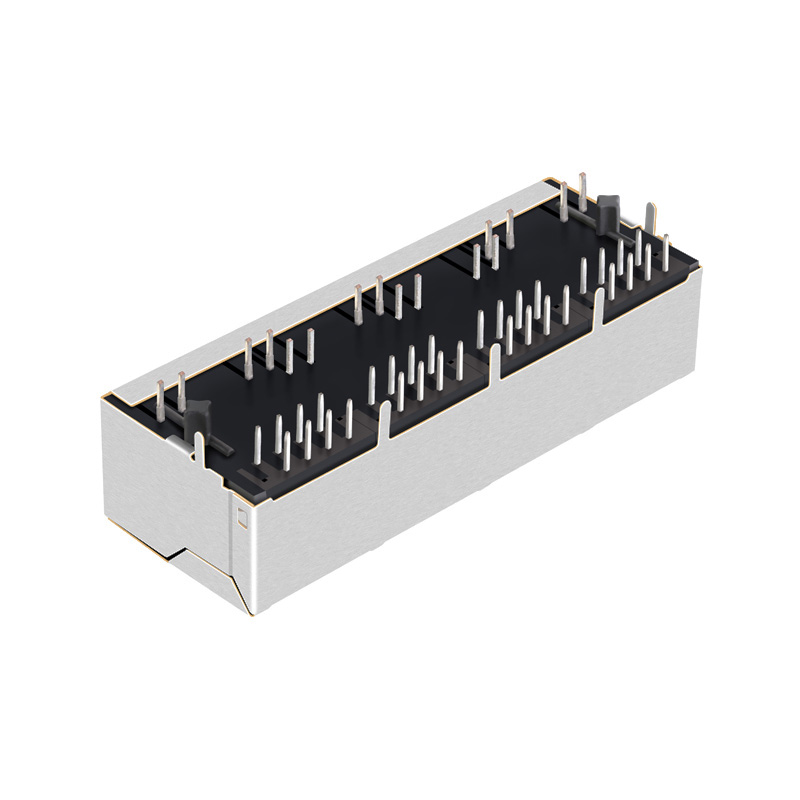

10/100 Base-T 1x4 Port Integrated Magnetic RJ45 Jacks Tab Down Yellow/Green LED TRJ46204BDNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ46204BDNL
Port: ： 1X4
PoE: ： NONE-PoE
Latch: ： Down
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJ46204BDNL 10/100 Base-T Integrated Magnetic RJ45 Jacks for Network Firewall and SMPS (1x4 Port , Tab Down ,Yellow/Green LED)

The TRJ46204BDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, SMPS,Server and Switches.

Part NumberTRJ46204BDNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x4 PortSpeed10/100 Base-T
LatchDownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionYellow/Green Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.533/13.55Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)2.328/59.12Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
