TRJK6071A9NL 100/1000 Base-T Gigabit PoE+ RJ45 Magnetic Jack Tab Up 1x1 Port Yellow&Green/Green Led
Trxcom TRJK6071A9NL 100/1000 Base-T RJ45 POE+ Gigabit Magnetic Jack for Solar Inverter and Smart Home (POE+, 1x1 Port, Tab Up,Yellow&Green/Green Led)

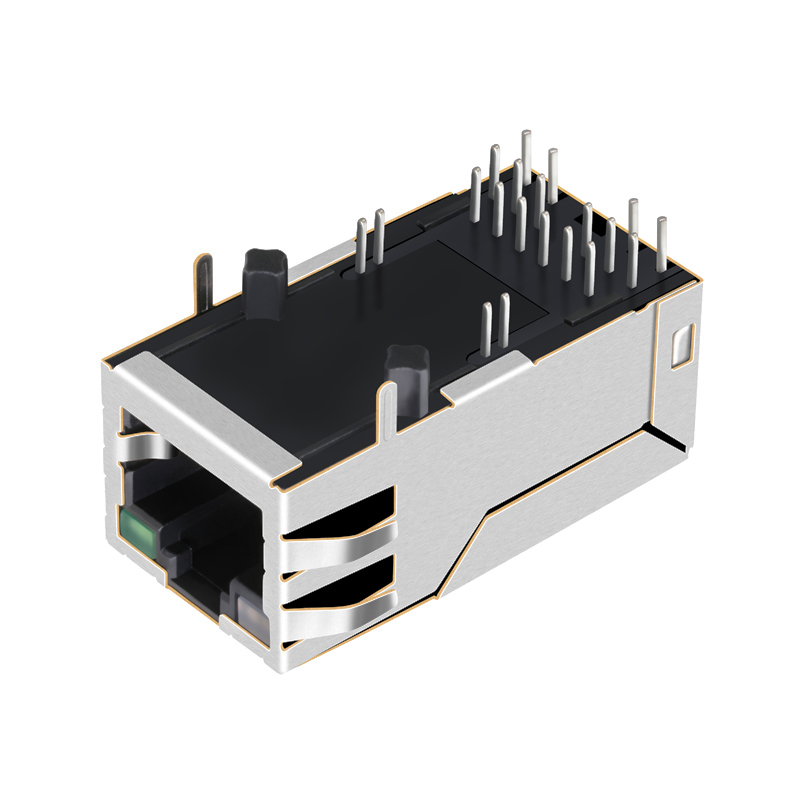

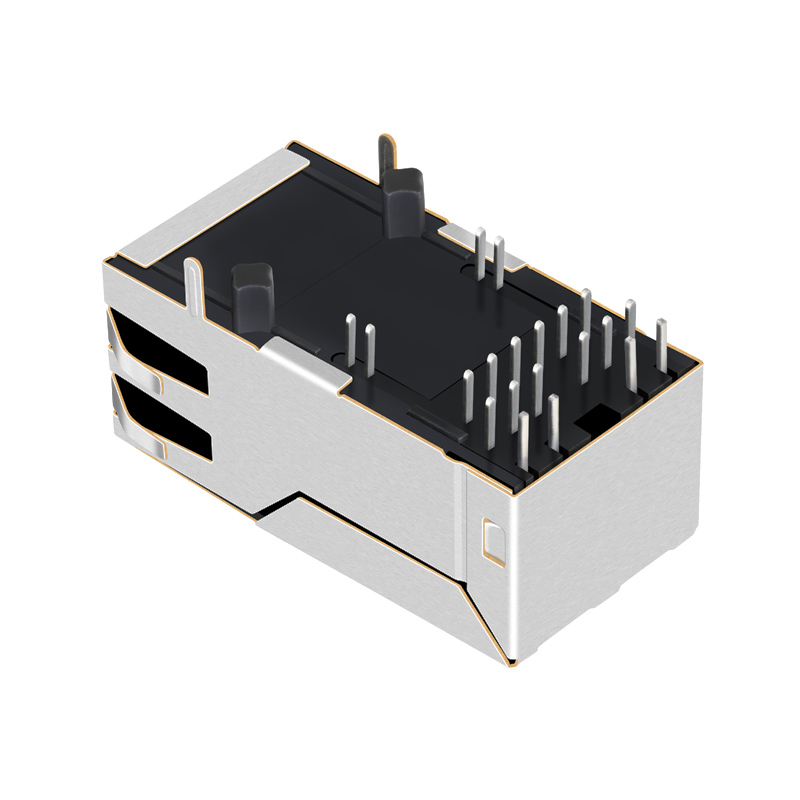

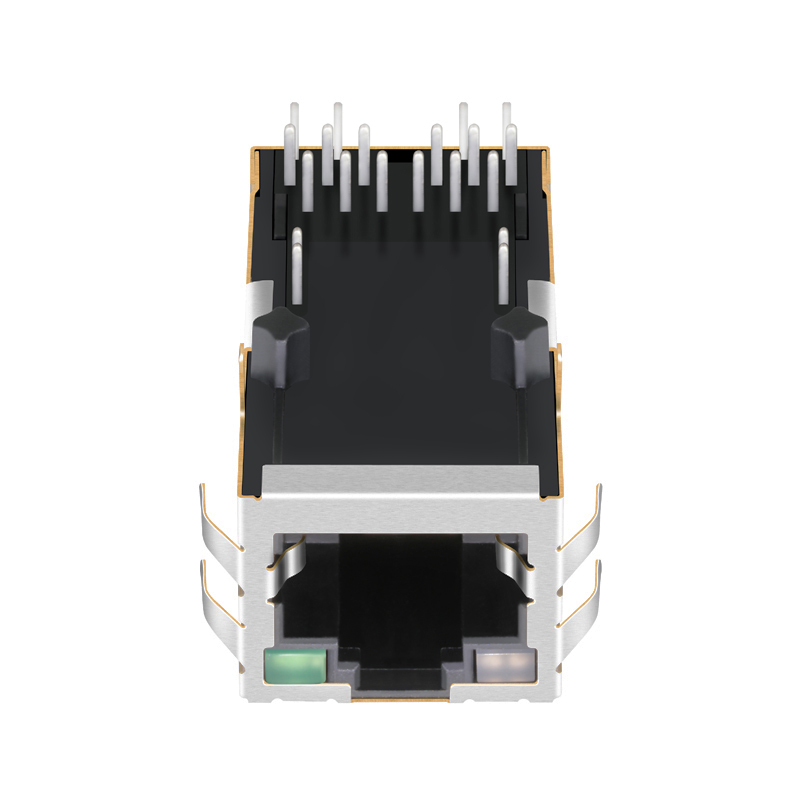

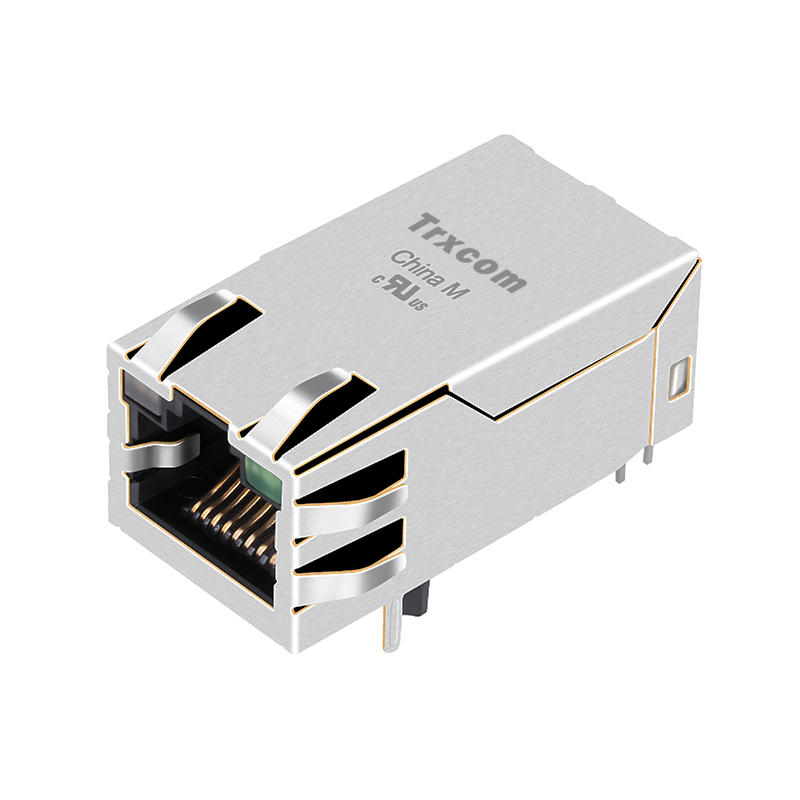

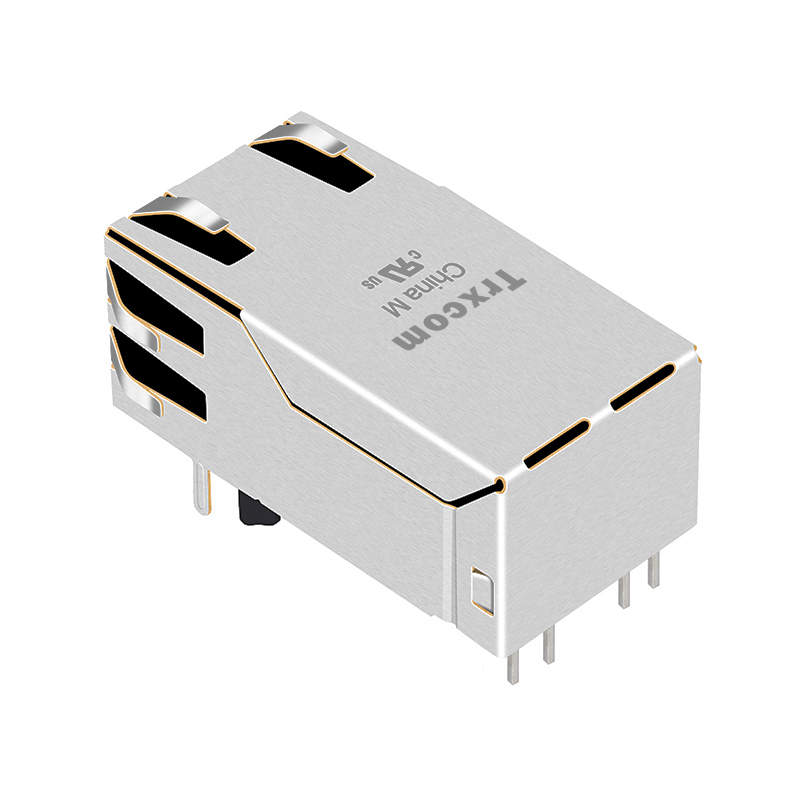

The TRJK6071A9NL is a single-port 10/100/1000Base-T RJ45 MagJack® connector with integrated magnetics, designed for Gigabit Ethernet and PoE+ applications. It supports IEEE 802.3af/at standards, enabling both data transmission and power delivery over a single Ethernet cable for simplified system design.
Featuring a 1x1 port configuration, 12P8C interface, right-angle through-hole mounting, and integrated Yellow&Green/Green LED indicators, the connector provides reliable signal integrity, EMI suppression, and clear link/activity status visualization. Its built-in magnetic components help reduce external BOM complexity and PCB space requirements while ensuring stable high-speed Ethernet performance.
With an operating temperature range of -40°C to +85°C, the TRJK6071A9NL is suitable for smart home systems, solar inverters, fieldbus networks, game controllers, industrial automation equipment, and other PoE-enabled Gigabit Ethernet applications requiring robust connectivity and power efficiency.
| Part Number | TRJK6071A9NL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 12p8c(RJ45, Ethernet) | Application-Lan | Ethernet(PoE+) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | UP | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Yellow&Green/Green Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.531/13.50 | Package Length (Inches/mm) | 1.280/32.50 |
| Package Width (Inches/mm) | 0.654/16.60 | Temperature | -40℃ to 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
