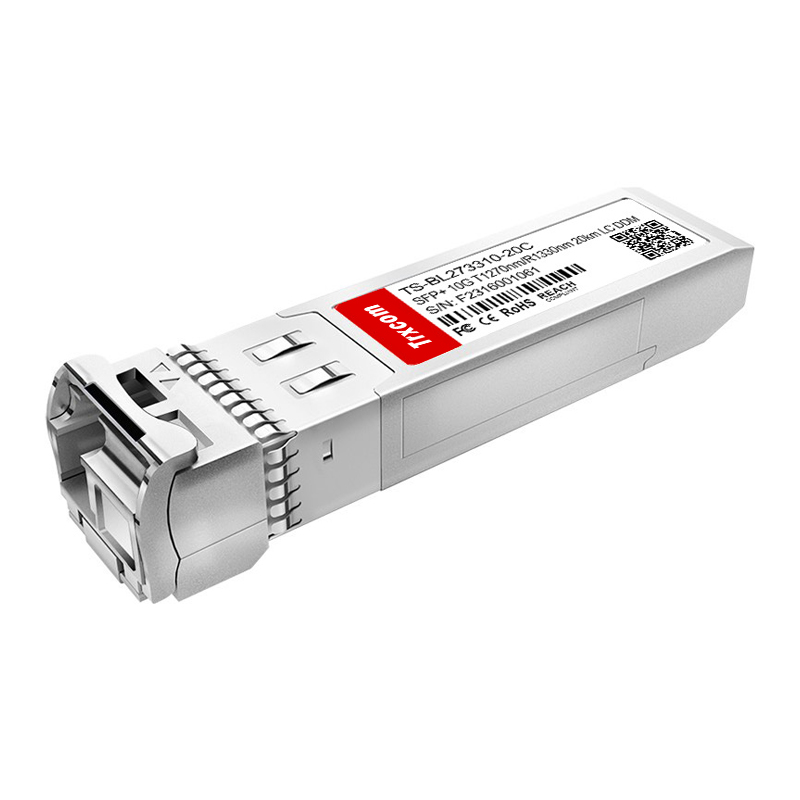

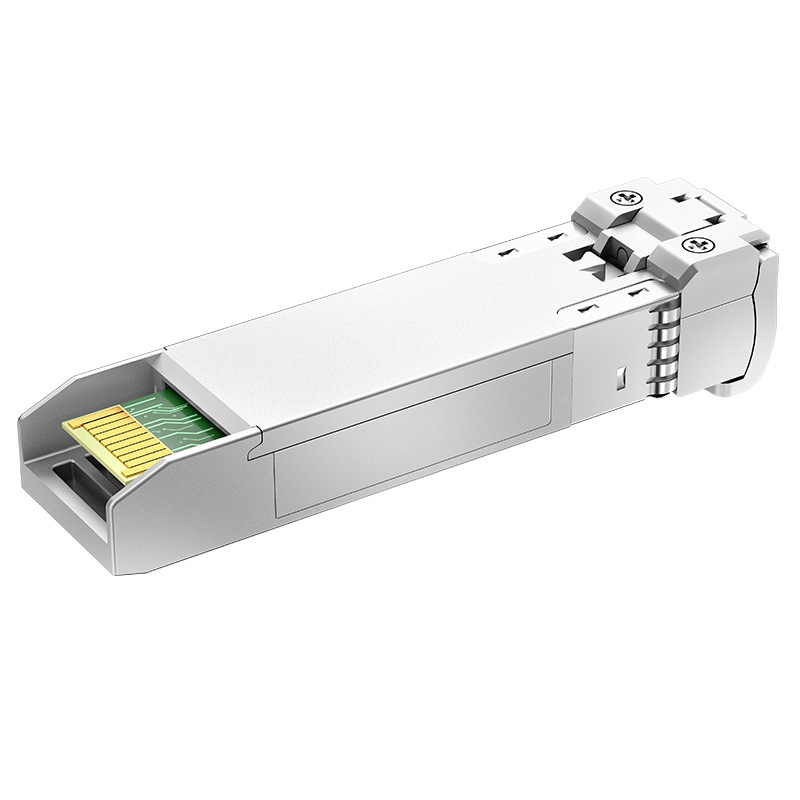

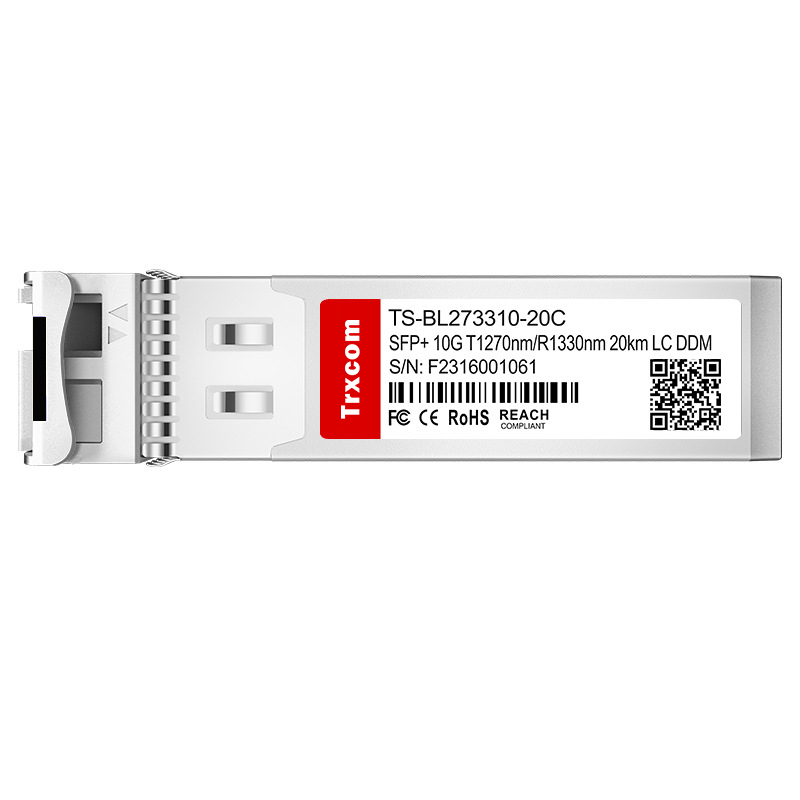

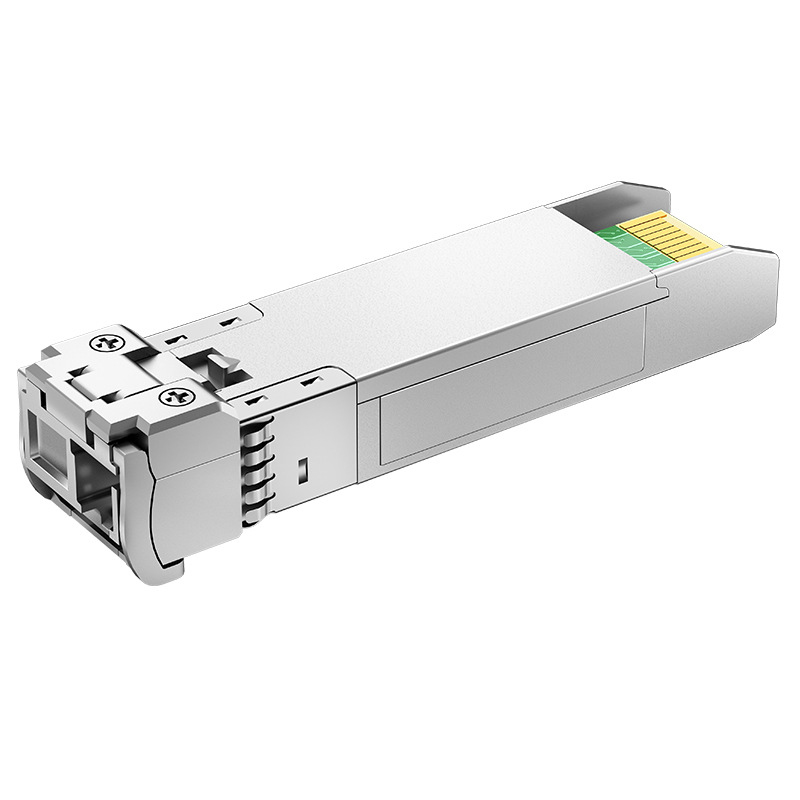

TS-BL273310-20C 10G BASE-BX20-U BiDi 1270nm-TX/1330nm-RX SFP+ 20km with DDM

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-BL273310-20C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ER
Connector ： Simplex LC
Distance ： ≤20km
Wavelength ： 1270nm-TX/1330nm-RX
Get a Quote
Consult products
DetailReview(0)

TS-BL273310-20C 10Gbps SFP+ BIDI Transceiver, 1270nm-TX / 1330nm-RX 20km Reach (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM)

The TS-BL273310-20C SFP+ transceivers are high-performance, cost-effective modules supporting a data rate of 10Gbps and a transmission distance of up to 20km using Single Mode Fiber (SMF). These transceivers comprise three key sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules meet class I laser safety requirements. Additionally, the transceivers are compatible with the SFP Multi-Source Agreement (MSA) and SFF-8472 digital diagnostics functions, ensuring reliable performance and ease of integration.

Trxcom Part NumberTS-BL273310-20CVendor NameTrxcom
Form FactorSFP+Max Data Rate10.7Gbps
Wavelength1270nm-TX/1330nm-RXMax Cable Distance20km
ConnectorSimplex LCOptical ComponentsDFB
MediaSMFReceiver TypePIN
TX Power-6.5 to +2dBmRX Power-17 to +1dBm
Receiver Sensitivity-14.4dBmReceiver Overload0.5dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI

Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX.
