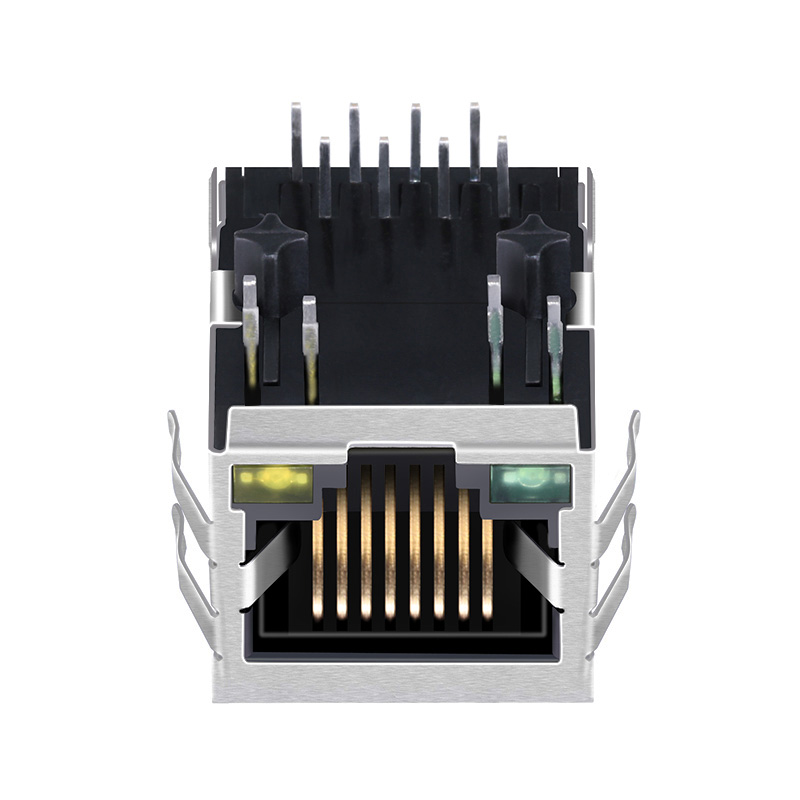

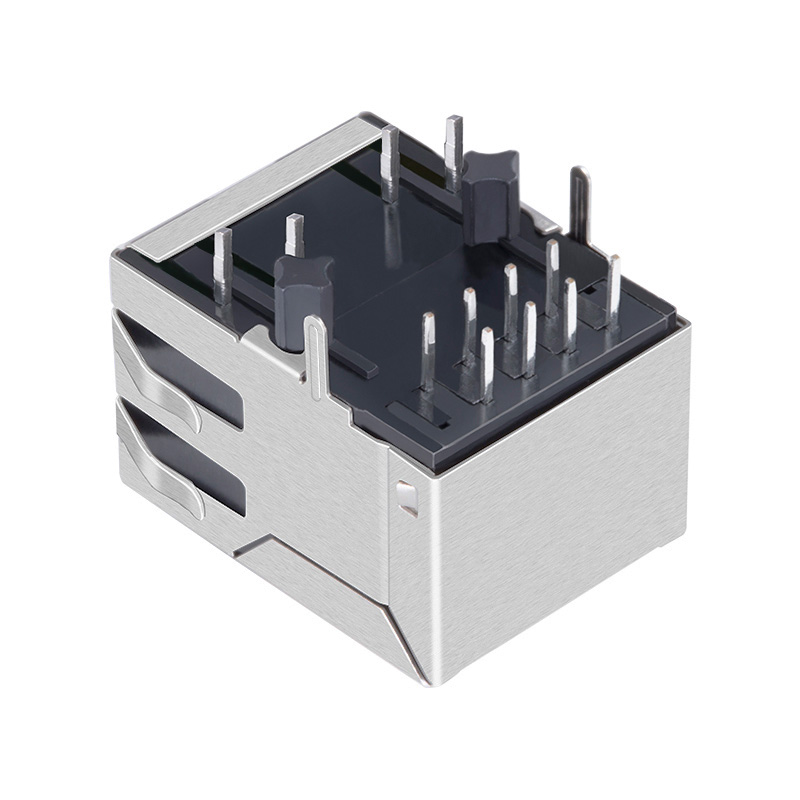

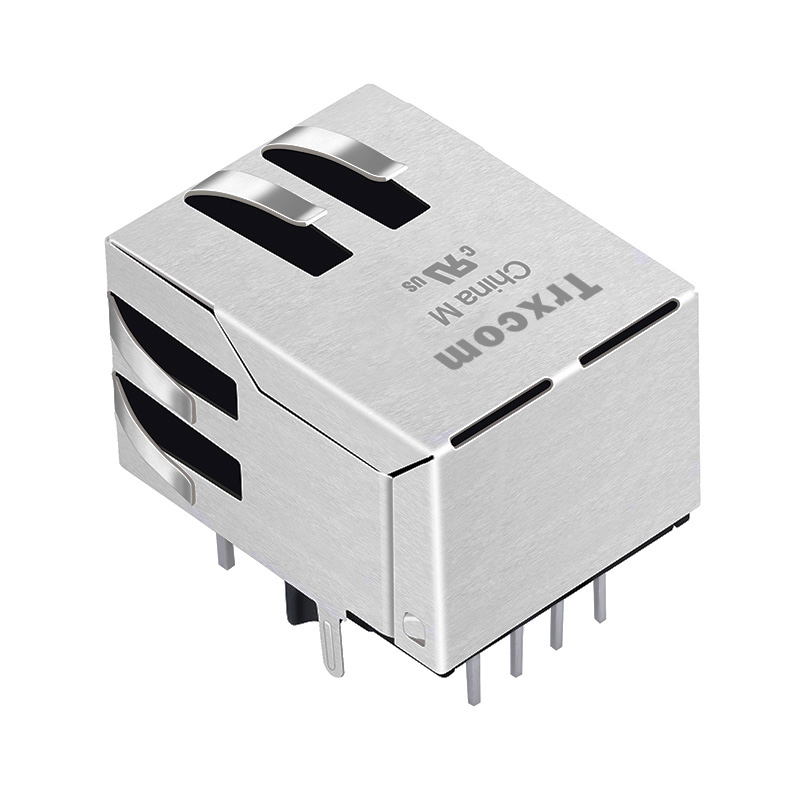

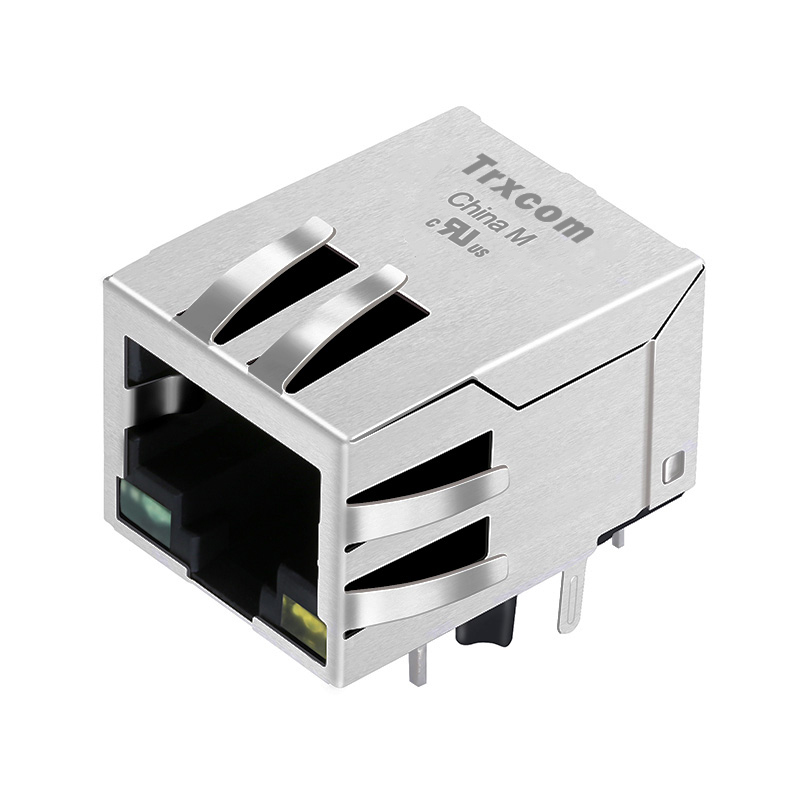

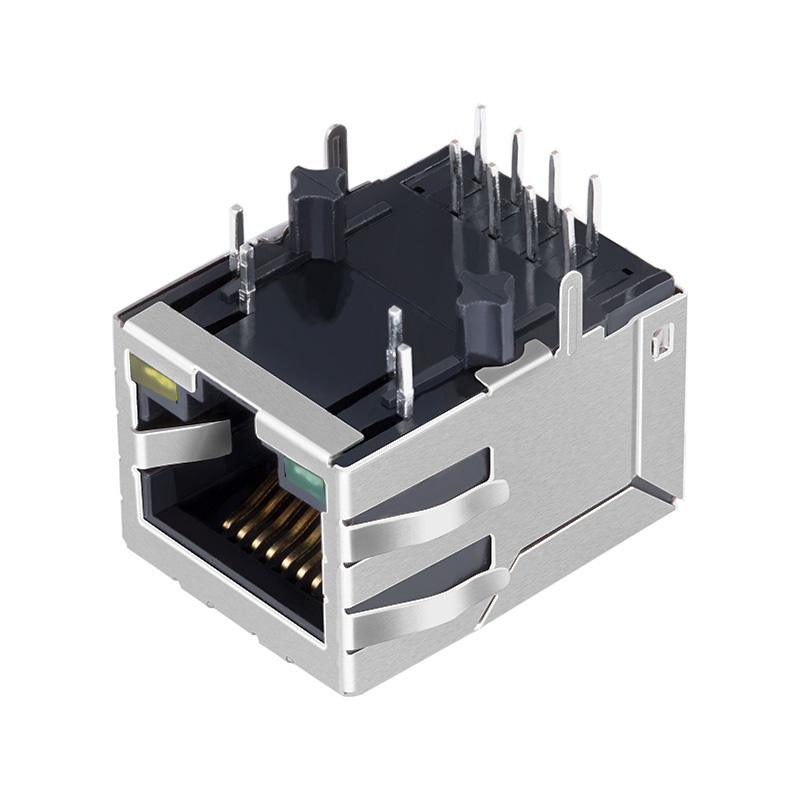

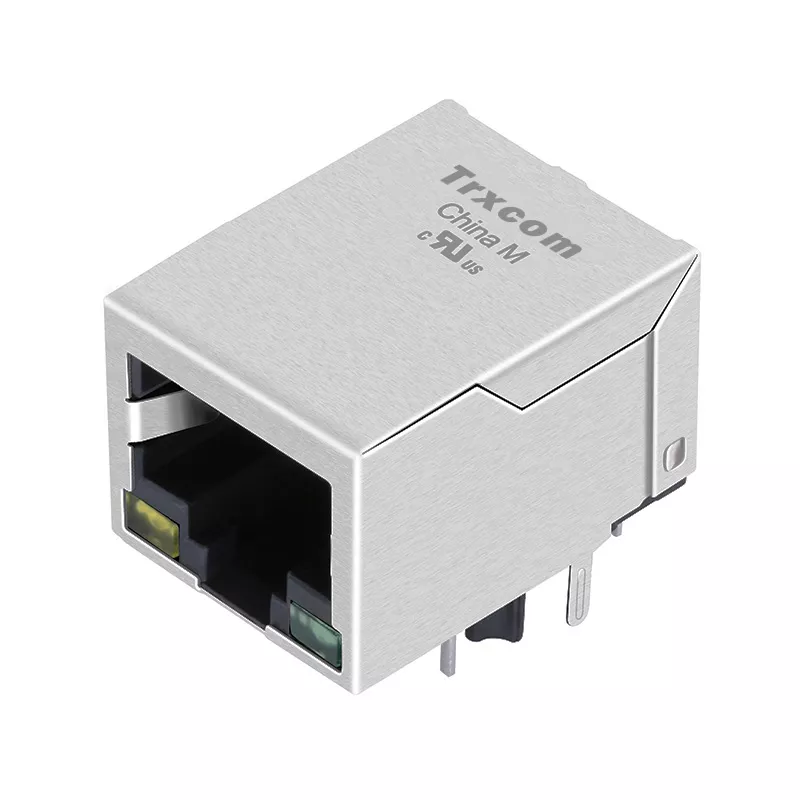

TRJG4873GENL 10/100/1000 Base-T RJ45 Connector with Integrated Magnetics Tab Down Green/Yellow LED
share
Parameter
Brand ： Trxcom
P/N ： TRJG4873GENL
Compatible Brand ： Trxcom
Port ： 1X1
Rate ： 1000Base-T
PoE ： NONE-PoE
Latch ： Down
LED ： Green/Yellow
Mount ： -40℃ to +85°C
Shield Tabs ： Yes
DetailReview(0)
Single Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS
The TRJG4873GENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Fieldbus System, Embedded Main Board, New Energy and Solar Inverter.
| Part Number | TRJG4873GENL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.524/13.30 | Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.627/15.93 | Temperature | -40℃ to 85℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
