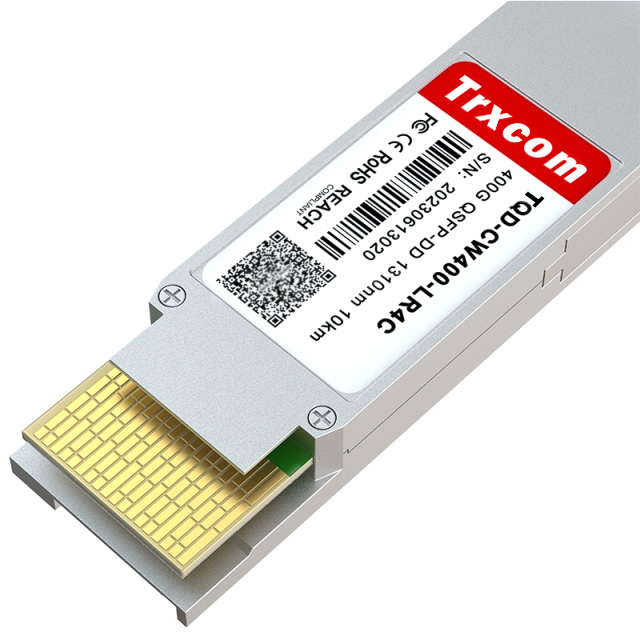

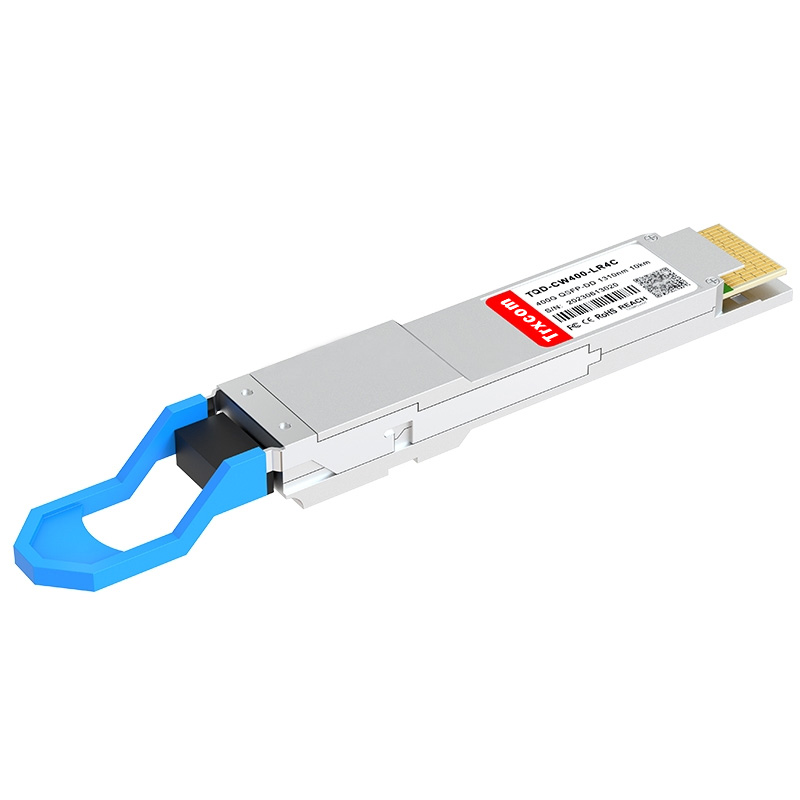

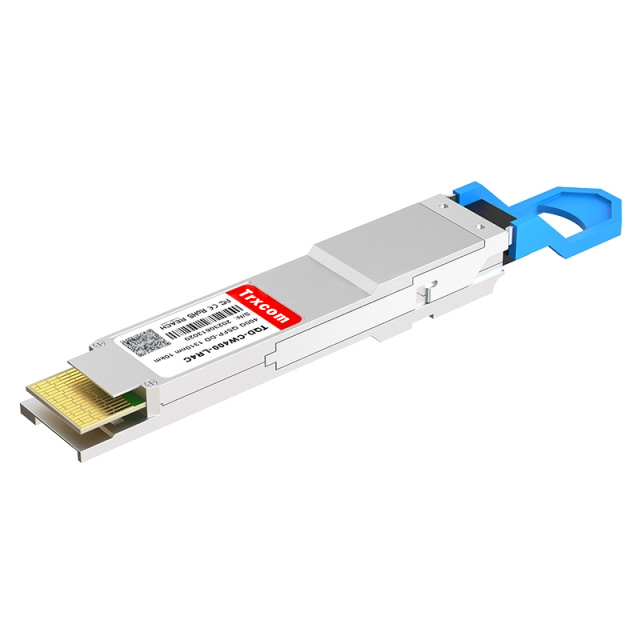

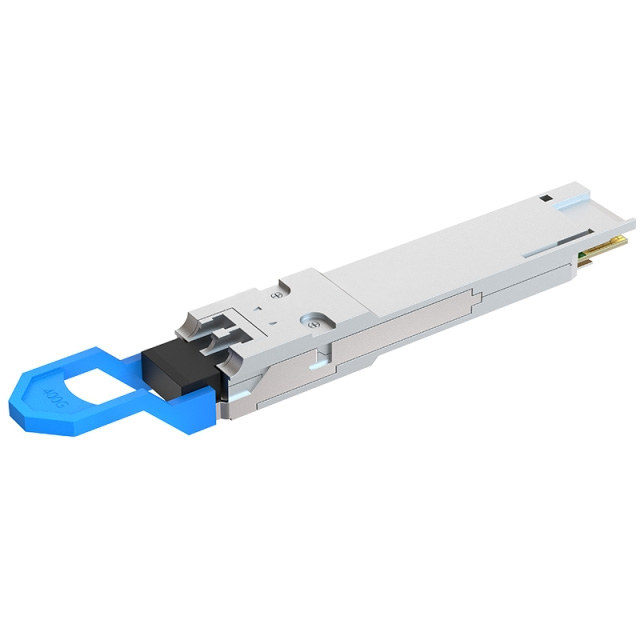

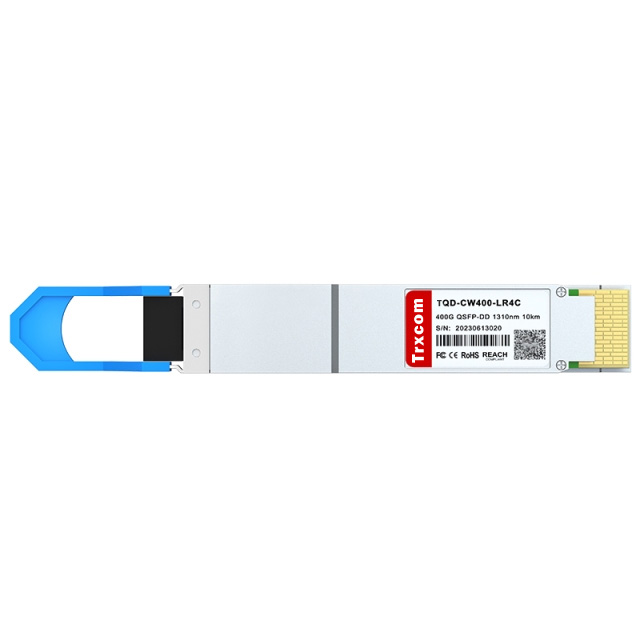

HPE Aruba S3N96A Compatible 400GBASE-LR4 QSFP-DD 8 x 50G PAM4 1310nm 10km Duplex LC/UPC SMF Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
P/N ： TQD-CW400-LR4C
Compatible Brand ： HPE Aruba
Compatible P/N ： S3N96A
Form Factor ： QSFP-DD
Type ： Single Mode
Data Rate ： 400G
Model ： LR4
Connector ： Duplex LC
Distance ： ≤10km
Wavelength ： 1310nm
Compatible Brand:
HPE Aruba
Compatible P/N:
S3N96A
Get a Quote
Consult products
DetailReview(0)

HPE Aruba S3N96A Compatible Trxcom TQD-CW400-LR4C 400G-LR4 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 10km, Duplex LC/UPC, DOM)

The 400GBASE-LR4 module, Duplex LC/UPC connector, up to 10km over parallel single-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

HPE Aruba CompatibleS3N96AVendor NameTrxcom
Form FactorQSFP-DDMax Data Rate400Gbps
Wavelength1271nm,1291nm,1311nm,1331nmMax. Cable Distance10km
ConnectorDuplex LC/UPCMediaSMF
Modulation FormatCWDM EMLReceiver TypePIN
TX Power-2.7~5.1dBmMinimum Receiver Power-9.0dBm
Power Budget6.3dBReceiver Overload5.1dBm
Max. Power Consumption9WExtinction Ratio3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
ProtocolsQSFP-DD MSA HW Rev 5.1, QSFP-DD, CMIS Rev 5.0, IEEE 802.3cu, 100G Lambda MSAWarranty5 Years
