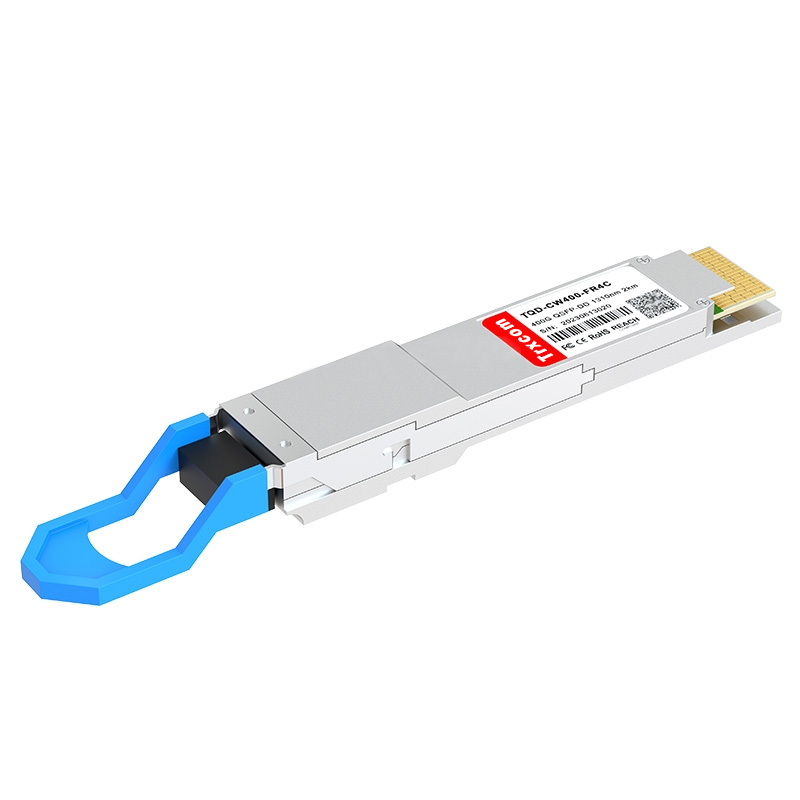

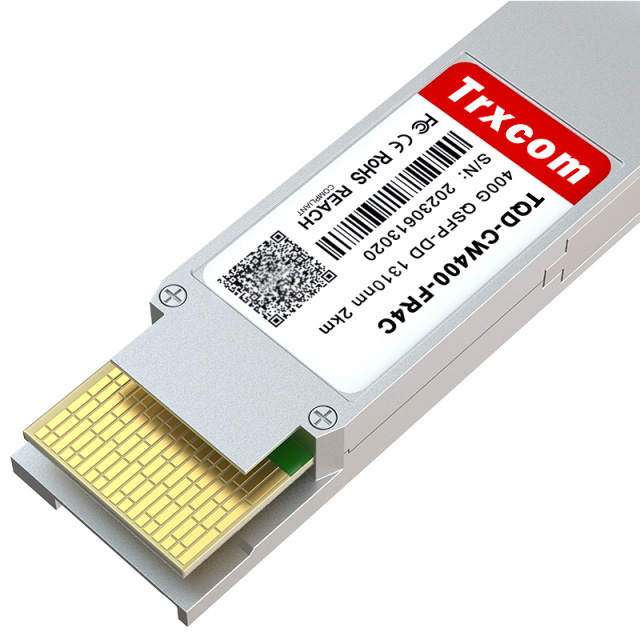

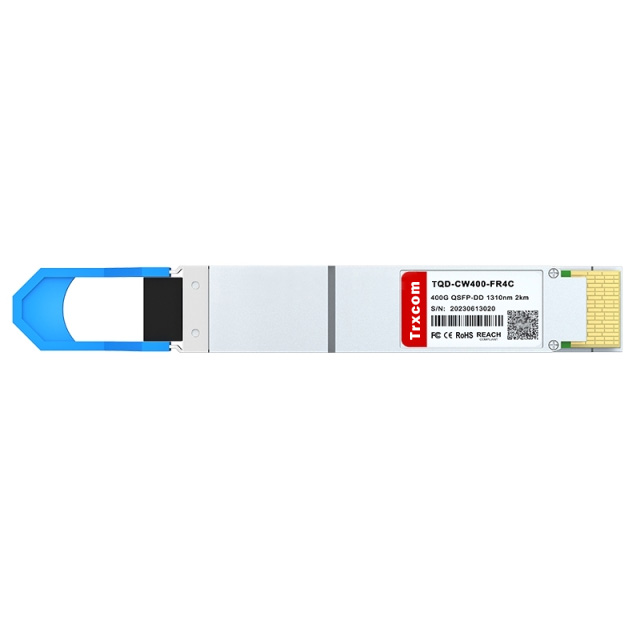

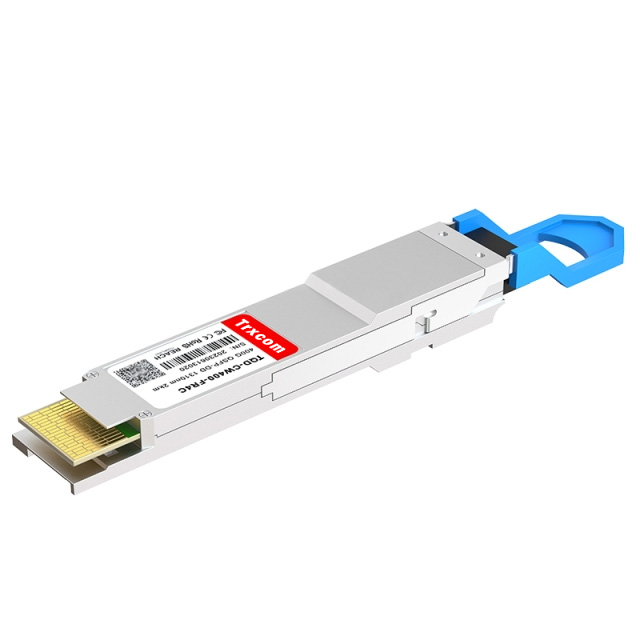

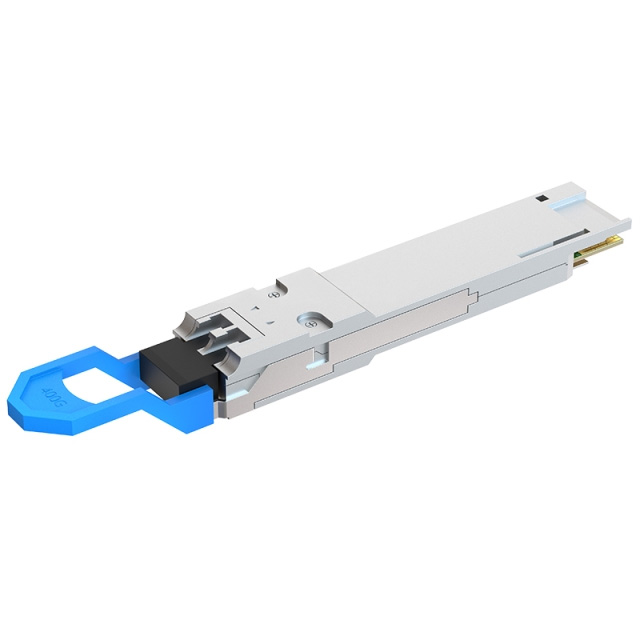

NVIDIA/Mellanox MMS1V50-WM Compatible 400GBASE-FR4 QSFP-DD 8 x 50G PAM4 1310nm 2km Duplex LC/UPC SMF Transceiver Module
share
Parameter
Brand ： Trxcom
P/N ： TQD-CW400-FR4C
Compatible Brand ： NVIDIA/Mellanox
Compatible P/N ： MMS1V50-WM
Form Factor ： QSFP-DD
Type ： Single Mode
Data Rate ： 400G
Model ： FR4
Connector ： Duplex LC
Distance ： ≤2km
Wavelength ： 1310nm
Compatible Brand:
NVIDIA/Mellanox
Compatible P/N:
MMS1V50-WM
DetailReview(0)
NVIDIA/Mellanox MMS1V50-WM Compatible Trxcom TQD-CW400-FR4C 400GBASE-FR4 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The 400GBASE-FR4 module, Duplex LC connector, up to 2km over parallel single-mode fiber. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards.
The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
| NVIDIA/Mellanox Compatible | MMS1V50-WM | Vendor Name | Trxcom |
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 1271nm,1291nm,1311nm,1331nm | Max. Cable Distance | 2km |
| Connector | Duplex LC/UPC | Media | SMF |
| Modulation Format | CWDM EML | Receiver Type | PIN |
| TX Power | -3.2~4.4dBm | Minimum Receiver Power | -7.2dBm |
| Power Budget | 4dB | Receiver Overload | 4.4dBm |
| Max. Power Consumption | 9W | Extinction Ratio | 3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP-DD MSA, CMIS.5.0, IEEE 802.3bs | Warranty | 5 Years |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
