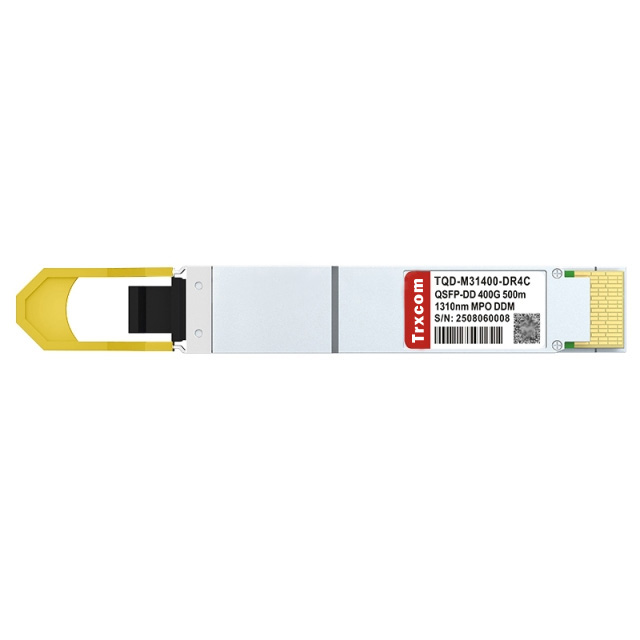

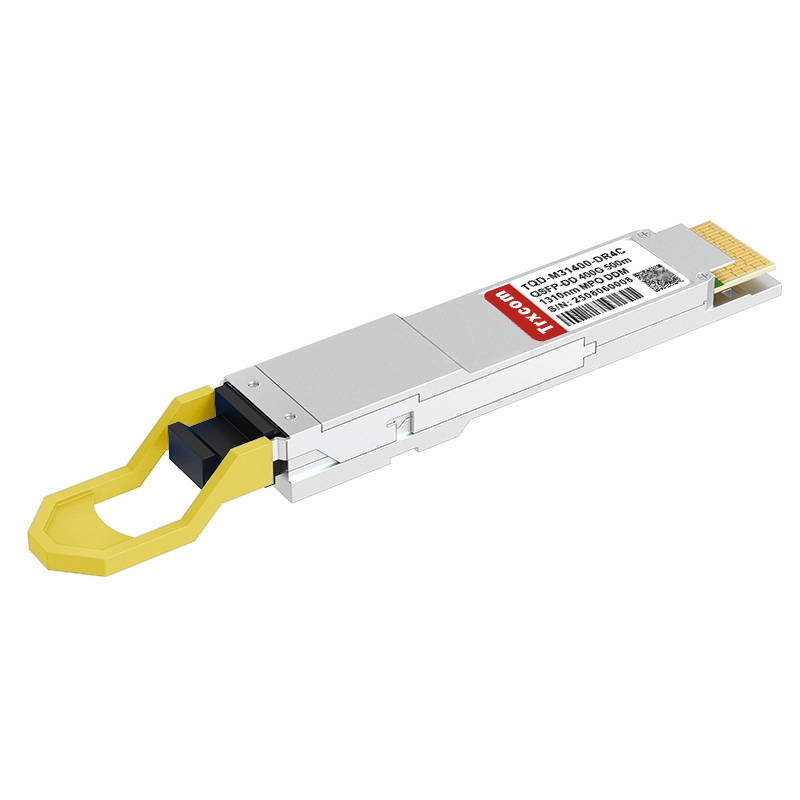

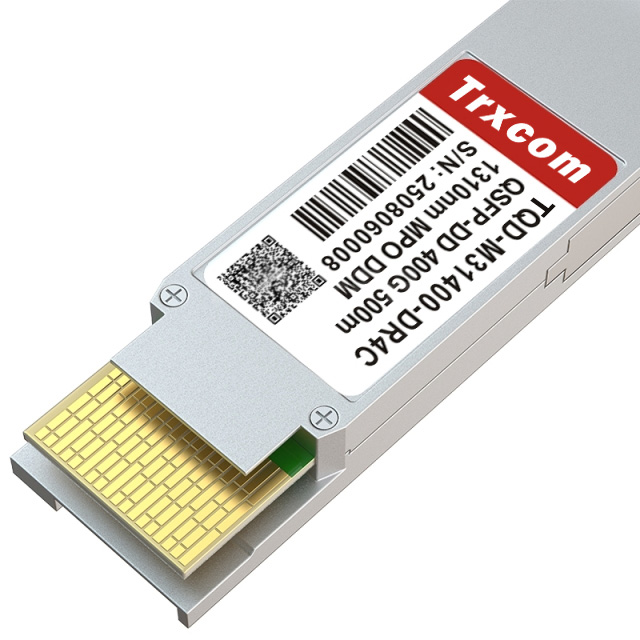

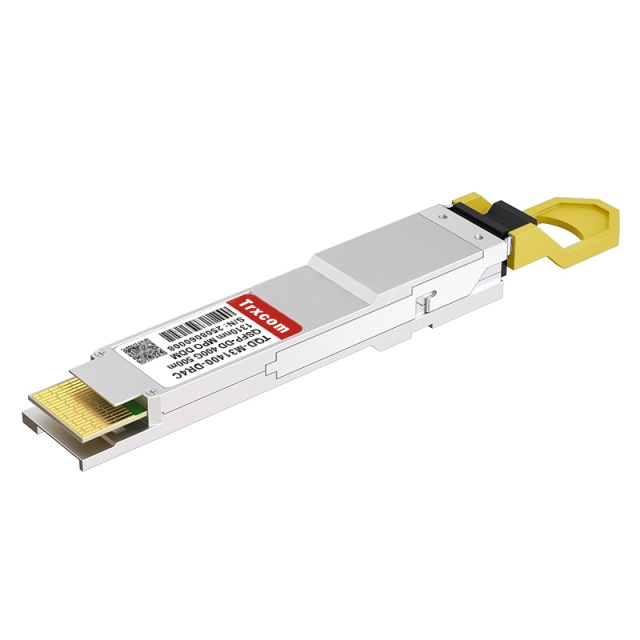

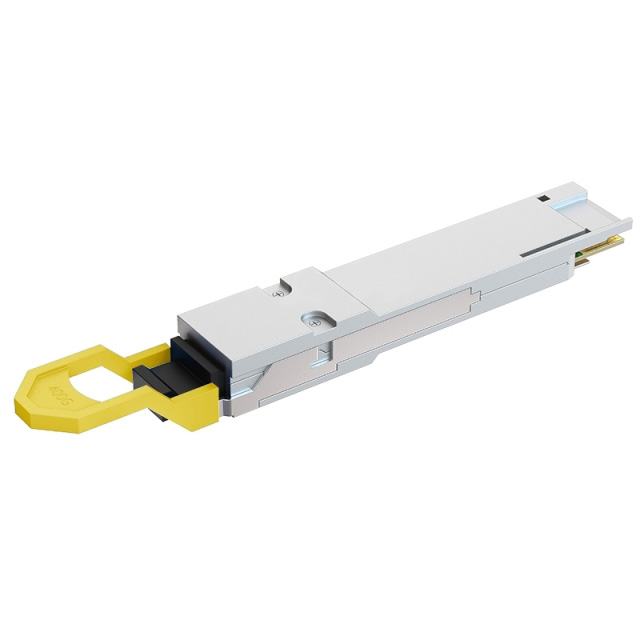

Intel SPTSHP2PMCDF Compatible 400GBASE-DR4 QSFP-DD 8 x 50G PAM4 1310nm 500m MPO-12/APC SMF SiPh-Based Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
P/N ： TQD-M31400-DR4C
Compatible Brand ： Intel
Compatible P/N ： SPTSHP2PMCDF
Form Factor ： QSFP-DD
Type ： Single Mode
Data Rate ： 400G
Model ： DR4
Connector ： MPO-12/APC
Distance ： ≤500m
Wavelength ： 1310nm
Compatible Brand:
Intel
Compatible P/N:
SPTSHP2PMCDF
Get a Quote
Consult products
DetailReview(0)

Intel SPTSHP2PMCDF Compatible Trxcom TQD-M31400-DR4C 400GBASE-DR4 QSFP-DD PAM4 Silicon Photonics Transceiver Module (SMF, 1310nm, 500m, MPO-12, DOM)

The 400GBASE-DR4 silicon photonics module, MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.

The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as a 4x100G breakout to QSFP-DR-100G.

Intel CompatibleSPTSHP2PMCDFVendor NameTrxcom
Form FactorQSFP-DDMax Data Rate425Gbps (4x106.25Gb/s)
Wavelength1310nmMax. Cable Distance500m
ConnectorMPO-12/APCMediaSMF
Modulation FormatPAM4Receiver TypePIN
TX Power-2.9~4.0dBmMinimum Receiver Power-5.9dBm
Power Budget3dBReceiver Overload4.0dBm
Max. Power Consumption9WExtinction Ratio3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
ProtocolsQSFP-DD MSA HW Rev 5.1, QSFP-DD CMIS Rev 5.0, IEEE 802.3bsWarranty5 Years
