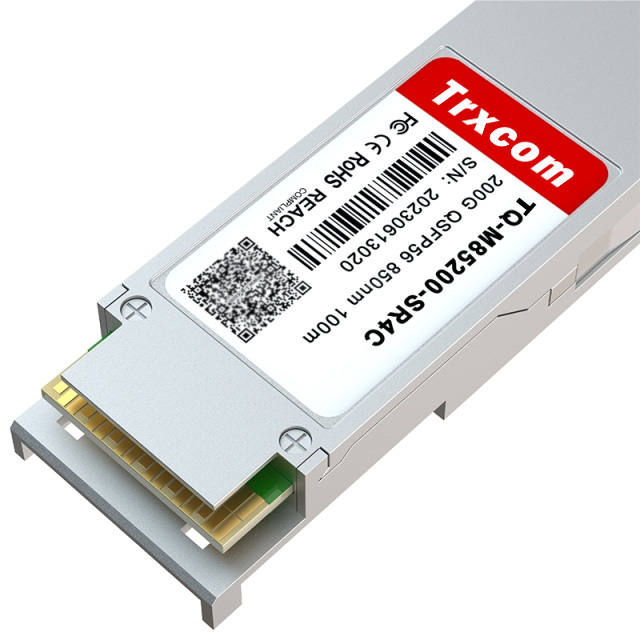

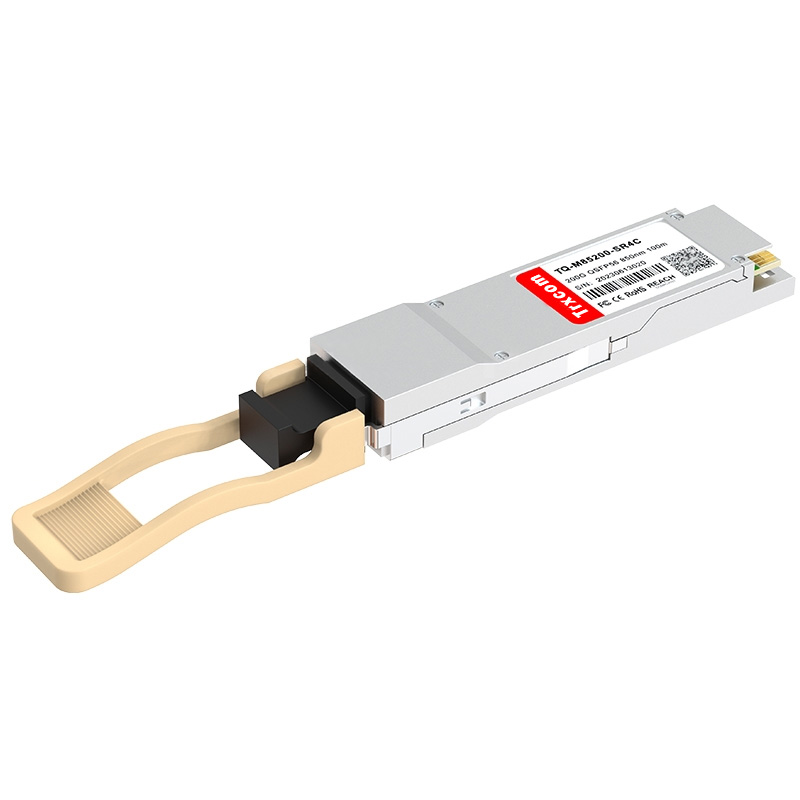

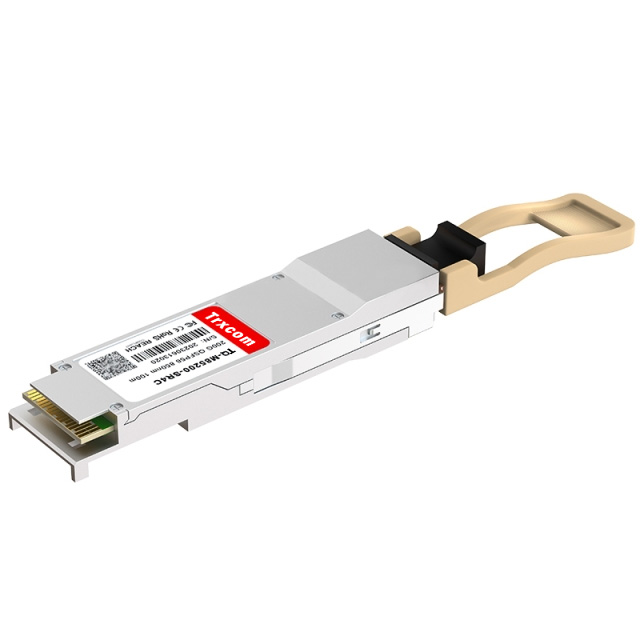

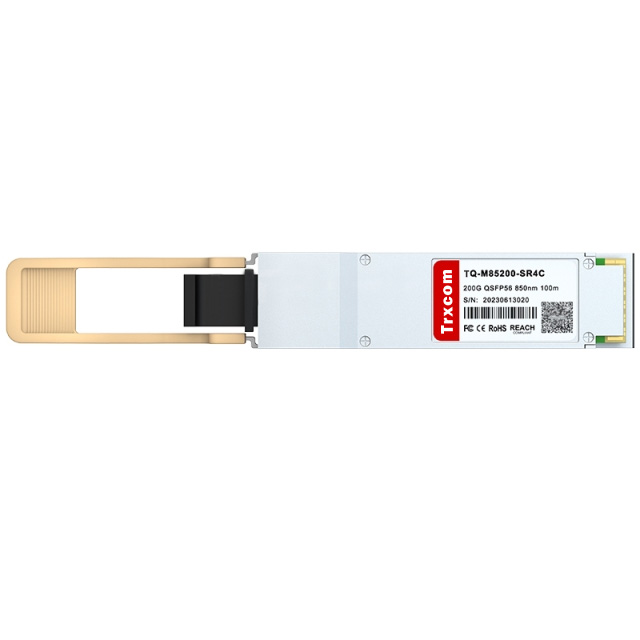

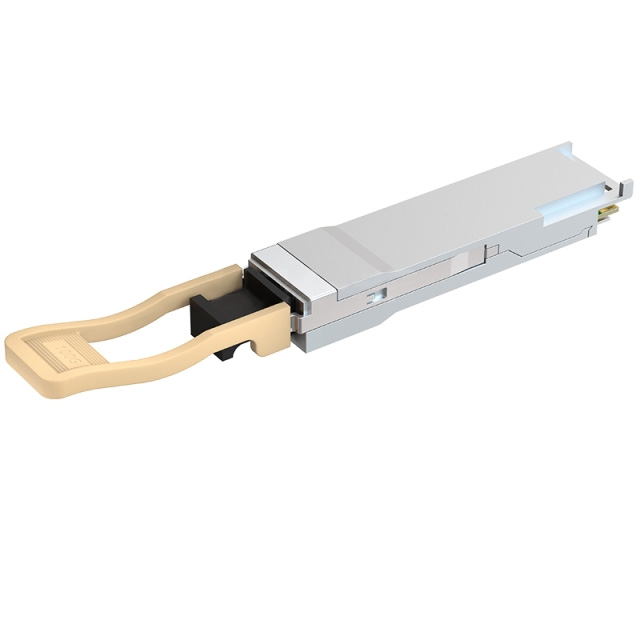

NVIDIA/Mellanox MMA1T00-VS Compatible 200GBASE-SR4 QSFP56 4 x 50G PAM4 850nm 100m MPO-12/UPC MMF Ethernet Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
P/N ： TQ-M85200-SR4C
Compatible Brand ： NVIDIA/Mellanox
Compatible P/N ： MMA1T00-VS
Form Factor ： QSFP56
Type ： Multi Mode
Data Rate ： 200G
Model ： SR4
Connector ： MPO-12/UPC
Distance ： ≤100m
Wavelength ： 850nm
Compatible Brand:
NVIDIA/Mellanox
Compatible P/N:
MMA1T00-VS
Get a Quote
Consult products
DetailReview(0)

NVIDIA/Mellanox MMA1T00-VS Compatible Trxcom TQ-M85200-SR4C 200GBASE-SR4 QSFP56 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The Trxcom TQ-M85200-SR4C for Mellanox MMA1T00-VS Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.

The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards. Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.

NVIDIA/Mellanox Ethernet CompatibleMMA1T00-VSVendor NameTrxcom
Form FactorQSFP56Max. Data Rate200Gbps
Wavelength850nmMax. Cable Distance70m@OM3/100m@OM4
ConnectorMPO-12/UPCMediaMMF
Transmitter TypeVCSEL 850nmReceiver TypePIN
TX Power-3~3dBmMinimum Receiver Power-6.5dBm
Power Budget3.5dBmReceiver Overload5dBm
Max. Power Consumption4.35WExtinction Ratio3dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
ProtocolsIEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0, RoHS 10Warranty5 Years
