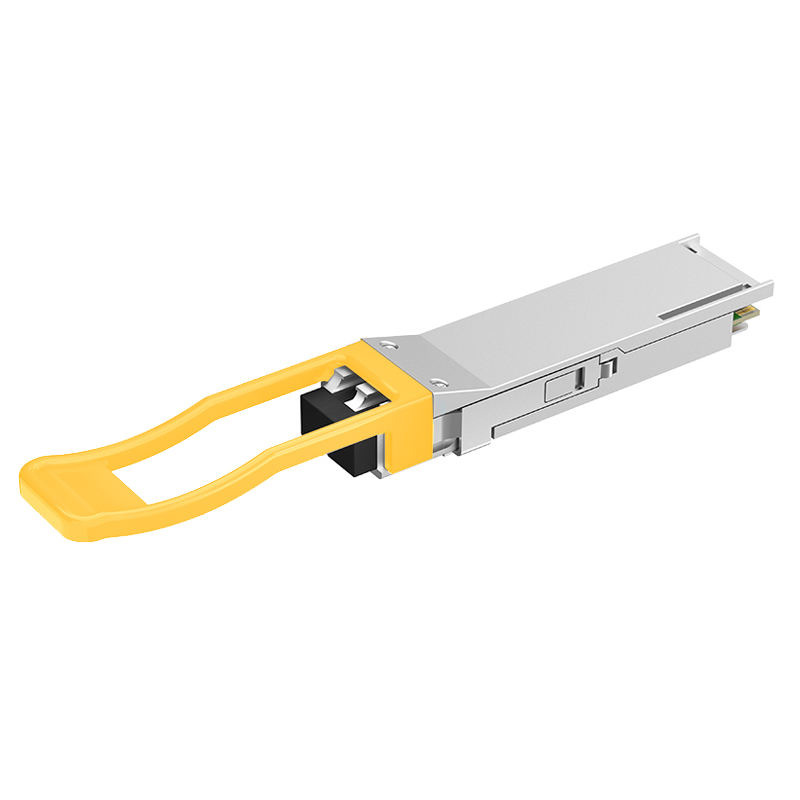

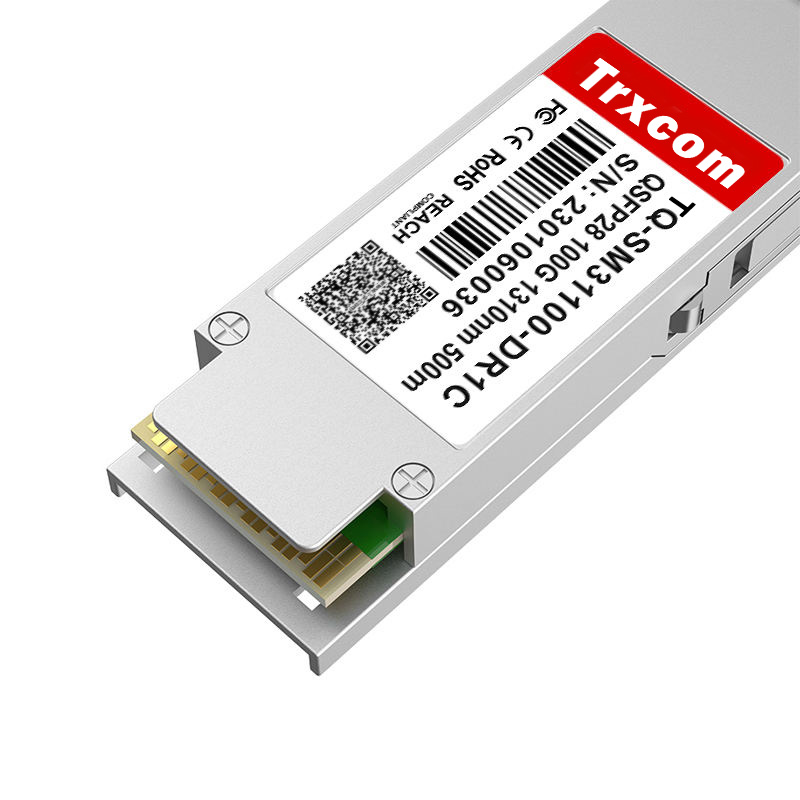

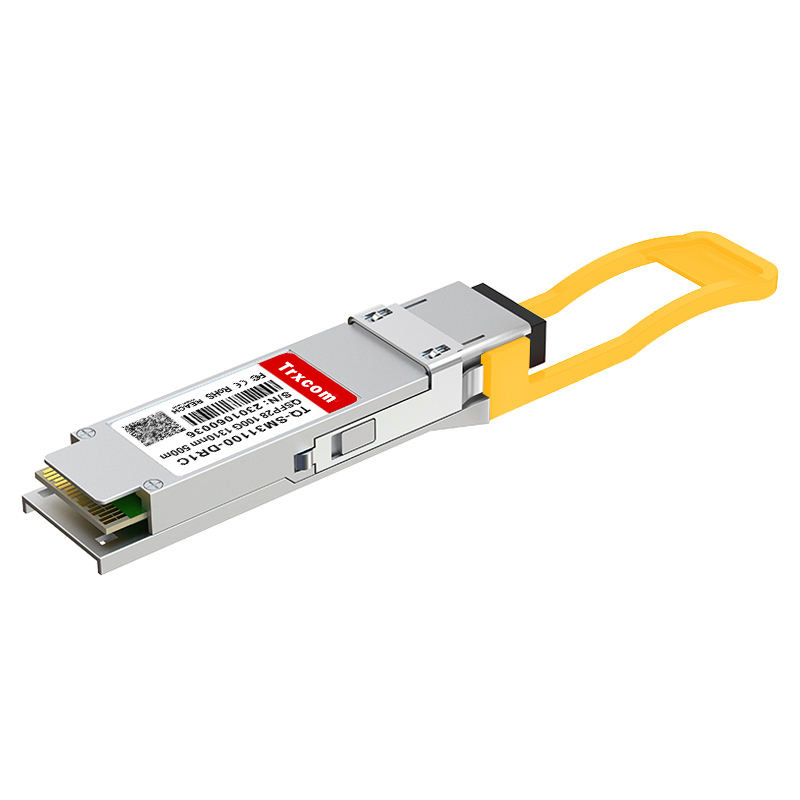

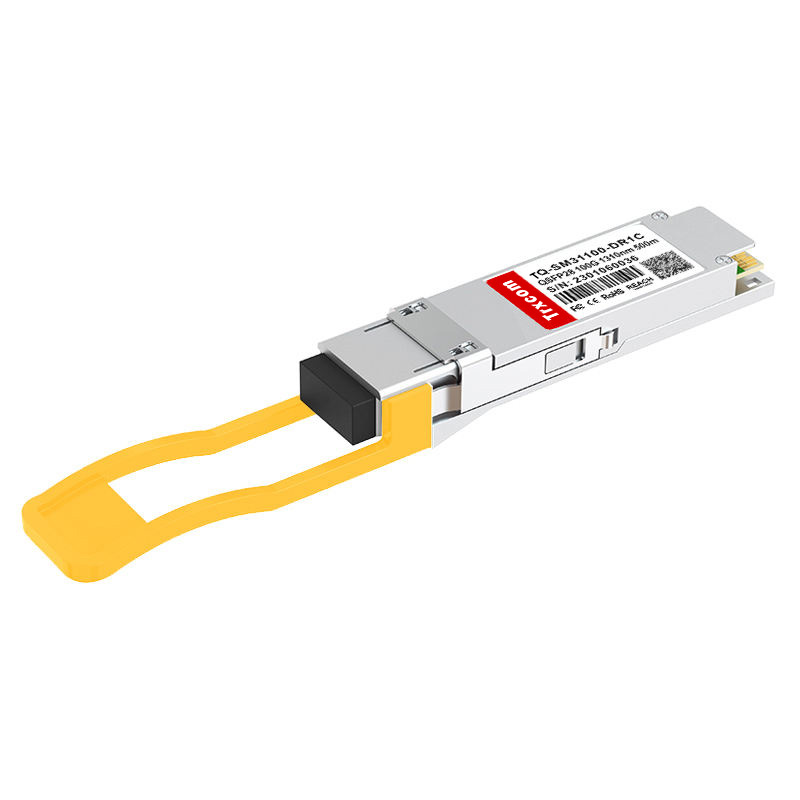

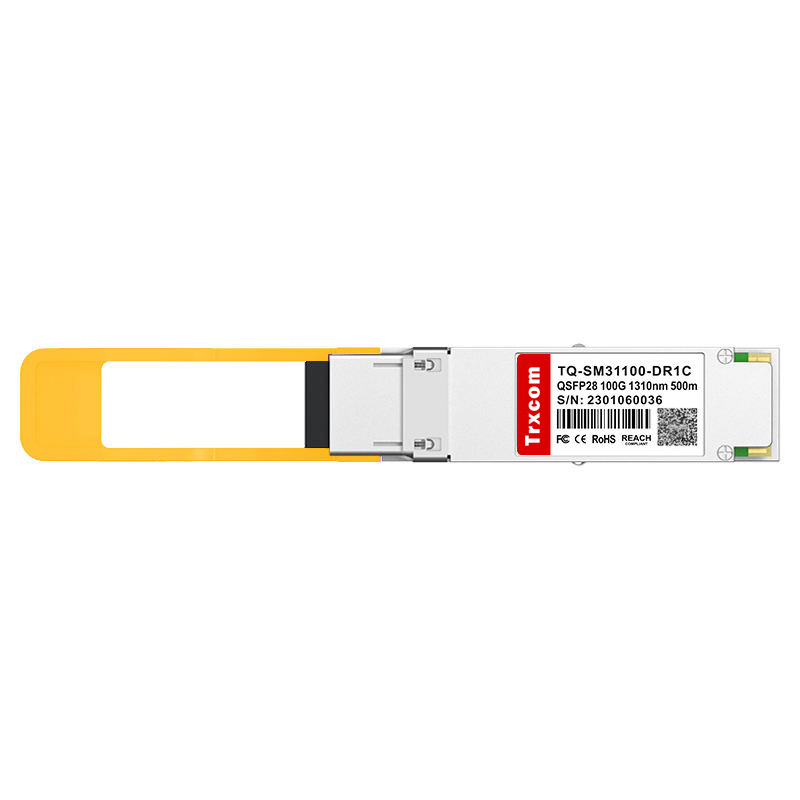

TQ-SM31100-DR1C 100GBASE-DR QSFP28 Single Lambda 4 x 25G NRZ 1310nm 500m Duplex LC/UPC SMF Transceiver Module
share
Parameter
Brand ： Trxcom
P/N ： TQ-SM31100-DR1C
Form Factor ： QSFP28
Type ： Single Mode
Data Rate ： 100G
Model ： DR4
Connector ： Duplex LC
Distance ： ≤500m
Wavelength ： 1310nm
DetailReview(0)
Trxcom TQ-SM31100-DR1C 100GBASE-DR Single Lambda QSFP PAM4 Optical Transceiver Module (Single Lambda, SMF, 1310nm, 500m, LC, DOM)
The 100GBASE-DR Single Lambda QSFP optical transceiver module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. The transceiver includes a Broadcom chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.
| Part Number | TQ-SM31100-DR1C | Vendor Name | Trxcom |
| Form Factor | QSFP28 | Max. Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max. Cable Distance | 500m |
| Connector | Duplex LC/UPC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4dBm | Minimum Receiver Power | -5.9dBm |
| Power Budget | 3dB | Receiver Overload | 4dBm |
| Max. Power Consumption | 4W | Extinction Ratio | 3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP28 MSA, SFF-8636, IEEE 802.3cu, CAUI-4 | Warranty | 5 Years |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
