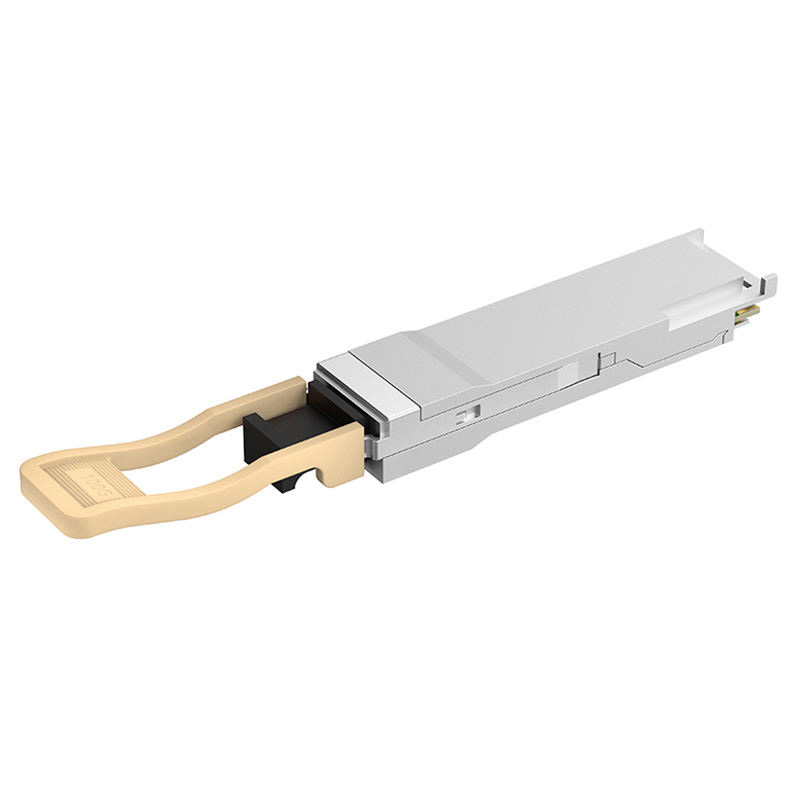

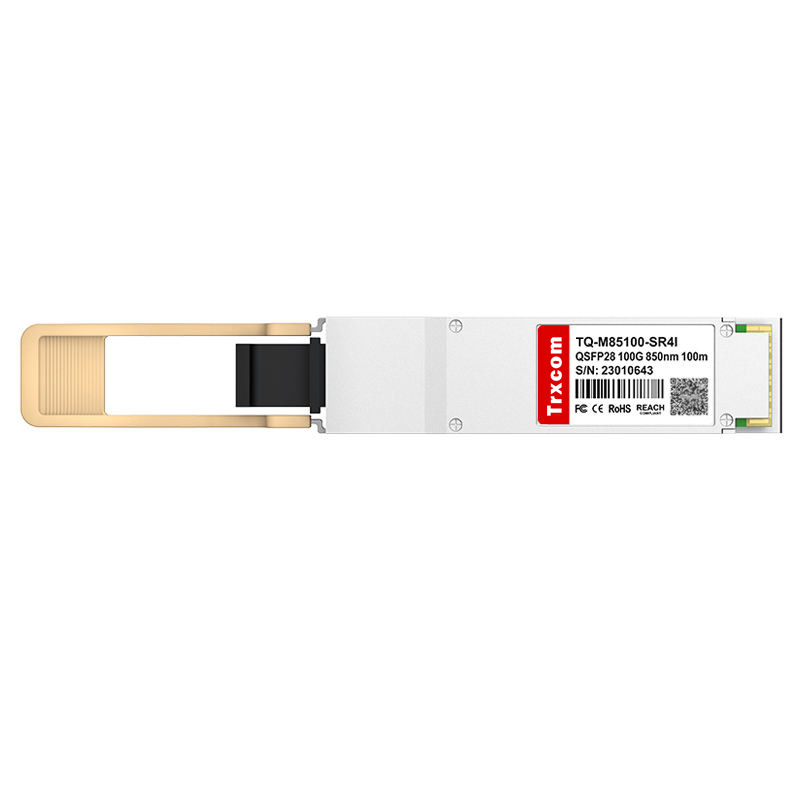

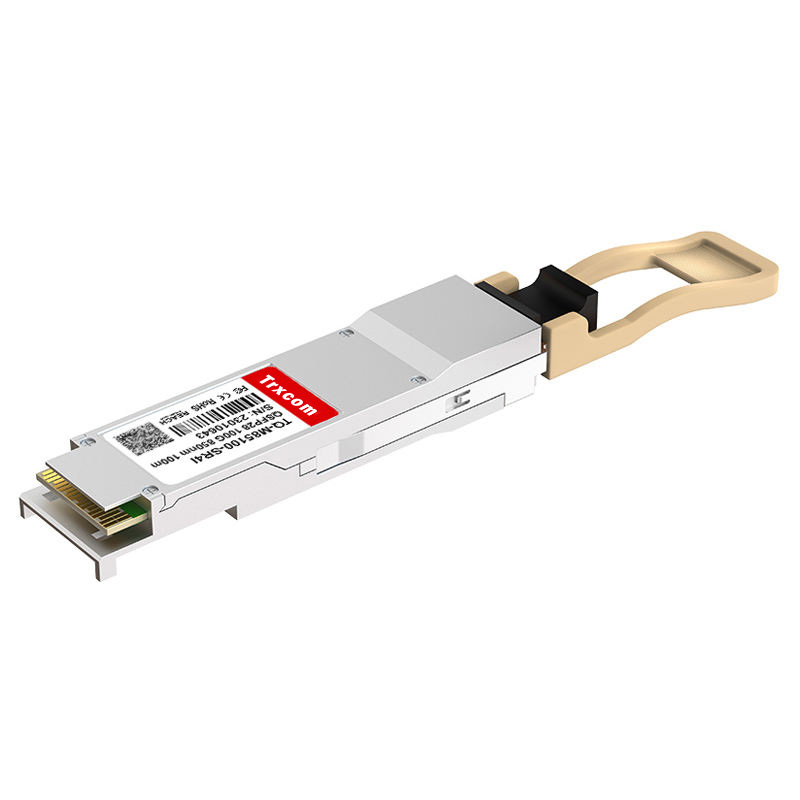

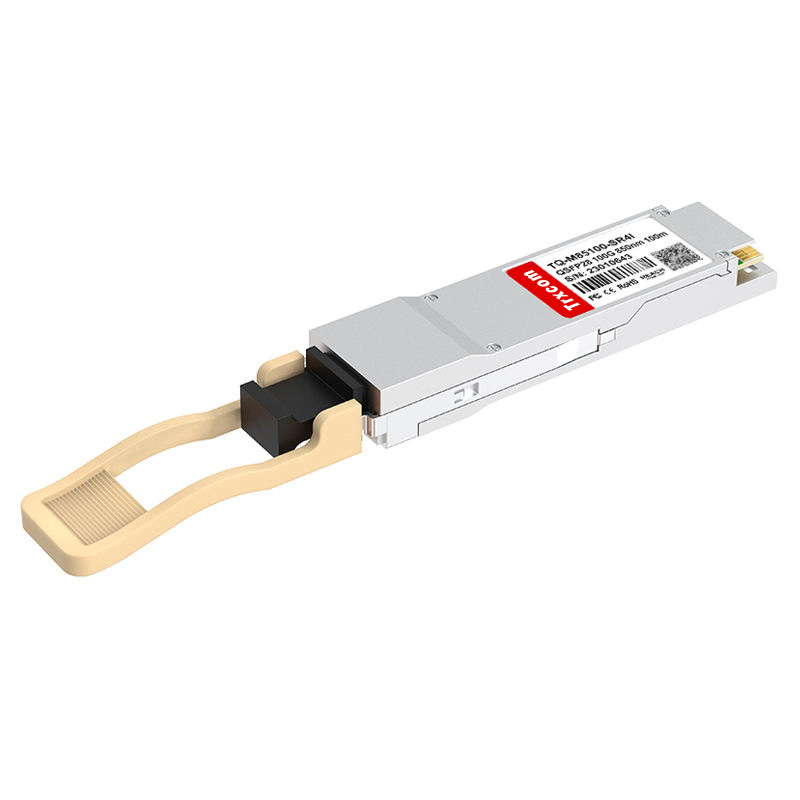

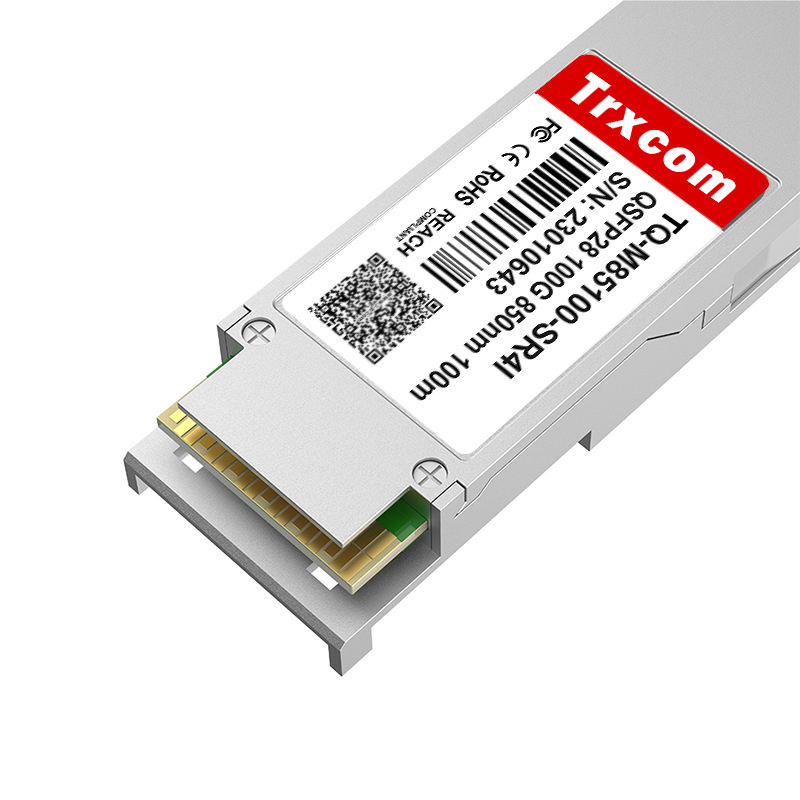

TQ-M85100-SR4C 100GBASE-SR4 QSFP28 4 x 25G NRZ 850nm 100m MPO-12/UPC MMF Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand ： Trxcom
P/N ： TQ-M85100-SR4C
Form Factor ： QSFP28
Type ： Multi Mode
Data Rate ： 100G
Model ： SR4
Connector ： MPO-12/UPC
Distance ： ≤100m
Wavelength ： 850nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TQ-M85100-SR4C 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The 100GBASE-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 70m over OM3 and 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. The module also supports breakout to 4x 25GBASE-SR SFP28. The transceiver is compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, and CAUI-4 standards. Digital diagnostics are provided via the I2C interface for real-time monitoring.

It is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.

Part NumberTQ-M85100-SR4CVendor NameTrxcom
Form FactorQSFP28Max. Data Rate103.125Gbps (4x 25.78Gbps)
Wavelength850nmMax. Cable Distance70m@OM3/100m@OM4
ConnectorMTP/MPO-12/UPCMediaMMF
Transmitter TypeII-VI VCSELReceiver TypePIN
TX Power-8.4~2.4dBmMinimum Receiver Power-10.3dBm
Power Budget1.9dBReceiver Overload2.4dBm
Typical Power Consumption≤2.5WExtinction Ratio＞2dB
DDM/DOMSupportedCommercial Temperature Range0 to 70°C (32 to 158°F)
ProtocolsQSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4Warranty5 Years
