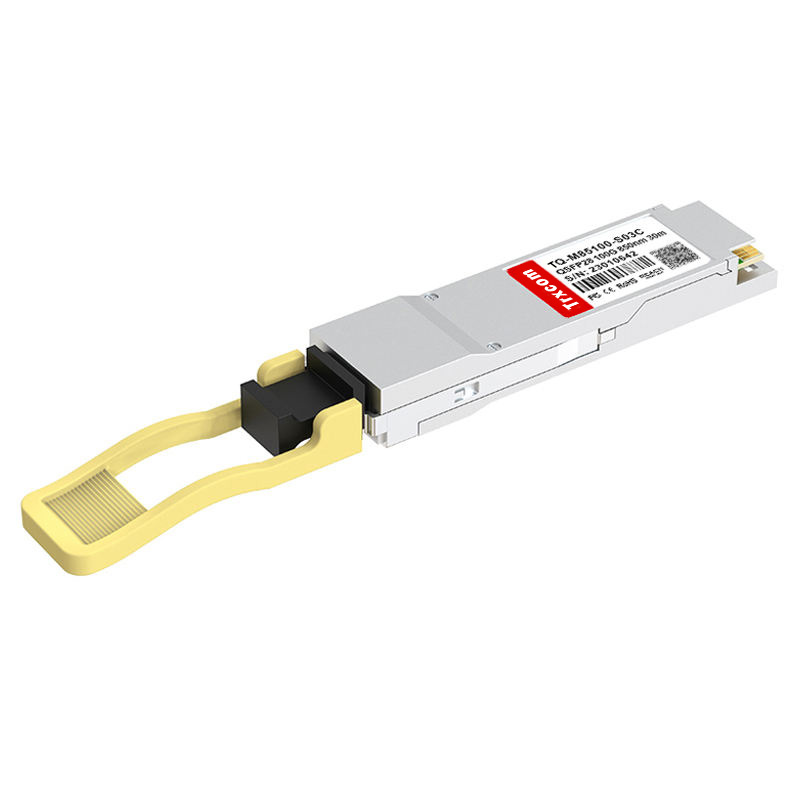

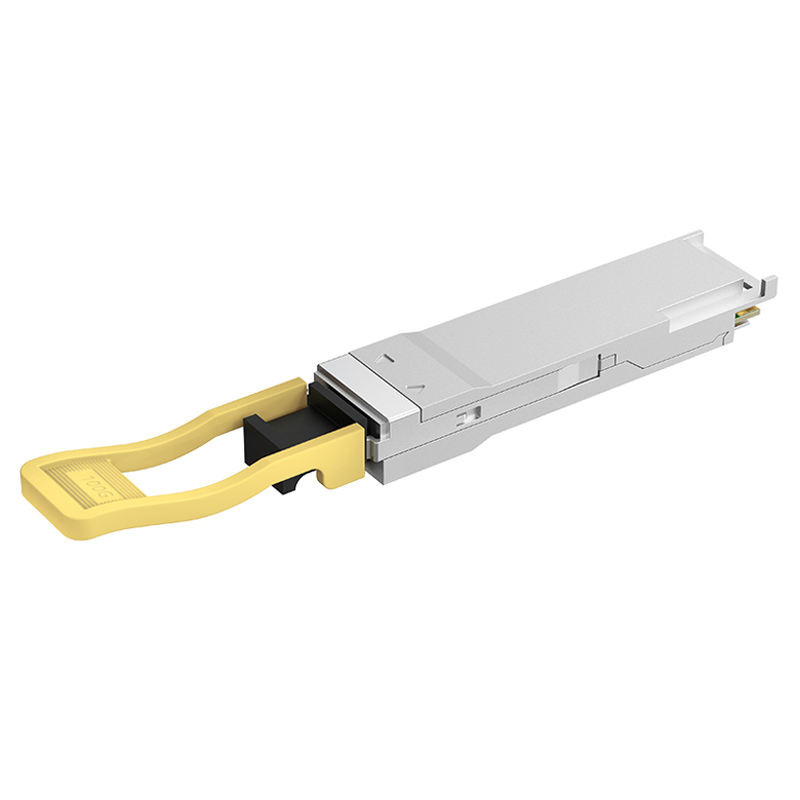

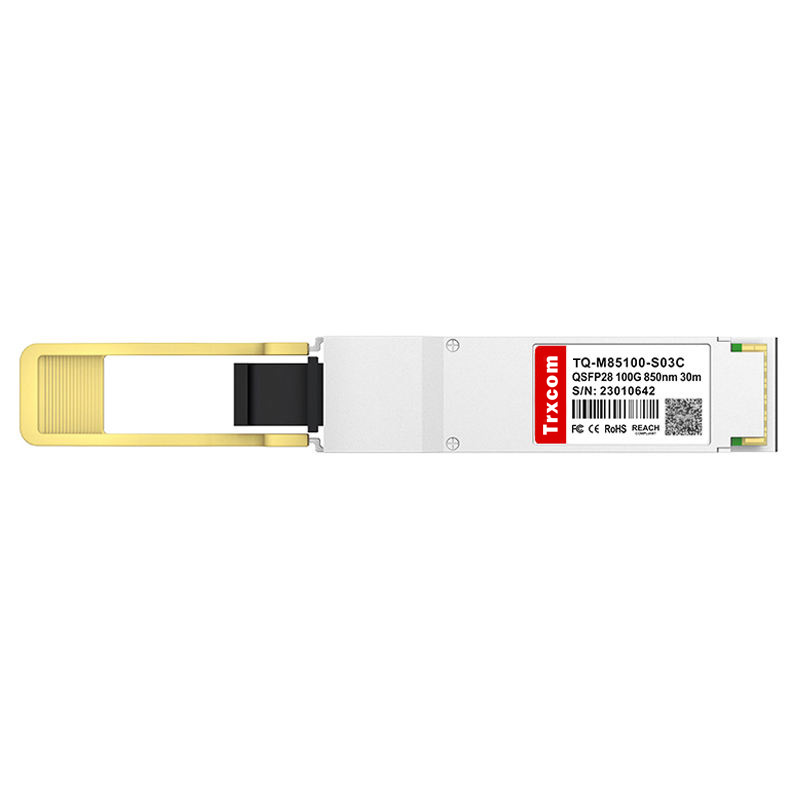

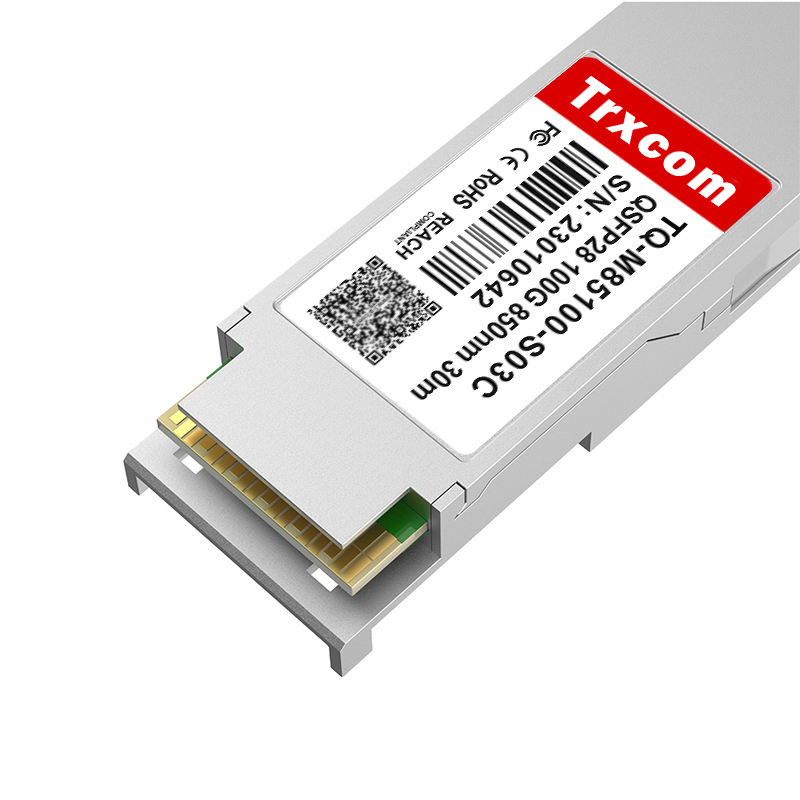

TQ-M85100-S03C 100GBASE-SL4 QSFP28 4 X 25G NRZ 850nm 30m MPO-12/UPC MMF Transceiver Module
share
Parameter
Brand ： Trxcom
P/N ： TQ-M85100-S03C
Form Factor ： QSFP28
Type ： Multi Mode
Data Rate ： 100G
Model ： SR4
Connector ： MPO-12/UPC
Distance ： ≤30m
Wavelength ： 850nm
DetailReview(0)
Trxcom TQ-M85100-S03C 100GBASE-SL4 QSFP28 Optical Transceiver Module (MMF, 850nm, 30m, MTP/MPO, DOM)
The QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 30m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
| Part Number | TQ-M85100-S03C | Vendor Name | Trxcom |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 850nm | Max Cable Distance | 20m@OM3/30m@OM4 |
| Connector | MPO-12 | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm | Minimum Receiver Power | -10.3dBm |
| Power Budget | 1.9dBm | Receiver Overload | 2.4dBm |
| Max Power Consumption | ≤2.5W | Extinction Ratio | ＞2dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3bm | Warranty | 5 Years |
